Dear customer,

Thank you so much for allowing us to share the experience of using an Inmes product.

The following manual has been formulated by our technical team especially for you to guide you in using

this equipment safely and productively.

The FF-325 Plus Square Mower was developed with the latest technology to solve your needs.

wood sheet cutting problems, allowing you to get the most cost-effective sheet metal cutting, plus a great

finish enhancing the furniture even more.

Visit our website and learn about our releases and other product lines.

http://www.inmes.com.br

If you need to find a nearest Authorized Technical Assistant on our site.

Write down here the serial number of your equipment.

Note: INMES Industrial LTDA. reserves the right to change this manual without prior notice.

INMES Industrial Ltda – Sliding table saw FF-325 Plus 2

ÍNDICE

1. GENERAL INFORMATIONS......................................................................................................................4

1.1 Introdution................................................................................................................................................4

1.2 Machine identification.............................................................................................................................4

1.3 Service recomendations ...........................................................................................................................4

2. SAFETY PRECAUTIONS............................................................................................................................5

2.1 Security rules ...........................................................................................................................................5

2.2 Organizational risks.................................................................................................................................6

2.3 Safety notices and information’s signs ....................................................................................................6

3. SPECIFICATIONS........................................................................................................................................7

3.1 Knowing the sliding table saw FF-325 PLUS .........................................................................................7

3.2 Technical specifications...........................................................................................................................8

3.3 Eletrical installation.................................................................................................................................8

3.4 Noise level ...............................................................................................................................................9

3.5 Dust Collector (Pic.3.5) ...........................................................................................................................9

3.6 Safety mechanisms (Pic.3.6)..................................................................................................................10

4. INSTALLATION ........................................................................................................................................11

4.1 Package contents (Pic.4.1).....................................................................................................................11

4.2 Loading and unloading equipment (Pic.4.2)..........................................................................................12

4.3 Characteristics of the installation area (Pic.4.3) ....................................................................................13

4.4 Installation of moving parts...................................................................................................................13

4.4.1 Extender table installation (Pic.4.4.1).............................................................................................14

4.4.2 Dust collector and hose bracket istallation (Pic.4.4.2)....................................................................14

4.4.3 Cross table installation (Pic.4.4.3)..................................................................................................14

4.4.4 Stop installation (Pic.4.4.4).............................................................................................................15

4.4.5 Ruler guide installation (Pic.4.4.5).................................................................................................15

4.4.6 Ruler installation (Pic.4.4.6)...........................................................................................................15

5. SETTINGS...................................................................................................................................................16

5.1 Scratch adjustment (Pic.5.1) ..................................................................................................................16

5.2 Extension table level adjustment (Pic.5.2)............................................................................................16

5.3 Precise ruler adjustment (Pic.5.3)..........................................................................................................17

6. Operation procedures...................................................................................................................................17

6.1 Turning the machine on and off (Pic.6.1)..............................................................................................17

6.2 Workspace (Pic.6.2)...............................................................................................................................18

6.3 Working with the saw............................................................................................................................18

6.3.1 Working with the saw extender (Pic.6.3.1).........................................................................................18

6.3.2 Working with the saw (Pic.6.3.2) .......................................................................................................19

6.4 Proper use of the machine (Pic.6.4).......................................................................................................19

7. MAINTENANCE ........................................................................................................................................20

7.1 Saw blade replacement (Pic.7.1)............................................................................................................20

7.2 General cleaning (Pic.7.2)......................................................................................................................20

INMES Industrial Ltda – Sliding table saw FF-325 Plus 3

7.3 General lubrication (Pic.7.3)..................................................................................................................21

7.4 Saw machine lubrication table (Pic.7.4)................................................................................................21

7.5 Spare and discard...................................................................................................................................21

8. TROUBLESHOOT GUIDE (Pic.8.0)..........................................................................................................22

INMES Industrial Ltda – Sliding table saw FF-325 Plus 4

1. GENERAL INFORMATIOS

1.1 Introduction

This machine is designed to make straight or angled cuts, especially on wood sheets.

Some information and illustrations in this manual may differ from the machine you own, the

descriptions and illustrations are based on a machine containing all options. Theref

ore, refer only to

information connected with the purchased machine configuration.

With this manual we would like to promote the information necessary for the maintenance and proper

use of the machine. Our technical support network is available for any technical problems, new parts or any

other requirements that may be necessary for the development of your activity.

This manual must be read and understood by the operator before operating the machine. This will

promote greater knowledge of the product's operation for greater safety and better results.

For readability, this manual has been divided into parts highlighting the most important operations. For

a quick search of the topics, it is recommended to consult the index. To mark the importance of some basic

passages we highlight these through symbols that show their proper procedure.

Safety Warnings:

Safety information that, if not followed, will pose a serious risk to the operator.

Safety information which, if not followed, could pose a serious risk to the life of the

operator.

Safety information which, if not followed, could injure the operator.

1.2 Machine identification

There is a machine nameplate, containing company data, year of manufacture, serial number and

technical specifications.

1.3 Service Recommendations

We request that only trained and authorized persons may service or perform any operation involving

disassembly of the machine. Follow the instructions in this manual for the correct use of your equipment.

Only trained and authorized personnel should use and service the machine after reading the instruction

manual. Respect accident prevention regulations, general safety rules as well as industrial medicine rules.

INMES Industrial Ltda – Sliding table saw FF-325 Plus 5

2. SAFETY PRECAUTIONS

2.1 Security rules

Read the instruction manual carefully before you start using, storing, moving or doing any other

operation with this machine.

- The manufacturer disclaims any liability for damage to persons or objects which may be caused by any

failure to comply with safety rules.

- The machine operator must be trained by a qualified person to operate this machine.

- It is strictly forbidden to use the machine under the influence of alcohol, drugs or medications.

- All operators must be properly trained in the use, adjustment and operation of the machine.

Operators should read the manual carefully, paying particular attention to warnings and safety notes. In

addition, they must be informed of the hazards associated with the use of the machine and the precautions

to be taken, and must also be instructed to periodically inspect the guards and safety equipment.

- Before moving, adjusting, repairing or cleaning, disconnect the machine from the mains.

After a long period of disuse, the machine belts may loosen, this causes an increase in blade downtime

(downtime should be less than 10 seconds) immediately tighten the belts.

- The work area around the machine must always be kept free and clean to allow immediate access to the

control panel.

- Never use blades other than those prescribed for use with the machine. The material to be cut must not

contain metal parts.

- Never cut parts that may be too small or too large while respecting the capabilities of the machine.

- Do not cut pieces of wood that contain visible defects (cracks, knots, metal parts, etc.).

- Never put your hands between the moving parts of the machine.

- Keep your hands away from the saw; Feed the saw with the help of a pusher.

- Keep unauthorized persons away from the machine.

- Never use cracked or challenged broken saw blades.

- Do not use the blade beyond the speed limits imposed by the manufacturer.

- Carefully wipe the surface of the blade and make sure that the blade is horizontally well positioned and

undamaged.

- Always wear gloves to hold the blade.

- Mount the blade in the correct cutting direction of the machine.

- Never start the machine without being properly protected by the safety material.

- Fit the suction ducts to a correct exhaust system; Collectors should always be on while the machine is on.

- Never open the safety door while the machine is operating.

- Some unpleasant experiences have shown that operators wearing objects such as watches, bracelets and

rings are in danger because they can cause serious accidents, so remove any of these objects before

operating the machine.

- Button and fasten the work clothes to the operator's body.

- Remove any hanging or loose clothing as it may get caught in the moving parts of the equipment, causing

accidents.

- Always wear strong shoes in accordance with the appropriate regulations of each country.

- Wear goggles, ear protectors and correct masks.

- Never let unauthorized persons operate, adjust or tidy up the machine.

- The manufacturer is not responsible for any damage caused by arbitrary modifications to the machine.

- Any transportation, assembly or disassembly must be done by trained personnel who have been qualified

for the specified operation.

-The operator should not leave the machine at any time without turning it off.

INMES Industrial Ltda – Sliding table saw FF-325 Plus 6

- During any work break turn off the machine.

- In case of a long period without using the machine, unplug the machine from the power supply.

- The method of operation to be followed in the event of an accident or equipment breakdown should be:

first the machine should be disconnected from the mains immediately, and then it is recommended to seek

assistance from authorized persons.

2.2 Organizational Risks

Despite the observations, all the safety recommendations and the use according to the rules described

in the manual, some risks may still be present, among them the most recurring ones are:

- Contact with the blade.

- Contact with moving parts (straps, straps, etc.).

- Repulsion of parts.

- Accidents caused by pieces of wood or fragments.

- Mechanical shocks with the blade.

- Electrocution by contact with uninsulated parts.

- Danger caused by a badly installed blade.

- Reverse rotation of the saw blade due to incorrect electrical installation.

- Danger caused by inhalation of dust caused by using the machine without dust extraction.

Remember that the use of any sawing machine poses serious risks. Use proper care and concentration for all

machine types (even the simplest). The greatest security is in your hands.

2.3 Safety notices and information’s signs

These signals must be applied to machines; in some cases they indicate hazardous conditions, in others

they serve as an indication. Always be very careful when operating this equipment.

SAFETY WARNINGS:

Risk of injury to eyes. Wear safety goggles.

Use ear protectors.

Danger of electric shock. Do not access this area with the machine turned on.

Read and understand the instruction manual before using the machine.

INMES Industrial Ltda – Sliding table saw FF-325 Plus 7

INFORMATIONS NOTICES:

Indicates technical characteristics, steering and tilt, locked or released, etc. Carefully follow directions to

simplify use and adjustment of the machine.

Warnings have been described graphically and do not require further explanation.

3. SPECIFICATIONS

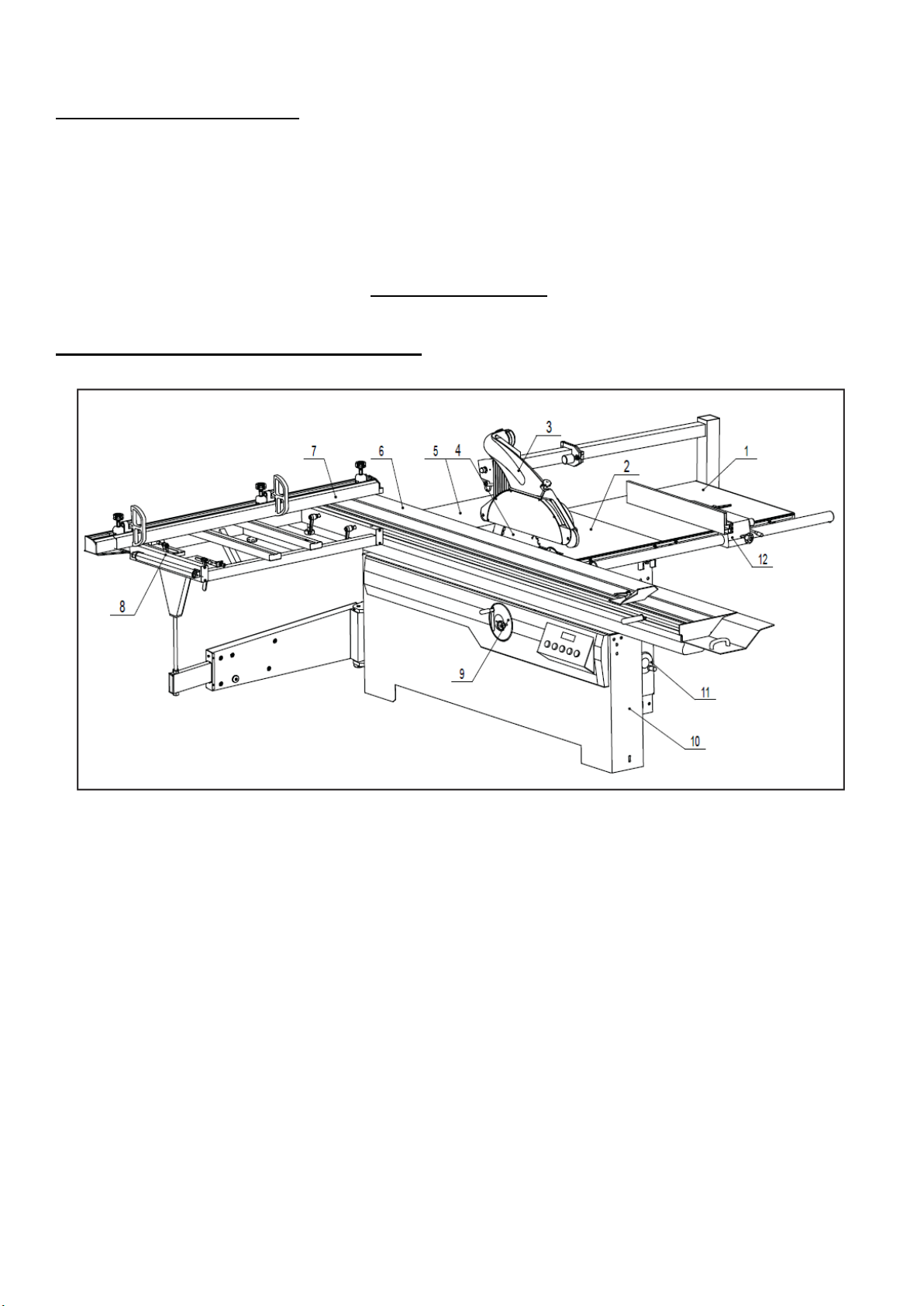

3.1 Knowing the sliding table saw FF-325 Plus

1- Right extension table;

2- Main table;

3- Dust collector;

4- Saw blade;

5- Auxiliary table;

6- Car;

7- Sliding table stop;

8- Cross table;

9- Blade tilt adjustment knob;

10-Structure;

11-Height adjustment knob;

12-Right table ruler;

INMES Industrial Ltda – Sliding table saw FF-325 Plus 8

3.2 Technical specifications

SPECIFICATIONS

Motor voltage

220V/60Hz Single

220/380V/60HzThree

Main engine power

3,0cv

5,5cv

Scratch motor power

3/4cv

Max diameter of saw

315mm

Minimum saw diameter

250mm

Main blade speed

4000rpm

Scratching blade diameter

120mm

Speed scratched blade

8000rpm

Tilt blade

90° ~45°

Main table measure

800x530mm

Right extensor measure

800x820mm

Ruler Max Capacity

1300mm

Max Height cutting saw 300mm

95mm-90° , 70mm-45°

Max Height cutting saw 250mm

70mm-90° , 49mm-45°

Table Dimensions

3200x375mm

Movable table offset

3350mm

Cross table

1200x630mm

3.3 Electrical installation

Electrical installation must be done by qualified and trained personnel.

- Main connections must be made by a terminal box.

- Replacement of the power cord on the machine should only be performed by a qualified electrician.

- Plug the machine's Power cords into an electrical outlet: 380V±10% or 220V±10%

according to the

model in hand of the FF-325 Plus

We recommend installing properly sized circuit breakers for this machine. With the mains voltage at

220V, a 20A circuit breaker is recommended, and at 380V, a 16A circuit breaker is recommended. For a

single phase 220V machine a 25A circuit breaker is recommended.

To prevent electric shock or fire, any maintenance or repair to the electrical system should only be

done by trained electricians using genuine parts of the machine.

Tabla de contenidos

Otros manuales de Sierra de Inmes

Inmes

Inmes IM-300PL AL Manual de usuario

Inmes

Inmes IM-300PL AL Manual de usuario

Inmes

Inmes IM-30 MM Manual de usuario

Manuales populares de Sierra de otras marcas

RIDGID

RIDGID BS1400 Manual de usuario

ATIKA

ATIKA BWS 400-2 Manual de usuario

RGC

RGC FS20 Manual de usuario

Makita

Makita M2300 Manual de usuario

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manual de usuario

IMET Spa

IMET Spa SIRIO 370 AF-E Manual de usuario

Optimum

Optimum OPTisaw CS 275 Manual de usuario

Makita

Makita BPB180 Manual de usuario

Stihl

Stihl MS 462 C-M Manual de usuario

AEG

AEG TS 250 K Manual de usuario

Meec tools

Meec tools 004665 Manual de usuario

Makita

Makita LS1018L Manual de usuario

Ryobi

Ryobi RCS1400 Manual de usuario

DeWalt

DeWalt DCS391 Manual de usuario

Sealey

Sealey SA72 Manual de usuario

skilsaw

skilsaw SPT88 Instrucciones de montaje

Urrea

Urrea SI810 Dimensiones y guía de instalación

EINHELL

EINHELL BKG 210/1 Manual de usuario
