Infobit IShare+ Manual de usuario

iShare+

4 x 2 Presentation Switcher with local sources and BYOD

Version: V2020.01

User Manual

Important Safety Information

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Do not use this product near water. Keep away from wet places, such as: spas, pools, sinks,

laundries, wet basements, etc.

4. When cleaning, unplug the switcher and wipe with a dry cloth. Do not use damp cloths, cleaning

fluids, or aerosols which may result in electric shock, fire, or switcher damage.

5. Operate this product using only the included power supply and/or power cable. Use of an

unapproved power implement may impair performance, damage the product, or cause fires.

6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

7. Do not install or place this product near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat.

8. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the product.

9. Only use attachments/accessories specified by BC to avoid fire, shock, or other hazards.

10. To reduce the risk of electric shock and/or damage to this product, never handle or touch this

switcher or power cord if your hands are wet or damp. Do not expose this product to rain or

moisture.

11. Unplug this product during lightning storms or when unused for long periods of time.

12. Never open, remove switcher panels, or make any adjustments not described in this manual.

Attempting to do so could result in electric shock, damage to the switcher, or other hazards.

Contents

Important Safety Information..........................................................................................................................................2

1. Introduction................................................................................................................................................................. 1

2. Features........................................................................................................................................................................ 1

3. Package Contents..................................................................................................................................................... 1

4. Panel Description.......................................................................................................................................................1

Front Panel.................................................................................................................................................................1

Rear Panel..................................................................................................................................................................3

5. Specifications..............................................................................................................................................................4

6. Installation and Wiring..............................................................................................................................................5

Installation..................................................................................................................................................................5

Wiring..........................................................................................................................................................................5

7. Key Function................................................................................................................................................................6

Screen Layout Switch..............................................................................................................................................6

Automatic Signal Switching....................................................................................................................................7

Screen Mirroring....................................................................................................................................................... 7

(1) Screen Mirroring over Airplay........................................................................................................................... 7

(2) Screen Mirroring over Miracast........................................................................................................................ 8

(3) Screen Mirroring over USB Dongle............................................................................................................... 11

Guide Screen.......................................................................................................................................................... 12

OSD...........................................................................................................................................................................12

8. Web UI.........................................................................................................................................................................14

General Tab............................................................................................................................................................. 15

Device Name...........................................................................................................................................................15

Network....................................................................................................................................................................15

Access Code...........................................................................................................................................................16

Analog Audio Latency........................................................................................................................................... 16

Soft AP Password.................................................................................................................................................. 16

Output.......................................................................................................................................................................17

Sink Power Management......................................................................................................................................17

Password................................................................................................................................................................. 18

Guide Screen Picture.............................................................................................................................................19

Maintenance............................................................................................................................................................19

Version Information................................................................................................................................................19

Video Source Tab...................................................................................................................................................20

State & Switch.........................................................................................................................................................20

Manage Alias...........................................................................................................................................................20

9. Video Source Tab.....................................................................................................................................................21

1. Introduction

The iShare Plus is a high-performance BYOD presentation switcher with wireless presentation capability.

It equips the built-in Wi-Fi module and supports multiple access approaches, including Airplay Mirroring,

Miracast, physical interfaces (HDMI, VGA and USB-C) and USB Dongle, with which you can project

screen contents of your computer (Mac/Windows) or mobile device (iPhone/iPad/Android) to a display in

Multiview mode.

Multiple features like fast seamless switching, auto signal switch, serial control, CEC, Guide Screen, OSD

display, USB switching and extension are included. The switcher is a collaboration terminal used for your

meeting room.

2. Features

Multiview presentation with configurable screen layout.

Built-in Wi-Fi module for wireless connectivity with devices over Airplay, Miracast and USB Dongle.

Fast seamless switching for both single view and Multiview.

Supports HDMI input resolutions up to 4K@30Hz 4:4:4.

Supports HDMI output resolutions up to 4K@60Hz 4:4:4.

Detailed and friendly OSD information.

Supports USB extension and switching control among three USB hosts.

Offers multiple control approaches: front panel buttons, Web UI and Telnet API.

Multiview layout adjustable by the end user.

3. Package Contents

1 x Switcher

1 x DC 12V Power Adapter (with US, UK, EU, AU pins)

2 x Phoenix Male Connectors (3.5 mm, 4 Pins)

2 x Mounting Brackets (with Screws)

2 x Wi-Fi Antennas

4. Panel Description

Front Panel

No.

Name

Description

Power LED

On: The switcher is powered on.

Off: The switcher is powered off.

Status LED

On: The switcher is outputting at least one video source.

Blinking: The switcher is in standby mode.

Off: The switcher is outputting Guide Screen.

Source Switch

VGA IN ~ USB-C IN Buttons:

Short press to output or stop outputting the corresponding video source.

Hold press to output the corresponding video source in full screen mode.

VGA IN ~ USB-C IN LEDs:

On: The corresponding video signal is valid and is being output.

Blinking quickly: The corresponding video signal is valid but is not being output.

Blinking slowly: The corresponding video signal is being output but is not valid.

Off: The switcher is in standby mode. / The corresponding video signal is neither valid nor

being output.

HDMI 2 Output

HDMI2 Output button: press to switch between Follow mode and Matrix mode for HDMI Output

To switch to Follow mode: long press the HDMI2 Output button until the Follow LED lights

up. In Follow mode, HDMI OUT 2 follows HDMI OUT 1 to output the same video content as

that of HDMI OUT 1.

To switch to Matrix mode: short press the HDMI 2 Output button. In Matrix mode, HDMI

OUT 2 will output a specific video source in single view (specified by Telnet API or Web UI);

continue to short press the button, the HDMI OUT 2 will cycle through the hardware video

sources (VGA > HDMI 1 > HDMI 2 > USB-C > VGA >…) for output.

LED Status:

Follow LED: Lights up when Follow mode is selected.

Matrix LED: Lights up when Matrix mode is selected.

USB

Connect to a U-disk for firmware upgrade.

Connect to the USB Dongle for pairing up with each other.

Reset

Hold press this button for five or more seconds and then release, it will automatically reboot and

restore to its factory defaults.

Rear Panel

No.

Name

Description

Antenna

Connect to the antenna pair provided for the access to Miracast and soft AP function.

DC 12V

Connect to the power adapter provided.

VGA In

Connect to a VGA source for video input as well as analog audio input.

HDMI In 1-2

Connect to an HDMI source device.

USB-C In

Connect to a USB-C video source.

USB Hub

Connect to the USB device (e.g. mouse, keyboard, USB audio) for USB extension between USB

device and USB host.

USB Host

Connect to USB host device for USB extension between USB device and USB host.

RS232 1-2

•RS232-1: Reserved.

•RS232-2: Connect to a RS232-enabled device such as a projector to control the projector.

Pins TX, RX, GND are used to control the connected projector.

Pins 12V, GND are used to provide 12VDC power.

LAN

Connect to a network device (e.g. network switch, router, computer, etc.) for LAN control (Web GUI &

Telnet API) and Airplay Mirroring signal input.

Audio Out

Connect to an audio receiver (e.g. amplifier) for audio output.

HDMI Out 1-2

Connect to an HDMI display device.

5. Specifications

Technical

Input Video Port

1 x VGA; 2 x HDMI; 1 x USB-C;

1 x LAN, 10/100/1000 Mbps Ethernet; 1 x WLAN

Input Resolutions

VGA:

640x4808,9, 720x4808, 720x5766, 800x6008, 1024x7688,9, 1280x7207,8, 1280x8008, 1280x10248,9, 1360x7688,

1366x7688, 1400x10508, 1440x9008, 1600x9008, 1600x12008,9, 1920x10806,8

HDMI/USB-C:

640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x10248, 1360x7688, 1366x7688, 1440x9008,

1400x10508, 1600x12008, 1680x10508, 1920x12008, 720x4808(480p), 720x5766(576p), 1280x7205(720p30),

1280x7206(720p50), 1280x7208(720p60), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10805

(1080p30), 1920x10806(1080p50), 1920x10808(1080p60), 3840x21605(2160p30)

LAN/WLAN: Up to 1920x10808(1080p60)

Note: The input resolution support for LAN or WLAN may vary according to the specific BYOD protocols and

devices.

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz

Output Video Port

2 x HDMI

Output Resolutions

For HDMI OUT 1:

720x4808(480p60), 720x5766(576p60), 640x4808, 800x6008, 1024x7688, 1280x10248, 1366x7688, 1440x9008,

1280x8008, 1680x10508, 1920x21605, 1600x12008, 1920x12008, 2560x14405, 2560x14408, 1280x7206(720p50),

1280x7208(720p60), 1920x10806(1080i50), 1920x10808(1080i60), 1920x10802(1080p24), 1920x10803

(1080p25), 1920x10805(1080p30) , 1920x10806(1080p50), 1920x10808(1080p60), 3840x21602(2160p24) ,

3840x21603(2160p25) , 3840x21605(2160p30) , 3840x21606(2160p50) , 3840x21608(2160p60)

For HDMI OUT 2:

Up to 1920x10808(1080p60)

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz

Input Audio Port

2 x HDMI, 1 x USB-C, 1 x LAN, 1 x Analog Audio, 1 x WLAN

Input Audio Format

RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0

Output Audio Port

2 x HDMI, 1 x Analog Audio

Output Audio

Format

RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0

Control Method

Front panel buttons; Web GUI; Telnet API/CLI

Wi-Fi

Standard

IEEE 802.11 a/b/g/n/ac

Frequency

Dual bands, 2.4~2.4835GHz, 5.0~5.8GHz

Throughout

2T x 2R, up to 867Mbps

Security

WEP, TKIP, AES, WPA, WPA2

General

Operating

Temperature

0°C to 45°C (32°F to 113°F)

Storage

Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

10% to 90%, non-condensing

ESD Protection

Human-body Model:

±8kV (Air-gap discharge)/

±4kV (Contact discharge)

Power Supply

12 V 1 A DC

Power

Consumption

20W (Max)

Device Dimension

(W x H x D)

215 mm x 42 mm x 140.2 mm / 8.46'' x 1.65'' x 5.52''

Net Weight

1.0kg/2.2lbs

6. Installation and Wiring

Installation

Note:

Before installation, please ensure the switcher is disconnected from the power supply.

It is recommended that you remove other WiFi hotspot devices nearby (if any) so to prevent potential

interferences on screen projection.

Attaching Antennas

6.1 Attach the antenna provided to the threaded connector, and screw it down in clockwise.

6.2 Repeat the above step for another antenna.

Attaching Installation Brackets

6.3 Attach the installation bracket to the enclosure using the screws provided in the package separately.

6.4 The bracket is attached to the enclosure as shown.

6.5 Repeat steps 1-2 for the other side of the switcher.

6.6 Attach the brackets to the surface you want to hold the switcher against using the screws (provided by

others).

Wiring

Warnings:

Before wiring, disconnect the power from all devices.

During wiring, connect and disconnect the cables gently.

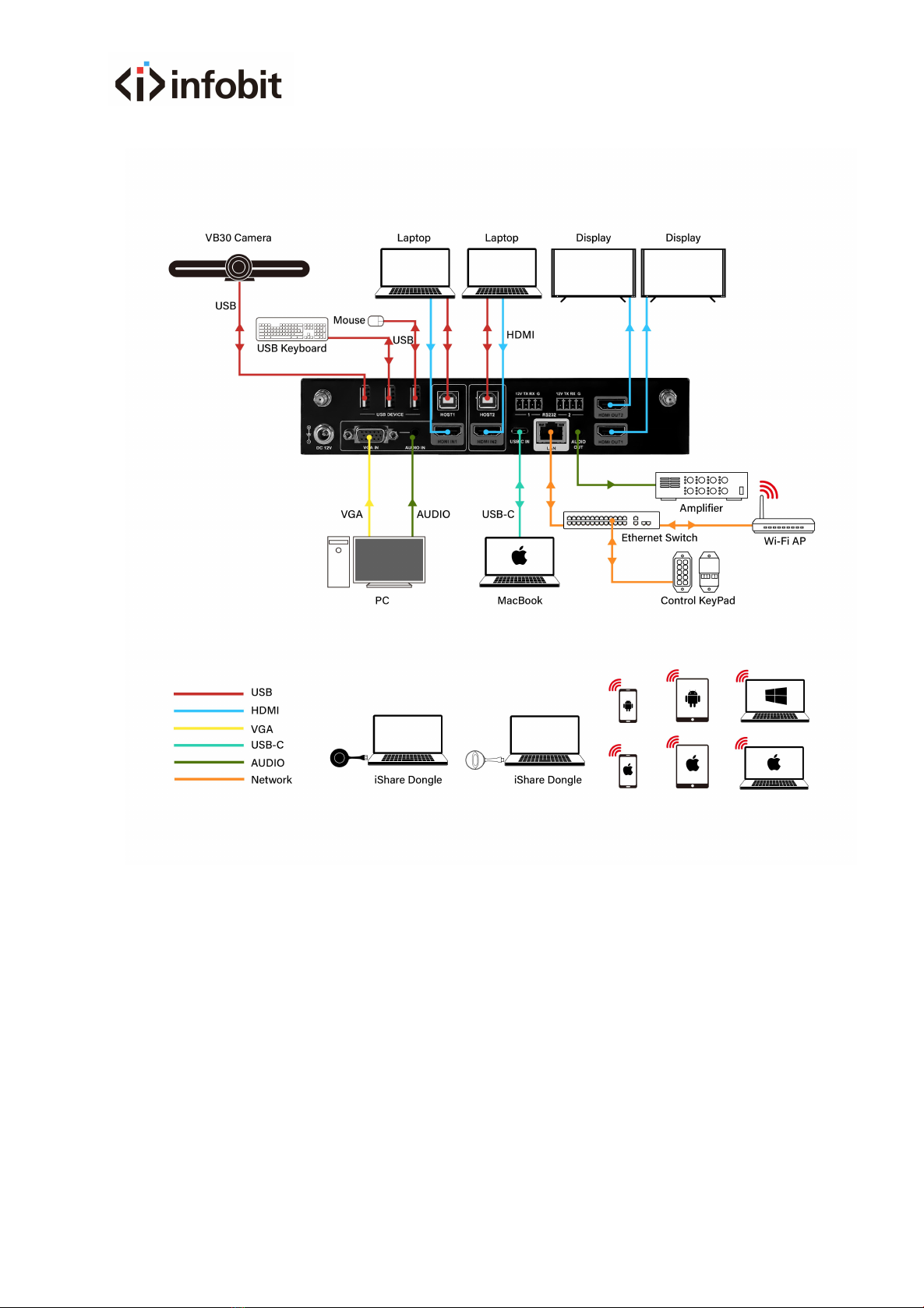

See below application diagram:

Note:

If you connect the switcher to an Ethernet Switch, please ensure the switch is able to forward

messages from the 224.0.0.251 multicast group. Most non-management switches meet this

requirement.

If a management switch is employed, you must contact with the network administrator or switch

supplier to ensure the above requirement is met, and consider to adjust the switch configuration if

necessary.Installation and Wiring

7. Key Function

Screen Layout Switch

The switcher support automatic/manual switching on Multiview screen layout, i.e. multiple video sources

can be displayed in Multiview form on a single screen.

By default, the screen layout switching mode is set as automatic switching for the switcher, and the

preset screen layouts allows for up to sixteen video sources to be displayed on a screen as the following:]

Note:

As the video sources to be displayed increase or decrease, the switcher will automatically change to a

new screen layout so that all video sources can be displayed appropriately on the whole screen.

As the video sources increase till there’s no available screen layout to allows for all these sources to

be displayed on the screen, when a new video source inputs:

1) The source that displays on the screen for the longest will be replaced by the latest input source;

2) The latest input source will display on the main window* of the screen. (*By default, the main

window lies in the upper left of the screen.)

The switcher also offers manual switching on the screen layout, which allows you to customize Multiview

screen layout (up to 8 views), switching sequence and main window. For more information, please see the

separate API documentation.

Automatic Signal Switching

Automatic signal switching function allows you to easily and quickly output desired sources. By default,

automatic signal switching function is set as enabled.

When a video source inputs, the switcher will automatically output and display it on the screen.

When a new video source inputs in the case that there’s no available screen layout for all these video

sources to be displayed, the switcher will have this new video source displayed on the screen’s main

window and remove the video that displays on screen for the longest.

As the video sources increase or decrease, the switcher will change to a new screen layout

automatically so that all video sources can be displayed appropriately on the whole screen.

If all video sources are removed, the switcher will output the Guide Screen picture finally.

The switcher also offers three methods of switching to specific video source manually:

1) Using the front panel buttons to output corresponding hardware video source.

2) Using web UI.

3) Using API commands. For more information please see the separate API documentation.

Screen Mirroring

With screen mirroring support, the switcher allows users to share multimedia wirelessly from their devices

on any HDMI displays. The switcher allows users to perform screen mirroring over Airplay Mirroring and

Miracast.

(1) Screen Mirroring over Airplay

Take iPhone 8 (iOS 13.1) for example:

A. Connect your iPhone to the soft AP of the switcher.

Soft AP SSID: as same as switcher’s device name and can be obtained from OSD at the upper

1 image 2 images 4 images 4 images 6 images 8 images

Tabla de contenidos

Otros manuales de Cambiar de infobit

infobit

infobit iSwitch 265 Manual de usuario

infobit

infobit iSwitch-201K Manual de usuario

infobit

infobit iSwitch 401MV Manual de usuario

infobit

infobit iTrans USB32-S Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario

infobit iShare+ Manual de usuario

Manuales populares de Cambiar de otras marcas
