Infinova V5410-A2 SERIES Manual de usuario

V5410-A2 SERIES

INDOOR COLOR DOME CAMERA

User Manual

CONTENTS

Chapter I Description ............................................................................. 1

Chapter II Main Features ....................................................................... 2

Chapter III Installation........................................................................... 3

3.1 Mounting Process .......................................................................................3

3.2 Handling Precautions..................................................................................6

3.3 Installation Precautions...............................................................................6

Chapter IV Camera Function Setting...................................................... 7

4.1 Camera Module – Back ..............................................................................7

4.1.1 Operation Instruction ...............................................................................7

4.1.2 Lens Driving Signal Selection.................................................................8

4.2 Power Board ...............................................................................................9

Appendix I Specifications.......................................................................11

Appendix II Cable Diameter Calculation and Lightning &

Surge Protection ................................................................................... 12

CHAPTER I DESCRIPTION

Thank you very much for purchasing our product.

This manual addresses the operation and programming procedures of V5410-A2

color dome camera.

Infinova’s V5410-A2 series indoor color fixed minidome cameras feature a high

resolution 1/3" CCD sensor and excellent low light operation. They are available in

resolutions of 480 lines. They are equipped with a 4.0~9.0mm auto-iris, vari-focal

lens. The cameras are designed for surface mount with 2-axis adjustment and require

12VDC/24VAC for power. The cameras provide excellent image quality along with

ease of installation.

This manual is for the following models:

V5410-A2014SK Analog minidome camera, 2-axis, Indoor,

1/3 inch CCD, Electronic day/night, 480TVL,

PAL, 12VDC/24VAC, Surface mount,

4.0~9.0mm vari-focal lens

CHAPTER II MAIN FEATURES

y1/3" SONY HAD CCD sensor

yHigh Resolution and Excellent Low Light Sensitivity

yResolution: 480 TVL

yElectronic day/night switch function

yAspherical, auto-iris, vari-focal lens with IR correction

yDigital Signal Processor (DSP) for high quality image

yAuto Electronic Shutter (AES), Auto Gain Control (AGC), Auto Tracking

White Balance (ATW), Flickerless (FL), and Backlight Compensation (BLC)

yInternal (INT) Sync. System

yPower cable and video cable included

y12VDC/24VAC power input, low power consumption

CHAPTER III INSTALLATION

3.1 Mounting Process

STEP 1: Secure Dome’s Adapter in the desired ceiling position with the 3 fixed

screws as shown in Figure 1.

Figure 1

See the figure below for the adapter mounting holes: (Unit: mm)

3- Ø4.40

Ø106.00

120°

Figure 2

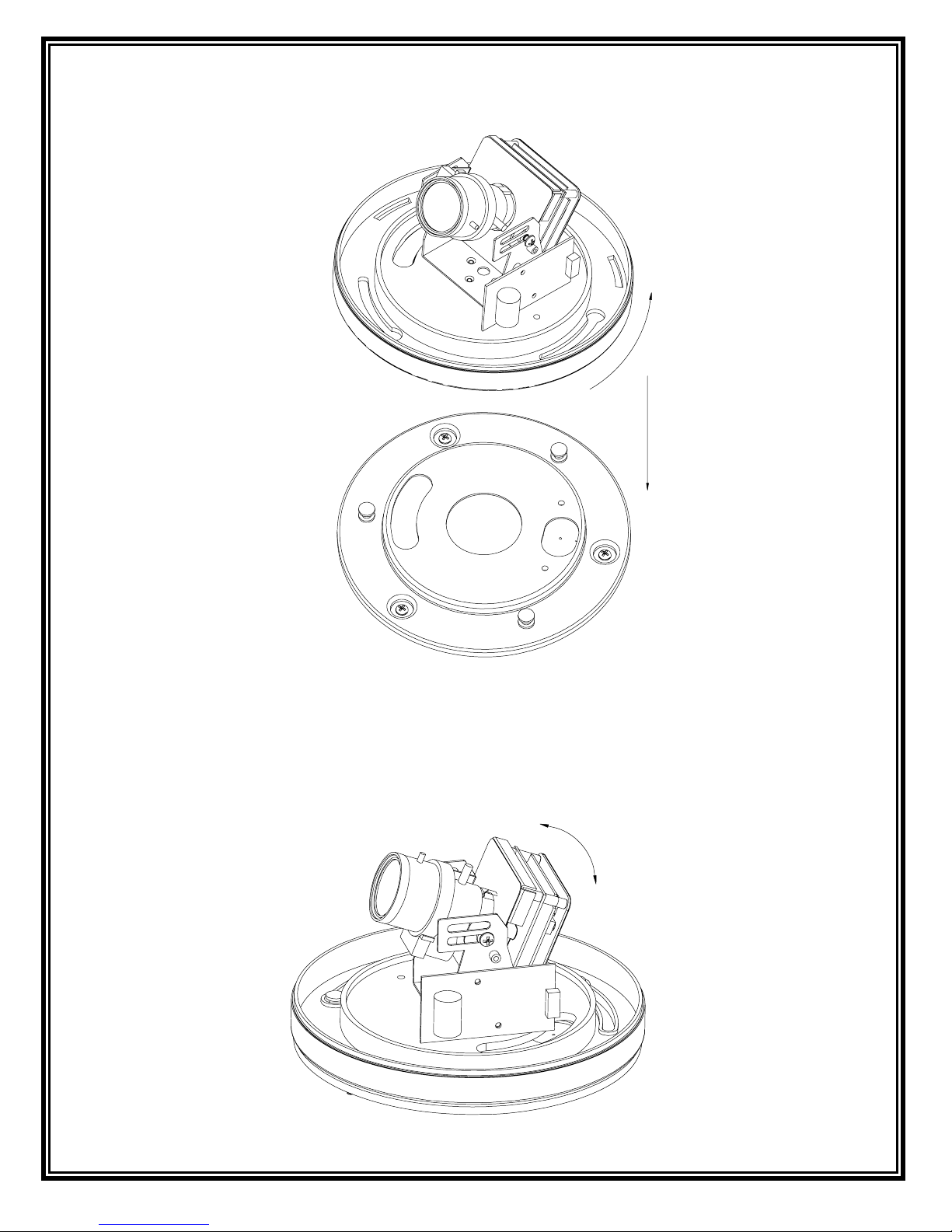

STEP 2: Remove the Dome Cover. Align the 3 grooves of the camera unit with

the 3 bolts in the adapter and turn counterclockwise to make it fixed.

Figure 3

STEP 3: The vertical angle can be adjusted by loosening the screws as shown in

Figure 4 and by turning the Camera Case vertically.

Figure 4

STEP 4: The horizontal angle can be adjusted by turning the Camera Case and

bracket in Figure 5 and by turning the Camera Platform horizontally.

Figure 5

STEP 5: After finishing angle adjustment, set the camera function by using the

buttons in the back panel (see Chapter IV).

STEP 6: Place the Dome bubble over the Camera and tighten it by turning it to the

right. In this process, the shielding cover may block the camera. User can adjust the

position of shielding cover by turning the bubble. With the shielding cover at the

proper position, the installation is finished.

Dimensions: (Unit: mm)

97.5

Ø128.0

Figure 6

3.2 Handling Precautions

1. Never let liquid of any kind flow into this unit.

2. Do not directly touch the CCD element. If it is necessary to clean the dome bubble,

use a soft cloth moistened with alcohol to wipe off any dust.

3. If any abnormality occurs, make sure to unplug the unit and contact your local

dealer.

4. This camera possesses AGC circuit. Therefore, when the camera is used under

lower luminance, the sensibility will strengthen automatically and make the

image very rough in vision. It is normal.

5. When the camera is used in ATW mode, due to the working principle of auto

trace white balance, the recorded color is slightly different from the real color.

It is normal.

6. If the subject is with high luminance (like lamp), vertical stripes will occur on

the monitor (tailing shadow) or the surrounding image becomes vague

(flowering). It is special phenomenon of CCD, not error.

7. The power supply for this camera is 12VDC or 24VAC. 24VAC must be

isolated power.

3.3 Installation Precautions

1. Do not drop the camera or subject it to strong knock.

2. Do not point the camera lens toward the sun or other strong light.

3. It’s recommended to apply auto-iris lenses for changeful light conditions.

4. Do not install the camera in environment with temperature beyond the

acceptable range (from -10°C to 50°C), or with high humidity, direct rainfall,

frequent vibrations and shocks.

CHAPTER IV CAMERA FUNCTION SETTING

4.1 Camera Module – Back

Figure 7

①Function Setup Switch ②Auto IRIS lens select

③Auto IRIS lens Jack ④RS-232C Jack

⑤Reserved ⑥Power Input and Video Out Jack

⑦LEVEL – Video adjust

4.1.1 Operation Instruction

[FL Function]

F.L.: If fierce image flicker caused by the conflicting frequency between camera

and environment, switch “OFF/F.L.” to “F.L.”, to activate the F.L. function,

strengthening the camera image stability with electronic shutter set to 1/120s

(PAL).

OFF: Shut.

Default as: “OFF”.

Notice: “F.L.” function cannot be activated simultaneously with “AES”. If “F.L.”

function activated, “AES” becomes not available.

[AGC-HIGH/AGC-LOW Selection]

Magnify the signal collected from CCD to an available standard to video amplifier,

and how much it magnifies equals to gain, which means the sensitivity. Adjust

AGC properly to have camera work under a larger illumination area.

D/N ON: Activate AGC-HIGH function, and it can add 25dB illumination

sensitivity under faintly light environment to promote the image signal strength for

better impression. Auto Day/Night switch function is activated.

AGC OFF: Activate AGC-LOW function, and it can add 5dB illumination

sensitivity with less video signal noise. Auto Day/Night switch function becomes

not available.

Default as: “D/N ON”.

[AES Selection]

Camera automatically modulate the exposure time if AES function is activated.

Default as: “OFF” for auto iris lens, “AES” for non-auto iris lens.

Notice: When it comes to auto iris lens, if trying to modulate brightness via LEVEL,

AES switch has to be set to “OFF”.

[BLC Function]

When the background of view is pretty bright and objects on front cannot be seen

clearly, it needs to use back light compensation function.

BLC: Activate BLC, and then the workstations of AGC, AES, and IRIS confirm the

entire view to distinguish the bright background area and the dark front objects.

OFF: Shut. When the contrast between view background and front objects is not

big, it will not need to activate back light compensation function.

Default as: “OFF”.

Notice: It has to activate AGC in the first place to make BLC function take effect.

4.1.2 Lens Driving Signal Selection

1) This item is used to select the mode of the auto-iris to provide the driving

signal to the auto-iris driving interface on the lens.

2) If the lens applies DC drive, please set the lens driving signal selection switch

to DC.

3) If the lens applies VIDEO drive, please set the lens driving signal selection

switch to VIDEO.
