Infineon XENSIV PAS CO2 Sensor2Go Manual de usuario

User manual Please read the Important Notice and Warnings at the end of this document V 1.3

www.infineon.com page 1 of 14 2024-03-01

UM_2106_PL38_2107_132617

Quick-start guide for XENSIV™PAS CO2 Sensor2Go evaluation

kit

About this document

This document will help users to work with the XENSIV™PAS CO2 Sensor2Go evaluation kit. The XENSIV™PAS

CO2 Sensor2Go evaluation kit is developed as a plug-and-play module for the assessment of the XENSIV™PAS

CO2 sensor.

Scope and purpose

This document will define XENSIV™PAS CO2 Sensor2Go evaluation kit functions, the procedure for integrating

with the XENSIV™PAS CO2 mini-evaluation board, and the necessary steps required to get a readout from the

kit.

Intended audience

Application engineers, system engineers, and system architects of an application where the XENSIV™PAS CO2

mini-evaluation board will be integrated.

Sales part codes

SP005582413 –XENSIV™PAS CO2 1.0 Sensor2Go evaluation kit

SP005577475 –XENSIV™PAS CO2 1.0 mini-evaluation board

SP006037148 –XENSIV™PAS CO2 1.5 Sensor2Go evaluation kit

SP006037150 –XENSIV™PAS CO2 1.5 mini-evaluation board

Table of contents

About this document....................................................................................................................... 1

Table of contents............................................................................................................................ 1

1Introduction to XENSIV™ PAS CO2 Sensor2Go evaluation kit ....................................................... 2

2Hardware details.................................................................................................................... 3

2.1 Connection of the mini-evaluation board with the motherboard ........................................................3

2.2 XENSIV™ PAS CO2 mini-evaluation board..............................................................................................4

3Software ............................................................................................................................... 6

3.1 Step 1: Downloading the GUI..................................................................................................................6

3.2 Step 2: Installing the GUI.........................................................................................................................6

3.3 Step 3: Connect XENSIVTM PAS CO2 Sensor2Go......................................................................................8

3.4 Main Toolbar............................................................................................................................................9

3.5 Additional features................................................................................................................................10

4Appendix..............................................................................................................................12

4.1 Schematics for evaluation motherboard .............................................................................................12

Revision history.............................................................................................................................13

User manual 2 of 14 V 1.3

2024-03-01

Quick-start guide for XENSIV™PAS CO2 Sensor2Go

evaluation kit

(ABOC)

1Introduction to XENSIV™ PAS CO2 Sensor2Go evaluation kit

The XENSIV™PAS CO2 is a real CO2sensor that improves the size and performance of existing CO2sensor

solutions. This sensor has been designed based on the unique photoacoustic spectroscopy (PAS) principle. To

ensure efficient and quick evaluation, the XENSIVTM PAS CO2 Sensor2Go Evaluation kit is offered. An easy-to-use

PC GUI is offered along with the package. The contents of the kits are shown in Figure 1.

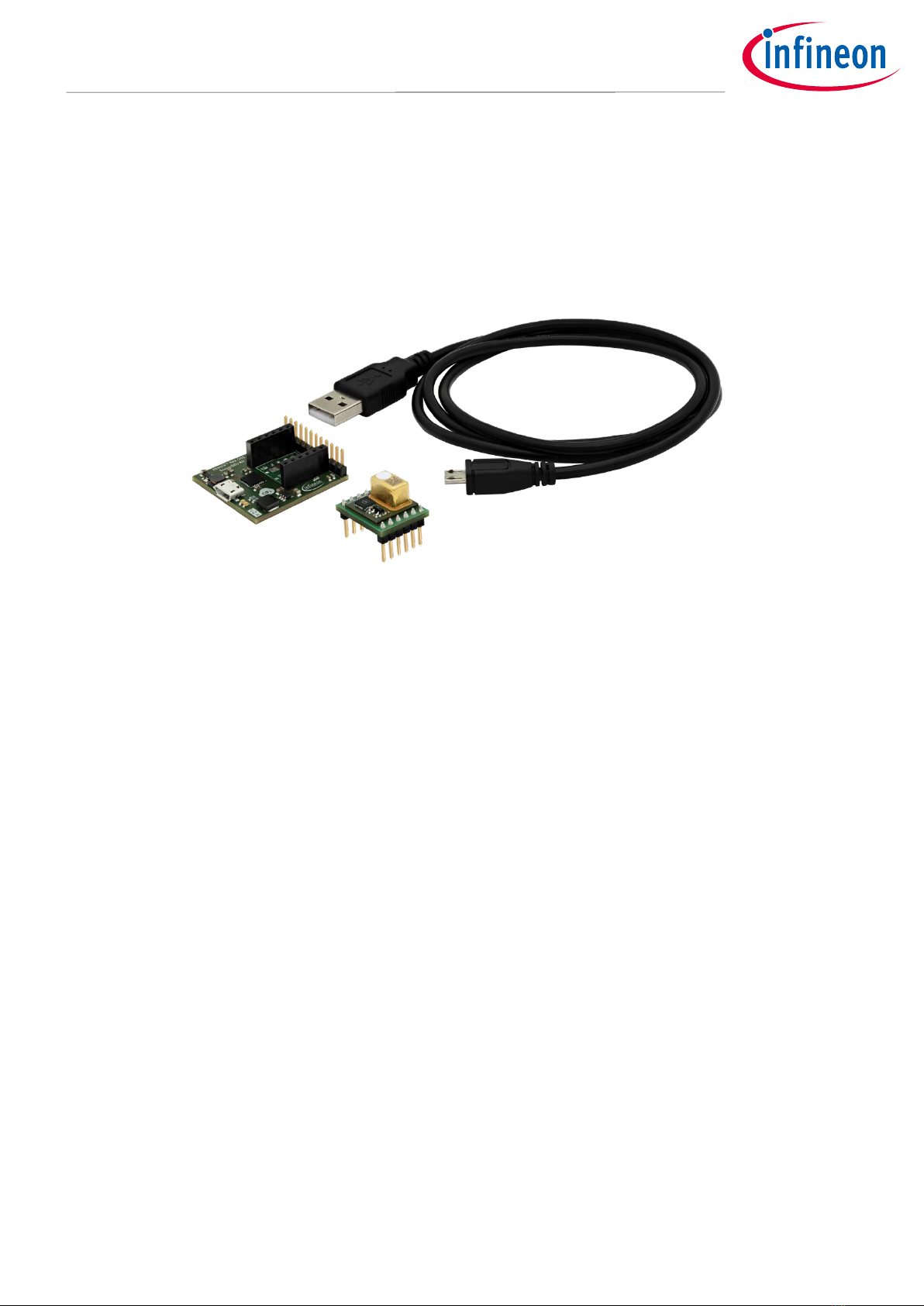

Figure 1 XENSIVTM PAS CO2 Sensor2Go Evaluation kit

The complete Sensor2Go evaluation kit includes:

•XENSIV™PAS CO2 evaluation motherboard

•XENSIV™PAS CO2 mini-evaluation board

•micro-USB cable

Key features:

•Communication to a PC GUI via micro USB

•Power management unit ensuring stable 12V / 5V* for the light source

*Is referring to XENSIVTM PAS CO2 Gen 1.5 which is using 5 V for the emitter instead of the 12 V compared to

XENSIVTM PAS CO2 Gen 1.

User manual 3 of 14 V 1.3

2024-03-01

Quick-start guide for XENSIV™PAS CO2 Sensor2Go

evaluation kit

(ABOC)

2Hardware details

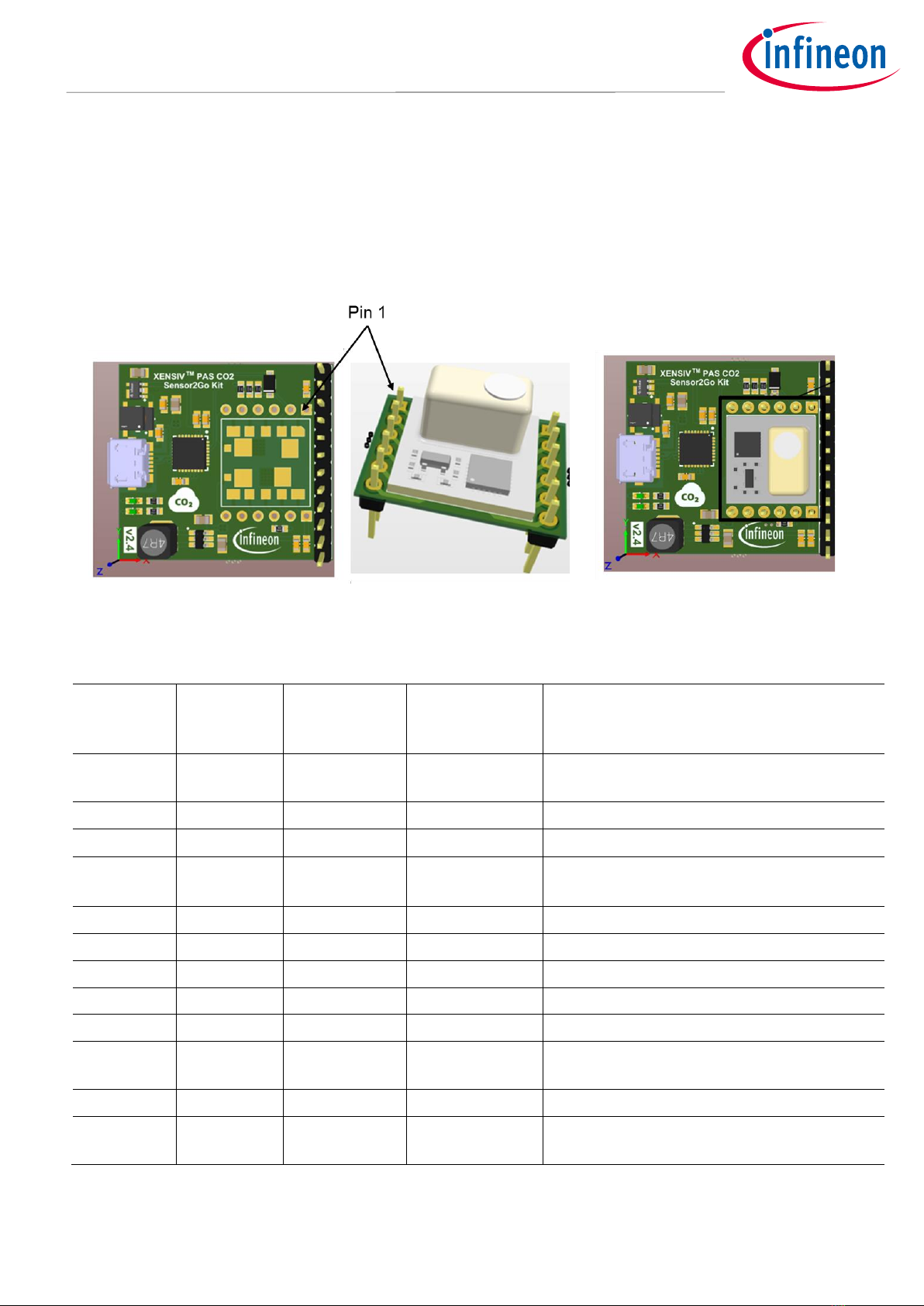

2.1 Connection of the mini-evaluation board with the motherboard

Connect the mini-evaluation board and motherboard as shown in Figure 2. For proper connection please connect

pin 1 of the mini-board as shown in the figure.

Figure 2 Connection of the mini-evaluation board with the sensor to go evaluation kit motherboard

The relevant pin description of the XENSIV™PAS CO2 mini evaluation board is presented in the following table.

Pin (mini-

board

connection)

(external

pin header)

Symbol

Type

Description

VDD3.3

Power supply

(3.3 V)

3.3 V digital power supply

Input

UART receiver pin

SCL

Input/Output

I2C clock pin (3.3 V domain)

TX/SDA

Input/Output

UART transmitter pin (3.3 V domain)/I2C data

pin (3.3 V domain)

PWM_DIS

Input

PWM disable input pin (3.3 V domain)

SWD

N/A

Do not connect

SWCLK

N/A

Do not connect

GND

Ground

INT

Output

Interrupt output pin (3.3 V domain)

PSEL

Input

Communication interface select input pin

(3.3 V domain)

PWM

Output

PWM output pin (3.3 V domain)

VDD12 / VDD5*

Power supply

(12 V / 5 V*)

12 V / 5V* power supply for the IR emitter

*Is referring to XENSIVTM PAS CO2 Gen 1.5 which is using 5 V for the emitter instead of the 12 V compared to

XENSIVTM PAS CO2 Gen 1.

User manual 4 of 14 V 1.3

2024-03-01

Quick-start guide for XENSIV™PAS CO2 Sensor2Go

evaluation kit

(ABOC)

2.2 XENSIV™ PAS CO2 mini-evaluation board

The XENSIV™PAS CO2 sensor is assembled on the mini-evaluation board as shown in Figure 3. The mini-

evaluation board has extended male pin headers and can be treated as astandalone sample. Its internal registers

can be accessed via external pins using communication protocols such as I2C, UART, or PWM.

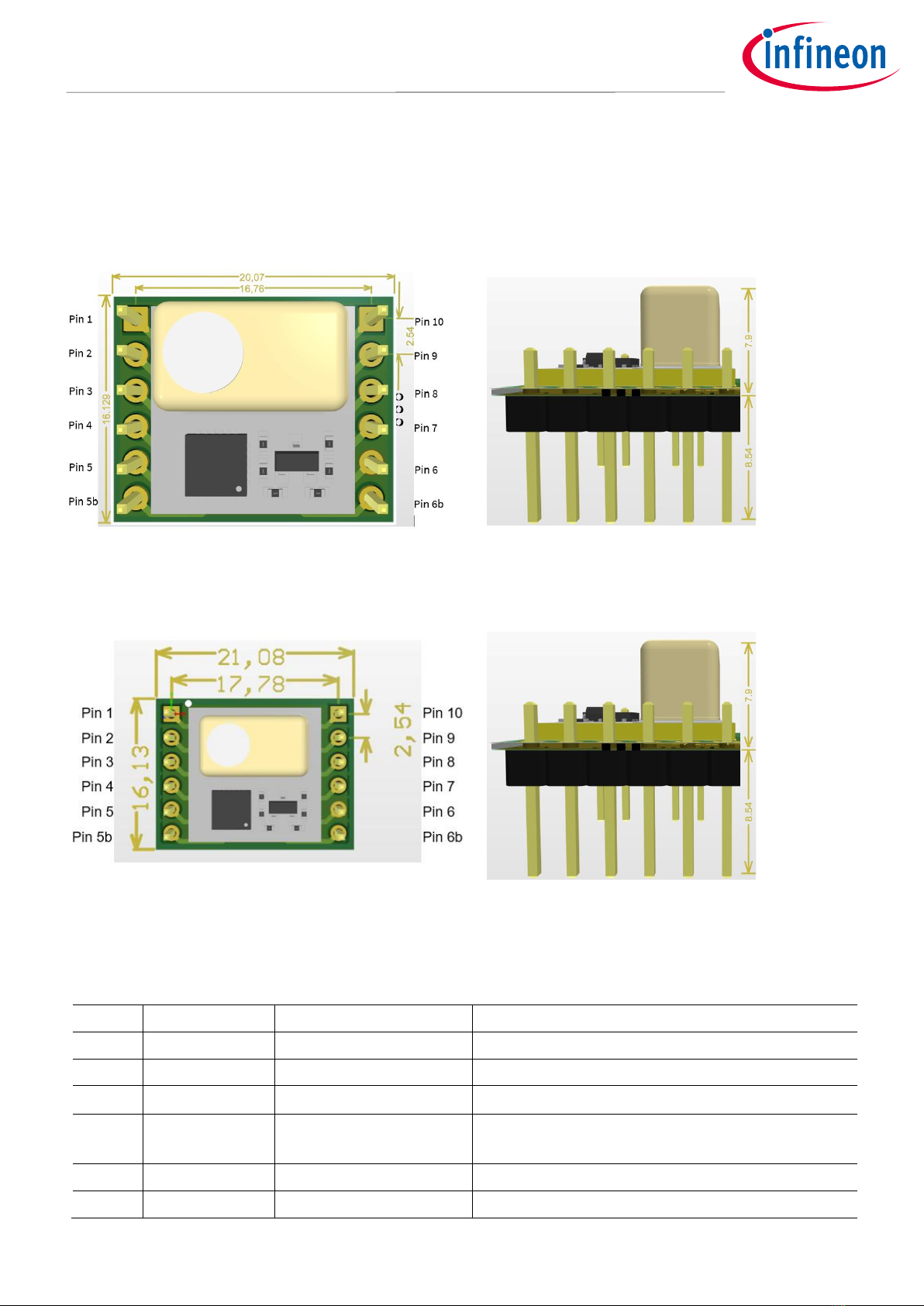

Figure 3 Top and side view of XENSIV™PAS CO2 1.0 mini-evaluation board; all dimensions in mm

Figure 4 Top and side view of XENSIV™PAS CO2 1.5 mini-evaluation board; all dimensions in mm

The relevant pin descriptions of the XENSIV™PAS CO2 mini-evaluation board are presented in the following table.

Symbol

Type

Description

VDD3.3

Power supply (3.3 V)

3.3 V digital power supply

Input

UART receiver pin

SCL

Input/Output

I2C clock pin (3.3 V domain)

TX/SDA

Input/Output

UART transmitter pin (3.3 V domain)/I2C data pin

(3.3 V domain)

PWM_DIS

Input

PWM disable input pin (3.3 V domain)

SWD

N/A

Do not connect

User manual 5 of 14 V 1.3

2024-03-01

Quick-start guide for XENSIV™PAS CO2 Sensor2Go

evaluation kit

(ABOC)

Symbol

Type

Description

SWCLK

N/A

Do not connect

GND

Ground

INT

Output

Interrupt output pin (3.3 V domain)

PSEL

Input

Communication interface select input pin (3.3 V

domain)

PWM

Output

PWM output pin (3.3 V domain)

VDD12 / VDD5*

Power supply (12 V / 5 V*)

12 V / 5 V* power supply for the IR emitter

Note:Before performing the evaluation, it is recommended to perform Forced Compensation (FC) or enable

Automatic Baseline Offset Correction (ABOC).

*Is referring to XENSIVTM PAS CO2 Gen 1.5 which is using 5 V for the emitter instead of the 12 V compared to

XENSIVTM PAS CO2 Gen 1.

User manual 6 of 14 V 1.3

2024-03-01

Quick-start guide for XENSIV™PAS CO2 Sensor2Go

evaluation kit

(ABOC)

3Software

XENSIV™ PAS CO2 Sensor2Go kit can be evaluated on the XENSIVTM PAS CO2 Sensor2Go GUI. It is a plug-and-play

solution. Just install the tool in your PC, connect the evaluation kit with your PC and start evaluating the CO2

sensor.

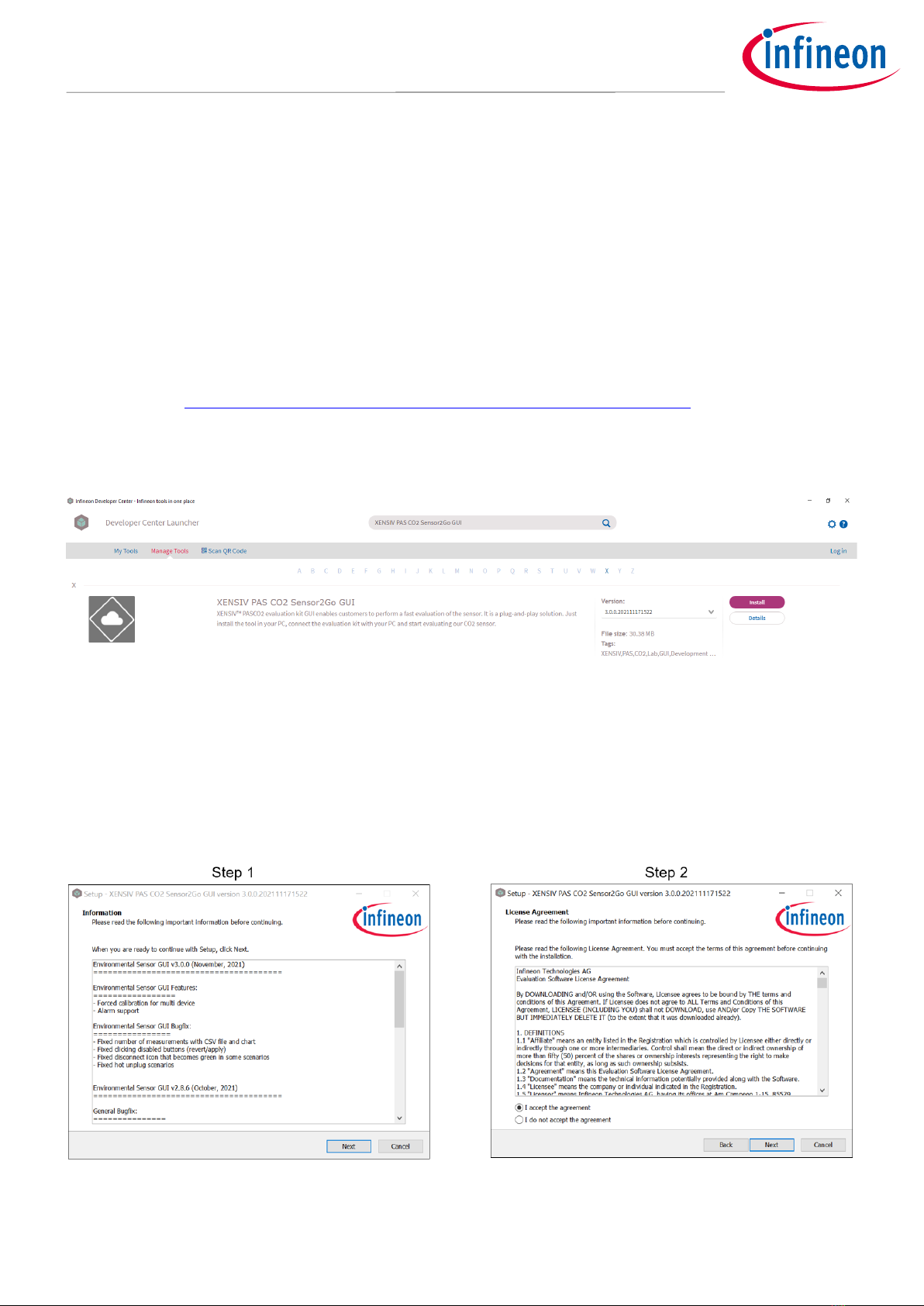

3.1 Step 1: Downloading the GUI

Before installing the XENSIV™ PAS CO2 Sensor2Go GUI, please uninstall any previous version of the same GUI.

The XENSIV™ PAS CO2 Sensor2Go GUI can be downloaded from the Infineon toolbox. Please, download the

toolbox from the following link:

Link to Toolbox: https://www.infineon.com/cms/en/tools/landing/infineontoolbox.html

Then search for ‘XENSIV PAS CO2 Sensor2Go GUI’ within the toolbox launcher and install the latest version.

Figure 5 XENSIVTM PAS CO2 Sensor2Go GUI download from the toolbox

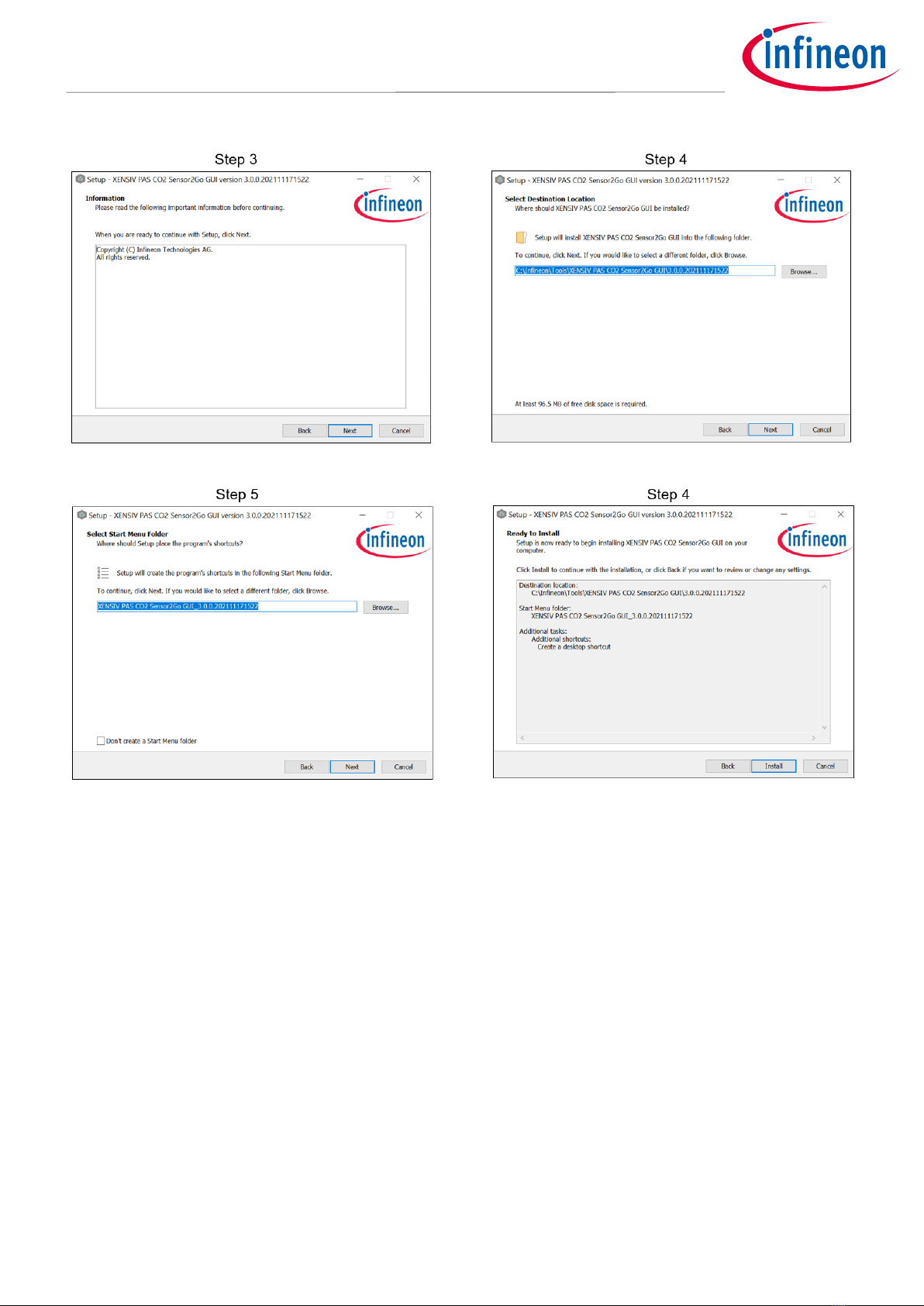

3.2 Step 2: Installing the GUI

Press the install button from figure 4 and go through the following steps.

User manual 7 of 14 V 1.3

2024-03-01

Quick-start guide for XENSIV™PAS CO2 Sensor2Go

evaluation kit

(ABOC)

After performing all the necessary steps, Press ‚Finish‘ to exit setup andlaunch XENSIVTM PAS CO2 Sensor2Go GUI.

The startup screen will look like Figure 5.

User manual 8 of 14 V 1.3

2024-03-01

Quick-start guide for XENSIV™PAS CO2 Sensor2Go

evaluation kit

(ABOC)

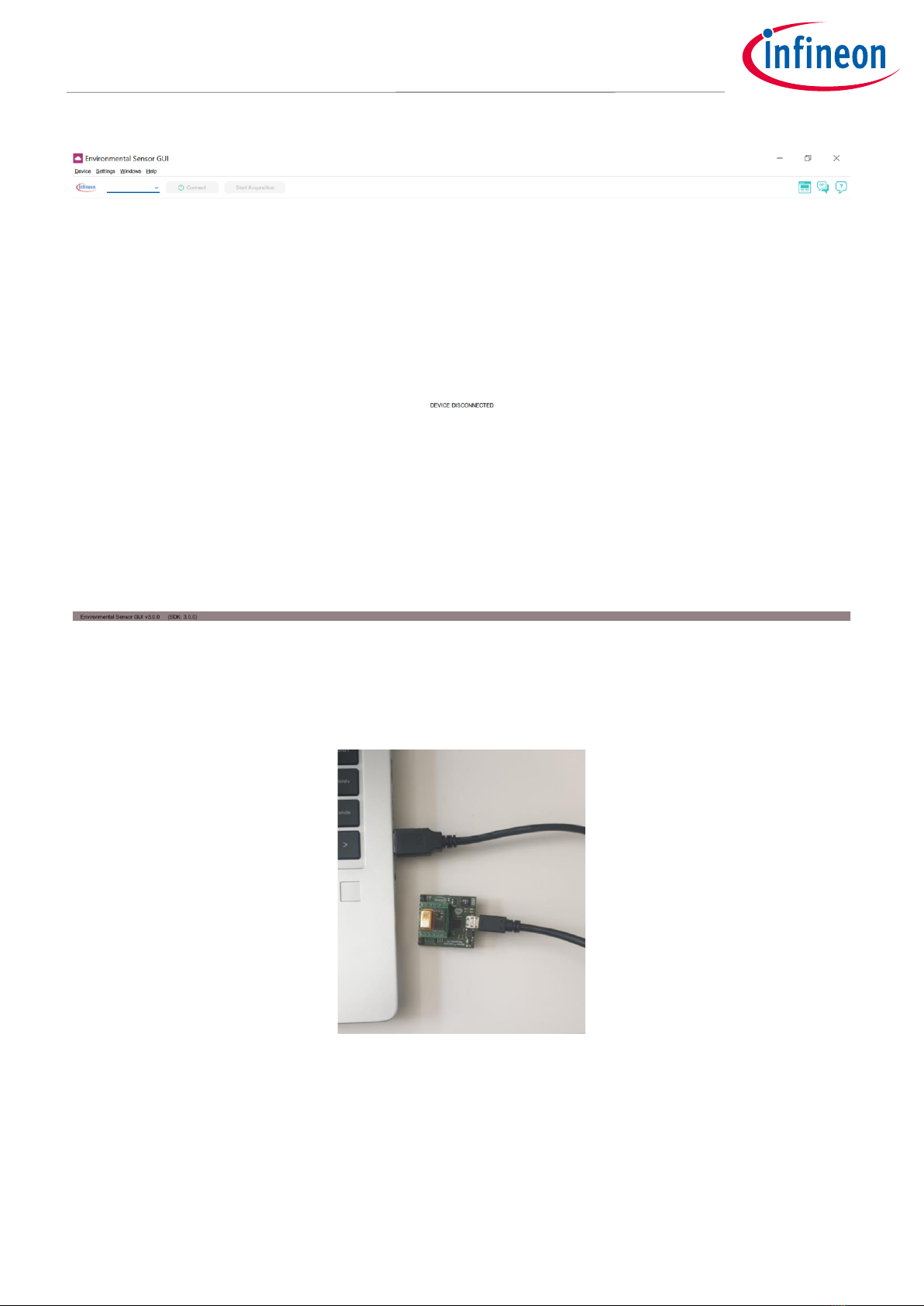

Figure 6 Start-up screen

3.3 Step 3: Connect XENSIVTM PAS CO2 Sensor2Go

Connect a XENSIVTM PAS CO2 Sensor2Go evaluation kit using a micro USB cable as shown in Figure 6.

Figure 7 XENSIVTM PAS CO2 Sensor2Go Evaluation kit connection to PC via micro USB cable

After connecting the sensor, start the data acquisition by pressing a connect button. XENSIVTM PAS CO2

Sensor2Go GUI supports connection to multiple PAS CO2 devices (max 10). After pressing Connect button, all the

connected devices are listed in a tree view in the expandable CO2devices pane. Device settings and information

are available for each device (see Figure 7).

User manual 9 of 14 V 1.3

2024-03-01

Quick-start guide for XENSIV™PAS CO2 Sensor2Go

evaluation kit

(ABOC)

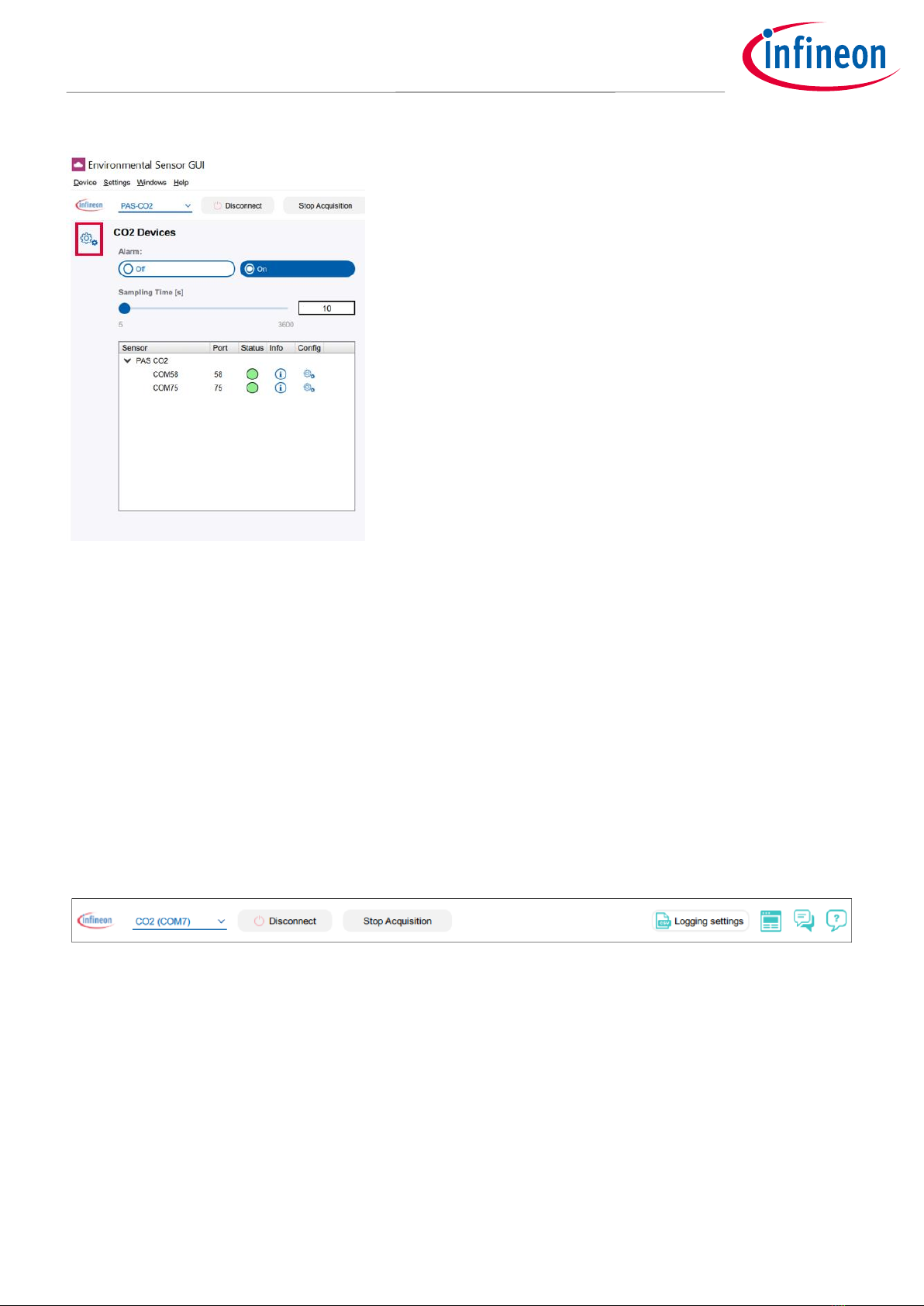

Figure 8 Expandable section view

Note: Data acquisition stops if the connected sensor loses power supply. For long-term measurements

please make sure that the laptop/PC is not entering into sleep mode or power-saving mode.

3.4 Main Toolbar

The main toolbar of the XENSIVTM PAS CO2 Sensor2GoGUI consists of controls grouped in four sections according

to the functionality they provide (see Figure 8). Those sections are following:

•Connectivity →Device selection and connection controls

•Acquisition →Acquisition controls

•Logging →Logging Settings button

•Help/Forum →For general GUI features

Figure 9 Main Toolbar for XENSIVTM PAS CO2 Sensor2Go GUI.

Data Logging:

XENSIVTM PAS CO2 Sensor2Go GUI application provides a possibility to log measurements and save them into a

CSV file. Automatic Logging is turned on by default. The default logging path is

“C:\Infineon\Fusion_GUI_Exports”.

Both the logging path and automatic logging option can be set in the Logging Settings window. The logging

settings window can be opened with the Logging setting button (see Figure 8) visible in the main application

toolbar and also in Main Menu →Settings.

User manual 10 of 14 V 1.3

2024-03-01

Quick-start guide for XENSIV™PAS CO2 Sensor2Go

evaluation kit

(ABOC)

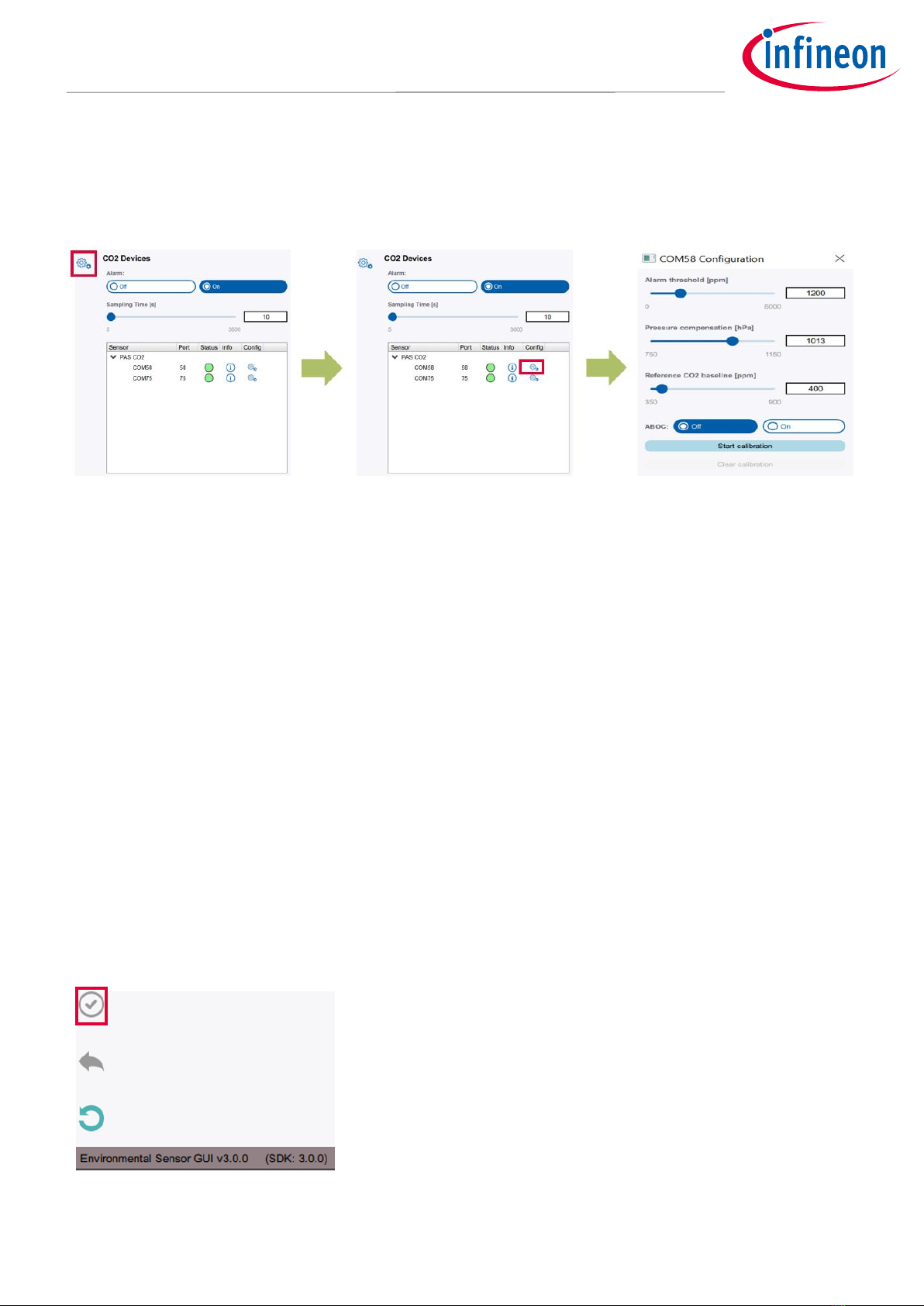

3.5 Additional features

In the installed GUI, customers can use different functionalities of the XENSIVTM PAS CO2 sensor. For accessing

additional features, for each of the individual sensors, steps are mentioned in the following figure 9.

Figure 10 Additional feature window

Alarm threshold [ppm]:

The customer can set the alarm threshold values. If that threshold is surpassed then the customer can see the

change in the status color for the set sensor respectively. The alarm threshold will provide the visual alert only.

Pressure compensation [hPa]:

Pressure compensation can be triggered by manually setting the pressure values either via the slider box or

typing directly into the text box.

ABOC:

Automatic Baseline Offset Correction (ABOC) can be turned ON/OFF and the baseline value can be adjusted by

manually setting the CO2values in the “reference CO2 baseline [ppm]” either via the slider box or by typing

directly into the text box.

After changing the related settings press enter and click the “Apply all settings”button from the bottom left

corner of the screen as shown in Figure 10.

Figure 11 The “Apply all settings” button

Tabla de contenidos

Otros manuales de Placa madre de Infineon

Infineon

Infineon TLD5191HB2W-EVAL Manual de usuario

Infineon

Infineon TLE987 Series Manual de usuario

Infineon

Infineon Demoboard BTF3 EJ Series Manual de usuario

Infineon

Infineon XE166 Easy Kit Manual de usuario

Infineon

Infineon TLE4966 MS2GO Manual de usuario

Infineon

Infineon TL 5012B Series Manual de usuario

Infineon

Infineon TLE5501 Series Manual de usuario

Infineon

Infineon CoolGaN Manual de usuario

Infineon

Infineon AIROC CYW920822M2P4TAI040-EVK Manual de usuario

Infineon

Infineon PROFET +2 12 V Grade0 Manual de usuario

Infineon

Infineon XMC4400 Platform2Go V1.1 Series Manual de usuario

Infineon

Infineon HPD GD BOARD G1 SiC Manual de usuario

Infineon

Infineon TLE92464ED Manual de usuario

Infineon

Infineon EVAL HB 2EDL8 2 Series Manual de usuario

Infineon

Infineon Lite SBC Series Manual de usuario

Infineon

Infineon TLE9185QX Manual de usuario

Infineon

Infineon LITIX Power TLD5190-1QV Manual de usuario

Infineon

Infineon EVAL AUDIO MA2304DNS B Manual de usuario

Infineon

Infineon AIROC IFW956810 Manual de usuario

Infineon

Infineon iMOTION EVAL-M3-IM564 Manual de usuario

Infineon

Infineon TLE9012AQU Manual de usuario

Infineon

Infineon Aurix TC275 Lite Kit 1 Series Manual de usuario

Infineon

Infineon TLD5542-1IVREG-EVAL Manual de usuario

Infineon

Infineon OPTIGA Trust E Security Shield2Go Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
