Infineon XC2236N Manual de usuario

Automotive BLDC Motor

Drive Kit

Getting Started

Field Oriented Control (FOC) Sensorless

Device: XC2236N or XC886

e 2

Infineon Technolo

ies 2010. All ri

hts reserved.

Getting Started

Overview 16 Bit Motor Drive Kit

Included

TLE 7184F Power Board(12V…24V/20A)

BLDC/PMSM Motor

AC/DC power-supply(12V/2A)

XC2236N/XC886 drive card, capable of running FOC code

USB drive-monitor

CD-Rom with software & documentation

Cables and connectors

e 3

Infineon Technolo

ies 2010. All ri

hts reserved.

Getting Started

Quick Start 1

Connect the PMSM Motor Board with the

Automotive BLDC Inverter v1.1 and this with the

XC2236N/XC866 Drive Card

PMSM Motor BoardAutomotive BLDC InverterXC2236N/XC886

e 4

Infineon Technolo

ies 2010. All ri

hts reserved.

Getting Started

Quick Start 1

Connect the Automotive BLDC Motor Drive Kit with power

Press the Reset Button

Turn the Potentiometer to the Left until stop

The PMSM Motor will start

Turn the Potentiometer to the right, to increase speed of the

PMSM Motor

Press the Reset Button to stop the PMSM Motor

e 5

Infineon Technolo

ies 2010. All ri

hts reserved.

Getting Started

Quick Start 1

Power supply

PMSM Motor

Reset Button

Potentiometer

e 6

Infineon Technolo

ies 2010. All ri

hts reserved.

Getting Started

Overview Drive Monitor with USB-drive Kit

Install the Drive Monitor V6.0

Start the Drive Monitor and click open setting

Open the DriveMonitor_ini File

Click on XC2236N/XC886_DriveMonitor

e 7

Infineon Technolo

ies 2010. All ri

hts reserved.

Getting Started – USB drive monitor

Quick Start 2

Connect the XC2236N/XC886 Drive Card with

the USB drive-monitor

Press the Reset Button

e 8

Infineon Technolo

ies 2010. All ri

hts reserved.

Getting Started – USB drive monitor

Quick Start 2

Reset ButtonUSB drive-monitor

Click on Connect Button in Drive Monitor V6.0

e 9

Infineon Technolo

ies 2010. All ri

hts reserved.

Getting Started – Drive Monitor V6.0

Quick Start 2

Click on ‘Load‘ to load the Hex File

e 10

Infineon Technolo

ies 2010. All ri

hts reserved.

Getting Started – Drive Monitor V6.0

Quick Start 2

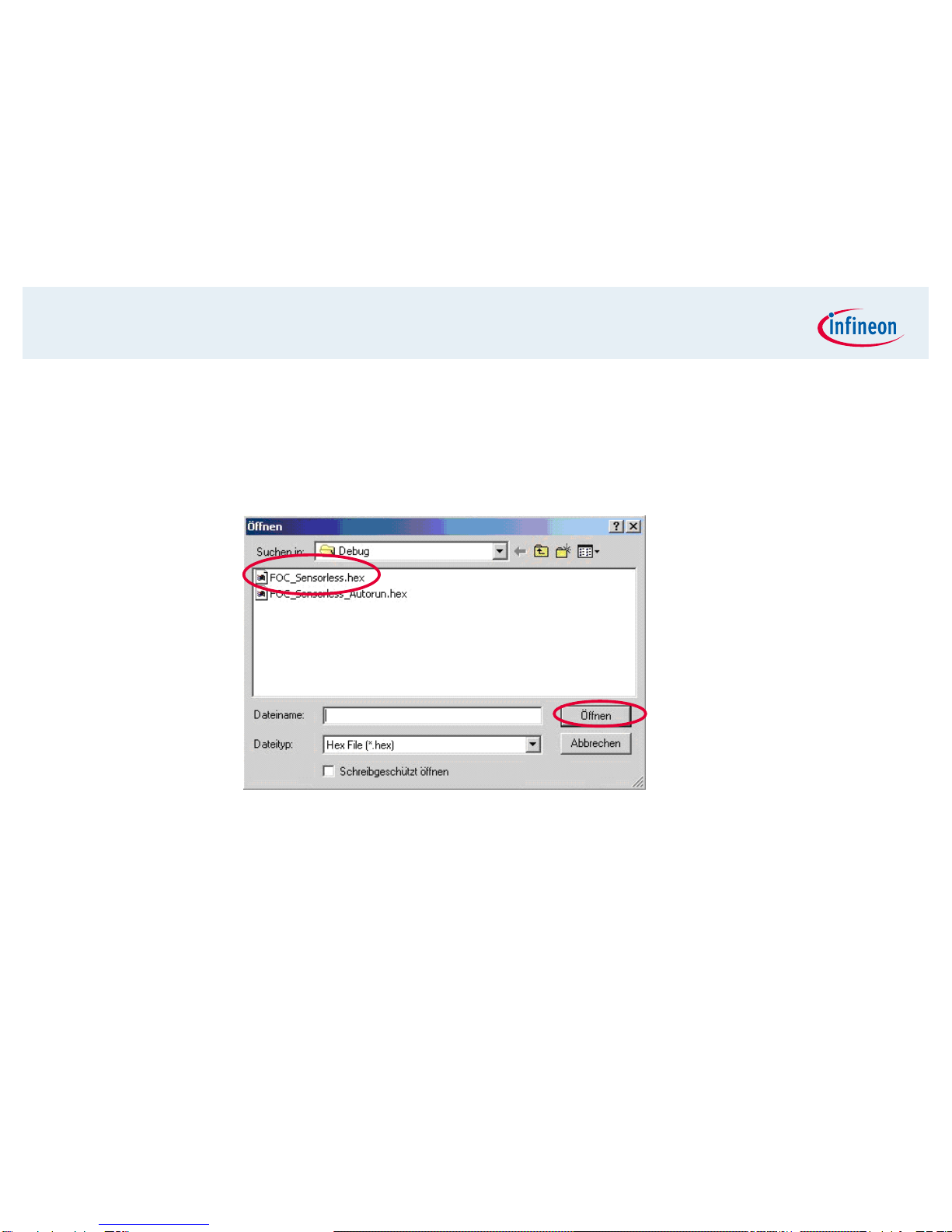

Click on ‘FOC_Sensorless.hex‘ to open the Hex file
