XC164CM series Board Manual, V.1.0, Jan. 2006

XC164CM series Easy

Kit

Board REV. V2.0 and V2.1

XC164CM series Easy Kit

Revision History: 2005-04 V 1.0

Previous Version: -

Page Subjects (major changes since last revision)

We Listen to Your Comments

Any information within this document that you feel is wrong, unclear or missing at all?

Your feedback will help us to continuously improve the quality of this document.

Please send your proposal (including a reference to this document) to:

mcdocu.comments@infineon.com

XC164CM

XC164CM Board

Table of Contents Page

XC164CM series Board Manual 3 V 1.0, 2006-01

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2Features of the XC164CM series Easy Kit Board . . . . . . . . . . . . . . . . . . 6

2.1 Summary of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3 Layout Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.4 DIP Switch S102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3Description of Connectors and Switches . . . . . . . . . . . . . . . . . . . . . . . 11

3.1 Switch S102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.2 Headers and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2.1 RS-232 Connector - ASC0 (P101) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2.2 CAN1 (P102) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2.3 CAN2 (X103) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2.4 LIN Header (X104) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2.5 OCDS Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2.6 Power Headers (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.3 Pin Definition and Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.4 Zero Ohm Resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4Memory Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.1 Internal Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.2 Internal PRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5Quick Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.1 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.2 OCDS debugging interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.3 RS232 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.4 MemTool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.5 ASC-Bootstrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.6 Start Memtool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.7 Connect to the Target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.8 Prepare Memtool for programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.9 Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.10 Execution Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

6Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

XC164CM

XC164CM Board

XC164CM series Board Manual 4 V 1.0, 2006-01

XC164CM

XC164CM Board

Introduction

XC164CM series Board Manual 5 V 1.0, 2006-01

1 Introduction

The XC164CM-8FF is a new member of Infineon's XC166 family of 16-bit

microcontrollers based on the high-performance C166S V2 core in a sub-0.25µ

technology. The C166S V2 core more than doubles the performance of the well

established C166 core while still providing code compatibility.

Applications can be developed easily. The Evaluation Board is equipped with peripherals

for connection to the environment. There is also an interface for the On Chip Debugging

Features (OCDS1). For programming of the embedded Flash, Infineon provides a tool,

called MEMTOOL.

The Evaluation Board allows easily the development of XC164CM family applications

with the corresponding tools. Subsequently, the applications can be downloaded and

can be tested with the powerful debugger software.

For detailed technical information about the XC164CM please refer to the User´s Manual

of the XC164CM V1.1 and the Data Sheet V1.1.

To make sure that you always have the latest Dokumentation please contact your local

FAE or visit our XC164CM internet homepage:

http://www.infineon.com/XC164CM

XC164CM

XC164CM Board

Features of the XC164CM series Easy Kit Board

XC164CM series Board Manual 6 V 1.0, 2006-01

2 Features of the XC164CM series Easy Kit Board

The XC164CM series Easy Kit is soldert with the XC164CM-8F device. This device fit

into all members of this product family so that there are no special Easy Kit Boards

necessary.

2.1 Summary of Features

– Infineon’s XC164CM Controller in TQFP64 Package

– On-board dual voltage power supply provides 5V/2.6V to XC164CM

– High Speed CAN Transceivers, LIN Transceiver, UART(RS232)

– 8 Low Power Status LEDs

– Easy access to all pins

Connectors

The XC164CM Board offers a wide variety of connectors:

– SUB-D9 connector for ASC0 Interface via RS 232 port

– 4 pin header for LIN Transceiver (ASC1)

– 16-pin header for JTAG interface (OCDS)

– SUB-D9 connector for CAN High Speed Transceiver (CAN1)

– 10pin (2x5) Header for CAN High Speed Transceiver (CAN2)

– Easy access to all pins

Components

– Dual Low-Drop Voltage Regulator TLE 7469 to supply 5V/2.6V

– Two LEDs to validate power supply (5Volt / 2.6Volt)

– LED indicating /RSTIN active state

– 2 x CAN-Transceiver TLE 6250

– LIN Transceiver TLE 7259

– 8 general purpose LEDs

– Reset switch

Zero Ohm Bridges

– Zero Ohm resistors give the flexibility to configure the systems functionality

XC164CM

XC164CM Board

Features of the XC164CM series Easy Kit Board

XC164CM series Board Manual 7 V 1.0, 2006-01

2.2 Block Diagram

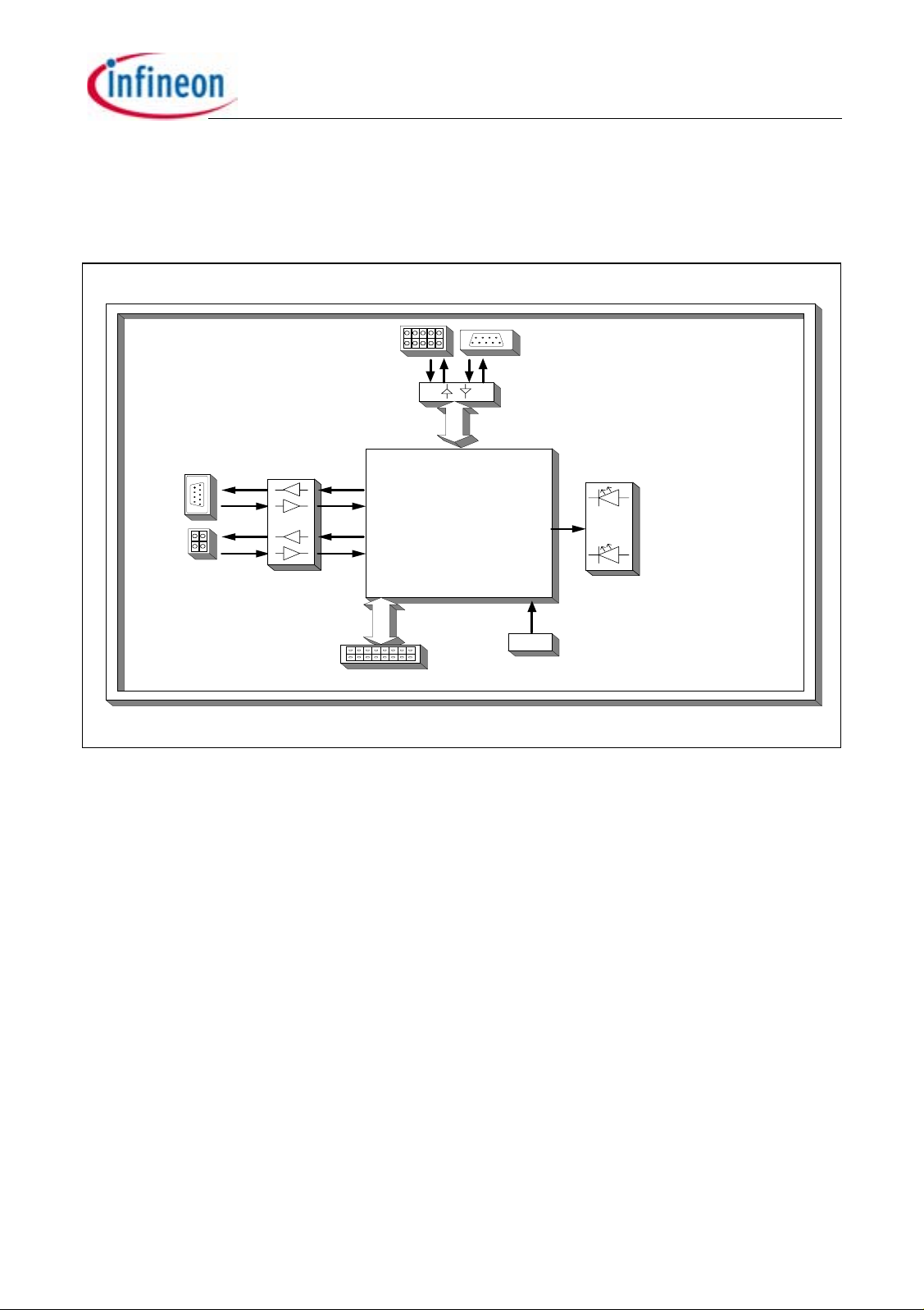

Figure 1 Block diagram of XC164CM Easy Kit

XC164CM

CPU

OCDS1

twinCAN

XTAL

8 LEDs

Transceiver

TxD0

TxD1

RxD0

RxD1

LIN

RS232

XC164CM

XC164CM Board

Features of the XC164CM series Easy Kit Board

XC164CM series Board Manual 8 V 1.0, 2006-01

2.3 Layout Overview

Figure 2 Top view

Figure 3Bottomview

OCDS1

Reset

Infineon

XC164CM

RS232

Power

CAN1

1CAN2

LIN1

Config

XC164CM

XC164CM Board

Features of the XC164CM series Easy Kit Board

XC164CM series Board Manual 9 V 1.0, 2006-01

2.4 DIP Switch S102

Although most of the programmable features of the XC164CM are selected by software

either during the initialization phase or repeatedly during program execution, some

features must be selected earlier because they are used for the first access of the

program execution.

These configurations are accomplished by latching the logic levels at a number of pins

at the end of the internal reset sequence.

DIP switch S102 allows to configure the startup setting of the XC164CM during RESET.

The default System Startup Configuration is shown in Table 1. All DIP Switch are OFF.

The XC164CM execute a standard start from internal Flash.

Table 1 Default configuration

The pull-ups on the configuration pins are activated while TRST = 1 and the hardware

reset signal is active shown in the Table 2 below.

Table 2 Basic Startup Configuration via External Circuitry

For more detailed information aboute the DIP switch setting please refer to Chapter 3.1,

Table 3.

Name in

schematic

Default configuration Description

S102 Startup configuration:

Standard start from internal Flash

(Default)

XC164CM Pin level configured by S102 Function

/TRST = 0, P9.5 = x, P9.4 = x, Default standard start internal Flash

/TRST = 1, P9.5 = 1, P9.4 = 1, Standard start internal Flash

/TRST = 1, P9.5 = 0, P9.4 = 1, Bootstrap loader via ASC0

/TRST = 1, P9.5 = 1, P9.4 = 0, Bootstrap loader via CAN

/TRST = 1, P9.5 = 0, P9.4 = 0, Adapt Mode

All other positions Reserved

9.49.5/TRST

XC164CM

XC164CM Board

Features of the XC164CM series Easy Kit Board

XC164CM series Board Manual 10 V 1.0, 2006-01

2.5 Power Supply

The XC164CM Board needs an external power supply. A regulated DC power supply

with max. 12 Volts / 400mA can be connected to the power connector.

Figure 4 Power Supply
