Infineon XDPL8210 Manual de usuario

User Manual Please read the Important Notice and Warnings at the end of this document Revision 1.1

www.infineon.com/ref-xdpl8210-u35w 2019-12-17

UM_1906_PL21_1907_140720

Getting started with the XDPL8210 reference

board using .dp Vision software

XDPTM digital power

Ordering code: REF-XDPL8210-U35W

About this document

Scope and purpose

The purpose of this document is to give a quick guide to operation of the XDPL8210 reference board for all

power classes of LED lighting applications, and how to use the .dp Vision software to program the operating

parameters of the digital controller XDPL8210.

Intended audience

This document is intended for anyone who wants to evaluate the XDPL8210 reference design for LED lighting

and become familiar with the XDP™ platform.

Table of contents

About this document....................................................................................................................... 1

Table of contents............................................................................................................................ 1

1Tools ............................................................................................................................ 2

1.1 Required hardware and software tools..................................................................................................2

2Getting started.............................................................................................................. 3

2.1 Hardware connection..............................................................................................................................3

2.2 Parameter configuration.........................................................................................................................5

Revision history............................................................................................................................................................9

User Manual 2 Revision 1.1

2019-12-17

Getting started with the XDPL8210 reference board using .dp Vision

software

Tools

1Tools

1.1 Required hardware and software tools

The required hardware and software tools are listed in Table 1. Please order all the hardware tools and

download and install all the software tools.

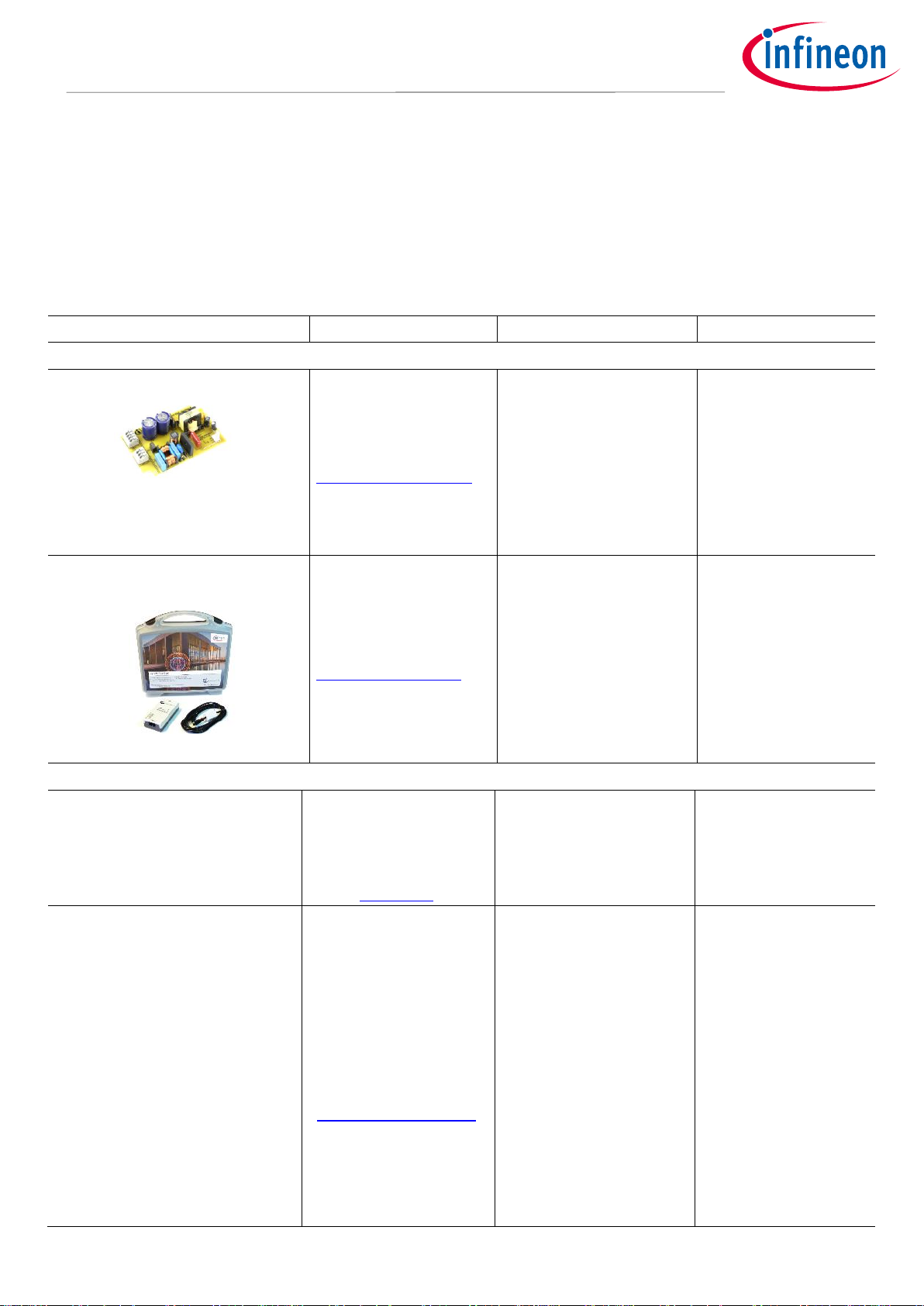

Table 1 Required hardware and software tools for getting started

Name

Order link

Description

Order content

Please order all the hardware tools. Click on the links below:

XDPL8210 reference board

Click on the link:

35W reference board

XDPL8210 reference

board for LED lighting

XDPL8210 reference

board

Driver for LED lighting

Programming cable

To connect the

XDPL8210 reference

board with the .dp

Interface Gen2

.dp Interface Gen2

Click on the link:

IF-BOARD.DP-GEN2

Interface board to

control XDPL8210 from

PC/notebook

.dp Interface Gen2

Interface for

programming the

XDPL8210 digital

controller

USB cable

To connect the .dp

Interface Gen2 with a

Please download and install all the software tools. Click on the links below:

Graphical User Interface (GUI)

for read and write access to the

parameters in the OTP

Click on the link and

follow the instructions

in the right-hand

column:

.dp Vision

Accept the mentioned

terms and conditions

Click “Run”

Install “dp.vision”

.dp Vision installer

(*.msi)

dpVision_folder_set-up Copies

auxiliary files including the

parameter .csv file to the

respective directory structure

Click on the link and

follow the instructions

in the next column:

REF-XDPL8210-U35W

On the website of the

respective product,

choose the section

“Tools & Software”

Click on “Development

Tools”

Choose and open the

.zip-file, choose

“REF-XDPL8210-U35W_

dpvision_folder_set-

up.zip”

Double-click the

unpacked *msi file to

install

XDP™ digital power –

dp Vision set-up with

the following

documents:

XDPL8210 parameters

.csv file

XDPL images file

XDPL8210

documentation files

XDPL system

simulation and design

creation tool

.dp Interface Gen2

firmware

User Manual 3 Revision 1.1

2019-12-17

Getting started with the XDPL8210 reference board using .dp Vision

software

Getting started

2Getting started

Attention: The instructions in this manual work without V AC connection.

Attention: Before you connect the reference board to the mains, pay careful attention to the safety hints in

the recent “REF-XDPL8210-U35W Engineering report Vx.x”. Incorrect use of the reference board

could be dangerous, possibly life-threatening.

2.1 Hardware connection

Connect the .dp Interface Gen2 to a notebook/PC with the USB cable.

Figure 1 Connection between .dp Interface Gen2 and notebook

Note: Sometimes the detection of the .dp Interface Gen2 fails on USB3.0 ports. Therefore the use of a

USB2.0 port might be necessary (which can be provided by an external USB2.0 hub if the machine

only offers USB3.0 ports).

USB

cable to

notebook

User Manual 4 Revision 1.1

2019-12-17

Getting started with the XDPL8210 reference board using .dp Vision

software

Getting started

Connect the .dp Interface Gen2 to the XDPL8210 reference board with the programming cable.

Figure 2 .dp Interface Gen2 connection

Figure 3 Connection between the .dp Interface Gen2 and the XDPL8210 reference board

Note: Please ensure that the connector of the programming cable is plugged in correctly: the colored wire

indicates Pin 1 and should be connected to the VCC pin on the XDPL8210 reference board.

Figure 4 Program connector

Colored wire indicates Pin 1, to be connected with VCC pin

User Manual 5 Revision 1.1

2019-12-17

Getting started with the XDPL8210 reference board using .dp Vision

software

Getting started

2.2 Parameter configuration

Start the .dp Vision program by clicking the “.dp Vision” shortcut on the desktop. The screen shown in Figure 5

will appear.

Figure 5 Starting .dp Vision

Load the XDPL8210 parameters configuration file (*.csv) in the folder (HOME) \Infineon Technologies AG\.dp

vision\Parameters as shown in Figure 6.Please select the corresponding file (e.g., for a 35 W board choose the

“XDPL8210_FWvx.x.x_35W” file).

Figure 6 Loading the .csv file

After loading the parameters .csv file, a list of XDPL8210 configurable parameters will show (see the box on the

left in Figure 7). These values can be modified by users and will turn blue.

Select the appropriate .csv file to open

User Manual 6 Revision 1.1

2019-12-17

Getting started with the XDPL8210 reference board using .dp Vision

software

Getting started

Figure 7 Parameters file loaded in .dp Vision

Note: The message bar shown in Figure 7 provides detailed information. For further information, please

refer to the “dpvision User manual”.

Figure 8 Message description

Click on the message bar for

detailed information

List of configurable

parameters

User Manual 7 Revision 1.1

2019-12-17

Getting started with the XDPL8210 reference board using .dp Vision

software

Getting started

There are two options available to configure the IC based on the parameter values in .dp Vision.

1) Non-permanent for testing

2) Permanent for regular operation

1) Test configuration

This function will download the parameter values from .dp Vision into the XDPL8210 RAM memory space, and it

will then be followed by an automatic IC start-up for application testing with the new configuration. As long as

the board is activated, the VCC is supplied.

Parameter configuration with this option is not permanent, because the loaded RAM content gets lost once the

IC supply voltage is turned off or the IC restarts due to certain protections. For detailed information, please

refer to the “dpvision User manual” in the “Documents” folder.

Table 2 shows the procedures for using test configuration function in .dp Vision to load the new parameter

values in the RAM and test the application with the new configuration.

Table 2 Test configuration procedures

Step

Instruction

Open configuration file and change parameter value (see example in Figure 7).

Ensure that the primary supply voltage (AC input) to the board is not active and the

hardware connection for configuration is OK based on Figure 2 and Figure 3.

Press to supply power and establish a connection to the target XDPL8210. After this,

XDPL8210 will be in configuration mode and the device status should change to .

4 (optional)

Ensure that the LED output is connected to a load, and switch on AC input (e.g. 230 V AC).

After this, the board will not start because XDPL8210 is still in configuration mode.

Press to test the configuration with target XDPL8210.

After this, the IC will automatically start normal operation with the new configuration and

the window below will pop up:

Note: If the parameter configuration is equivalent to to the pre-existing parameters, the

XDPL8210 will not download them to RAM.

Press “Close” on the pop-up window.

To test another configuration, repeat these steps.

Note: If there is any error between steps 1 and 7, refer to the message bar of .dp Vision for the error

message. For further information, please refer to the “dpvision User manual”.

New configuration is successfully downloaded to

RAM and the application has started

User Manual 8 Revision 1.1

2019-12-17

Getting started with the XDPL8210 reference board using .dp Vision

software

Getting started

2) Burn configuration

As the XDPL8210 chip on the 35 W reference design PCB has a first full set of parameters in its One-Time

Programmable (OTP) memory space, only changed parameters are written in the OTP memory. For detailed

information, please refer to the “dpvision User manual” in the “Documents” folder.

Table 3 shows the procedures to burn a parameter update in .dp Vision into the OTP memory.

Table 3 Burn configuration procedures

Step

Instruction

Load configuration file (see example in Figure 7).

Modify the parameter value needed, then press [File] >> [Save] or [File] >> [Save as] to save

the configuration file. Otherwise, proceed to step 3.

(optional)

Disconnect or turn off AC input voltage and check the hardware connection for configuration,

see Figure 2 and Figure 3.

Press to supply power and establish connection to the target XDPL8210. After this,

XDPL8210 will enter configuration mode and the device status should change to .

Press to burn the configuration into target XDPL8210.

After this step, a window pops up, like one of these below.

Note: If the parameter configuration is equivalent to to the pre-existing parameters, the

XDPL8210 will not burn them in the OTP memory.

Press “Proceed” or “Yes” to burn the configuration. After this, a window pops up indicating

success.

Press “OK” on the pop-up window then disconnect the programming cable from the board

connector and test the application, if needed.

User Manual 9 Revision 1.1

2019-12-17

Getting started with the XDPL8210 reference board using .dp Vision

software

Getting started

Revision history

Major changes since the last revision

Page or reference

Description of change

Table 1

.dp Vision folder setup link and board image corrections

Figure 3

Board image correction

Cover page

Add ordering code of the board

Published by

Infineon Technologies AG

81726 Munich, Germany

Do you have a question about this

document?

Email: erratum@infineon.com

Document reference

IMPORTANT NOTICE

The information contained in this application note is

given as a hint for the implementation of the product

only and shall in no event be regarded as a

description or warranty of a certain functionality,

condition or quality of the product. Before

implementation of the product, the recipient of this

application note must verify any function and other

technical information given herein in the real

application. Infineon Technologies hereby disclaims

any and all warranties and liabilities of any kind

(including without limitation warranties of non-

infringement of intellectual property rights of any

third party) with respect to any and all information

given in this application note.

The data contained in this document is exclusively

intended for technically trained staff. It is the

responsibility of customer’s technical departments

to evaluate the suitability of the product for the

intended application and the completeness of the

product information given in this document with

respect to such application.

For further information on the product, technology,

delivery terms and conditions and prices please

contact your nearest Infineon Technologies office

(www.infineon.com).

WARNINGS

Due to technical requirements products may contain

dangerous substances. For information on the types

in question please contact your nearest Infineon

Technologies office.

Except as otherwise explicitly approved by Infineon

Technologies in a written document signed by

authorized representatives of Infineon

Technologies, Infineon Technologies’ products may

not be used in any applications where a failure of the

product or any consequences of the use thereof can

reasonably be expected to result in personal injury.

Other Trademarks

All referenced product or service names and trademarks are the property of their respective owners.

UM_1906_PL21_1907_140720owners.

Edition 2016-11-01

UM_1906_PL21_1907_140720

Tabla de contenidos

Otros manuales de Controladores de Infineon

Infineon

Infineon CoolSET-F3R ICE3BRXX65JZ series Guía

Infineon

Infineon TC3X7 ADAS Manual de usuario

Infineon

Infineon BTN7030-1EPA Manual de usuario

Infineon

Infineon iMOTION EVAL-IMM101T Series Manual de usuario

Infineon

Infineon OPTIREG TLF30681QVS01 Manual de usuario

Infineon

Infineon XDPP1100 Manual de usuario

Infineon

Infineon EZ-PD CMG2 Manual de usuario

Infineon

Infineon IMC300A Series Manual de usuario

Infineon

Infineon TLD5099EP Manual de usuario

Infineon

Infineon ICE2QS03G Instrucciones de instalación y funcionamiento

Infineon

Infineon NAC1080 Guía

Infineon

Infineon EVAL-IMI111T Manual de usuario

Infineon

Infineon TLD5098EP Manual de usuario

Infineon

Infineon XDPP1100 Manual del producto

Infineon

Infineon OPTIREG Linear TLS715B0NAV50 Manual de usuario

Infineon

Infineon iMOTION IRDM983-025MB Manual de usuario

Infineon

Infineon CPU-42A-V1 Manual de usuario

Infineon

Infineon XDPL8221 Manual de usuario

Infineon

Infineon IDP2303 Guía

Infineon

Infineon 82C900 Instrucciones de instalación y funcionamiento

Infineon

Infineon IRPS5401 Manual de usuario

Infineon

Infineon NAC1080 Manual de usuario

Infineon

Infineon XDPL8218 Guía

Infineon

Infineon IMC300A Series Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
