iNetVu®PowerSmart 2480

Operating Manual

The iNetVu®brand and logo are registered trademarks of C-COM Satellite Systems, Inc.

1-877-iNetVu6

www.c-comsat.com

Revision 011

June 2, 2015

TABLE OF CONTENTS

1. Introduction................................................................................................................................................. 3

2. Specifications ............................................................................................................................................. 4

3. Physical...................................................................................................................................................... 5

3.1. Front Panel (2480 Version 1.0+).............................................................................................................. 5

3.2. Front Panel (2480 Version 2.0+).............................................................................................................. 7

3.3. Back Panel (Both versions 1.0 & 2.0+).................................................................................................... 8

4. Typical Connection Configuration ............................................................................................................. 10

Option 2: PowerSmart 2480 with Integrated BUC Connectivity (Separate AC/DC Power and M&C cables) 12

Option 3: PowerSmart 2480 with BIAS-T Thruplexer (DC Powered through M&C and 10MHz from Bias T)

........................................................................................................................................................................... 13

Option 4: PowerSmart 2480 with BIAS-T Thruplexer (DC Powered through coax + No M&C) ................... 14

Option 5: External AC/DC Powered BUC with No M&C ............................................................................... 15

Option 6: PowerSmart 2480 with BIAS-T Thruplexer (DC Powered through coax + M&C) ......................... 16

Option 7: PowerSmart 2480 with Integrated BUC Connectivity (Separate AC/DC Power and M&C cables) 17

5. Installation ................................................................................................................................................ 18

5.1. Rack Installation..................................................................................................................................... 18

5.2. Setup and Operation............................................................................................................................... 18

APPENDIX A –Powersmart 2480 with MATCHBOX WAVESTREAM BUC..................................................... 19

Powersmart PC Software Interface Device....................................................................................................... 19

Powersmart 2480 Switch Definitions for Matchbox Wavestream supported BUCs........................................ 22

APPENDIX B –Powersmart 2480 with AnaCom Baby ELSAT BUC................................................................ 23

Powersmart PC Software Interface Device....................................................................................................... 23

PowerSmart 2480 Switch Definitions for AnaCom Baby ELSAT supported BUCs ....................................... 24

APPENDIX C –Powersmart 2480 with CODAN LBUC.................................................................................... 25

Powersmart PC Software Interface Device....................................................................................................... 25

Powersmart 2480 Switch Definitions for Codan supported LBUCs ................................................................ 26

APPENDIX D –Powersmart 2480 with AGILIS 80W BUC –Model ALB190ACH-80J-1 .................................. 27

Powersmart PC Software Interface Device(s) .................................................................................................. 27

Powersmart 2480 Switch Definitions for AGILIS 80W supported BUCs ....................................................... 29

APPENDIX E –Powersmart 2480 with AGILIS ALB-128 and ALB-129/229 Series BUC ................................. 32

Powersmart PC Software Interface Device(s) .................................................................................................. 33

Powersmart 2480 Switch Definitions for AGILIS 8W/16W/40W supported BUC(S) .................................... 41

APPENDIX F –Powersmart 2480 Version 2.0+ with AGILIS ALB-128 and ALB-129/229 Series BUC ............ 43

Powersmart PC Software Interface Device(s) .................................................................................................. 44

APPENDIX F –Powersmart 2480 with AGILIS ALB 190AF7-40B BUC (INT C-BAND 40W) ........................... 51

Powersmart PC Software Interface Device(s) .................................................................................................. 52

Powersmart 2480 Switch Definitions for AGILIS 40W supported BUC(S).................................................... 60

APPENDIX F –Powersmart 2480 Version 2.0+ with AGILIS ALB 190AF7-40B BUC (INT C-BAND 40W) ...... 62

Powersmart PC Software Interface Device(s) .................................................................................................. 63

1. Introduction

The iNetVu® PowerSmart 2480 is ideal for applications where a VSAT Transmitter/Amplifier requires more

power than a Satellite Modem can provide over the TX output. This is typical for larger Block Up

Converters (BUC) or Power Amplifiers (SSPA, etc) that supply over 8 Watts RF output power.

The PowerSmart 2480 has been designed to provide 24/48VDC or 110/220 VAC power to external

amplifiers, and includes features to support Monitor and Control (M&C) functions for several products.*

Most AC/DC powered BUCs and SSPAs, and TWAs can be integrated with the PowerSmart 2480, for an

efficient and convenient hardware solution to provide POWER plus M&C Control to an outdoor transmitter

unit. Optional features can be added such as Bias-T, DC Blocker, MUX-T with 10 MHz Clock, all in a

convenient rack mount enclosure.

Amplifier functions such as TX Enable/Disable and operational status can be monitored and controlled from

a convenient operation control panel. Also, configuration parameters, onboard statistics, and fault

information can be accessed via the amplifier’s control interface (if available) through a convenient data

port on the panel. The amplifier manufacturer’s software can typically be operated from a PC platform

through the configurable port, over RS232, RS485, or SNMP interface as required.

Enabling the Transmit function, monitoring BUC faults and the presence of 10MHz reference on the IFL,

verifying output power level, and other common functions along with the rack mount format make the

PowerSmart 2480 a value-added solution to higher-powered VSAT applications.

*NOTE - Monitor and Control functions are dependent on the VSAT Transmitter/Amplifier

manufacturer's design. The primary feature of the iNetVu PowerSmart product is to provide power

to the transmitter from a convenient rack mounted indoor unit. All iNetVu PowerSmart front panel

features may not be functional with all models of transmitters. Typically, a communications feature

is available that may also require other manufacturer's hardware and software to run on a user-

provided computer platform.

2. Specifications

POWER SUPPLY

P2480A

P2480B

P2480C

OUTPUT

Voltage

48 VDC

24 VDC (optional)

110/220 VAC

Rated Power

480W

*See AC Current

INPUT

Voltage Range

85 ~ 264 VAC

Frequency Range

47 ~ 63Hz

AC Current

6.5A/115VAC

3.5A/230VAC

ENVIRONMENTAL

Working Temp

-20° ~ +60° C

Storage Temp.,

Humidity

-40° ~ +85° C, 10 ~ 95% RH

PHYSICAL

Dimensions

482.602 x 361.703 x 43.5 (W x L x H) mm

Max Weight

14 lbs

AMPLIFIER

INTERFACE

RS-232

BUC/AMP Dependent –P2480 Adaptable/Configurable

RS-485

BUC/AMP Dependent –P2480 Adaptable/Configurable

SNMP

BUC/AMP Dependent –P2480 Adaptable/Configurable

PC INTERFACE

DB9 on front panel used to access amplifier Software via PC

FRONT PANEL

SWITCHES

POWER

Powers ON/OFF the BUC

TRANSMIT

Enables/Disables the Transmit

FRONT PANEL

LED INDICATIONS

(M&C FUNCTION

DEPENDENT)

TRANSMIT LED

LED will turn ON or OFF indicating transmit status

Lock Loss LED

This LED is lit when the up converter losses lock indicating the 10 MHz

reference on the IFL is not present, the signal level is too low or is frequency

unstable.

Over Temp LED

Unit temperature has exceeded its internal cutoff. Power to the internal

amplifier module is cut off automatically if the internal temperature reaches

a point where the amplifier might be damaged.

Sum Fault LED

This LED is lit when there is a critical fault with the internal amplifier

COMPATIBILITY

*Supports most AC/DC Power Amplifiers

BIAS-T Thruplexer

(Optional)

C-COM Standard

L-Band and 10 MHz pass (not generated)

C-COM MUX-T

Provides 10 MHz Reference Generation Capability

L-Band pass, plus 10 MHz Clock, plus DC/DC Block

CERTIFICATIONS

FCC

QPS

Note* the iNetVu PowerSmart 2480 could be easily customized to integrate with many AC/DC powered BUC Models. Not

all front panel LED’s are functional with some BUC’s. Specifications subject to change without notice

3. Physical

3.1. Front Panel (2480 Version 1.0+)

Fig. 1: iNetVu®PowerSmart 2480 version 1.0 Front Panel

1. DB9 (RS232/RS485/RJ45) PC Interface

A PC could be used to run the software for Monitor and Control of the Integrated Wavestream

Matchbox, Anacom, Codan L and Agilis BUCs. Currently this port supports RS232 and RS485

serial communication.

Adding jumpers on both connectors will enable RS485/RJ45 on DB9.

No jumper on both connectors will enable RS232 on DB9.

Jumpers Added

enables Serial to

RS485/RJ45

DB9F Connector Pin RS232 Signal (jumpers removed) RS485 (jumpers in) RJ45 (jumpers in)

1 Not Used Not Used **See Appendix for details

2 TD RDA(-)

3 RD TDB(+)

4 Not Used Gnd

5 Gnd Not Used

6 Not Used Gnd

7 Not Used RDB(+)

8 Not Used TDA(-)

9 Not Used Not used

Ensure the PC Serial Interface or cable matches the pins/signals on the PowerSmart front panel DB9

Female connector for software M&C control. See Appendix for the recommended device with the

integrated BUC’s.

2. BUC Status LED’s *

Transmit LED

ON indicates BUC is transmitting

OFF indicates BUC is not transmitting

Lock Loss LED

This LED is lit when the up converter losses lock indicating the 10 MHz

reference on the IFL is not present, the signal level is too low or is frequency

unstable.

Over Temp LED

Unit temperature has exceeded its internal cutoff. Power to the internal amplifier

module is cut off automatically if the internal temperature reaches a point

where the amplifier might be damaged.

Sum Fault LED

This LED is lit when there is a critical fault with the internal amplifier

*may not be functional for some integrated BUC’s –See Appendix

3. TX ENABLE/DISABLE SWITCH

The TX ENABLE/DISABLE switch supplies external transmit control for supporting high powered BUC’s

with M&C capabilities.

4. POWER SWITCH

The power switch supplies AC/DC power to the BUC.

Jumpers removed

enable Serial to

RS232

3.2. Front Panel (2480 Version 2.0+)

Fig. 2: iNetVu®PowerSmart 2480 version 2.0+ Front Panel

Note: The front panel has 2 Interface options, a USB or ETHERNET connection. Only

one of these can be selected when ordering your PowerSmart, depending on your BUC

Monitor & Control interface requirements.

1. MONITOR & CONTROL INTERFACE

There are 2 interfaces (USB and Ethernet) that are available which allows the operator to customize

their preferred communication method. USB is used and internally coverts to RS485 serial. Ethernet is

passed through to the BUC.

2. POWER SWITCH

The power switch supplies AC/DC power to the BUC.

3.3. Back Panel (Both versions 1.0 & 2.0+)

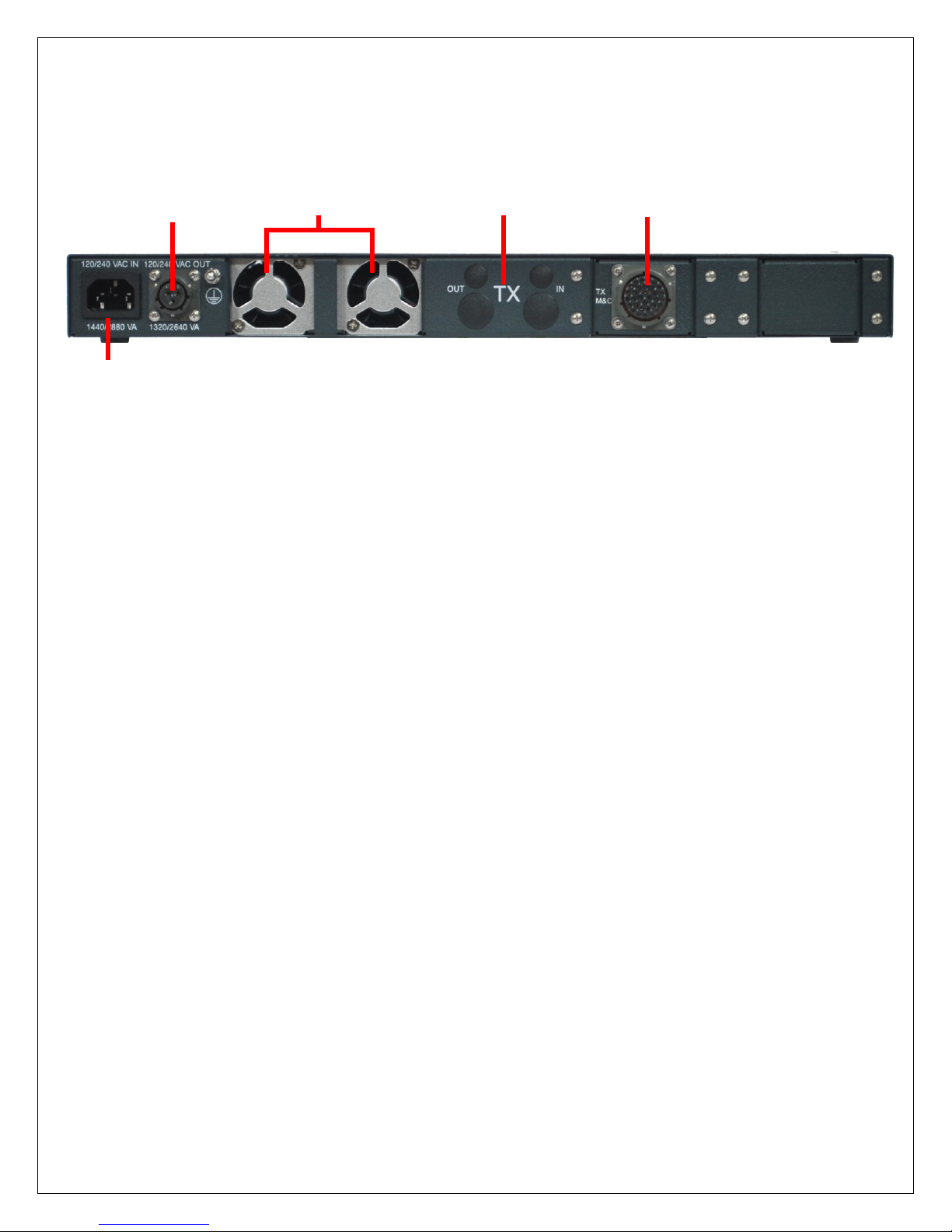

Fig. 3: iNetVu®PowerSmart 2480 Back Panel

The base model is strictly a power supply with an AC Input (no.1) and a Fan Assembly

(no. 3) without the additional components (no. 2, 4 and 5) depicted in the caption above.

The additional components may be added as options depending on the required/desired

configuration of the VSAT system.

1. AC Input

The powersmart 2480 will take AC input ranging from 85 ~ 264 VAC.

2. AC/DC Out

The powersmart has provided the capability of providing AC/DC output from the Power OUT port

(AC Out, no. 2 label on the back plate of the powersmart). AC power will be passed from the AC

input to the output port, and DC power could be generated from the internal power supply

depending on the users required configuration.

3. Fan Assembly

4. Bias-T Thruplexer (Available in F-type or N-type)

There are two optional types of the Bias-T Thruplexers currently available with the iNetVu

Powersmart 2480. The C-COM Standard Bias-T comes with L-Band and 10 MHz pass from a

modulating source. The C-COM MUX-T Thruplexer generates 10MHz reference capability

along with L-Band pass. The MUX-T also comes equipped with an internal switch that allows

for complete DC/DC Block on the coax cable allowing for an external M&C or Power Supply for

the amplifiers.

TX OUT

Bias-T Thruplexer output to amplifier.

TX IN

Bias-T Thruplexer input from modem.

5. M&C Cable port

Provides monitor and control capabilities for supporting amplifiers such as transmit control, and

monitoring capabilities.

4. Typical Connection Configuration

The typical connection configuration for each service will be the same regardless of

the Satellite Modem / VSAT. However, the configuration parameters for Satellite

Modem / VSAT Communication will differ depending on service.

CAUTION: Verify the Correct Power Source Output

To prevent damage to the BUC, ensure that the proper voltage range and polarity is

selected prior to application of input power. Unit is powered either via the military circular

connector or via the IFL. Power must be applied to the proper connector depending on

Unit configuration.

Eg: The Part Number on the Wavestream BUC Unit identifies the proper voltage, for

example:

M B B –K U S 0 2 5 –D S 0 0

Where,

C = 24VDC / D = 48VDC / J = 48VDC on IFL / K = 24VDC on IFL

*This Part No. identifies Unit as requiring a 48VDC Prime.

Verify the correct polarity and voltage range are coming out of the PowerSmart 2480

prior to connecting to the BUC. Ensure the BUC requirements correspond to the

power supply output.

Tabla de contenidos

Manuales populares de Amplificador de otras marcas

ASTRO

ASTRO HVO V40 P Manual de usuario

Marantz

Marantz SUPERSCOPE BLA-545 Instrucciones de montaje

NAD

NAD CI980 Manual de usuario

Technics

Technics SE-CH770 Manual de usuario

Harman Kardon

Harman Kardon HK6300 Manual de usuario

NAD

NAD T975 Manual de usuario

McIntosh

McIntosh MA6850 Manual de usuario

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manual de usuario

Viatron

Viatron Autrix Manual de usuario

GME

GME GA9800 Manual de usuario

Atlas

Atlas CP700 Manual de usuario

Roland

Roland KC-1000 Manual de usuario

Pyle

Pyle PFMRA350BW Manual de usuario

Advantage

Advantage S-250 Manual de usuario

IRT Electronics

IRT Electronics DVA-3007 Manual de usuario

Dimavery

Dimavery BA-100 Series Manual de usuario

Sony

Sony XM-S400D Manual de usuario

Schertler

Schertler ROY X Manual de usuario

iNetVu PowerSmart 2480 Manual de usuario

Manuales populares de Amplificador de otras marcas
