Inateck BCST-41 Manual de usuario

User Guide

1D Barcode Scanner

BCST-41

English · Deutsch · 日本語 · Français · Italiano · Español

1 2

1. How to Power on/o

1) To power on the barcode scanner, press the scanning button for 3 seconds and wait until

the scanner beeps twice and the indicator ashes green.

2) To power o the barcode scanner, press the scanning button for 3 seconds and wait until

the scanner beeps twice.

3) By default, the barcode scanner enters sleep mode after 10 minutes in idle status. This

time setting can be altered by scanning the corresponding barcode.

2. How to Connect with Other Device

Bluetooth HID Mode

Bluetooth HID mode is the default mode. If you want to use this mode, please scan “Enter

Setup”-”Bluetooth HID Mode”-”Save and Exit”barcode in turn.

This is a brief version of BCST-41 manual instruction. For more detailed function illustration,

please go to www.inateck.com to download the complete user manual or contact us via

[email protected]. We’ll try our best to solve your problem in time.

Functions Setup

(Note: the barcode“*”is the default setting of BCST-41)

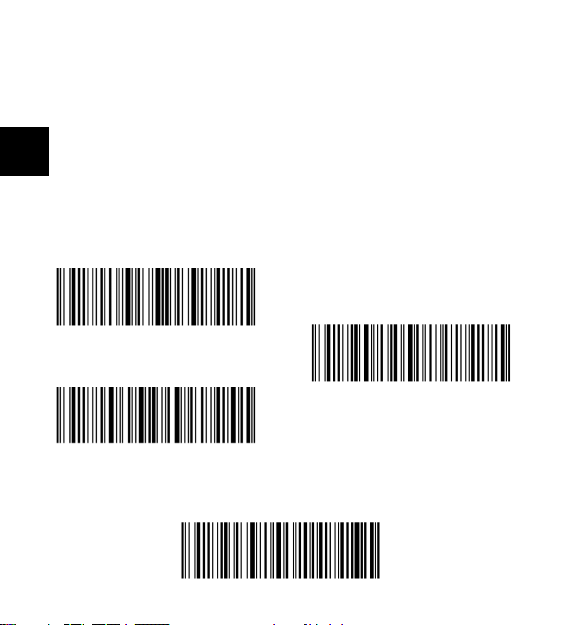

Enter Setup

Save and Exit

Bluetooth HID Mode

If you want to connect the BCST-41 with another phone or laptop, please scan the barcodes

“Enter Setup”-”One to One/ Many Pairing”. Open the Bluetooth on the phone/laptop, search

BCST-41, and then have them paired.

Note:

Under Bluetooth HID mode, the virtual keyboard will be automatically hidden when

connecting the BCST-41 with a phone.

1) If you are on an iOS device, long press the scanning button for 1 second to pop out the

virtual keyboard. To hide it, long press the scanning button for another 1 second.

2) If you are on an Android device, please follow the steps below to reactivate the virtual

keyboard:

a. Turn on the “Settings” app on your Android device;

b. Select a language and input method. Follow the steps below according to the Android

version you’re using.

Android 7.0 and Higher: Select physical keyboard - show virtual keyboard in turn

Android 6.0 and Lower: Select current keyboard-hardware (show input method) in turn.

USB Mode

When connecting the barcode scanner to a computer via USB cable, the BCST-41 will

prioritize using the USB data transmission. The barcode scanner will let out two or more

long high-pitched beeps to remind that the USB is under conguration. You can use the

barcode scanner after the beep stops.

3.Inventory Mode

Users may use inventory mode to keep the scanned barcodes in the cache of Inateck

BCST-41 and upload them to a computer in batches. Under inventory mode users are not

restricted to the time or location when uploading data. Of course, history data can be

cleared in the cache. More details about inventory mode are as below.

One to One/Many

3 4

Note:

You don’t have to “enter setup” or “save and exit” when read the 5 barcodes below. Simply

scan the barcodes to enjoy the functions.

1) Scan the barcode to enter Inventory Mode

2) Scan the barcode to return to Common Mode

3) Scan the barcode to clear data in cache (for Inventory Mode only).

4) Scan the barcode to upload data from the cache (for Inventory Mode only)

5) Scan the barcode to upload the number of scanned barcodes (for Inventory Mode only).

Inventory Mode

(*) Return to Common Mode

Clear Data in Cache (for Inventory Mode only)

Data Upload (for Inventory Mode only)

Upload the Number of scanned barcodes

(for Inventory Mode only)

4. To keep frequently used settings, please scan Enter Setup -

corresponding setting barcode – Exit with Save.

Enter Setup

Save and Exit

Auto Continuous scanning mode

Output Residual Battery

Factory Reset

Manual scanning mode

（*）Enable Auto-sleep Mode

Disable Auto-sleep Mode

5 6

Mute

Setting for prex

Turn o the vibration notication

Setting for Sux

5. Parameters

Material PC+TPU

Voltage DC 5V

Battery Capacity 1200mAh

Barcode Supported Codabar, Code 11, Code 128, GS1-128, USPS, FedEx, Code 39,

Code 32, Code 93, EAN-8, EAN-13, ISBN, ISSN, MSI, UPC-A,

UPC-E, IATA 25, Industrial 25 / Standard 25, Interleaved 25,

Matrix 25, China Postal Code, Plessey, Telepen

Resolution 3mil

Scan Method Auto/Manual

Lowest Contrast 20%

Decoding Angle Turning Angle 30°, Elevation Angle 75°, Deection Angle 80°

Bluetooth Version Bluetooth 5.0

Bluetooth Communication Frequency 2.402GHz~2.480GHz

Bluetooth Transmission Power 4dbm

6. Status indication

LED Indication

Buzzer Indication

Indicator Status Indicator Status

Green Light Flashes BCST-41 is Bluetooth paired but not connected

Green Light Flashes Once Data read and uploaded to computer/phone

Blue Light Flashes Bluetooth of BCST-41 can be searched

Blue Light Flashes Once Data read and stored in cache

Blue Light Lit BCST-41 under Setting Mode

Yellow Light Lit Battery Running Short

Red Light Lit Under Charging (red light o when fully charged)

Buzzer Illustration

Short High Beep (100ms) Barcode read successfully

Short High Beep (20ms) Data uploaded to computer/cellphone

Long High Beep (400ms) Wrong setting (under setting mode, blue light lit)

Cache is full, Barcode not stored, Invalid scanning

Two or More Long High

Beeps (800ms)

USB being congured

Three Cord Sound

(Volume from Low to High)

Enter setting mode (blue light lit)

Exit setting mode (blue light o)

Three Cord Sound

(Volume from High to Low)

Bluetooth connected

Two Short Beeps

(Same Volume)

Bluetooth disconnected

Two Short Beeps

(Volume From Low to High)

Correct setting

Two Short Beeps (Volume

from High to Low)

BCST-41 disconnected from laptop/phone

7 8

7. Packing list

1 X Inateck BCST-41

1 X USB Cable

1 X Lanyard

1 X Flannel Bag

1 X User Guide

1 X Function Settings Card

8. Support

Please feel free to email [email protected] if you have any query regarding Inateck

BCST-41 barcode scanner. We will gladly assist you.

Dies ist eine Kurzversion des BCST-41-Handbuches. Für eine detailliertere

Funktionsabbildung gehen Sie bitte auf www.inateck.com, um das vollständige

Benutzerhandbuch herunterzuladen, oder kontaktieren Sie uns über support@inateck.

com. Wir sind stets bemüht Ihnen zeitnah zu helfen.

Einrichtung der Funktionen

(Hinweis: Mit Stern“*”markierte Barcodes kennzeichnen die Werkseinstellung von BCST-41)

1. Ein/Ausschalten

1) Um den Barcode-Scanner einzuschalten, halten Sie den Auslöser 3 Sekunden lang

gedrückt, bis der Scanner zweimal piept und die LED grün blinkt.

2) Um den Barcode-Scanner auszuschalten, halten Sie den Auslöser 3 Sekunden lang

gedrückt, bis der Scanner zweimal piept.

3) Standardmäßig geht der Barcodescanner nach 10 Minuten im Ruhezustand in den

Schlafmodus über. Den Zeitintervall können Sie in den Einstellungen ändern.

2. Mit anderen Geräten verbinden

Bluetooth-HID-Modus

Der Bluetooth-HID-Modus ist der Standardmodus. Wenn Sie den Bluetooth-HID-Modus

verwenden möchten, scannen Sie nacheinander die Barcodes "Beginn der Einrichtung"-

"Bluetooth-HID-Modus"-"Speichern und Beenden".

Wenn Sie BCST-41 mit weiteren Geräten wie Handy oder Laptop koppeln möchten,

scannen Sie den Barcode “Eins zu Eins/mehrere Kopplung“. Starten Sie Bluetooth auf dem

Handy/Laptop, suchen Sie nach BCST-41 und koppeln Sie die Geräte.

Beginn der Einrichtung

Speichern und Beenden

Bluetooth-HID-Modus

Eins zu eins/mehreren Kopplung
