The HD2 is a portable device which serves for the display of measurement

values delivered by TRIME moisture measurement sensors and was de-

signed for mobile field deployment.

2017-05-31 Manual Handheld Device HD2 Version 2_0

Page 3

Manual Handheld device HD2

Content

1General Notices ........................................................................................................................... 4

1.1 Intended Use...........................................................................................................................................4

1.2 The Chargeable Accumulator.................................................................................................................4

1.3 Charging the HD2 Handheld device......................................................................................................4

1.4 Temperatures and Ambient Conditions ................................................................................................4

2Control Elements ......................................................................................................................... 5

3Initial Commissioning................................................................................................................... 6

3.1 Safety Instructions ..................................................................................................................................6

3.2 Checking the Delivery Scope .................................................................................................................6

3.3 Charging the Accumulator .....................................................................................................................6

3.4 Connecting a Sensor...............................................................................................................................6

4Operation ..................................................................................................................................... 7

4.1 Switching ON the HD2 Handheld device..............................................................................................8

4.2 Switching OFF the HD2 Handheld device.............................................................................................8

4.3 Measurement ..........................................................................................................................................8

4.3.1 Operating Mode „Normal“ ............................................................................................................9

4.3.2 Operating Mode „Average Value“................................................................................................9

4.3.3 Operating Mode „Water Calculation“.........................................................................................10

4.4 Settings .................................................................................................................................................11

4.4.1 HD2-Mode.....................................................................................................................................11

4.4.2 Material Calibration ......................................................................................................................12

4.4.3 Detecting Sensor/Probe ...............................................................................................................15

4.4.4 Language.......................................................................................................................................16

4.4.5 Auto-Power-Off.............................................................................................................................16

4.4.6 Display Illumination.......................................................................................................................16

4.4.7 Display Contrast............................................................................................................................17

4.4.8 Probe Info......................................................................................................................................17

4.4.9 HD2-Info ........................................................................................................................................17

5Technical Data HD2 ................................................................................................................... 18

6Handling of the SONO-M1 and PICO64 Probes ..................................................................... 19

6.1 Introduction...........................................................................................................................................19

6.2 Measurement Volume of the SONO-M1 PICO64 Probes ..................................................................19

7Recommended way to achieve the best possible accuracy with the HD2 kit ...................... 20

7.1 Measurement directly in the sand and gravel pile .............................................................................20

7.2 Measurement of laboratory samples in the bucket............................................................................21

8Exchange of the Probe Rods .................................................................................................... 24

9Technical Data SONO-M1 probe .............................................................................................. 25

10 Savety Notes .............................................................................................................................. 26

Manual Handheld Device HD2 Version 2_0 2017-05-31

Page 4

1 General Notices

Please read the operating instructions carefully.

Should you have any further questions, please contact our service department under the contact data de-

picted above. In no event should you attempt to open and repair the device yourself. Should you like to file

any guarantee claims, please contact the distribution partner where you purchased the device.

Within the scope of product improvements, the device is subject to technical and optical changes.

1.1 Intended Use

This handheld device was designed to serve as a reading device for various IMKO probes. Only respectively

intended probes may be connected to the device. The connection of a probe not intended for connection

may lead to the destruction of the device and/or the connected probe.

1.2 The Chargeable Accumulator

Never exchange the integrated accumulator yourself.

The stated maximum operating periods refer to ideal conditions. The ambient temperature and the charging

cycle can significantly reduce the performance time. In addition, the charging capacity reduces itself for

technical reasons within the course of the utilization of the device or due to storage at very high or low tem-

peratures.

1.3 Charging the HD2 Handheld device

Only deploy the respectively provided charger or a comparable power supply unit to charge the HD2

handheld device. Any deviation of the charging voltage can lead to damage to the device.

Should the device heat up during the charging process, this is normal and not connected with any hazards.

Should the HD2 only function for a short period or not at all in spite of several attempts to charge it, the inte-

grated accumulator is defective and must be exchanged. In this case, please contact our local distribution

partner or us directly.

1.4 Temperatures and Ambient Conditions

The HD2 handheld device was designed for deployment under rough conditions.

The operation of the device under conditions beyond those depicted may lead to damage to the same.

2017-05-31 Manual Handheld Device HD2 Version 2_0

Page 5

„DOWN“

Go to next Menu Item or

Setting

Deleting the Value Memory

(Mode –Average Value)

Probe/Charger Connection

„UP“

Back to previous Menu

Item or Setting

Direct link to “CHOOSE

–Material Calibration”

(Mode: Normal / Aver-

age)

Direct link to “Density

setting” (Mode: water

calculation)

„Settings“

Conclude Settings

Leave Menu Item

„Measurement/Activate“

Shutting ON/OFF- press 1s

Perform Measurement press

shortly

Selection of a Menu Item press

shortly

Storing a setting press shortly

2 Control Elements

Manual Handheld Device HD2 Version 2_0 2017-05-31

Page 6

3 Initial Commissioning

3.1 Safety Instructions

Attention: Before initial commissioning, do not fail to read the General Notices, Item 1 at the front of these

operating instructions. Any not intended use may lead to damage to the device.

3.2 Checking the Delivery Scope

HD2 Handheld device

Plug-in Power Supply Unit (12V/2A)

Charging Adapter

Protective Hood

Manual

3.3 Charging the Accumulator

The integrated accumulator should be charged before putting the device into operation the first time. For this

purpose, plug in the provided charging adapter into the 7-pole socket of the HD2. Subsequently, connect the

plug-in power supply unit to the charging adapter. In the event that the device is already switched on, or if

the accumulator is exhaustively discharged, the charging process will commence immediately. If not, switch

on the HD2 by pressing the button „Measurement“ for approximately 1 second. An active charging pro-

cess is signalised in the display by an animated accumulator symbol.

The integrated charging electronics charges the accumulator until the same is completely charged. In case

of exhaustive discharge, this will approximately take 2 hours. As soon as the charging process is concluded,

all 4 „accumulator bars“ will be permanently presented in the display and the trickle charging will commence.

Attention: Only charge the accumulator at room temperature (approximately between 10°C and

30°C)! At too low temperatures, it may happen that the charging concluding shut-

down does not operate safely and the accumulator is over-charged. Too high ambient

temperatures may lead to damage to the HD2 due to the additional heat-up during the

charging process.

3.4 Connecting a Sensor

The HD2 handheld device can be operated with the following IMKO-moisture probes:

Connect the moisture probe to the HD2 by plugging in the 7-pole plug into the respectively provided socket

at the HD“ and fastening the coupling nut.

2017-05-31 Manual Handheld Device HD2 Version 2_0

Page 7

4 Operation

Key/Button Designation:

Key/Button

Designation

Measurement

Shutting ON/OFF- press 1s

Perform Measurement press shortly

Selection of a Menu Item press shortly

Storing a setting press shortly

Settings

Conclude Settings

Leave Menu Item

Back to previous Menu Item or Setting

Direct link to “CHOOSE – Material Calibration” (Mode:

Normal / Average)

Direct link to “Density setting” (Mode: water calculation)

Down

Go to next Menu Item or Setting

Deleting the Value Memory (Mode –Average Value)

Display Symbols:

Symbol

Designation

Residual Accumulator Capacity

Active Measurement

Settings are stored

Intensity of the Background Illumination

Remaining time until shut-down (illumination / APO)

Press button „UP“

Press button „DOWN“

Manual Handheld Device HD2 Version 2_0 2017-05-31

Page 8

Text Meaning:

Text

Meaning

Cal.:

Number of the active calibration in the probe

Moist.:

Moisture Measurement Value

Notice: Depending on the set calibration, the measure-

ment value may refer to %vol, %grav, εor tp

Temp.:

Temperature

EC-TRIME:

Electrical Conductivity based on the TDR signal

Serialno.:

Serial Number of the probe, respectively of the HD2

HW:

Hardware Version

FW:

Firmware Version

4.1 Switching ON the HD2 Handheld device

Switch ON the HD2 by pressing the button „Measurement“ for approximately 1 second.

During the starting-up process, the HD2 will attempt to communicate with the connected probe. This will take

approximately 4 seconds. If no probe is connected, or the probe is not able to communicate for any reason,

an error message will be generated on the display.

If the probe was successfully detected, the accordingly set background of the operation mode will appear on

the display and the HD” is ready for deployment.

Notice: Should no connection to the probe be possible in spite of several attempts, check if the

probe is connected properly. Should this not deliver a positive result, please contact our ser-

vice department.

4.2 Switching OFF the HD2 Handheld device

Switch OFF the HD2 by pressing the button „Measurement“ for approximately 1 second.

Notice: It is not possible to shut off the HD2 while it is in the „Settings“. Please, first leave the menu

item „Settings“ by pressing the button „Settings“ until the measurement display appears.

4.3 Measurement

The HD2 handheld device disposes of three operating modes:

1. Normal Individual Value Display –presents the measurement variables Moisture, Temperature

and the EC-TRIME

2. Average Value presents the average value of the moisture of up to 6 individual measurements

3. Water calculation determine the content of water in l/m³

Notice: During a measurement, no further actions are possible. It is necessary to wait until the

measurement is concluded.

2017-05-31 Manual Handheld Device HD2 Version 2_0

Page 9

4.3.1 Operating Mode „Normal“

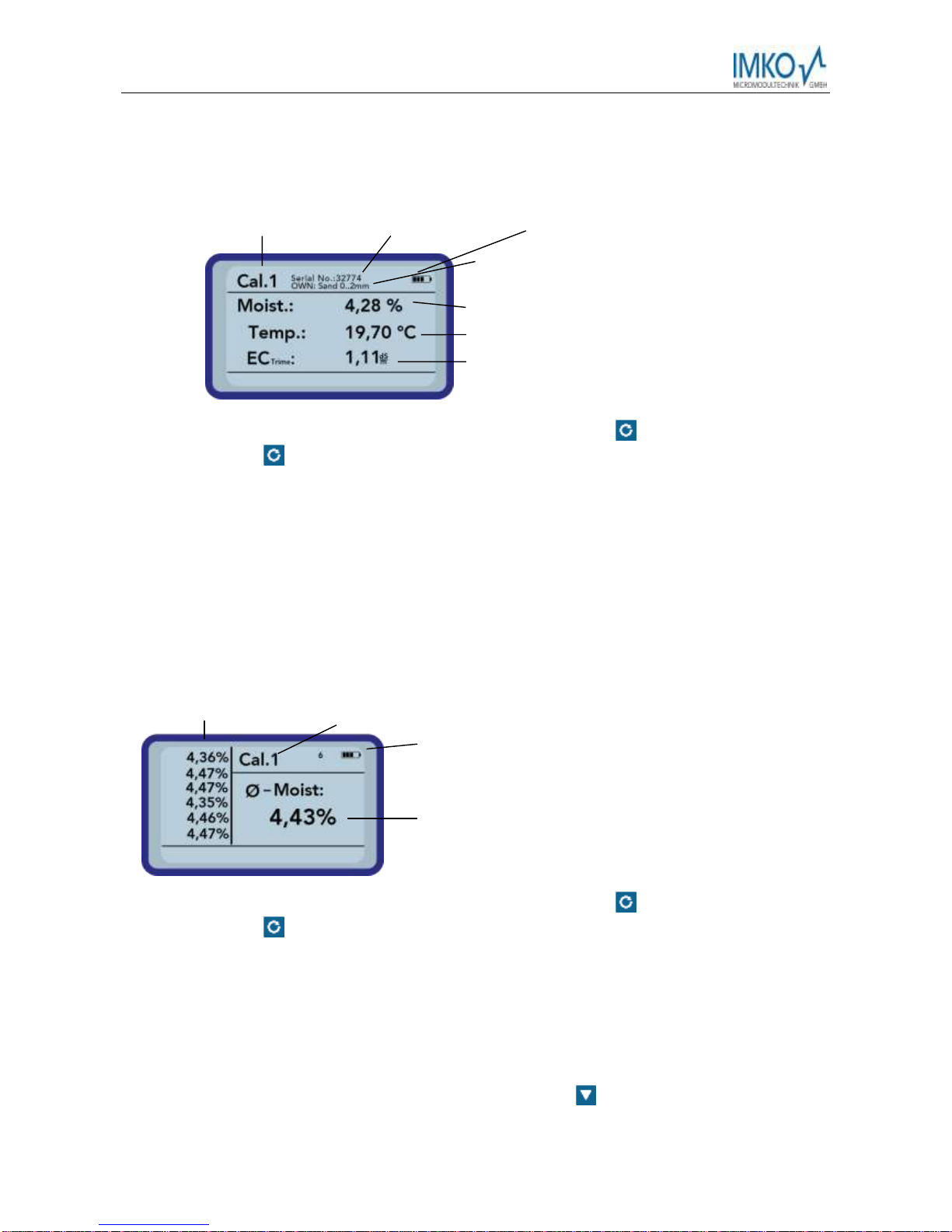

After switching on the HD2 handheld device, the following display will appear in the operating mode „Normal“

after the start screen:

In order to initiate a measurement, shortly press the button “Measurement” . The measurement will com-

mence and a turning -symbol will appear instead of the accumulator-symbol in the upper right hand cor-

ner. During this period, no other actions can be performed. The measurement requires approximately 4 to 5

seconds. Once the measurement is concluded, the accumulator-symbol will reappear and the measured

values will be generated on the display. The display of the values will be maintained until a new measure-

ment is conducted.

4.3.2 Operating Mode „Average Value“

In this operating mode, only the moisture is measured and an average value of up to 6 individual values is

evaluated. Depending on the set calibration, either the volumetric or the gravimetric moisture is presented.

After switching on the HD2 handheld device, the following display will appear in the operating mode „Aver-

age value“ after the start screen:

In order to initiate a measurement, shortly press the button “Measurement” . The measurement will com-

mence and a turning -symbol will appear instead of the accumulator-symbol in the upper right hand cor-

ner. During this period, no other actions can be performed. The measurement requires approximately 4 to 5

seconds. Once the measurement is concluded, the accumulator-symbol will reappear. On the left hand side

of the display, the individual values of the measurements will be presented. The currently measured value is

presented at Position 1 and old values will be shifted one position onwards. The arithmetic average value is

displayed on the right hand side. The average value is calculated out of the existing individual values up to a

number of 6 values.

Notice: Only a maximum of 6 values can be stored in the list. Older values are removed from the list

and are no longer involved in the formation of the average value.

In order to delete the measurement series, actuate the button „Down“ .

Number of selected

Calibration

Serial No. If connected

probe

Measurement Value: Temperature

Measurement Value: TDR-

Conductivity

Name of selected Calibration

Measurement Value: Moisture

Residual Accu-

mulator Capacity

Individual Values of

the Measurements

Number of selected

Calibration

Residual Accumu-

lator Capacity

Average Value

oft he Measu-

rement

Manual Handheld Device HD2 Version 2_0 2017-05-31

Page 10

TIPP:

4.3.3 Operating Mode „Water Calculation“

In this operating mode, only the variable Moisture is measured. There will be up to six single values stored

and concluded to an average value. Out of this the water content per m³ is calculated. To get the correct

water contend it is necessary to set up the density of the measured material.

The continuous measurement is initiated by actuating the button „Measurement“ . The same is concluded

by actuating the button „Measurement“ once more. The currently pending measurement is performed

completely once more and the sequence is concluded.

In order to delete the measurement series, actuate the button „Down“ .

To set up the density of your material, actuate the button „Up“ . Then you will get the following screen in

the display:

Adjust the density of your material by actuating the buttons „Up“

and „Down“ . Confirm your setting by pressing the button

“Measurement” . You will then automatic get back to the meas-

urement screen. Leave the setting without changing the density by

pressing the button „Settings“ .

Individual Values of

the Measurements

Number of selected

Calibration

Residual Accumu-

lator Capacity

Average of Water

content in l/m³

Density in kg/dm³

Otros manuales para HD2

Tabla de contenidos

Otros manuales de Instrumento de medición de IMKO

IMKO

IMKO TRIME-FM Manual de usuario

IMKO

IMKO TRIME-GW Series Manual de usuario

IMKO

IMKO Trime-GW Manual de usuario

IMKO

IMKO SONO-MIX Standard Manual de usuario

IMKO

IMKO SONO-VIEW Manual de usuario

IMKO

IMKO SONO-VARIO Xtreme Manual de usuario

IMKO

IMKO SONO-VIEW Manual de usuario

IMKO

IMKO SONO-DIS Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
