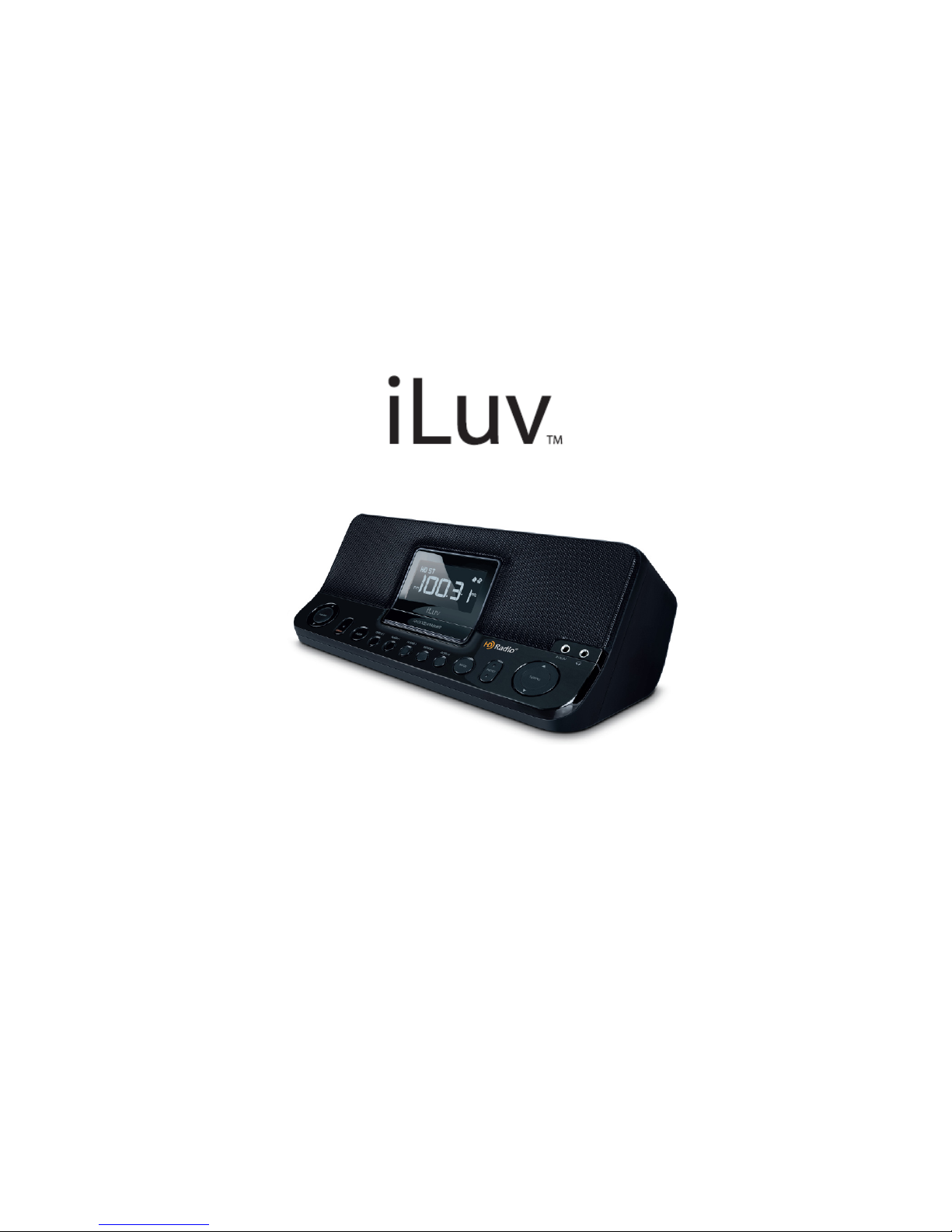

Iluv i168 Manual de usuario
HD Radio™ Receiver with Dual Alarm Clock
Instruction Manual
Model: i168
Please read this manual carefully before operating and save it for future reference.
Have a question? Please visit http://www.i-Luv.com
HD Radio Receiver with Dual Alarm Clock V10M10_IM_EN_03182008
www.i-Luv.com
- 1 -
USER SAFETY GUIDE
INSTRUCTIONS ON ENVIRONMENT PROTECTION
Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of
electrical and electronic appliances. This symbol on the product means the instructions for use or the packing will inform about the methods
for disposal. The materials are recyclable as mentioned in its marking. By recycling, material recycling, or other forms of re-utilization of old
appliances, you make an important contribution to protect the environment. Please inquire at your local community administration for the
authorized disposal location.
IMPORTANT SAFETY WARNINGS
1. FCC regulations state that any change or modification to the equipment, not expressly approved by maker or its authorized parties, could void the
user’s authority to operate this equipment.
2. To prevent fire or electric shock, do not expose the unit to rain or moisture.
3. Never attempt to open the cabinet. Always refer servicing to a qualified technician.
Cautions
•If you experience a ringing sound in your ear, lower the volume or discontinue the
use of this product. Excessive sound pressure from earphones and headphone can
cause hearing loss.
•Do not use the headphones while driving or cycling. Because this product reduces
the external noises, you might not be able to hear the warning sounds, such as an
automobile horn, and might result in a traffic accident. Additionally, listening to
headphones while driving is illegal in many places
•The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
•The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Caution Marking and rating plate were located at bottom enclosure of the apparatus.
HD Radio Receiver with Dual Alarm Clock V10M10_IM_EN_03182008
www.i-Luv.com
- 2 -
USER SAFETY GUIDE
IMPORTANT SAFETY INSTRUCTIONS
1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained in a secure place for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be observed.
4. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water. For example: near a bathtub, kitchen sink, laundry tub, and/or swimming
pool.
6. HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers)
that produce heat.
7. POWER SOURCES
a. The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
b. Do not defeat the safety purpose of the polarized or grounding – type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
8. CLEANING - The appliance should be cleaned with a dry cloth.
9. CAUTION
a. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
b. Only use attachment/accessories specified by the manufacturer.
10. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the device’s openings. The apparatus
should not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
11. CARTS AND STANDS - The appliance should be used only with a cart or stand that is recommended by the manufacturer. An
appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
HD Radio Receiver with Dual Alarm Clock V10M10_IM_EN_03182008
www.i-Luv.com
- 3 -
USER SAFETY GUIDE
12. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service professional when:
a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance’s apertures.
c. The appliance has been exposed to rain.
d. The appliance has been dropped and suffered damage.
e. The appliance does not appear to operate normally, or exhibits a change in performance.
13. LIGHTNING WARNING - Unplug this apparatus during lightning storms or when unused for long periods of time.
14. POWER CORD - Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit
from the apparatus. Main plug is used as disconnect device and it should remain readily operate during intended use. In order to disconnect the
apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
15. SERVICING - The user should not attempt to service the appliance beyond that described in the user's operating instructions. All other servicing should
be referred to qualified service professional.
16. LEAD AND MERCURY - This product may contain lead and/or mercury. Disposal of these materials may be regulated by your local authorities due to
environmental considerations. For more detailed disposal or recycling information, please contact your local authorities or the EIA (Electronic Industries
Alliance) – http://www.eiae.org
HD Radio Receiver with Dual Alarm Clock V10M10_IM_EN_03182008
www.i-Luv.com
- 4 -
USER SAFETY GUIDE
FOR USERS IN THE USA
As specified in Part 15 of the FCC Rules, this equipment complies within the limits of a Class B digital device. These restrictions provide sufficient protection
against radio and TV interference in residential areas. However, even during normal operation, this device may cause TV or radio interference. In attempting
to eliminate some or all interference, you should try one or more of the following corrective measures:
1. Increase the distance between the device and the radio and/or TV
2. Try a different outlet on various electrical circuits for the device, the radio and/or TV.
3. Reposition the receiving antenna
Do not attempt to fix technical problems yourself if they continue to still exist. Refer servicing only to a qualified technical professional. Interfering or
modifying with your product’s internal components may cause a malfunction and an invalidation of the system’s warranty. This tampering can also void the
FCC authorization to operate it.
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.
IMPORTANT NOTES
Since digital circuitry may cause interference to other radio or television tuners nearby, switch this unit off when not in use or move it away from the affected
radio/television tuner.
HD Radio Receiver with Dual Alarm Clock V10M10_IM_EN_03182008
www.i-Luv.com
- 5 -
USER SAFETY GUIDE
FOR USERS IN CANADA
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of
Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television operation (which can be determined by turning the equipment off), the user is encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio / TV technician for help.
HD Radio Receiver with Dual Alarm Clock V10M10_IM_EN_03182008
www.i-Luv.com
- 6 -
USER SAFETY GUIDE
About Electromagnetic Interference (EMI)
This device is designed and manufactured not to exceed the exposure limit for radio frequency energy, which is set by the Federal Communications
Commission of the U.S government.
The term “EMI” is short for the electromagnetic interference caused by the electromagnetic field generated by electronic devices. In fact, most electrical
appliances and devices emit electric and magnetic fields, and most of modern electronic devices are susceptible to the EMI if they are inadequately shielded
or designed.
•If you use any personal medical device, such as a pacemaker, please consult the manufacture of your medical device to determine if it is adequately
shielded from EMI. Your physician might assist you in obtaining this information.
•Please turn off this device if you are instructed to do so, especially on an airplane or in a hospital.
•Please keep away from medical instruments in a hospital or medical unit while using this device.
IMPORTANT NOTES ON HEARING
Your hearing is very important to you and to us. We strongly recommend you to follow the guideline below in order to prevent possible damage to or loss of
hearing. Hearing experts caution that listening to loud sounds can damage hearing over time. With continuous listening to loud sounds, hearing adapts and
will give the impression that volume has reduced. What seems normal may, in fact, be harmful. To guard against this before hearing adapts, set the volume
at a low level and slowly increase the volume level until sound can be heard comfortably and clearly without distortion. Damage to hearing is cumulative and
irreversible. Ringing or discomfort in the ears indicates that the volume is too loud. Once a comfortable listening level has been established, do not increase
the volume level further.
HD Radio Receiver with Dual Alarm Clock V10M10_IM_EN_03182008
www.i-Luv.com
- 7 -
TABLE OF CONTENTS
Getting Started
HD Radio™ Receiver with Dual Alarm Clock……………………………………………………………………………………………………………...… 8
In the box……...………….……………………………………………………………..………………………………………………………..……………... 8
Location of Controls on the Main Unit.……………………….……………………………………………………………………………………………….. 9
General Radio Operation…………….…………...……………………………………………………………………………………………………………. 10
Operational Instructions
Listening to the Radio ………………………………………………………………………………………………………………………………………….. 11
Using the Preset Channels…….………………………………………………………………………………………………………………………………. 11
To receive Preset Stations…..…………………………………………………………………………………………………………………………………. 12
HD Radio™ Multicast Channels………………………………………………………………………………………………………………………………. 12
Delay in the HD Radio™ System……………...……...………………………………………………………………………………………………………. 12
To Display Text Information………………………………………………………………………………………………………………..………………….. 13
RBDS ……………………………………………………………………………………………………………………………………………………………. 13
AUX Operation…………………………………………………………………………………………………………………………………………………... 13
Using Headphones………………..……………………………………………………………………………………………………………………………. 14
Using the Clock……………...……...…………………………………………………………………………………………………………………………... 14
Setting the Time………………………………………………………………………………………………………………..……………………….…. 14
Setting the Alarm(s)…………………………………………………………………………………………………………………………………….…. 15
Adjusting the Clock Light……………………………………………………………………………………………………………………………….…. 15
Operating the Alarm……………………………………………………………………………………………………………………………………….. 16
Maintenance …………………………………………………………………………………………………………………………………………………….. 17
Troubleshooting And Specifications……………………………………………………………………………………………..……………………………… 18
HD Radio Receiver with Dual Alarm Clock V10M10_IM_EN_03182008
www.i-Luv.com
- 8 -
GETTING STARTED
Congratulations on your purchase of the new iLuv™ i168 HD RadioTM receiver with dual alarm clock. Targeted specifically to work with iPod, iLuv stereo
audio system with the built-in universal dock provides advanced audio and radio performance that brings out the best in your music. Do not forget to keep
this manual for future reference.
HD Radio™ Receiver with Dual Alarm Clock
•Provides crystal clear, digital stereo for FM and AM HD Radio™ and multicast stations
•Receive HD Radio™ signals that increases the clarity of your FM radio stations to CD-quality sound
•Displays information like station and song name, band, frequency and more if available from the station
•Receives standard analog AM and FM stereo
•PLL tuning digital tuning technology
•Programmable presets for 30 radio stations (10 for AM / 20 for FM)
•Negative liquid crystal display (LCD)
•Digital clock display with dual alarm clock
•Wake to AM/FM radio or buzzer
•Sleep to AM/FM radio
•Auxiliary line input for any audio devices with 3.5mm jack
•Audio output: 2 x 3WRMS with 1% THD
In the box
•HD Radio™ receiver
•Instructional manual
•Warranty card
•FM antenna and AM loop antenna
HD Radio Receiver with Dual Alarm Clock V10M10_IM_EN_03182008
www.i-Luv.com
- 9 -
GETTING STARTED
Location of Controls on the Main Unit
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
1. VOLUME control
2. NEGATIVE LCD screen
3. POWER button
4. SNOOZE / DIMMER bar
5. SLEEP button
6. TIME SET button
7. ALARM 1 button
8. ALARM 2 button
9. MEMORY button
10. DISPLAY button
11. MODE button
12. PRESET control
13. AUX IN jack
14. TUNING control
15. HEADPHONE jack
16. SPEAKERS
16
