Ilsco TaskMaster TR-CUT120CU Manual de usuario

Instruction manual

Model: TR-CUT120CU

Read and understand all of the instructions and

safety information in this manual before operating

or servicing this tool.

UTILCO Lineman Tools

4730 Madison Road

Cincinnati OH 45227

www.ilsco.com

Phone:

800-776-9775

513-533-6200

TR-CUT120CU

Table of Contents

Warranty and Servicing......................................................................................................................................................3

Safety Symbols......................................................................................................................................................................3

Safety........................................................................................................................................................................................4

Technical Specications.....................................................................................................................................................5

Identication..........................................................................................................................................................................6

Operating Instructions.......................................................................................................................................................7

Tool Maintenance.................................................................................................................................................................8

Head Assembly Breakdown and Parts List..................................................................................................................9

Thank you...

for buying a ILSCO Lineman Tool. Our mission is to bring product innovation and exceptional

customer service to the marketplace. This tool line is reliable, dependable, and durable for our

customer’s needs.

Please read this instruction manual carefully before using the product. If you have any questions

about our product please reach out to our customer service department (see back cover). No part

of the contents of this manual may be reproduced, transmitted or circulated in any form or by any

means without the prior written authorization of ILSCO Lineman Tools.

TR-CUT120CU

SAFETY SYMBOLS

Do not dispose

of product.

Please recycle

Electric Shock

Hazard- use

proper protective

equipment

Attention!

Risk of

cutting injury

Never use

with unlocked

workhead

Read the operating

instructions

before use

Wear protective

goggles

WARRANTY AND SERVICING

UtilPro™ 5-Year Tool Service Protection Program

Introducing the industry’s best service & support program for all your ILSCO hydraulic crimping and

cutting tools. All ILSCO tool buyers are automatically registered in the UtilPro Service Protection

Program and will receive free tool repairs for defects in material or workmanship on their tool(s) for

ve years after their original purchase date. (Excludes abuse, non-intended use, tampered with or

normal wear and tear.)

UtilPro Tool 5-Day Repair Pledge

If your tool(s) need repair at any time within ve years of your original purchase date, our UtilPro

service network will repair your registered tools within ve business days of receipt.

UtilPro Tool Loaner Program

If you need a replacement tool during any repair, our UtilPro network can typically provide a

comparable loaner tool to registered tool owners while your tool is being repaired.

FREE Tool Reconditioning

Your rst reconditioning is on us!

To Find a UtilPro Service Partner

Call ILSCO for assistance in solving tool performance issues or for any of your service needs.

ILSCO tool owners will be oered options to solve any tool replacement, parts or repair

issues.

Call 513-533-6200 or 800-776-9775

Monday to Friday

8:00AM to 5:00PM Eastern Time (ET)

TR-CUT120CU

SAFETY

Read all safety warnings, instructions provided with this tool. Failure to follow all

instructions listed below may result in electric shock, re and/or serious injury. Save all

warnings and instructions for future reference.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Keep children and bystanders away while operating a hydraulic tool. Distractions can

cause you to lose control.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a

hydraulic tool. Do not use a hydraulic tool while you are tired or under the inuence

of drugs, alcohol, or medication. A moment of inattention while using hydraulic tools

may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective

equipment such as rubber gloves, non-skid safety shoes, hard hat or hearing

protection used for appropriate conditions will reduce personal injuries.

• Do not overreach. Keep proper footing and balance at all times. This enables better

control of the tool in unexpected situations.

• Do not let familiarity gained from frequent use of hydraulic tools allow you to

become complacent and ignore tool safety principles. A careless action can cause

severe injury within a fraction of a second.

SERVICE

• Have your tool serviced by a qualied repair person using only identical replacement

parts. This will ensure that the safety of the hydraulic tool is maintained.

TR-CUT120CU

TECHNICAL SPECIFICATIONS

Force developed: 15 tons

Jaw Opening: 4.72 in.

Dimensions: 21 in. x 8.5 in. x 3.1 in. (L x W x H)

Weight: 17.8 lbs.

Cut Capacity

CU code wire: 4.5 in.

AL code wire: 4.5 in.

21in. (533 mm)

TR-CUT120CU

Movable Blade

Head Locking Pin

Carrying Handle

Male Coupler







IDENTIFICATION

NOTE: Includes durable metal carrying case.

TR-CUT120CU

4. Make sure all cuts are made perpendicular to the cutting head or damage will occur to blades.

5. Advance the blade.

6. Once cut is complete, fully retract the blade.

OPERATING INSTRUCTIONS

Be sure to read instructions carefully, wear safety goggles, and keep ngers away from cutting

head.

NOTE: Connect tool to 10,000 PSI hydraulic pump.

CUTTING

1. Make sure the blade is fully retracted.

2. Pull head locking pin to open head.

3. Close head and secure locking pin in place. Be sure tool head is completely locked before

cutting or damage will occur.

CAUTION: always wear eye protection

while cutting

WARNING: do not cut steel.

TR-CUT120CU

TOOL MAINTENANCE

Daily maintenance:

• After each cutting cycle wipe the cutting head jaws free of metal shavings.

• Wipe down all steel parts with WD-40.

• Store the tool in a non-humid environment.

The tool should provide many years of service when given the proper maintenance and care.

Should you experience any diculty with the operation and maintenance of this tool, contact our

customer service department (see back cover).

TR-CUT120CU

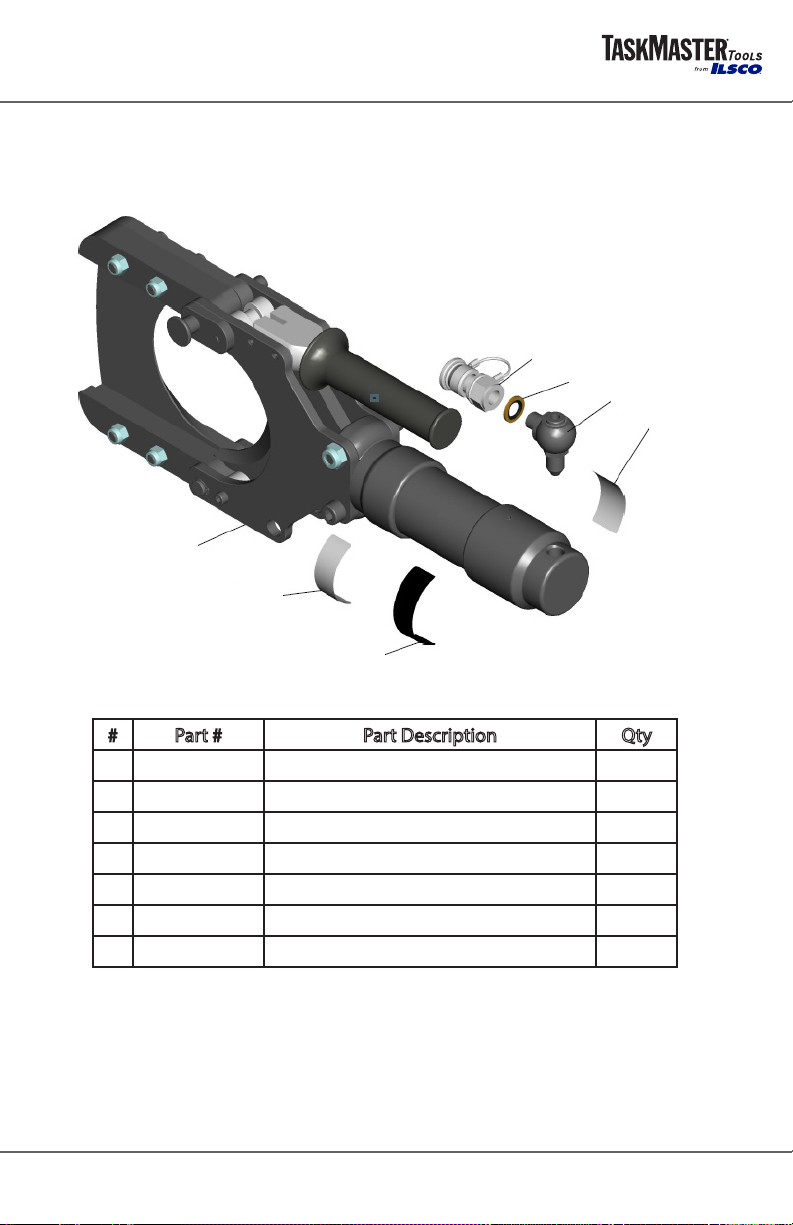

HEAD ASSEMBLY BREAKDOWN AND PARTS LIST

# Part # Part Description Qty

1 102986 NIPPLE CPL 1

2 711211 SCREW SEAL 1

3 714132 SWIVEL JOINT 1

4 706858 TYP PLATE 1

5 E 750004 HYDRAULIC CUTTING HEAD MNT 1

6 103416 LABEL PICTOGRAM 1

7 710095 LABEL 1

TR-CUT120CU

Notes:
