Ikelite 6871.65 Manual de usuario
Thank you for your purchase of Ikelite equipment. Please read this
instruction manual completely before attempting to operate or dive
with this product. Please refer to the back page of this manual to
register your Ikelite product.
IKELITE
SLR-DC ousing
instruction manual
6871.65 Canon EOS 650D, Rebel T4i, Kiss X6i
Canon EOS 700D, Rebel T5i, Kiss X7i
2
Table of Contents
Specifications ..............................................................P. 3
Package Contents ........................................................P. 4
Preparation ..................................................................P. 4
Attach External “Tray with andles” to ousing ............P. 4
Parts of the ousing - Front/Side View ..........................P. 5
Parts of the ousing - Back View ..................................P. 6
Initial Camera Setup........................................................P. 7
Opening the ousing ......................................................P. 7
ousing Conversion Circuitry..........................................P. 8
Setting the Conversion Circuitry Strobe ID Switch..........P. 8
Using the Conversion Circuitry........................................P. 9
Using Non-Ikelite or Ikelite Non-DS Strobes ..................P. 9
DS50 and DS125 Strobe Compatibility ..........................P. 10
Attaching the Flash Connection for External Strobes ....P. 10
Attach Camera to ousing Tray......................................P. 11
Installing Camera in ousing ..........................................P. 11
Closing the ousing ........................................................P. 12
Final Check ....................................................................P. 12
Attaching a Sync Cord to the ousing ............................P. 13
Turn Camera On..............................................................P. 13
Zoom Clamp & Gear Sleeve Installation ........................P. 14
Manual Focusing ............................................................P. 18
Installing the Port ............................................................P. 19
Lens Ports ......................................................................P. 20
Attaching an Ikelite Strobe Arm to the ousing andle..P. 21
Table of Contents - continued
Usage ............................................................................P. 22
Pre-Dive Your System ....................................................P. 22
Lubricants ........................................................................P. 22
Troubleshooting ........................................................P. 23
Recommended Accessories ....................................P. 25
Accessory Mounting Points ............................................P. 25
EV-Controller Use............................................................P. 25
Maintenance..................................................................P. 26
Storing the ousing ........................................................P. 29
Spare Parts ..................................................................P. 29
Photo Tips ....................................................................P. 29
Technical Support ........................................................P. 30
Limited Warranty ........................................................P. 31
Returning Products for Service ................................P. 31
Product Registration ..................................................Back Cover
3
Specifications
Controls ..................All important camera functions are accessible. Controls
not provided for Diopter Adjustment and Flash Button.
Width ......................9.5in (240mm) including controls
eight ....................6.7in (170mm) including controls
Depth ......................6.5in (165mm) including controls
Weight ....................5.5lb (2.5kg) without tray & handles
Buoyancy ................Neutral in freshwater; Dependant on lens & port
Built-in Flash ..........No
Strobe Connection ..Ikelite digital TTL electrical bulkhead
Tray Mounting ........12-24 thread with 3in spacing (76mm)
- SLR-DC ousing
- Envelope containing tray
installation hardware,
maintenance kit, and extra
control end tips.
Package Contents
- Aluminum Tray & Dual andles
- Silicone Lubricant
- Standard Zoom Clamp & Sleeve Set
- #5509.28 Large Diameter Zoom
Clamp & Sleeve Set
This product has been water pressure tested at the factory and is depth
rated to 200 ft. (60m). Thoroughly inspect and immerse the empty
housing completely in water before installing a camera. If any fogging
occurs or droplets of water enter the housing, do not install a camera.
Clean the housing main o-ring and retest to make sure that it is
watertight. Refer to the Troubleshooting section, page 23.
We suggest that you read this instruction booklet thoroughly before use
to have a full understanding of where each camera control is located,
and what function each control provides. Please read your camera
manual thoroughly to have a full understanding of each camera function.
If you are new to underwater photography, be sure to read the Photo
Tips section.
Due to the power required to operate the camera and LCD screen start
each dive with a fully charged camera battery.
Preparation
4
Attach External “Tray with Handles” to Housing
Use hardware and instructions
located in the clear Ikelite pouch
to attach the “Tray with andles”
to your Ikelite housing.
Port Lock
IKELITE
Camera
Mounting Bolt
5
IKELITE
Parts of the Housing - Front View
andle
Port
Opening
Gear Sleeve
Drive Gear
Shutter
Button
Mail Dial
Lid
Snap
Side View
Gear
Sleeve
Optional
Port
Port O-ring
Main ousing
O-ring
Camera Tray
Aluminum Tray
Lid
Snap
ISO Speed
Shutter
Button
Lens
Release
Zoom
Control
ӿAE/FE Lock
Power Switch
Mode Dial
6
9
26
11
16
17
4
1
3
5
7
8
10 12
13
14 15
Back View
1. External Strobe Connector & Cap
2. Menu Button
3. Info Button
4. Super-eye Optical Viewfinder
5. Live View/Movie Shooting
6. AF Point/Magnify Button
7. Aperture/Exp. Comp.
8. Quick Control Button
9. WB White Balance Button
10. Drive Mode Selection Button
11. Setting Button
12. AF Operation Selection Button
13. Picture Style Selection Button
14. Playback Button
15. Erase Button
16. Flash Mode “-” Compensation
17. Flash Mode “+” Compensation
Quick Release
Strobe Arm Mount
Live View/Movie Shooting
Opening the Housing
Lid Snaps have a Lock. To open,
push Lid Snap Lock forward and lift as
shown. Keep pressure on the Lid
Snap so it does not fly open quickly.
Lid Snaps have a lot of spring tension
once they go over center, so have a
firm grip on the Lid Snap. Lid Snaps
may be opened one at a time.
7
Lift
Push Forward
Lid Snap Lock
Initial Camera Setup
- Insert a fully charged battery.
- Insert an SD or SD C memory card.
- Set the mode dial to “M” manual.
- Set shutter speed to 1/60th second or 1/125th second for fast
moving subjects. Maximum shutter speed of 1/250th second
recommended to allow full power flashes from strobes. Set aperture to
F8 for general photography or F22 for macro photography (close-ups).
- Set Image quality to “L, 18M”, or other desired setting.
- Set Image review to “8 seconds” and Red-eye reduc. to “Disable.”
- Set Flash control: Flash firing to “Enable.”
- Set Auto Lighting Optimizer to “Disable.”
- Set Metering Mode to “Center-weighted average.”
- Set Live View shoot. to “Enable.”
- Set AF method to “Quick mode.”
- Set Metering timer to “4 sec.”
- Set Auto power off to “15 min.”
- Set LCD auto off to “Disable.”
- Set White Balance to Auto “AWB.”
- Set ISO to “200.”
8
DS
DS
Set
DS Substrobe
to TTL Mode
50-51
TIGHTEN HOLDOWN BOLT
WITH COIN
OR SCREWDRIVER
160-161
125-200
Strobe ID Switch

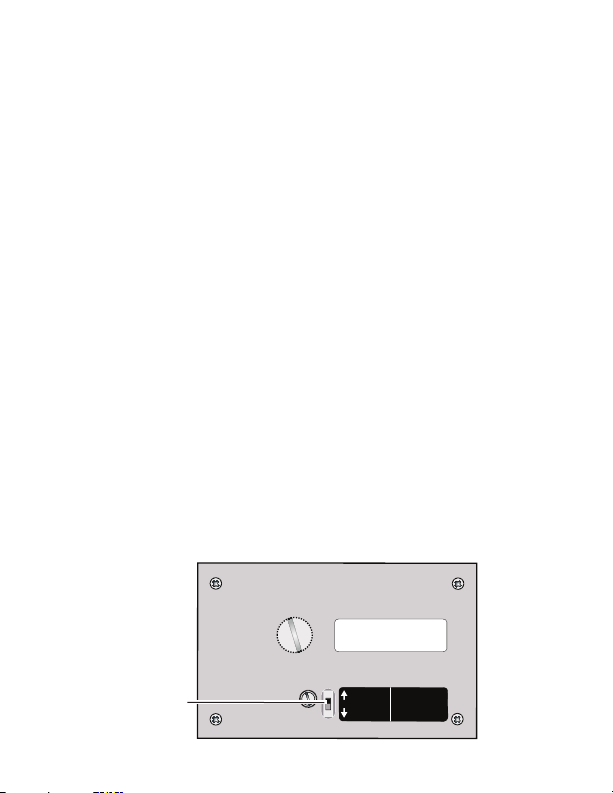

Setting the Conversion Circuitry Strobe ID Switch
Housing Conversion Circuitry
This housing contains Ikelite designed Conversion Circuitry. Once
attached, turn the strobe on first before turning on the camera.
When used with Ikelite DS Strobes the Conversion Circuitry provides
real TTL flash exposure with over and underexposure compensation
from +2 to -2 f-stops in 1/2 stop increments.
The Conversion Circuitry also offers Manual exposure control with 3 1/2
f-stops of underexposure control in 1/2 stop increments.
The Conversion Circuitry is powered by the Ikelite DS Strobe when
connected to the housing with the 4103.51 single or 4103.52 dual sync
cord. When using two strobes with the dual sync cord, the primary
strobe connected to the cord without the red band, must be turned on to
power the Conversion Circuitry. Always keep both strobes connected to
your dual sync cord underwater. Do not exchange your secondary
strobe for a dust cap which may not be waterproof.
On the bottom of the housing camera tray is a switch for setting the DS
Strobe ID. Set the switch to the Model of DS Strobe being used.
When using dual strobes of different models such as a DS51 and a
DS161, set the ID switch to DS51 or the smaller strobe.
9
Using on-Ikelite or Ikelite on-DS Strobes
(Strobe 50, 100A, 200, 400) with this Housing
The Conversion Circuitry is automatically disabled when used with a
Non-Ikelite or Non-DS Strobe. These Strobes can be used in their manual
mode utilizing any power settings provided on the Strobe.
Using the Conversion Circuitry (Set DS Strobe to TTL mode)
-Mode and Compensation Buttons
The Conversion Circuitry default is set to TTL. To switch between TTL and
Manual Modes, depress both Mode Buttons at the same time and keep
them depressed until you see the desired Yellow LED Mode illuminate.
-TTL Mode (indicated when the yellow LED directly below TTL is
illuminated). TTL Mode is the default setting. When the DS Strobe is
powered ON, the yellow TTL LED will illuminate. None of the Red LEDs
will illuminate. This indicates that no (+) plus or (-) minus compensation is
selected. Depress the Mode buttons to select +/- compensation. Note that
the TTL +/- compensation values are in the yellow bar with the heading
TTL.
-Manual Mode (indicated when the yellow LED directly below the M is
illuminated). When the Manual Mode is selected, the Red LED directly
below the F (full power) will illuminate. Note that the Manual minus (-)
compensation values are in the black bar with the heading M. Set DS
Strobe to TTL mode. This will allow the strobe power to be varied in
manual mode.
Red LEDs (Compensation)
Manual Mode - Yellow LED
TTL Mode - Yellow LED
Mode &
Compensation
Buttons
When using an external strobe, connect the housing hotshoe connector.
Slide the connector into the hotshoe mount on the camera from the back
of the camera as shown.
Slide the connector forward
until it stops. Make sure the
hotshoe is all the way
forward in the camera
mount to assure a good
connection. Due to limited
clearance between the
camera hotshoe mount and
the housing back, the
hotshoe connector should
be attached before the
camera is secured with the
mounting bolt.
10
DS50 and DS125 Strobe Compatibility
- Older DS50 Strobes with Serial Number below 63,850 can NOT be
updated to operate correctly with the latest TTL conversion circuitry.
Older DS50 Strobes with Serial Number between 63,850 and 69,999
require upgrade of electronics to operate. Cost of update depends on
strobe circuitry. Strobe must be returned to Ikelite for evaluation to
provide an estimate of upgrade cost.
- Older DS125 Strobes with Serial Number below 2,500 can NOT be
updated to operate correctly with the latest TTL conversion circuitry.
Older DS125 Strobes with Serial Number between 2,500 and 4,999
require upgrade of electronics to operate. Cost of update depends on
strobe circuitry. Strobe must be returned to Ikelite for evaluation to
provide an estimate of upgrade cost.
Attaching the Flash Connection for External Strobes
External Strobe Connector
and Waterproof Cap
ousing Back
otshoe
Connector
Tabla de contenidos
Otros manuales de Accesorios para cámaras de Ikelite
Ikelite
Ikelite 6146.05 Manual de usuario
Ikelite
Ikelite SLR-DC Housing Manual de usuario
Ikelite
Ikelite 47140 Manual de usuario
Ikelite
Ikelite SLR-DC Housing Manual de usuario
Ikelite
Ikelite Olympus C-60 Manual de operación y mantenimiento
Ikelite
Ikelite 6801.32 Manual de usuario
Ikelite
Ikelite DLM 6” Dome Port with Zoom Manual de usuario
Ikelite
Ikelite 4077.01 Hoja de especificaciones
Ikelite
Ikelite CoolPix S500 Manual de usuario
Ikelite
Ikelite 6183.33 Manual de usuario
Ikelite
Ikelite 6950.52 Manual de usuario
Ikelite
Ikelite DS160 Manual de usuario
Ikelite
Ikelite 6812.61 Manual de usuario
Ikelite
Ikelite 6243.50 Manual del propietario
Ikelite
Ikelite 6871.08 Manual de usuario
Ikelite
Ikelite 6853.30 Manual de usuario
Ikelite
Ikelite 6182.71 Manual de usuario
Ikelite
Ikelite 6891.1 Manual de usuario
Ikelite
Ikelite DSC-H3 Manual de usuario
Ikelite
Ikelite Canon A630 Manual de usuario
