Ikelite 200DLM/D Manual de usuario
200DLM/D Underwater Housing and Canon EOS
R100 Camera Deluxe Kit
Product # 69752
2
Introduction
Thank you for your purchase of Ikelite products.
Our primary focus is to provide quality, professional grade products
for use in and under water. Our products are designed, manufactured,
and distributed from our sole facility in Indianapolis, USA where we
started in 1962.
We are available if you have any questions or want photo advice.
reply within 1 business day.
An electronic version of this instruction manual is available for
download via the product page on our website:
https://www.ikelite.com
In the Box
• 200DLM/D Underwater Housing # 69750
• Shutter Trigger Extension # 4077.95 (installed)
• Vacuum Valve # 47001 (installed)
• Dome Port # 5516.15 (installed)
• Zoom Gear # 5516.14 (installed)
• Tray with Dual Quick Release Handles # 9523.64 (installed)
• Vacuum Pump with Gauge # 47011
• Anti-Reection Ring for Canon RF 18-45mm # 0923.16
• .050” hex key # 0945.11
• Spare Main O-Ring # 0110
• Spare Front O-Ring # 0132.36
• Silicone lubricant 1cc tube
3
Important Notices
»This housing requires a compatible DLM lens port for
waterproof operation. The housing is not waterproof without a
DLM lens port attached.
»A bulkhead cap or sync cord must be attached to the housing
bulkhead for waterproof operation. Never submerge the
housing in water without either a sync cord or bulkhead cap
attached.
»Do not pull the shutter trigger without a camera installed. You
may accidentally detach or damage the control spring.
»Never leave a housing in a rinse tank, even if it is the only
system in the tank. Accidental damage may occur when the
user walks away from a housing while it is in the rinse tank.
»Do not use alcohol, cleaning agents, spray lubricants, Rain-X,
or other solvents on the housing or lens port. Use of an
incompatible chemical compound can damage the plastic and
o-rings, and may result in leaking.
»If you will be using the system in strong surf it is
recommended to draw a vacuum on the housing using the
optional vacuum kit (sold separately).
4
Contents
Introduction 2
In the Box 2
Important Notices 3
Getting to Know Your Housing 6
Tray Mounts 9
Accessory Ports 9
Trigger Extension 9
Setting Up Your Camera 10
Pre-Installation Checklist 10
Camera Settings 10
Exposure Settings 10
Setting Up Your Housing 11
Opening the Housing 11
Installing the Camera 11
Closing the Housing 12
Attaching a Lens Port 13
Installing the Lens and Port 13
Setting Up An External Strobe 16
Manual Strobe Exposure via Sync Cord 16
Manual Strobe Exposure via Fiber Optic Cord 16
TTL Strobe Exposure 16
Getting in the Water 17
Final Check 17
Entering the Water 17
Shooting Underwater 18
Learning about Underwater Photography 18
Maintaining Your Housing 19
Post-Dive 19
Lens Port 19
5
Storage 20
Servicing Recommendations 20
Lubricating Controls 21
Lubricating Push Buttons 21
Lubricating Control Shafts 22
Troubleshooting 24
Spare Parts 26
Limited Warranty 26
Service and Repairs 26
Contact Us 27
6
Getting to Know Your Housing
Shutter
Bulkhead
with cap
Lid snap
Tray mounts
Lens
release
Port mount
7
CANON R100
69750 MADE IN USA
ISO
ISO
Q
Q
SET
SET
MENU
MENU
INFO
INFO
MODE DIAL
MODE DIAL
Rear o-ring
CANON R100
69750 MADE IN USA
ISO
ISO
Q
Q
SET
SET
MENU
MENU
INFO
INFO
MODE DIALMODE DIAL
Left
Playback
Lid
snap
hook
Up
Down
Right
OK
AE Lock
AF Point
Selection
Info
Menu
Mode dial
8
Bulkhead
without cap Main Dial
Power
switch
Movie
shooting
button
Vacuum valve
9
Tray Mounts
This housing features two 1/4-20 threaded tray mounts on the bottom
of the housing. The spacing between the tray mounts is 3” (76.2 mm).
Optional tray with handles and mounting hardware are sold separately.
It is recommended to detach the tray with handles and thoroughly
rinse the tray mounts, tray, and mounting hardware, with fresh water
routinely during continuous use and prior to storage.
Setting Up Your Camera
Pre-Installation Checklist
1. Insert a fully charged camera battery.
2. Insert a properly formatted memory card.
3. Remove any attached lanyard or neck strap.
Camera Settings
• Set Flash ring to “On” when using an external strobe.
• Set AF assist beam to “Off” when using an external strobe.
• Set Red-eye reduc. to “Off” when using an external strobe.
Exposure Settings
Refer to the Cheat Sheets in the Photo School section of our website
for recommendations on exposure settings for a wide variety of
shooting situations:
https://www.ikelite.com/blogs/cheat-sheets
10
Setting Up Your Housing
Opening the Housing

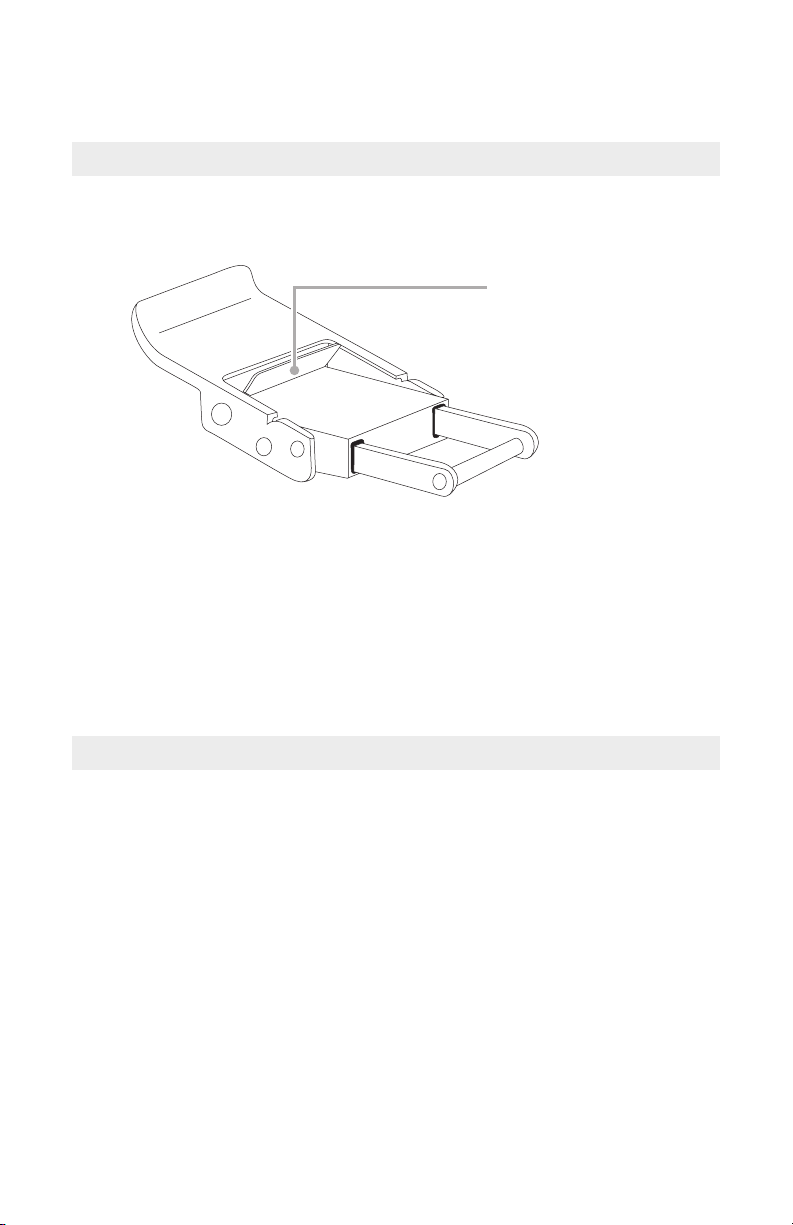

1. Push the lid snap lock forward and lift the curved end away from
the housing.
Lock
2. Lid snaps are designed to provide enough force to compress the
o-ring for a proper seal. Keep rm pressure against the lid snap
while lifting it away.
3. Repeat with opposite lid snap.
4. Remove the housing back.
Installing the Camera
1. Remove any lanyard or neck strap which may be attached to the
camera.
2. Remove the camera mount plate from the housing.
