Ikelite 5509.20 Manual de usuario

5509.20 Zoom Sleeve (Canon 10-18mm STM)

Instruction Manual

Included n Box

- Zoom Sleeve for Canon 10-18mm STM Lens

A special zoom sleeve for use with the Canon 10-18mm STM lens when

used with the Canon EOS 100D Rebel SL1 in our Compact DSLR Housing.

The full zoom range of the lens is accommodated by the housing's standard

dome port without vignetting (dark shadows in the corners of the image).

Thank you for choosing Ikelite equipment. Please read this instruction

manual completely before attempting to operate or dive with this product.

2

Install ng Zoom Sleeve

1. Install camera body into the housing without the Canon 10-18mm lens.

2. Slide the Zoom Sleeve onto the lens as shown in diagram A.

3 Slide the Zoom Sleeve forward until the front edge aligns with the focus

ring of the camera lens.

4. Insert camera lens through front port opening and align with lens

mounting indicator on the camera body. Rotate lens clockwise until lens

locks into place.

5. Housing port can now be installed and secured as per housing

instructions. The full zoom range of the lens is accommodated by the

housing's standard dome port without vignetting (dark shadows in the

corners of the image).

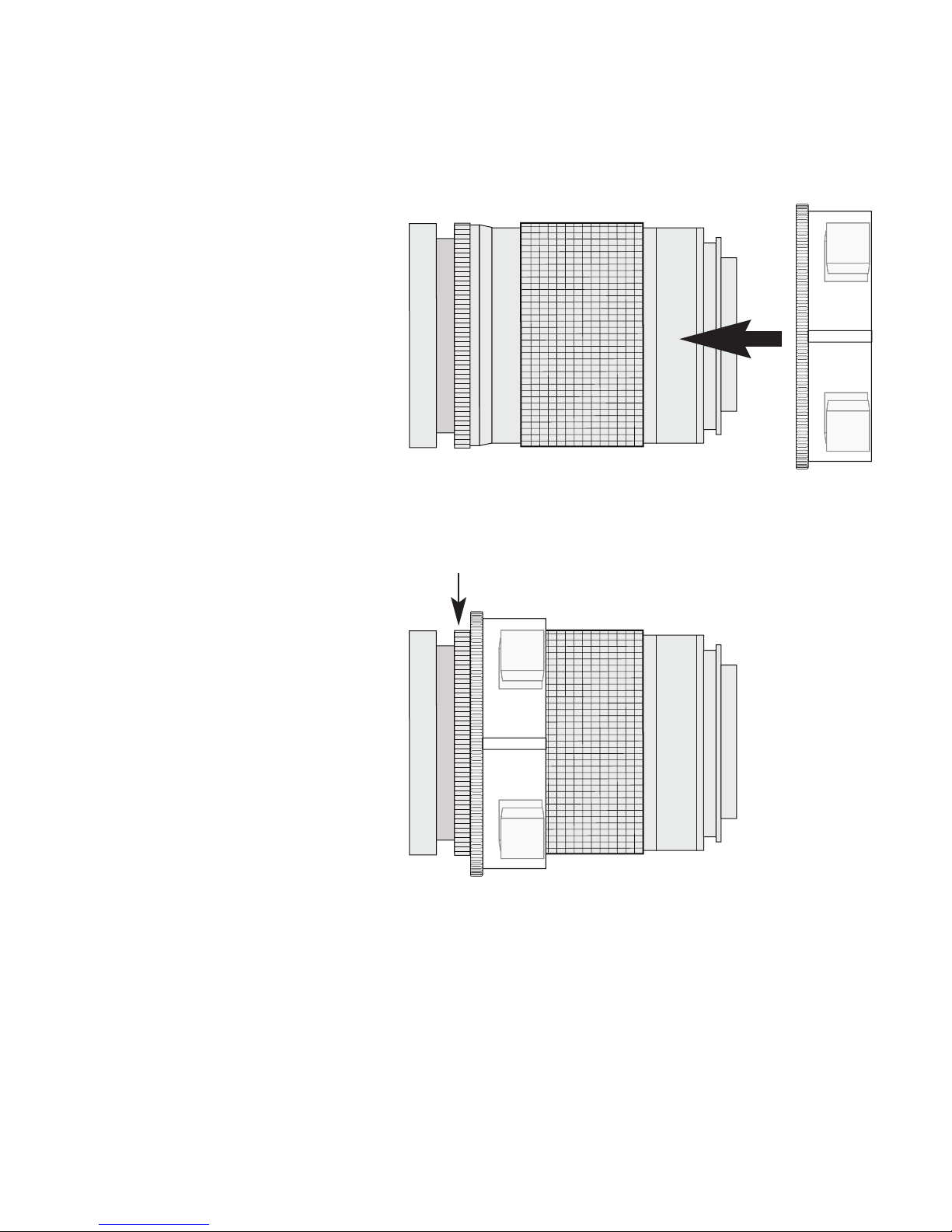

lens focus ring

Diagram A

3

5509.20_Zoom_Sleeve_2-0115

Return ng Products for Serv ce

Ikelite products may be returned directly to the factory for service. No

advance notice or return authorization is required to obtain service. All

shipments must include a brief cover letter stating your name, shipping

address, email address, telephone phone number, and brief description of

the work request. Please also include a copy of the original purchase

receipt to obtain warranty service.

Send Postage Pre-paid to:

Ikel te Underwater Systems

Attn: Serv ce Department

50 West 33 Street

Ind anapol s, IN 46208 USA

No reimbursements for return freight will be issued.

Return ng Products for Serv ce (outs de the Un ted States)

For the separate international customs documentation form that you

complete to accompany the shipment, please state or designate that the

enclosed products were originally manufactured in the USA and are being

returned to the manufacturer for repair service. alue of the equipment

listed for customs purposes should be zero.

Ikel te Underwater Systems

50 West 33rd Street

Ind anapol s, IN 46208 USA

Ikel te L m ted Warranty

This product is warranted against any manufacturing defects for a period of

one year from the original date of purchase. Defective products should be

returned prepaid to Ikelite. Ikelite will, at its discretion, repair or replace such

products, and will return to customer prepaid. All other claims of any nature

are not covered. Except as mentioned above, no other warranty expressed

or implied, applies to this Ikelite product.

© 2015 Ikelite Underwater Systems
