How to Control PCS-418/426/436 with SDR-500series DVR
1. Connect the AC24V ,Video and RS-485 wire for PCS-418/426/436 as page 8
of PCS-400P Series Dome Installation & Set-up Guide.
Red wire: 24V AC Live, Blue wire: 24v ac Neutral,
Yellow wire: RS-485(A)+, Green wire:RS-485(B)-,
Coax: Video signal
2. Also connect above RS-485 wire and Video cable(BNC) to rear side of
SDR-500 Series as page 9 of User’s Manual SDR-500 Series.
The Video out of SDR-500 series should be connect to the Video monitor,
3. After Power on PCS-400P series camera, SDR-500 series DVR and Monitor,
you can see the below screen. Should be used the USB mouse for controlling
and set-up (by connecting front side of SDR-500 Series).
4. Click Icon which shown by red arrow, then following Login Screen displayed.
Click Key board Icon which shown by red arrow.
5. Next Screen displayed as follows, please enter PASS WORD “ 1 1 1 1”
The detail information for above Item 4.and Item5. are shown page 24 , 4.1
Login /Logout of User’s Manual SDR-500 Series.
6.The following screen is appeared, then click “Camera PTZ”.
7. Select the Protocol the red arrow showed point clicking.(Pelco-D example)
In this case also the PCS-400P Series Protocol should be set up PELCO D
with S3 switch page 11 of PCS-400P Series Dome Installation & Set-up
Guide. ( S3: 1 –ON, 2-OFF,3-ON, 7-OFF for PELCO-D 2400)
The camera side PCS-400P series Protocol set up proceeding is shown on
page 11 to 13 of PCS-400P Series Dome Installation & Set-up Guide.

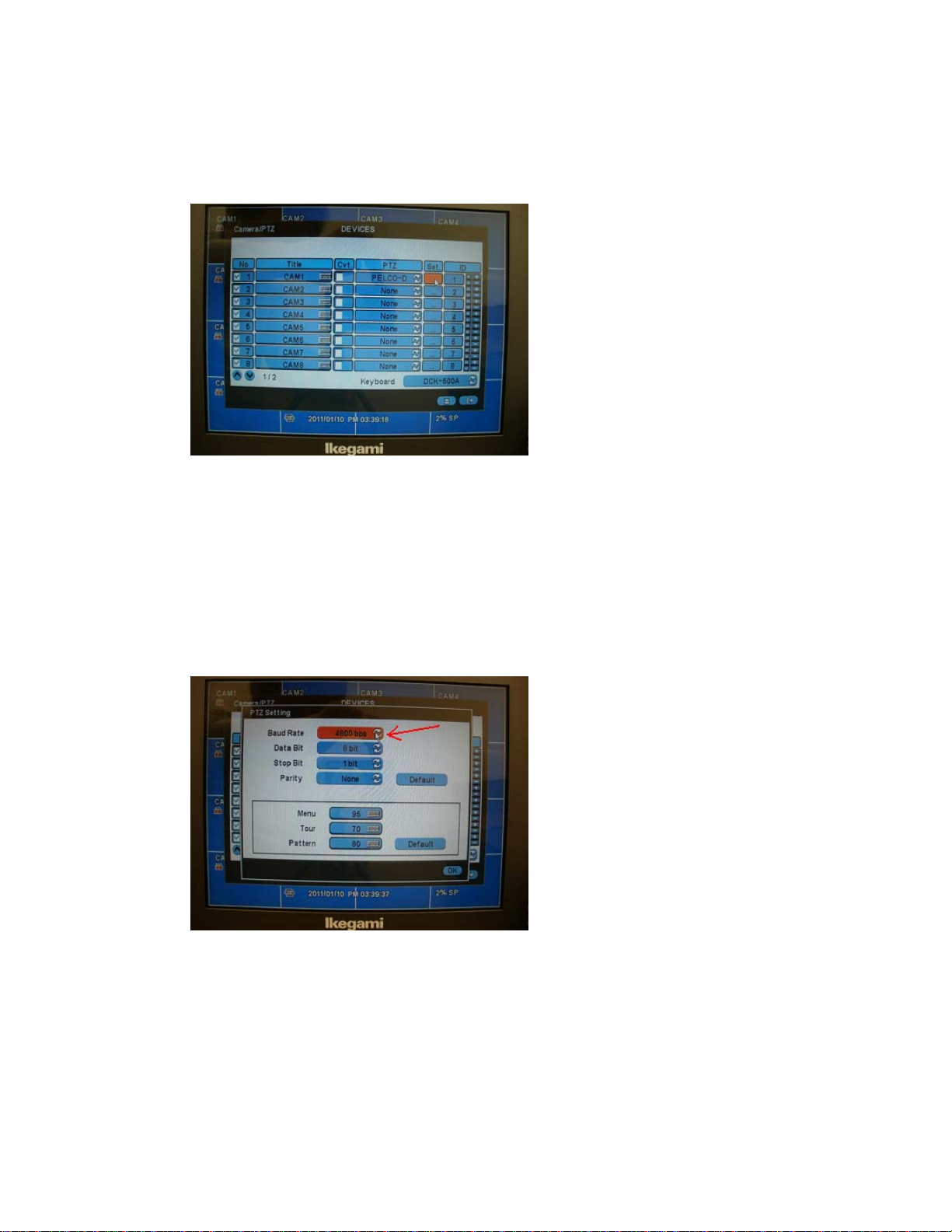

8.The next, click the following orange color point.
Then below screen is displayed, red arrow shown point click and select the
Baud Rate. “Pelco –D 2400” shall selected 2400bps in this case.
Data bit ,Stop Bit, Parity, Menu, Tour, Pattern setting value is same as blow
screen.
9.When you need to change the ID number for controlling PCS-400P series
camera, click and set the red arrow shown point(+,- , ^ , also can be set)
The camera side PCS-400P series ID set up proceeding is shown on page
11 to 13 of PCS-400P Series Dome Installation & Set-up Guide. (Unit table A
should be used for PELCO-D 2400, S1: 0 , S2:1,for ID number 1)
10. Through above setting when you do not want to show the controlled picture,
chick marked as below red arrow 1 pointed. The display screen is covert but can
be recorded as you like. Click the red arrow 2 pointed, set-up data is memorized.
11. Next screen appeared as below. Click “Exit “
12.Next screen is shown the Blue Dome camera icon, this means CAM1 is set
PTZ.(Icon on screen are shown on page52, 5.1 Viewing of User’s Manual
SDR-500 Series.)
13.Control from SDR-500series.
13-1. Double click the camera picture (blue dome camera icon picture) on
multi screen display, then full screen for PTZ camera is displayed.
Pan Tilt Control shown on page53 and 54 , 5.15 Pan/Tilt Control of User’s
Manual SDR-500 Series.
If following tool bar is shown on screen, click the red arrow point “Cross mark” for
hidden.
13-2. Right click on the screen then following SET UP MENU display on screen.
Click the PTZ on SET UP MENU.
Then blue dome camera icon picture is shown bottom of screen, as below
shown picture, this means the PCS-400P series camera can be control from
SDR-500series DVR.
Please note the SDR-500 can control 1 PTZ camera by full screen picture for it.

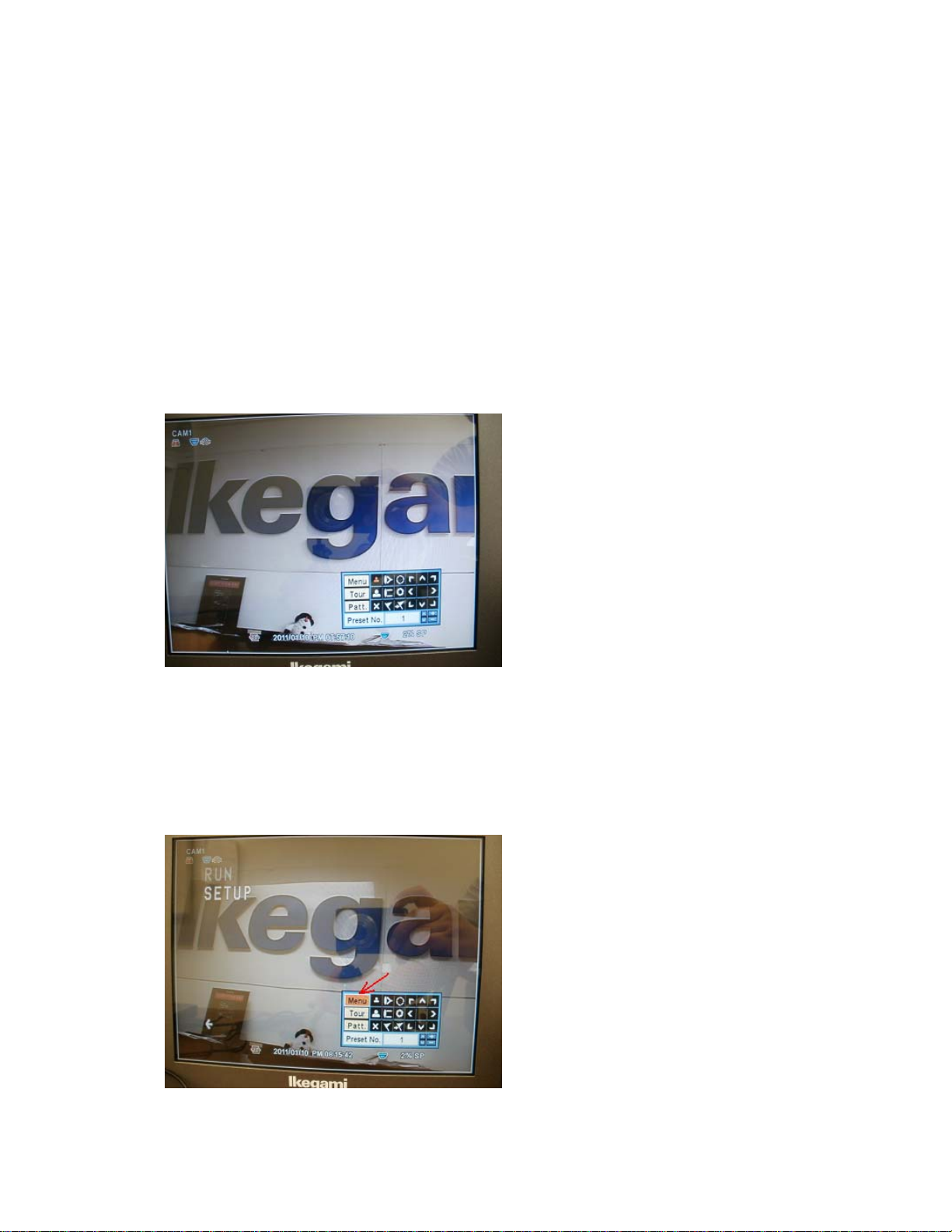

13-3. Then cursor(Arrow for USB mouse) to the lower and near the center
screen (and wait few second), the Key pad screen (camera control function is
shown page 53 of User’s Manual.
You can control manually PAN –TILT , ZOOM IN/OUT ,FOCUS ,(IRIS is auto iris
only for PCS-400P series)as shown key pad by clicking.
13-4. When click the “Menu” on Key pad screen, you can enter PCS-400P
camera SET-UP itself by shown PCS-400P SET –UP MENU. But this
PCS-400P set-up cursor is operated with Key pad screen as next page.
13-5. Camera PCS-400P setup Key function.
Fig-1
1. Number 10 -17 : Cursor shift
2. Number 7 : Close this Key pad screen
3. Number 3 :Select &Enter (PASS WORD: A A A A )
4. Number 8 :Save preset
5. Number 9 :Start the Tour for PCS-400P on “RUN” selected on screen as
below.
“RUN” Blinking(Selected)
