Ikan PT4900S-PTZ Manual de usuario
PT4900S-PTZ
Quick Start Guide
Profesional 19” High-Bright PTZ-Compatible Teleprompter w/ 3G-SDI
OVERVIEW
The 19” PTZ Teleprompter from Ikan is a professional solution for teleprompting with PTZ cameras. The package provides an extra-wide hood
assembly to allow considerable movement of the camera within the wide beam splitter glass. The PTZ Teleprompter features a 19” 1000 cd/
m² monitor, 70/30 20”-wide beamsplitter glass, and a 25’ reading range. The teleprompter is designed for use with a wide range of PTZ
cameras, as the wide beamsplitter provides for a wide amount of left-right panning. The teleprompter includes a base system that can be
easily shifted forward and backwards, which enables mounting the camera to the prompter without requiring counterweights.
Please note that the PTZ4900S-PTZ includes parts to build two types of teleprompter systems, a standard 19” Teleprompter that is compatible
with various types of mirrorless and broadcast cameras, and a 19” PTZ teleprompter that is compatible with a wide range of PTZ cameras.
This Quick Start Guide will show you how to set up the 19” Teleprompter for PTZ cameras. For instructions on how to set up the PT4900 for
broadcast or mirrorless cameras, please refer to the PT4900 Quick Start Guide on our website.

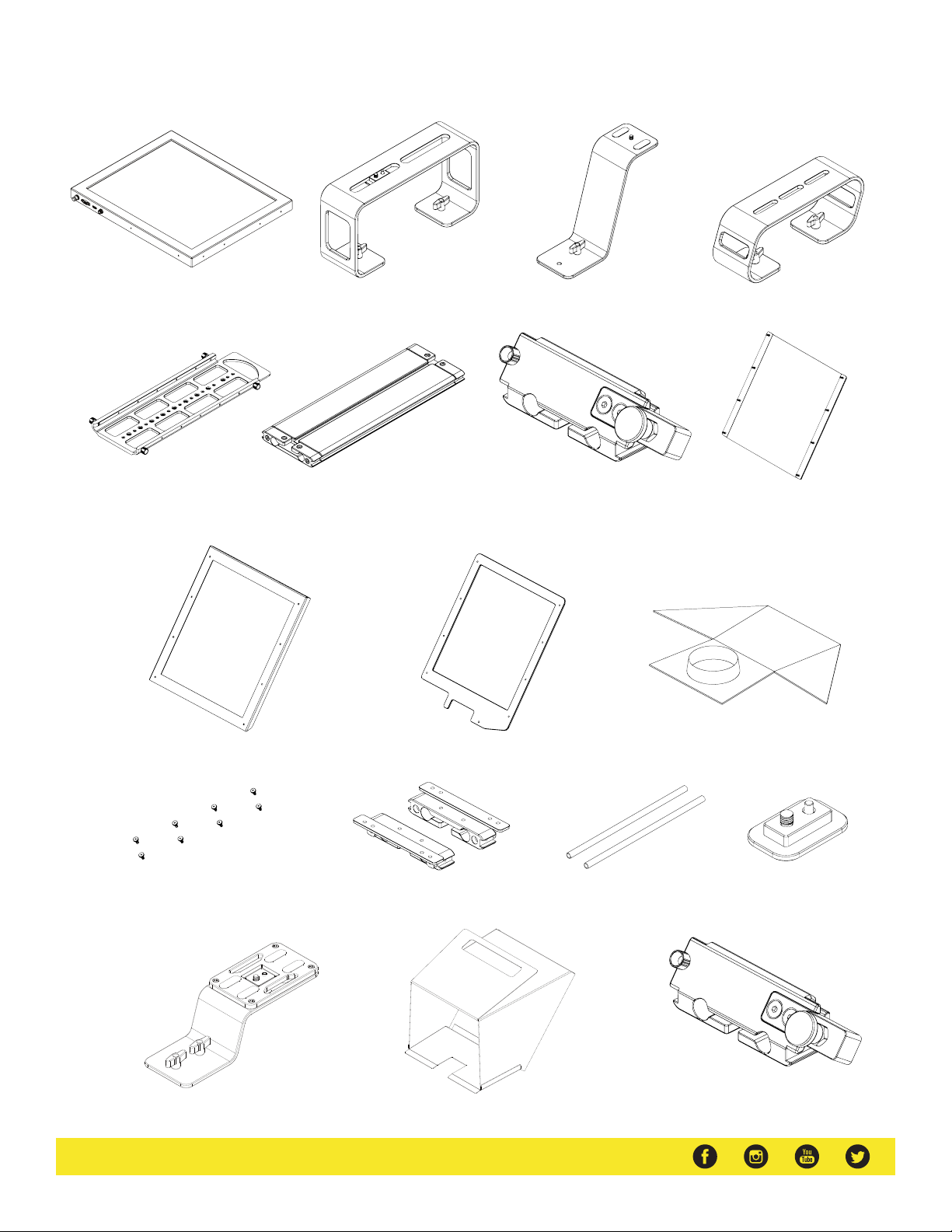

What’s Included
Large RiserMonitor
Bottom Plate
Hood Attachment Frame
Glass Frame Screws 15mm Rod Clamps 15mm Rods Large Riser
Bracket
Glass Holder Hood
Glass
Medium Riser
Base
DSLR/Mirrorless Riser
Glass Frame Holder Bracket
w/ Rod Clamps
Teleprompter Assmebly Setup

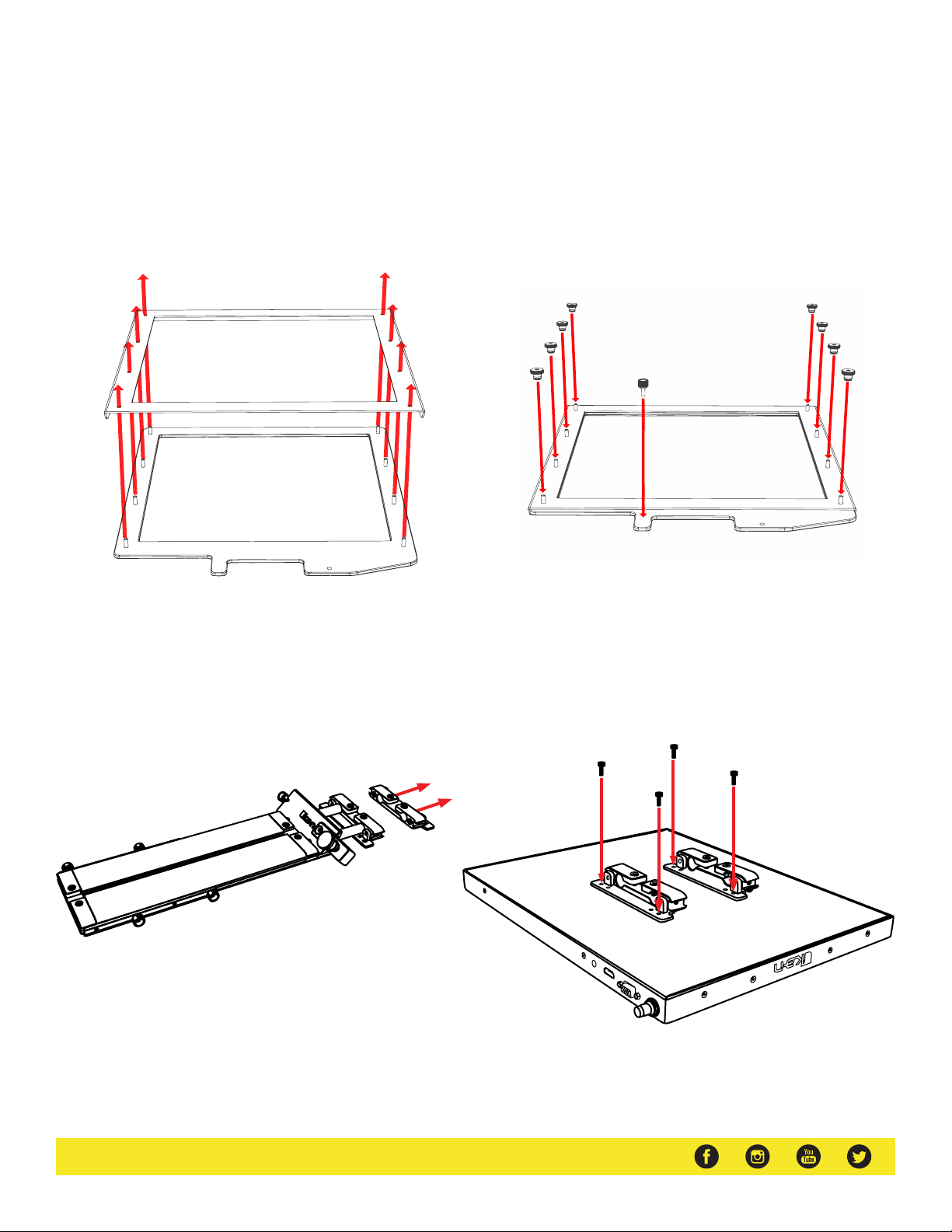

Step 1
Place the Hood Attachment Frame over the Glass Holder. Then place the
glass against the Glass Holder. Make sure the screws pass through the
holes on the both the Hood Attachment Frame and the Glass Holder.
Step 3
Remove the monitor mounts from the teleprompter base using
the included larger 4mm hex key to loosen from the 15mm rods.
Step 4
Put the washers on before tightening the screws. The washers and 4
additional screws are inside a bag on the bottom foam.
Step 2
Secure the Glass Holder by fastening the knurled nuts to the screws as
pictured below.
1
2
-
2
4
V
H
D
M
I
V
G
A
AV
Step 5

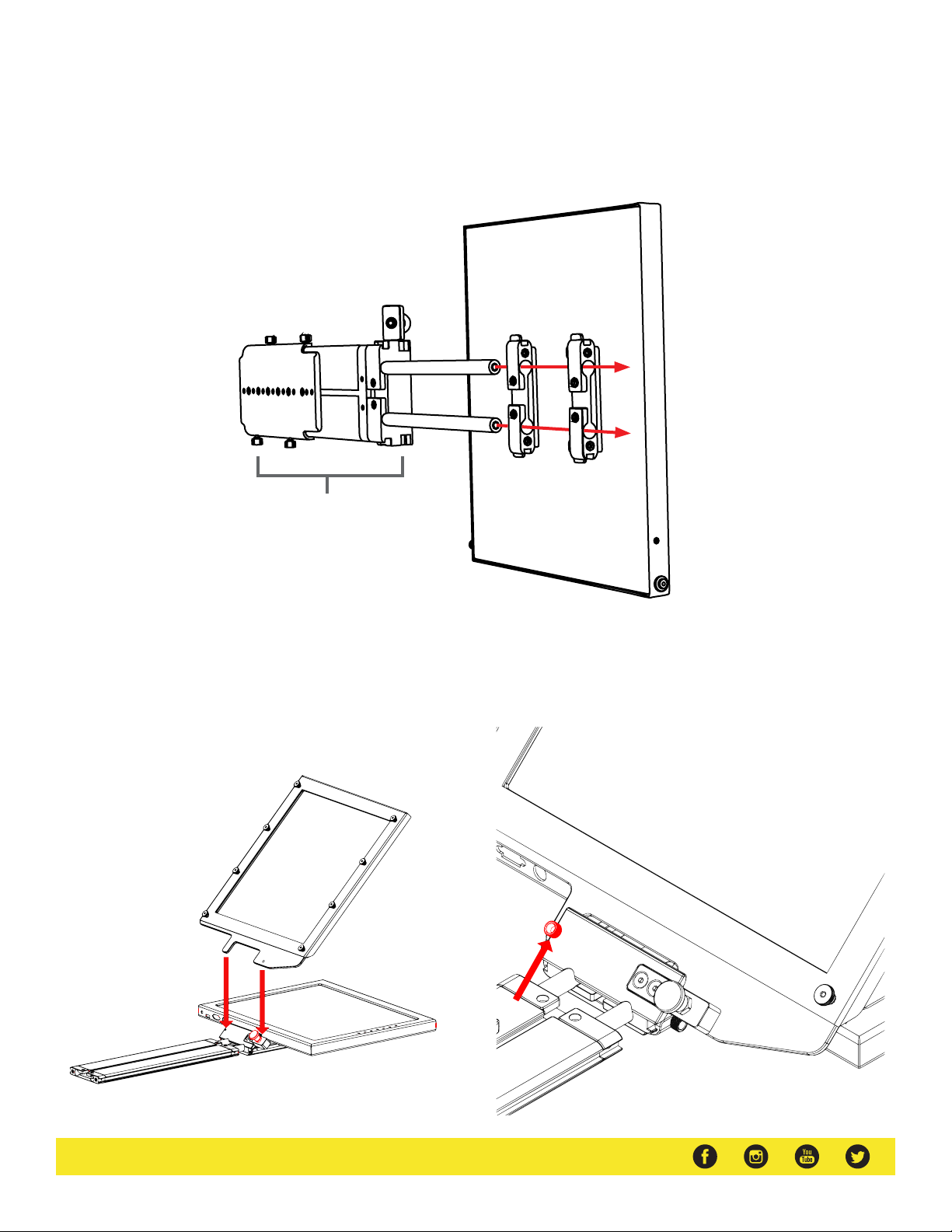

After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket.
Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor.
*SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.
Teleprompter Base
Step 6
While sliding the teleprompter bracket into the slot of the Glass Frame
Holder Bracket, pull on the red knob to allow the bracket to fully slide in.
Step 7
Once the bracket is in place, tighten the side screw to lock in place.
Double check and make sure all the screws are tightened with the
included hex keys.
Step 9-A: Connecting the PTZ Riser to
the Ikan OTTICA
To connect the PTZ Camera Riser to the Ikan OTTICA camera, fasten
the ¼-20 screw on the PTZ Riser Plate to the thread on the bottom of
the OTTICA camera.
Step 9-B: Connecting the PTZ Riser to other
PTZ Cameras
To connect the PTZ Camera Riser to the other PTZ cameras, Remove the
plate on top of the PTZ Riser by unfastening the four screws on the surface
of the plate. Once the plate has been removed, fasten the ¼-20 screw on
the PTZ Riser Plate to the thread on the bottom of the PTZ camera.
Step 8

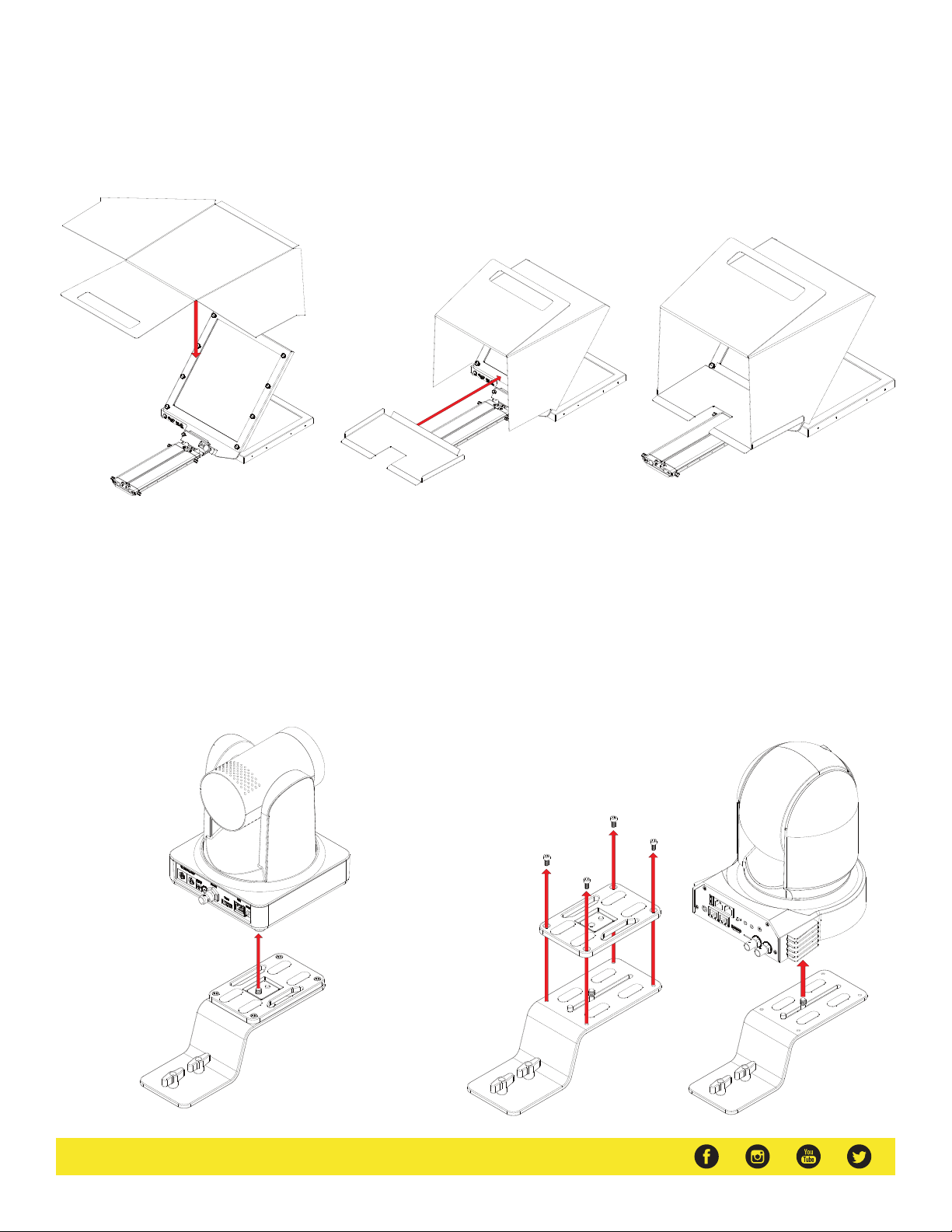

Fold the flaps of the Hood alongside the edges of the Hood Attachment Frame. The flaps of the Hood are magnetic so they will automatically attach. Connect
the bottom part of the hood by attaching the magnetic flap to glass frame holder. Connect the velcro straps to the sides of the hood.
Step 10
Set the PTZ camera inside the hood by aligning the screws on the riser plate to the slot on the Base. Once the screws are aligned, Slide the riser plate
into the Base.
Step 11
To prevent light from leaking through the hood, seal both zippers down, attach the velcro straps along the back and sides of the hood. Connect the cables
to the back of your PTZ camera by putting them through the slot on the back of the PTZ Hood. Once your cables are connected, tighten the draw string
on the back of the PTZ Hood.
Step 12

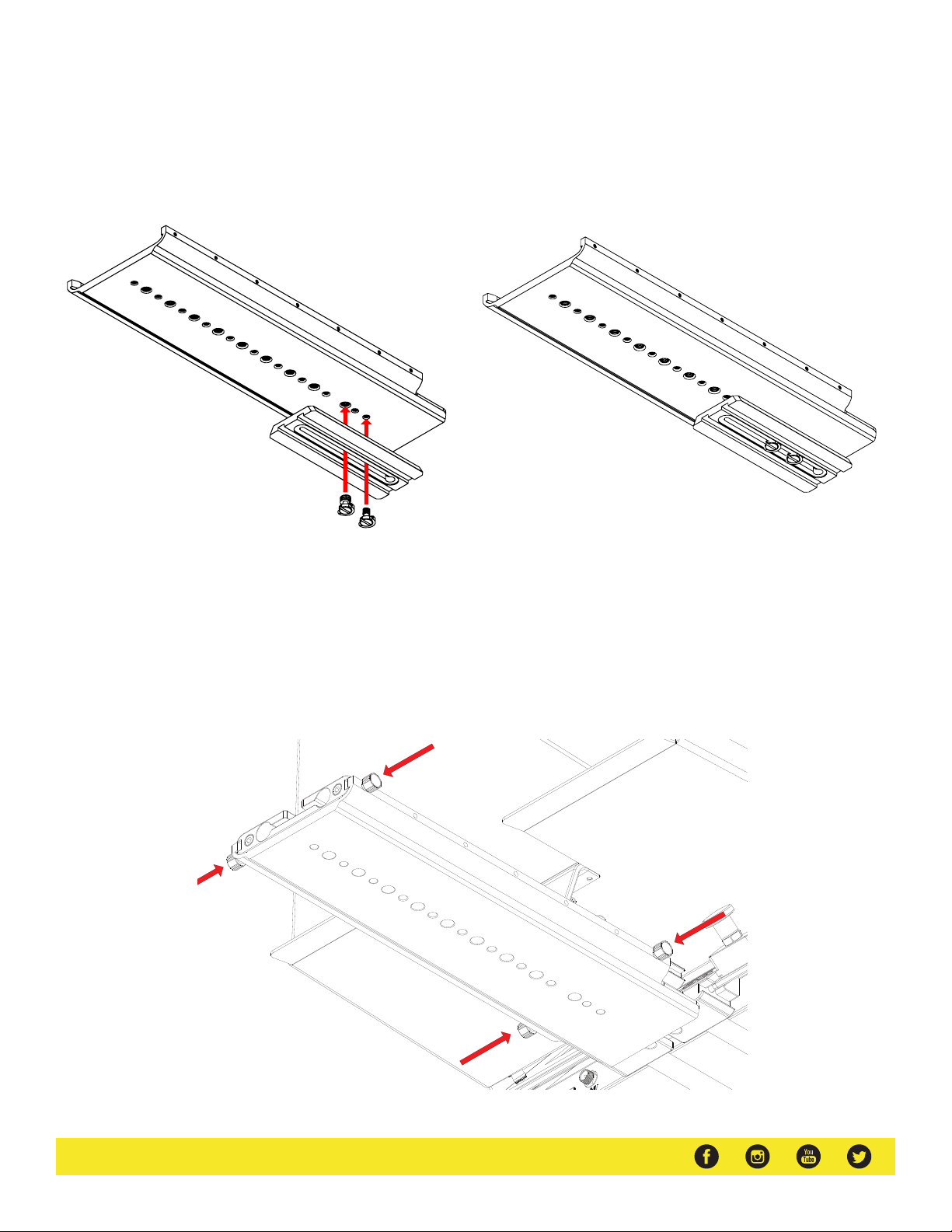

Mount your own tripod plate to the bottom plate by aligning the 1/4-20 and/or 3/8-16 screws and fastening them to the Bottom Plate. It is recommended
that you connect your tripod plate to front of the Bottom Plate so that you can balance your teleprompter easier. Once your tripod plate is connected to the
Bottom Plate, mount the tripod plate to your tripod head.
Step 13

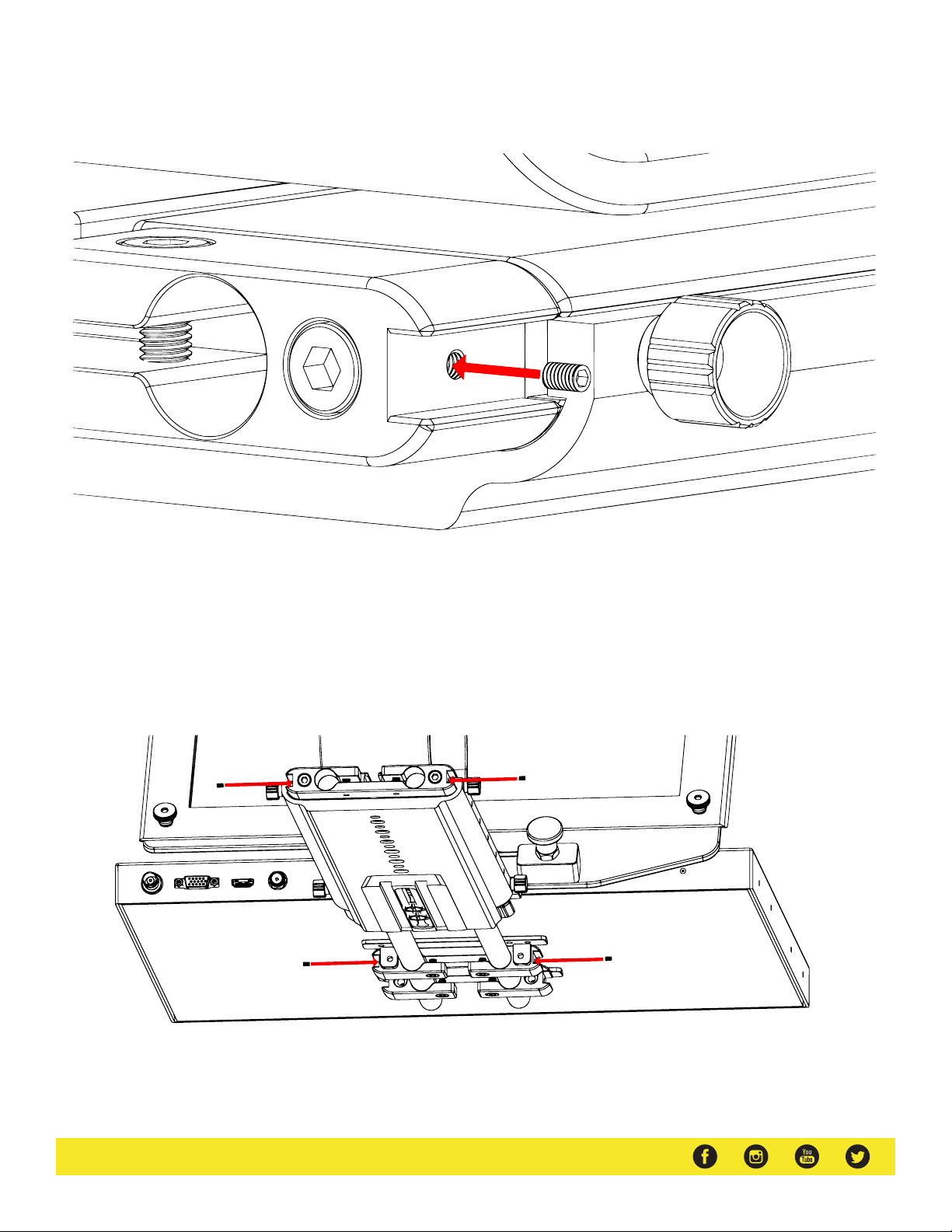

In order to properly balance the teleprompter, loosen the 4 screws on the bottom plate and slide the entire teleprompter system back or forward until
the center of gravity has been determined. Once the center of gravity has been determined, tighten the thumb screws to keep the base from sliding.
Step 14
To secure your teleprompter system, insert the included headless screws into the threads behind and in front of the Base.
Step 15
The headless screws should be inserted to the threads as pictured below.

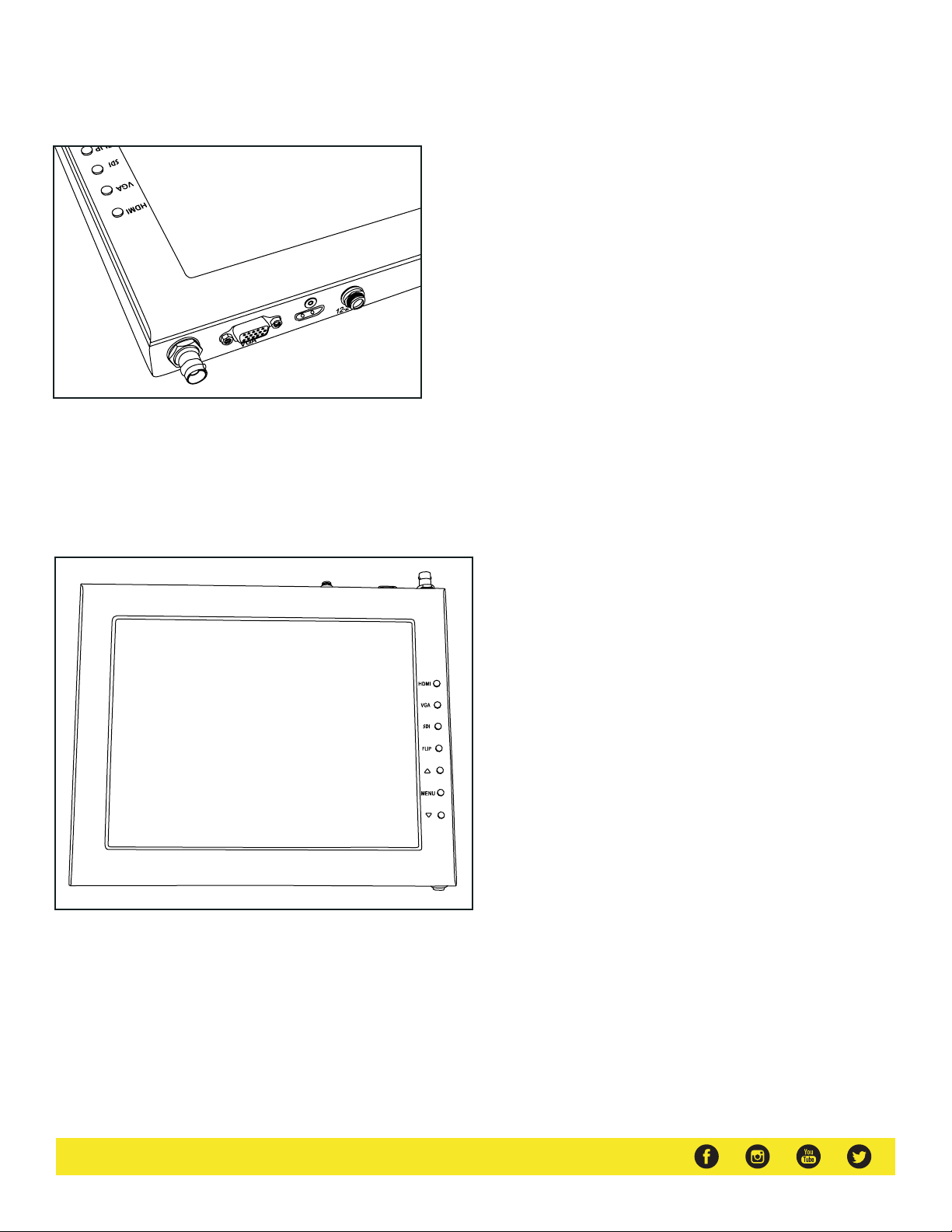

Monitor Ports
3G-SDI – Serial Digital Interface Connection
VGA – Video Graphics Array DE15 Connection
HDMI – High-Definition Multimedia Interface Input Connection
Power Port – 12-24v Input
HDMI – Switch HDMI input
VGA – Switch to VGA input
SDI – Switch to 3G-SDI input
Flip – Toggle image flip
(Can be set to horizontal, vertical, or both via menu)
Up Arrow – Toggle up to adjust setting
Menu – Access to monitor settings
Down Arrow – Toggle down to adjust setting
Monitor Menu Settings
Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma Hue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGB Setup – Manually configure RGB
Return
System Config
Menu Duration – Set duration of how long menu stays
on screen
Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is
native resolution, 16:9 will create black bars)
Flip-H – Assign toggle button to flip image horizontally
Flip-V – Assign toggle button to flip image vertically
Reset – Factory reset
Return
PC Setup (Only available for VGA)
H-Position – Adjust horizontal position
V-Position – Adjust vertical position
Auto – Monitor automatically adjust position
Return
Exit
H
D
M
I
How to set-up FLIP button feature:
1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to “ON”
5. Exit MENU
6. The FLIP button should now be activated and can be
pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both
Horizontal and Vertical flip
Specifications for PT4900S-PTZ
TELEPROMPTER SPECS MONITOR SPECS
Riser Plate Height
Low: 2.06 in./52.5mm |
Medium: 3.74 in./95mm| High:
5.31 in./135mm | DSLR: 6.29
in./160mm
Length of Rods 15mm x 400mm
Build Material Chassis: Anodized Aluminum |
Rods: Carbon Fiber
Reading Range 25 ft. / 7.62 m
Beamsplitter Ratio 70/30
Beamsplitter Shape Rectangular
Beamsplitter Material Glass
Tripod Mounts 11 x 1/4 in. -20 Female |
9 x 3/8 in. -16 Female
Product Weight w/ Low Plate 22.70 lbs.
Product Weight w/ Medium Plate 23.10 lbs.
Product Weight w/ High Plate 23.23 lbs.
Product Weight w/ DSLR Plate 22.60 lbs.
Height of Teleprompter 16 in./ 406mm
Angle of Glass Frame Holder 50°
Material of Hood Polyester Canvas
Material of Riser Plates Aluminum
Material of Glass Frame Holder Aluminum
Aspect Ratio 4:3
Maximum Brightness 1000 cd/m2
Screen Size (Diagonal) 18.5 in.
Mount VESA 100mm
Video Inputs 3G-SDI, HDMI, VGA
Input Voltage DC 12v / 4A
Power Consumption 21W
Product Weight 6 lbs.
Product Dimensions 17 in. x 15 in. x 1 in.
Native Resolution 1280 x 1024
Viewing Angle 160° (H) / 170° (V)
Build Material Aluminum Chassis
Image Flip Horizontal: Yes | Vertical: Yes
Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Telepromopters:
https://youtube.com/playlist?list=PLcjaK5n9Y8ctrbYS3t2g4nyx2uADOXjuF
