Ikan PT4200-P2P Manual de usuario
PT4200-P2P
Quick Start Guide
Ikan P2P Interview System with 2 x 12” Teleprompters
What’s Included
2 x PT4200
2 x 25 ft HDMI Cable
Overview
When using the Ikan’s P2P Interview System, the interviewer and the interviewee are able to look directly into the camera lens while still seeing and
looking directly at an image of each other. This equates to a natural one-on-one interview style which is also, because of the direct eye contact, much more
involving for the audience. When the interviewer asks a question, he or she is looking right into the eyes of the viewer. When the interviewee answers the
question, he or she is also looking directly into the eyes of the audience and in essence giving his or her answers to them. No longer is the audience sitting
off to the side and observing the interview; they become a part of the interview.
Step 1
Attach the two 15mm rod monitor adapters to back of the monitor’s VESA
mounts with the 4 screws using the smaller hex key.
Step 2
Using the larger hex key loosen the rod clamps.
Step 3
On the teleprompter base loosen the top 4 screws holding the rods in place.
Step 4
After loosening the following two screws on the base pull the rods out to
accommodate the monitor. Tighten all 6 screws after rods are extended.
Teleprompter Assmebly Setup

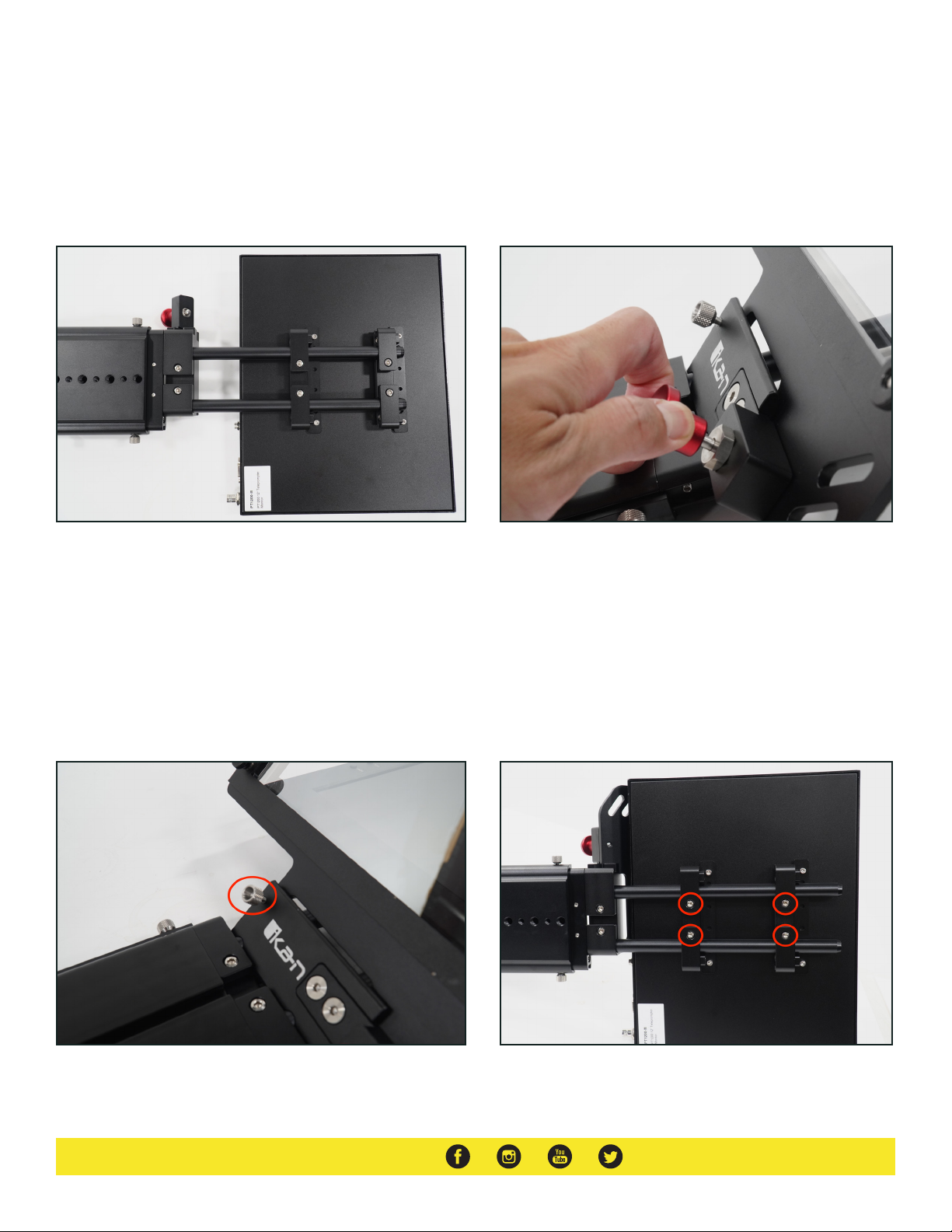

Step 5
After tightening the rods, slide the monitor into the teleprompter base.
Leave slight room for the teleprompter bracket and glass to slide in.
Step 6
Pull the red knob to insert the teleprompter bracket with glass into the
teleprompter base.
Step 8
Slide the monitor completely in and tighten the four screws to lock the
monitor in place.
Step 7
Tighten the silver knob to hold the teleprompter bracket in place.
P2P Interview/Interviewee Setup
Step 9
Attach the magnetic teleprompter hood with boot.
Step 10
Slide the dual sided riser into the directional channel of the teleprompter
base. Larger or taller cameras should insert the lower side facing glass,
while smaller cameras should insert with higher side.
After both teleprompters have been setup and placed on tripods/pedestals, using one of the HDMI cables connect it to the camera on teleprompter 1
(interviewer) to the HDMI input port of monitor on teleprompter 2 (interviewee). Using the other HDMI cable connect it to the camera of teleprompter 2
(interviewee) to the HDMI input port of monitor on teleprompter 1 (interviewer).
Monitor Ports
BNC – AV Composite Input
VGA – Video Graphics Array DE15 Connection
HDMI – High-Definition Multimedia Interface Input Connection
Power Port – 12-24v Input
HDMI – Switch HDMI input
VGA – Switch to VGA input
AV – Switch to composite BNC input
Flip – Toggle image flip
(Can be set to horizontal, vertical, or both via menu)
Up Arrow – Toggle up to adjust setting
Menu – Access to monitor settings
Down Arrow – Toggle down to adjust setting
Monitor Menu Settings
Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma Hue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGB Setup – Manually configure RGB
Return
System Config
Menu Duration – Set duration of how long menu stays
on screen
Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is
native resolution, 16:9 will create black bars)
Flip-H – Assign toggle button to flip image horizontally
Flip-V – Assign toggle button to flip image vertically
Reset – Factory reset
Return
PC Setup (Only available for VGA)
H-Position – Adjust horizontal position
V-Position – Adjust vertical position
Auto – Monitor automatically adjust position
Return
Exit
HDMI
How to set-up FLIP button feature:
1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to “ON”
5. Exit MENU
6. The FLIP button should now be activated and can be
pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both
Horizontal and Vertical flip
Optional Accessories
Some other products that work well with the PT4200-P2P available from Ikan include:
PT-CASE-ELITE Hard Case for PT4200 Teleprompters
Specifications Features
Aspect Ratio 4:3
Brightness 350 cd/m2
Build Material Aluminum / Steel
Contrast Ratio 500:1
Input Signal Composite BNC, VGA, HDMI
Reading Range 13 ft.
Resolution 1024 x 768
Screen Size 12 in.
Viewing Angle 160 degrees (horizontal/vertical)
- Includes two teleprompters
- Monitor that supports image flip (vertical and horizontal)
- High-quality American made 70/30 beam splitter glass
- Screen readable from up to 13’
- Works with many different sized camera
- Easy balancing with adjustable base
- Perfect size for portability and view-ability
- Ships in Reusable Foam for Easy Transport
- Includes MAC and PC Software
- HDMI, VGA, and Composite
** DO NOT THROW AWAY FOAM CASE **
Foam Case
To make your teleprompter more portable, we packed it in a reusable, high-quality foam.
The shape and size of the foam was designed to fit into Ikan’s PT-CASE-ELITE. Hard Cases only included in Travel Kit.
Learn More
More dynamic information at official website: www.ikancorp.com
Support
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:
(Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2020 Ikan International. All rights reserved.
