CB6-3PT-KIT

Quick Start Guide

Canvas Bi-Color Round 3-Point LED Light Kit w/ 3 x CB6

What’s Included

3 x Round Canvas Fabric Lights

3 x Controller Units

3 x 5/8” Mount Stud Adapter

3 x CP Light Stands

3 x Egg Crates

3 x Power Cords

3 x Power Supply W/ Cable

3 x Soft boxes

3 x X-Holder Stand Mounts

1 x Light Kit Bag

3 x Carry Bags

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Getting Started

Thank you for buying the CB6 Canvas Round Bendable Panel Light from Ikan. Please carefully read the instructions and guide before operating the

products. The guide includes product usage and maintenance. When you operate the product, please make sure that you have read the instructions

carefully. All the content of the manual is based on up-to-date information; technical data subject to change without notice.

Safety Instructions

1. Connect the AC power cable to the controller box before plugging into the power source. You risk electrocution by not following this instruction.

2. Don’t drag cables with excessive force. Any repairs on the products should be performed by Ikan technicians. Users should not remove the power

supply, or substitute a different power supply. This might damage the unit and will not be covered under warranty.

3. Be sure that the power is off before connecting and changing the ﬁxture head or disconnecting your cable from the power source. We recommend using

Ikan connecting cables and connectors to avoid electrical shock.

4. The voltage shouldn’t exceed the value in the technical speciﬁcations. If the voltage is greater than, or less than the regulated values, it could damage

the product.

Overview

The care and cleaning of the Canvas Round Bendable LED light. The CB6 should beplaced back into the carrying bag when not in use. The LEDs should

be facing out when placed into the carrying bag.

If the LED’s should get dirty or covered in dust the unit can be cleaned with mild soap and water on a damp cloth.

DO NOT SUBMERGE THE UNIT IN WATER

Connecting the 4 prong cable between the controller box and the panel light.

Align the male and female plugs so they line up and screw together until the cable is tight.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Installation of the X-Holder with ball mount

The X-holder should be loose before inserting the struts into the hook & loop corners.

1. Place the struts into the hook & loop ﬂaps at the corners of the panel.

2. Place them in opposite of each other for them to stay in place.

3. Tighten the tension knob at the center to keep the struts locked in place.

When placing the light mount on the 5/8” baby pin, this allows you to adjust the light in any desirable position.

Note: To avoid damage to the LED’s, place the panel light LED side down on soft material.

Color & Brightness

Color temperatures for today’s ﬁlm and TV production are 5600K (daylight) and 3200K (tungsten). Ikan developed the CB6 Bendable Light to handle both

these temperatures. With patented technologies, the CB6 offers a professional and customizable LED light source. In addition, the light features cooling

ﬂex system for optimizing heat dissipation. Speciﬁcally, the CB6 offers the following features:

1. The 0-100% brightness incremental adjustment of the 2800K-6500K temperature enable ﬁne-tuning your color range.

2. A panel of 326 Bi-color led light gives out 90FC of light.

3. Ultra-low noise and active cooling technology contribute to excellent thermal stability.

4. The bright LCD readout is easy to view, enabling smooth adjustment of functions.

5. Digitally adjustable knob allows you to adjust menu settings quickly and accurately.

6. AC/DC power control box allows the light to be powered by battery or DC power supply.

7. The softbox with grid cloth and 50 degree egg crate is included with the light.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Appearance & Structure

CB6 is illustrated as follows

5/8 Receiver: attaches to a stand or a 5/8” baby pin w/ 90 degree holes

Mount: Adjustable lighting direction

Hook & Loop around the edge of the light

Cover Installation

1/2-stop Round Cover

Soft Box Installation

Soft Box & Egg Crate

What’s in the box?

Please carry and place the packing box carefully. Check the lighting equipment and accessories upon opening the box. Please contact us if anything is

damaged or missing. Please save the packing materials for replacing and repairing the products in the future.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

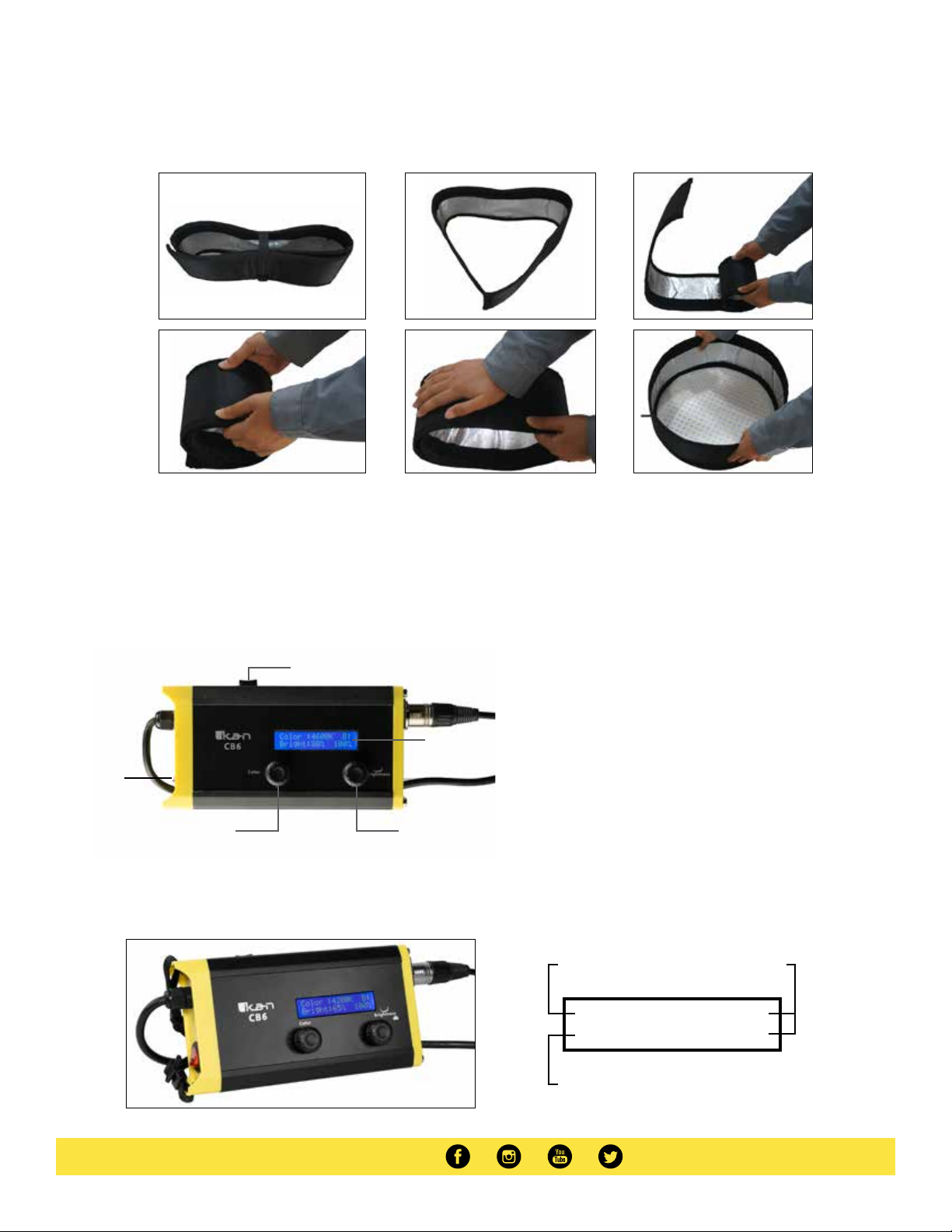

Appearance & Structure - Control Box

Power switch: Turn on/turn off power

AC 110-220V Power Connector: Connecting with 110-220V power cable

LED Display: Changing the brightness 0-100%, changing the color 2800K-6500K

Color Knob: Adjust the color from 2800K-6500K (press in on button to control the Warm white 0-100% and press brightness to control Cool white 0-100%)

Brightness Knob: Adjusts brightness from 0%-100%

Method for Restoring the Soft Box Shape After Travel

The soft box applicator will be out of shape from ﬂat packaging or travel. Using the following steps, the round shape can be restored. Roll the soft box into

a cylinder about 4-6 inches in diameter. Secure this cylinder for 24 hours before use. This will allow it to retain it’s round shape when applying.

Screen Display Fuctions

Illustration of light’s dimmer:

Color Temperature Battery

Brightness

A. Battery Release Button

B. Power on/off Switch

C. Color Adjustment Knob

D. Brightness Adjustment Knob

E. LCD Display Screen

Color : 4200K B:

100%

Bright: 65%

C D

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Speciﬁcations Electrical Speciﬁcations

Troubleshooting

Light Source 326 x 1.0watt LEDs

Head Type Bi-Color 3200K-5600K

Beam Angle 120 Degree

Control/Dimming Knob Control

Build Material Flexable Fabric Material

Cooling System Passive Cooling

Mounting System Baby 5/8” receiver

Fixture Size 14 in. diameter

Fixture Weight 1lb

Power Supply Input 110-240VAC

Power Supply Output 15VDC

Fixture Power Consumption 24W; 7.4-14.8VDC

Failure Failure Cause Troubleshooting

Unit Won’t Turn On The power is connected incorrectly or

the power switch in not turned on.

Turn on the light with the switch on the

controller box. Make sure the unit is

plugged into AC power.

During the operation lamp is out. The unit may have malfunctioned.

The unit’s connecting cable may not be

properly secured.

Try turning the control box off then on

again.

The cable can be disconnected and

then reconnected.

Notice & Maintenance

• The CB6 working temperature range must be regulated. Overheating will reduce the LED working life. Please allow adequate ventilation when using

the Canvas light.

• Products must be placed on a stable, dry, ﬂat surface. Avoid exposure to sunlight and operating in an environment with high humidity or extreme

moisture levels.

• Don’t beat, knock or shake the lighting equipment during the operation.

• If the CB6 isn’t working normally, please contact the Ikan repair department. Please don’t disassemble/re-assemble by yourself.

• Please place the CB6 in a cool and dry place when you don’t use it for an extended period of time.

Installation & Power Supply

1. Ensure power is off before setting up light.

2. Place the light on the Ikan customized stands, release the tension knob on the 5/8” receiver, adjust the light in the desired direction, and then tighten

the tension knob on the 5/8” receiver.

3. When connecting the power cords, plug the 4-pin XLR power cord into the controller box.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Optional Accessories

Some other products that work well with the CB6 available from Ikan include:

IBG-STND

IBG-SB15

CP-STND-V3

HD-STND-V2

Stand Bag

Saddle Sandbag & Weight Bag - 15 lb

Compact Light Stand

Heavy Duty Light Stand

Learn More

More dynamic information at ofﬁcial website: www.ikancorp.com

Support

Contact email: [email protected]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
