iiNet E5 Manual de usuario
USB modem software
installation guide
Read
this
first
Get iiNet mobile broadband running on your PC or laptop
Thanks for choosing the E5.
Thanks for choosing the E5.
This guide runs you through some of the E5 modem’s basic functions.
For details on your specific model, head to the ‘Help’ section of the
Web Management page.
Make sure your modem is stored in an environment with good
ventilation to avoid overheating from extended use. When the E5
modem overheats, it will switch off or disconnect automatically to
protect itself. If this happens, place the modem in a well-ventilated
location and restart.
3
Getting to Know Your E5
Your package should contain the following items. Some accessories are
optional and are not provided with your modem.

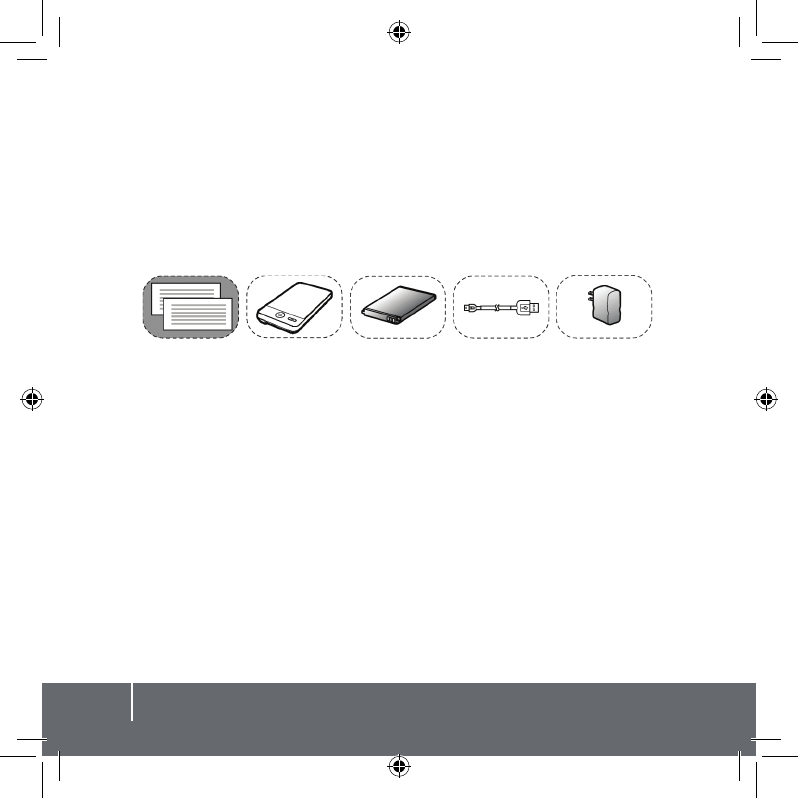

Quick Start Guide Main unit Battery Data cable Charger
Safety Information
If any items are missing, please contact us immediately.
4
Connection Scenarios
This modem will connect to the Internet via a Wi-Fi device or computer.
The way you connect depends on the operating system of your computer
or device. Connection scenarios are illustrated below for your reference.
Scenario 1: Multi-device access via Wi-Fi Scenario 2: One-device access via USB
Scenario 3: Multi-device access via
Wi-Fi and USB at the same time
5
Appearance
1
2
3
4
5
External antenna interface
Power button
USB connector
WPS button
Screen
1
2
3 4
5
Note:
• Wi-Fi: Wireless Fidelity
• WPS: Wi-Fi Protected Setup
6
Screen
1
2
3
Signal strength
Network
Wi-Fi enabled and number
of devices connected
Internet connection
New messages and
number of new messages
Battery level
Roaming status
1 2 3 4 5 6
7
8
4
5
6
7
8 M: Manual mode
A: Auto mode
7
Before You Start
Installing the SIM Card and the Battery
Caution: Do not use any SIM card that is not standard or is incompatible
with the E5. Otherwise, the E5 may be damaged.
Insert the SIM card in the card slot. Be sure that the SIM card is facing in
the right direction, as shown in figure 2, and then slide the SIM card into
the slot.
8
Installing the microSD Card
Note:
• The microSD card is an optional accessory. If amicroSD card did not
come with your modem, you may purchase one yourself.
• To remove the microSD card, press in the card gently. The microSD
card will pop out for removal.
•Do not remove the microSD card when it is in use. Doing so may
damage the card and the E5, and data stored on the card may be lost.
9
Charging the Battery
Note: If the battery has not been used for a long time, it must be charged first.
Method 1: Using the charger
Caution: Only use chargers compatible with the E5 and provided by a
designated manufacturer. Use of an incompatible charger or one from an
unknown manufacturer may cause the E5 to malfunction, fail, or could even
cause a fire. Such use voids all warranties, whether expressed or implied, on
the product.
Method 2: Connecting to a PC for charging
Connect the E5 to aPC using acompatible data cable.
10
