Ihse Kvm-Tec USBFLEX KT-6032L Instrucciones de funcionamiento originales

Misprints, errors and technical changes reserved

kvm-tec

First Aid

Your Extender....

USB is not

working

No Power

(No LED)

Check the

powerplug

Is the power

supply ok? Try

another Unit.

Try reprogramming

the Unit by using a

JTAG programmer

Contact kvm-tec

support

Are the USB

Devices plugged

in correctly?

Is the USB cable on

the Local side plug-

ged into the PC?

Are the USB

Devices working

directly on the PC?

Check if local and

remote Unit have

the same rmware

Replace the USB

cable from PC to

the Local Extender

Check if the local

or the remote

Unit is causing

the problem by

swaping rst the

local and than the

remote Unit to

another Unit

Contact kvm-tec

support

kvm-tec Support

[email protected]

Phone: +43 2253 81912 - 30

Update with USB-Stick

Plug the USB stick with update le into USB Flex.

2. press the button on the back left (if PtP, the USB channel will be

disconnected) ~ 4 sec

3. wait until LED ashes orange (USB stick is scanned for updates) ~

10-20 sec

4. LED lights up specically for 3 seconds

LED red -> no update on stick found (remove stick and start at step 1)

LED green -> Update found, ready to start

5. press button again

6. wait until the update is completed or an error occurs (for PtP local is

updated rst) ~ 2-3 min (PtP ~ 5-6 min)

While update is running, LED ashes green, if data is transferred or

copied, LED ashes very fast.

At the end of the update, the LED ashes orange 4 more times and then

starts the reboot process (the Extender must not be disconnected from

the power supply during this process!)

Check out

our Installation Channel:

www.kvm-tec.com

flex

USB

kvm-tec

Quick

Installation

KT-6032L CPU/LOCAL

KT-6032R CON/REMOTE

Misprints, errors and technical changes reserved Misprints, errors and technical changes reserved

Power plug

12V 1A

Power plug

12V 1A

USB to PC

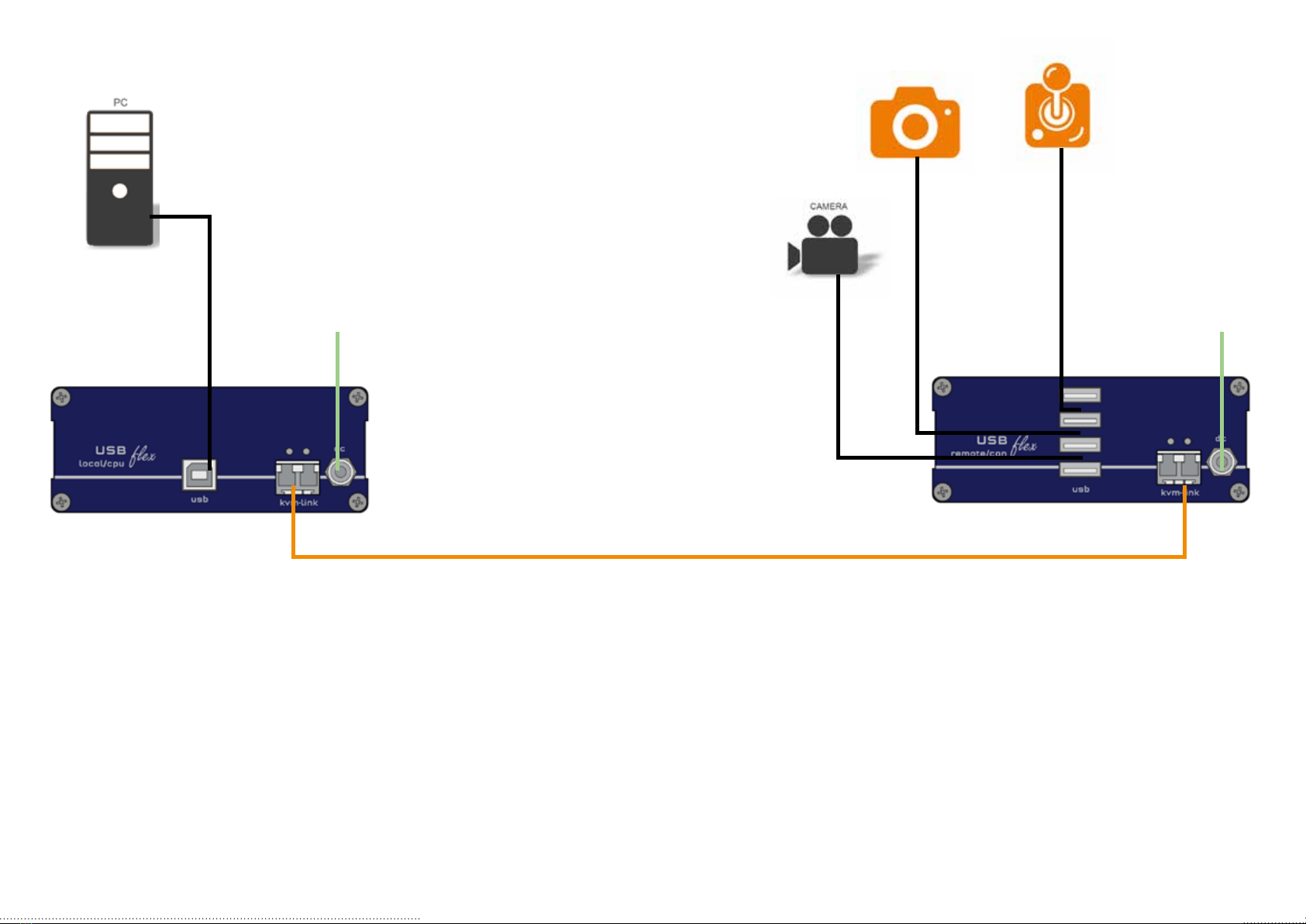

Quick Installation USBex Fiber local / CPU – remote/ CON

1. Connect the CON / Remote and the CPU / Local Unit to the included 12V 2A power supply.

2. Now connect the USB cable to a USB port on your PC and connect the other end of the USB cable to the CPU /

Local Unit. Connect some USB devices to the CON / Remote Unit.

3. Connect the CPU / Local and the CON / Remote Unit with a network cable.

HAVE FUN - your kvm-tec Extender is now in use for many years ( MTBF approx 10 years)

OM3-Fiber cable up to 500m/1640ft

USB from

Photo camera

USB from Joystick

USB from

Video camera
