FBK-LIN

INSTALLATION INSTRUCTIONS FOR FBK-LIN KIT

FOR USE IN ASTRIA ALLUME60TEN AND SUPERIOR DRL4060TEN FIREPLACES

(This Kit is Compatible for One Sided Application only)

HEARTH PRODUCTS

KITS AND ACCESSORIES

900940-00 REV. NC 12/2018

Blower Kit

Catalog

Number

Model Number Kit Name

F3783 FBK-LIN Blower Kit 2 pc.

Blower

Assembly

Thermal switch

Assembly

Speed Control

Assembly

WARNING

This kit must be installed by a qualiﬁed installer,

service agency, or gas supplier at the time of the

ﬁreplace installation. These instructions must

be used in conjunction with the installation and

operation manual provided with the ﬁreplace.

INSTALLER: Leave this manual with the ﬁreplace.

CONSUMER: Retain this manual for future reference.

IMPORTANT NOTICE

THIS KIT IS COMPATIBLE WITH ONE SIDED FIREPLACES ONLY.

GENERAL INFORMATION

This blower kit may be used with gas ﬁreplaces listed herein. The

FBK-LIN blower kit is used when unit-mounted variable speed blower

control is desired.The blowers areinstalled beneath therear of ﬁrebox.

Room air is drawn in through the bottom area of the ﬁreplace, heated

as it passes across the ﬁrebox, and discharged through the upper

air exhaust area at the top of the ﬁrebox.

ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND

OPERATION MANUAL PROVIDED WITH THE FIREPLACE APPLY TO

THESE INSTRUCTIONS.

TOOLS REQUIRED (not included)

Electric Drill/Driver Gun

Phillips Screwdriver Bits

5/16 Nut Driver

Kit Components

This kit includes 2 (two) blower assemblies with pre installed

magnets, one (1) thermal switch magnetic assembly, one (1) speed

control assembly and these instructions.

fire-parts.com

IHP.us.com 900940-00_NC2

BK-LIN INSTALLATION

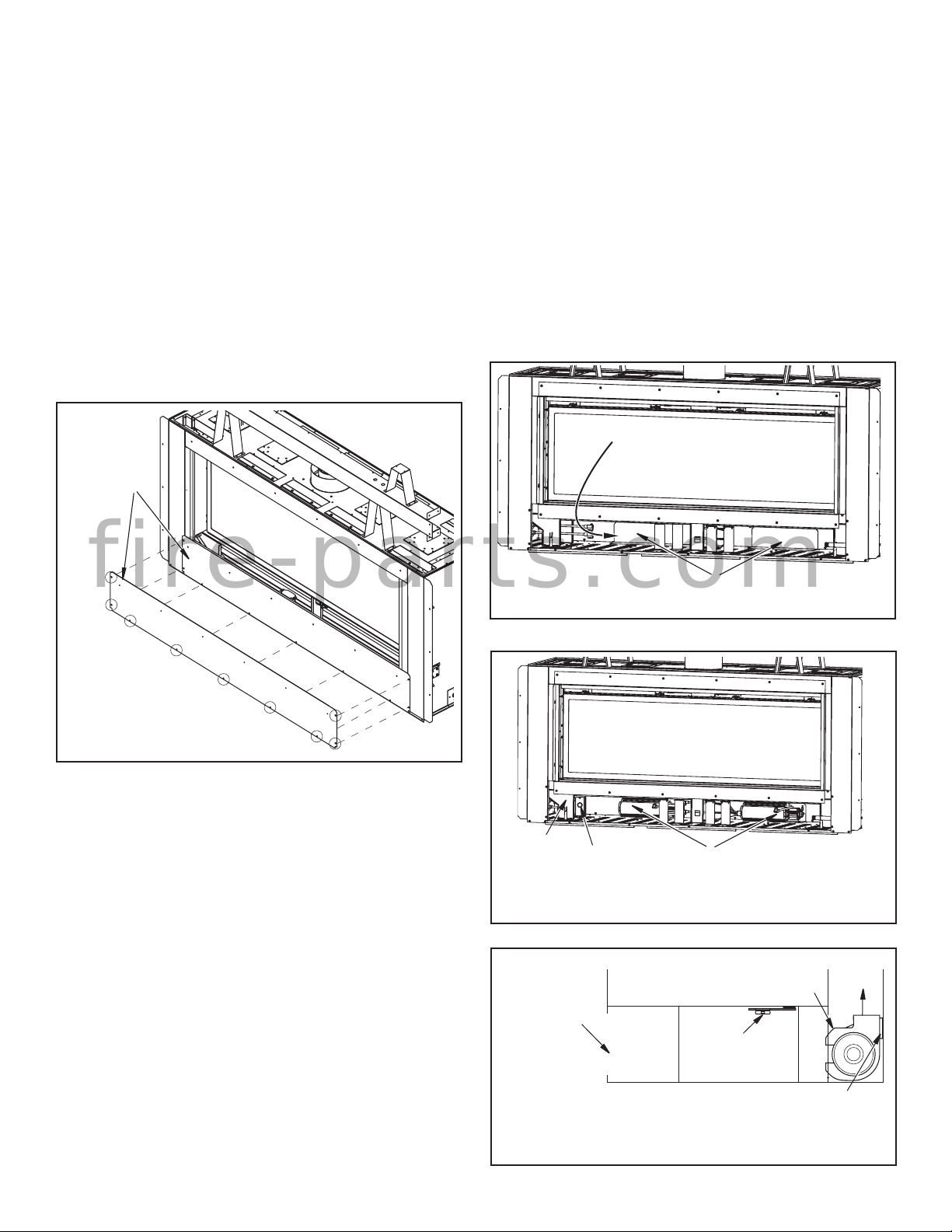

Figure 1 - Removing Bottom Face

Figure 2 - Blower Location

Figure 3 - Mounting Blowers

Figure 4 - Thermal Switch/Blower Side View

Bottom

Front

Face

Blower Mounting Brackets

Blowers Mounted

Speed

Control

Firebox

Leg

INSTALLING FBK-LIN

Note: The FBK-LIN blower is for application into direct-vent models

listed on this manual only. The FBK-LIN blower kit can be installed

before or after ﬁreplace installation. When installing the FBK-LIN

thermostatically-controlled blower, make sure the wiring connec-

tions from the thermal switch to the blower are connected in place.

Note: While performing the installation, arrange all wires in an

orderly fashion as to not to interfere with other amenities installed

in the ﬁreplace.

INSTALLING BLOWER KIT IN A NON INSTALLED FIREPLACE

ACCESSING THE FIREPLACE

1. To access the ﬁreplace, ﬁrst remove nine (9) screws holding

the bottom front ﬁreplace face (Figure 1).

Route FBK-LIN

Blower Through

this Area

Blower

Location

Magnets

Route FBK-LIN

Blower Through

this Area

Air Flow

Direction

Thermal

Switch

Side view Firebox Bottom

INSTALLING BLOWER KIT

1. Locate 2 blower mounting brackets on the ﬁrebox outer wrap-

per (Figure 2).

2. Be certain that all wire terminals are securely attached to ter-

minals on blower motor and that the screw retaining the green

ground wire is tight.

3. Place the left blower against the lower rear wall bracket of the

ﬁrebox outer wrapper with the exhaust port directed upward

(Figure 3).

4. Place the right blower against the lower rear wall bracket of the

ﬁrebox outer wrapper with the exhaust port directed upward

(Figure 3).

5. Connect each blower power cord to the wire harness assembly

plugs.

6. Attach thermal switch magnetic bracket to the bottom of the

ﬁrebox bottom cover. The thermal switch must be oriented

near the ﬁrebox bottom as shown in Figure 4, in order to sense

temperature and properly operate. The blowers will be held in

position against the back wall by the magnets incorporated onto

the blower housing (see Figure 4).

7. Mount speed control assembly by attaching the side with mag-

nets to the left ﬁrebox leg as shown in Figure 3.

8. Plug power cord from speed control to the junction box located

on the lower left side of ﬁrebox.

9. The installation of the blower is now complete.

10. Proceed to install the ﬁreplace.

fire-parts.com

IHP.us.com900940-00_NC 3

BK-LIN INSTALLATION

CAUTION

Use gloves as sheet metal parts may be sharp.

INSTALLING BLOWER KIT ON A FINISHED-INSTALLED FIREPLACE

ACCESSING THE FIREPLACE

1. To access the glass door securing latches, ﬁrst remove the

screen barrier from ﬁreplace.

2. Lift the barrier to clear the bottom channel and swing the

bottom of the barrier out. Then lower the barrier to clear the

top channel. Place the barrier in a safe location for later re-

installation (Figure 5).

3. Detach the four (4) door latches on top of ﬁrebox (Figure 6).

4. Swing the top of the glass door away from the ﬁreplace about

15° angle (Figure 7).

5. Remove access control door from rectangular opening in

front of the glass door by lifting up it from the bushings and

pulling up to release the tabs from slots on side retaining

brackets. Set aside the access control door for later re-

installation (Figure 7).

Figure 5 - Removing/Replace Barrier

Upper Front

Face Barrier

Channel

Bottom Front

Face Barrier

Channel

Push UP

Barrier Top to

slide up then

slide Down

pulling OUT

Bottom

Front Face

Screen

Barrier

DOWN

Figure 6 - Removing/Replace Glass Door

Figure 7 - Removing Access Door

Glass Door

4 Door Latches

Access

Door

Retaining

Bracket

Side

Filler

REMOVING INNER COMPONENTS

Remove the following parts for accessing the bottom rear of ﬁre-

place. Note: Save all parts/screws removed in a secure location for

later reinstallation.

1. Remove the media (if installed), following the instructions

provided with the Media Kit.

2. Remove the eight (8) 5/16 in. screws securing the pan media

(see Figure 9, page 4).

3. Remove two (2) screws holding the pilot assembly.

4. Remove the eight (8) 5/16 in. screws securing the burner

assembly (see Figure 10, page 4).

5. Carefully rotate the burner towards the front to disengage the

air shutter lever and slide the burner to the left, to clear the

venturi from the oriﬁce. Then, lift the burner and take it out of

the ﬁreplace (see Figure 10, page 4).

6. Remove twenty (20) screws securing the ﬁrebox bottom cover

plate be careful not to break the gasket underneath cover plate

(Figures 11 and 11a), page 4

7. Proceed to installing blower kit.

fire-parts.com

IHP.us.com 900940-00_NC4

Figure 9 - Removing Pan Media

Figure 8 - Remove Pan Media, Burner Assembly and Firebox

Bottom Cover Plate

Figure 10 - Removing Burner Assembly

Figure 11a - Gasket View

Figure 11 - Removing Firebox Bottom Cover

Pilot

Screws

Holding

the burner

Assembly

(Qty. 8)

Screws holding

Pilot Assembly

Air Shutter

Lever

Pan

Media

Pan

Media

Burner

Assembly

Firebox

Bottom

Cover Plate

Screws holding

the Pan Media

(Qty. 8)

Gasket exposed,

(Do not remove)

Control

Access Pilot Shield

Burner

Remove 20 Screws

Holding Firebox

Bottom Cover

BK-LIN INSTALLATION

fire-parts.com

IHP.us.com900940-00_NC 5

Figure 14: Attaching Thermal Switch

Figure 15: Mounting Speed Control

Figure 12: Blower Location

Figure 13: Installing Blower

INSTALLING FBK-LIN

Note: While performing the installation, arrange all wires in an

orderly fashion as to not to interfere with other amenities installed

in the ﬁreplace.

1. Be certain that all wire terminals are securely attached to ter-

minals on blower motor and that the screw retaining the green

ground wire is tight.

2. Place the left blower against the lower rear wall bracket of the

ﬁrebox outer wrapper with the exhaust port directed upward

(Figures 12 and 13 ).

3. Place the right blower against the lower rear wall bracket of the

ﬁrebox outer wrapper with the exhaust port directed upward

(Figures 12 and 13 ).

4. Connect each blower power cord to the wire harness assembly

plugs.

5. Attach thermal switch magnetic bracket to the bottom of the

ﬁrebox bottom cover removed in step 6 (removing inner com-

ponents). The thermal switch must be oriented near the ﬁrebox

bottom as shown in Figure 14, in order to sense temperature

and properly operate. The blowers will be held in position against

the back wall by the magnets incorporated onto the blower

housing (Figures 12 and 13).

6. Reinstall ﬁrebox bottom cover using the 20 screws removed in

step 6, (removing inner components).

7. Mount speed control assembly by attaching the side with mag-

nets to the left ﬁrebox leg as shown in Figure 15.

8. Plug power cord from speed control to the junction box located

on the lower left side of ﬁrebox.

9. Test run the blower for at least 15 minutes before reinstalling

all parts/accessories removed.

10. Reinstall all parts/accessories removed in reverse order.

Blower Location

Firebox Leg

Speed

Control

Magnet

Thermal Switch

BK-LIN INSTALLATION

fire-parts.com

IHP.us.com 900940-00_NC6

AC/DC

POWER

ADAPTOR

Speed Controller

and ON/OFF Switch

DFC WIRE HARNESS

SPARK WIRE CABLE

PILOT GROUND WIRE

PILOT

SENSOR

CABLE

HOOD IGNITER ROD

FLAME SENSOR

PILOT TUBE

CPI SWITCH

OFF (O) = INTERMITTENT PILOT MODE

ON (-) = STANDING PILOT MODE

PROFLAME DFC BOARD

PROFLAME VALV E

ELECTRONIC

PILOT ASSEMBLY

B = BLACK

BR = BROWN

GY = GRAY

PU = PURPLE

R = RED

BL = BLUE

G = GREEN

O = ORANGE

W = WHITE

Y = YELLOW

WIRING COLOR CODE

Battery Holder

Wire Harness

Battery Holder/Receiver

ON/OFF Remote Switch

GWG

Circulation

BLOWER (OPTIONAL)

Main Power Cord

Thermal Switch

Blower Right

Circulation

Blower Left

DOUBLE RECEPTACLE

JUNCTION BOX

HOT

NEUTRAL

GROUND

WIRING DIAGRAM ASTRIA ALLUME60TEN FIREPLACES

fire-parts.com

IHP.us.com900940-00_NC 7

AC/DC

POWER

ADAPTOR

BATTERY HOLDER

Remove when Using Optional

Battery Holder/Receiver

ON/OFF Switch

Speed Controller

and ON/OFF Switch

DFC WIRE HARNESS

SPARK WIRE CABLE

PILOT GROUND WIRE

PILOT

SENSOR

CABLE

HOOD IGNITER ROD

FLAME SENSOR

PILOT TUBE

CPI SWITCH

OFF (O) = INTERMITTENT PILOT MODE

ON (-) = STANDING PILOT MODE

PROFLAME DFC BOARD

PROFLAME VALVE

ELECTRONIC

PILOT ASSEMBLY

B = BLACK

BR = BROWN

GY = GRAY

PU = PURPLE

R = RED

BL = BLUE

G = GREEN

O = ORANGE

W = WHITE

Y = YELLOW

WIRING COLOR CODE

GWG

Circulation

BLOWER (OPTIONAL)

Main Power Cord

Thermal Switch

Blower Right

Circulation

Blower Left

DOUBLE RECEPTACLE

JUNCTION BOX

HOT

NEUTRAL

GROUND

WIRING DIAGRAM SUPERIOR DRL4060TEN FIREPLACES

fire-parts.com

Innovative Hearth Products reserves the right to make changes at any time, without notice, in

design, materials, speciﬁcations, prices and also to discontinue colors, styles and products.

Consult your local distributor for ﬁreplace code information.

P/N 900940-00 Rev. NC 12/2018 1769 East Lawrence Street • Russellville, AL 35654

fire-parts.com

Este manual sirve para los siguientes modelos

Otros manuales de Accesorios para chimeneas de IHP

IHP

IHP Astria Series Manual de usuario

IHP

IHP WS-CI150 Manual de usuario

IHP

IHP Envy AKC-CLS-DLSCNV Manual de usuario

IHP

IHP HeatFlo Kit Manual de usuario

IHP

IHP RDV-BRK-STD Manual de usuario

IHP

IHP GCKSMS557051NP Manual de usuario

IHP

IHP DUALBURNER24N Manual de usuario

IHP

IHP PCBE-325 Manual de usuario

IHP

IHP SV4.5-TWSK Manual de usuario

IHP

IHP F2460 Manual de usuario

IHP

IHP FP6820-4S-DVFP Manual de usuario

IHP

IHP SV4.5HTKCT Manual de usuario

IHP

IHP PCBE-36 Manual de usuario

IHP

IHP SEREFINA CI1500 GCK LP Manual de usuario

IHP

IHP GCK-LS Manual de usuario

IHP

IHP DRFTWD-LOG60 Manual de usuario

IHP

IHP SECURE FLEX SF-12 Manual de usuario

IHP

IHP PCBE-42 Manual de usuario

IHP

IHP Montebello Series Manual de usuario

IHP

IHP GAB Series Manual de usuario

IHP

IHP EPIC-TRIM-B Manual de usuario

IHP

IHP CDFBBK-35 Manual de usuario

IHP

IHP AK4 Manual de usuario

IHP

IHP SF-HTSS Series Manual de usuario

Manuales populares de Accesorios para chimeneas de otras marcas

Valor

Valor L2 1700K Manual de usuario

Exodraft

Exodraft Xzense Manual de usuario

Whalen

Whalen Ruso MNFP62BF23-6 Manual de usuario

Lopi

Lopi Hearthview 864 Manual de usuario

Woodstock Soapstone

Woodstock Soapstone Fireview 201 Manual de usuario

EdilKamin

EdilKamin SERBATOIO 250 Guía de inicio rápido

Bronpi

Bronpi KIT-1 Manual de usuario

Town & Country Fireplaces

Town & Country Fireplaces 22150051 Manual de usuario

Travis Industries

Travis Industries 33 DVI Manual de usuario

Superior

Superior ASD3628-TI Manual de usuario

pleasant hearth

pleasant hearth OFP28WG Manual de usuario

Firegear

Firegear FG-H-2110SS Manual de usuario

Nibe

Nibe Contura C i31 Manual de usuario

kozy heat

kozy heat KZK-052 Manual de usuario

SimpliFire

SimpliFire SF-WM36 Manual de usuario

Bluegrass Living

Bluegrass Living BC18NR Guía de inicio rápido

pleasant hearth

pleasant hearth IRIS SCROLL Manual de usuario

Cooke

Cooke Glass Wind Guard Manual de usuario
