Igloohome Smart Mortise Guía del usuario

Installers &

User guide

Smart Mortise.

Version 0.1

As our igloohome app is frequently updated, there may be changes to this manual.

Please refer to our website igloohome.co/support for the latest version of the manual.

Table of Contents

04 What’s Included

05 Specications

06 Requirements

07 Lock Anatomy

08 Installation Type

09 Preparing the Door

11 Installation Instructions

14 Pairing

16 Features

18 Unlocking

20 Lock Tutorial

24 Lock Behaviour

25 Troubleshoot

19 Locking

What’s Included

Front Assembly Back Assembly Back Plate

Mortise Assembly

Mortise Shaft + Pin

Strike Plate AA Batteries x4 Key Cards x2

Screws Emergency Keys

Drill Sheet

Key Stickers x2

300mm

Specications

Model igloohome Smart Mortise Lock

Material AI, ABS

Batteries 4 x AA Alkaline (Non - Rechargeable)

(DO NOT USE: Eveready/ Super Heavy Duty)

Unlock Mechanism Bluetooth, PIN code, Key cards, Key Stickers, Open/Close

Button, Handle, Thumbturn, Physical Keys

Front

300mm

Back

80mm

300mm

80mm

Side

65mm 72mm

Requirements

Clearance

Door Thickness

>190mm (with handle)

40mm-60mm

> 305 mm

10 mm

70mm

10 mm

/IGM1 Batt.9V

Lock Anatomy

Outer Body

Touch Screen

Keypad

Key Card Reader

9V Jumpstart

Emergency

Keyhole

Battery Cover

Open/Close

Button

Thumbturn

Reset Button

Handle

Mortise Assembly

Dead bolt

Latch bolt

120mm (including 10mm for the wire)

Cable

Installation Type

Screws

Quantity: 4 each

• 06mm

• 20mm

• 30mm

• 40mm

• 12mm

Door Type

Right Installation Left Installation

For doors with thickness 40 - 45mm

For doors with thickness 45 - 50mm

For doors with thickness 50 - 60mm

* Not for: metal gates, glass doors or sliding doors.

If you are unsure if your door is suitable, send us web links to your door pictures to

* Not for: metal gates, glass doors or sliding doors.

If you are unsure if your door is suitable, send us web links to your door pictures to

Preparing the Door

Items needed:

Recommended

Door and door frame material : Wood

Recommended

Gap between door and door frame: <3mm

DrillDrill Sheet 32mm Hole Saw 70mm Hole Saw

20mm Spade Bit#2 Phillips Screw Driver 20mm Chisel Hammer

[email protected]

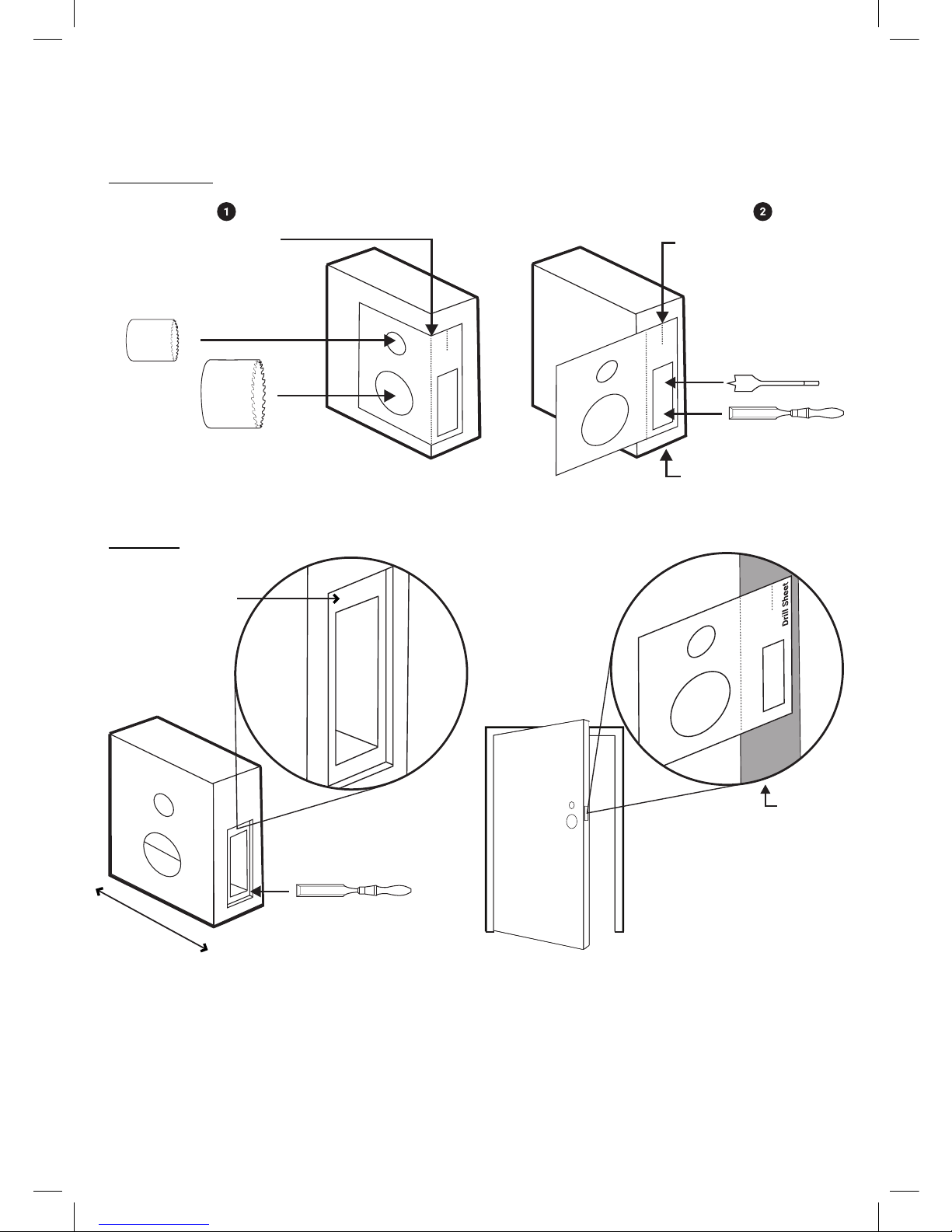

How to use the Drill Sheet

* Mark the center of the holes and then drill for accuracy.

Drilling (Door)

Make sure this

is aligned to the

centre of door edge

Door edge

Fold here

before drilling

holes for side

Door edge

120mm

Chiselling

Depth Width:

2 - 3mm
