Idea-fly Apollo Manual de usuario
2
目录
Disclaimer...................................................................................................................... 3
Specification................................................................................................................... 5
Transmitter..................................................................................................................... 6
Power supply.................................................................................................................. 6
Starting Up..................................................................................................................... 6
Shut down......................................................................................................................7
Compass calibration ....................................................................................................... 7
Magnetic compensation................................................................................................. 7
Gyro reset ...................................................................................................................... 8
Propeller installation and rotating direction................................................................... 9
Flight mode .................................................................................................................. 10
Status indicate ................................................................................................ 10
Before first flight .......................................................................................................... 11
Ready to fly..................................................................................................... 11
Low voltage..................................................................................................... 11
Working Status Check................................................................................................... 12
Warning and Caution ................................................................................................... 13
3
Disclaimer!
Please read this disclaimer carefully and follow instructions on assembly and calibration
contained in this manual. By using our product, you hereby agree to this disclaimer and
signify that you have read the entire manual thoroughly.
THIS PRODUCT IS NOT SUITABLE FOR PEOPLE UNDER THEAGE OF 18.
This product is not a toy! It is a complicated combination of mechanics, electronics,
aerodynamics and high-frequency radio technologies. Users should strictly obey
safety operation specification on aerial model and follow steps illustrated in the
manual to install and calibrate the product. Idea-Fly takes no responsibility for any
direct or indirect damage(s) or injuries caused by improper installation, calibration
and operation.
Idea-Fly takes no responsibility for any direct or indirect damage(s) or injuries caused
by installing/calibrating/flying this product when users are in situations including but
not limited like drunk, taking drugs, dizziness, fatigue or any other cases no matter
mentally or physically that would impair your ability.
Idea-Fly takes no responsibility for any direct or indirect damage(s) or injuries caused
by flying this product in inappropriate whether like windy(no more than gentle wind),
rainy, snow, hail, lightning, earthquake, tsunami and other natural disasters
Idea-Fly takes no responsibility for any direct or indirect damage(s) or injuries caused
by using this product in inappropriate area like magnetic or radio interference area,
government regulated no-fly zone or any other not permitted public or private areas.
4
Idea-Fly takes no responsibility for any direct or indirect damage(s) or injuries caused
by using Idea-Fly product assembled any other non-original Idea-Fly parts,
uncompleted Idea-Fly product and Idea-Fly product in aging or erosion conditions.
If any questions or problems occurred before, during, after using Idea-Fly products,
please contact local distributor/seller or Idea-Fly customer service for answer or
assistance. Idea-Fly takes no responsibility for any direct or indirect damage(s) or
injuries caused by customer’s improper operation or subjective misjudgment.
Any other losses that are not under Idea-Fly’s liability.
5
Specifications:
Apollo is an IDEAFLY product specially designed for RC hobby. It is a small
design quad copter (350 size); with integrated camera and 5.8 G wireless
video transmitter and receiver (available on certain models). All Apollo
quads are tested completely before they leave the factory. Integrated
autopilot module including GPS, is easy to operate and simple maintenance,
the only thing you need to do after purchase of an Apollo is a simple Compass
calibration, installation of Landing gear, and Gimbal if desired before
flight.
Specs and functions
1. newest IFLYV4M controller
2. GPS and Compass
3. 6 or 7 channel receiver
4. 5.8G wireless video transmitter and
receiver with mini camera (only on specific
models)
5. Low noise ESC
6. Highly efficient brushless motor
7. 5V/3AUBEC and highlight LED pilot
lights
8. USB debug interface
9. Auto-balanced, height hold, and GPS 3
types of flight mode.
10. Failsafe –Control loss, auto return to
home
11. Low voltage auto landing
12. 2 axis camera mount
6
Transmitter:
Apollo transmitter is unique，it will not work with other manufacturer receivers or transmitters.
Transmitter requires batteries (purchased separately), please install before set-up.
A 6 or 7 channel transmitter is used to control Pitch, Roll, heading, height, flight mode and camera
mount 7 channel included with the (A2 ver).
Power supply:
1. Apollo can only use 2200mah/3s battery，other size batteries can’t be mounted in the body.
2. Please turn on the transmitter before connecting the battery.
3. After connect the battery, the quad requires a 10 second for Gyro resetting, please keep the
quad still and Level during this time.
Starting Up:
Moving the throttle stick will not start the motors, to start the quad you need to carry out the
following steps:
1. Move the throttle stick to the lowest position
2. (while at lowest throttle position) Move the rudder to the most left position
3. Propellers will start to rotate at a low speed
4. Release the rudder from full left position once motor’s start to avoid the quad rotating on the
ground.
5. If the throttle is not moved from the lowest position within 5 seconds, the motors will shut down
automatically. (Failsafe function)
mode 1 throttle stick on
r i g h t h a n d
mode 2 throttle stick on
l e f t h a n d
7

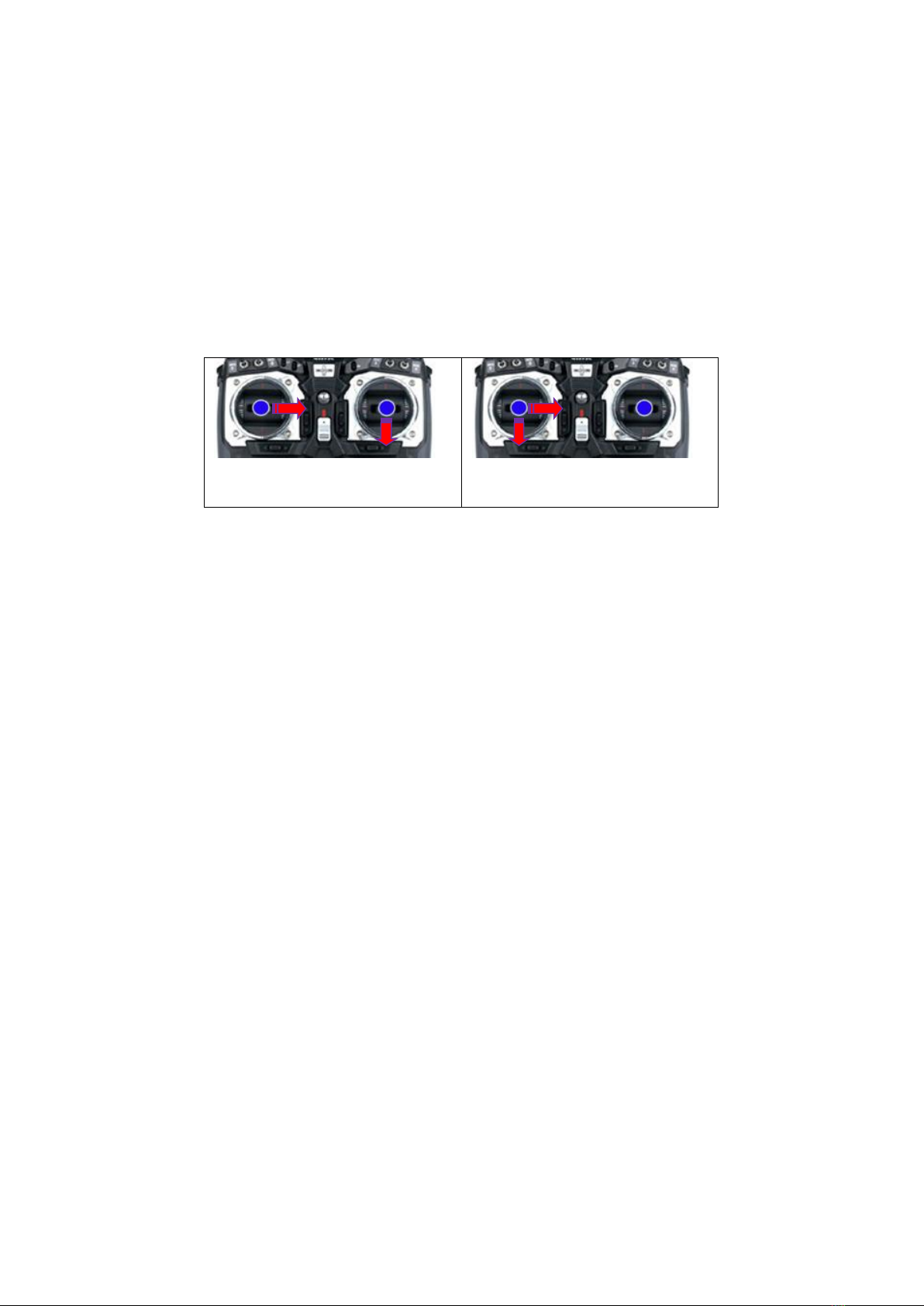

Shut down:
The system will shut down motor function automatically in 5 seconds if the throttle stick is moved
to the lowest position, or you carry out the following action:
1. Move the throttle stick to the lowest position
2. Move the rudder stick fully to the right
mode 1 throttle stick on right
hand
mode 2 throttle stick on left
hand
Compass calibration:
Please calibrate the compass if it is the first time use of this quad, or you are flying in a different area.
(City or state)
Please reference “IFLY-V4M Manual.”
Magnetic compensation:
You need to carry out the magnetic bias compensation because the global magnetic
bias is all different from place to place. This is accomplished with the Compass
calibration
Please reference “IFLY-V4M Manual.”
8
Gyro reset:
The center point of the Gyro will drift due to changes of the temperature or
other outside factors, the quad will lean on one side after the quad takes off.
You can reset the Gyro by carrying out the following actions:
1. Power on the quad (connect the battery)
2. Put the quad on level ground and keep it still (no movement).
3. Move the throttle stick to the highest position.
4. Then move the rudder
stick to the right
position.
5. Hold the position till the led on the bottom blinks red.
6. release the throttle/rudder sticks
7. Reset complete
mode 1 throttle stick on right
hand
mode 2 throttle stick on left
hand
9
Propeller installation and rotation direction
Please install the propellers as per the following screenshot, or the propeller will
not rotate correctly and the quad will not fly.
Propeller direction and the position of the ESC:
Motors: 1 and 3 clockwise
2 and 4 counter clockwise
10
Flight modes
Apollo flight modes support, ACRO , Balance, Height hold, GPS, and RTH 3 of flight modes can be
set to the 3 position switch at one time. The flight modes can be switched with the 3 position switch
on the transmitter，Please reference “IFLY-V4M Manual.”
Mode Status indicator
Apollo current mode status can be recognition by the bright LED on the bottom, about the LED status
instruction. Please reference “IFLY-V4M Manual.”
Failsafe control - Return to home (Loss of
control)
The quad will fly back over the place where it take off automatically, then land and shut down
automatically If the quad is out of control.
The process of the return to home:
1. The quad will climb to 10 meters (distance from the quad to the ground) automatically, and then
start to fly back to where it took off. (The position where the motors were started)
2. The quad will hover for about 5 seconds when it is back over the place where it took off.
3. The quad will Land automatically after hovering.
4. The quad will shut the motors down after landing.
