ICP DAS USA TDS-700 Series Manual de usuario

tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 1

tDS-700

Tiny RS-232/RS-422/RS-485 to Ethernet

Device Server

Quick Start Guide

What’s in the box?

The package includes the following items:

tDS-700 Series

Quick Start x1

CA-002 Cable x1

Module x 1

(This Document)

Related Information

tDS Series Product Page:

https://www.icpdas-usa.com/tinydeviceserver.php

tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 2

1 Connecting the Power and Host PC

1) Make sure your PC has workable network settings.

Disable or well configure your Windows firewall and Anti-Virus firewall first,

else the “Search Servers” on Chapter 4 may not work. (Please contact

with your system Administrator)

2) Connect both the tDS-700 and your PC to the same sub network or the

same Ethernet switch.

3) Supply power (PoE or +12~+48 VDC)to the tDS-700.

tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 3

2 Self-Test

tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 4

3Installing Software on Your PC

Install VxComm Utility, which can be

obtained from the web site:

http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/vxcomm_driver/windows/

ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/vxcomm_driver/windows/

4Configuring Network Settings

1) Double-click the VxComm Utility shortcut on the desktop.

2) Click the “Search Servers” to search your tDS-700.

3) Double-click the name of tDS-700 to open the “Configure Server (UDP)”

dialog box.





Factory Default Settings of tDS-700:

IP Address

192.168.255.1

Subnet Mask

255.255.0.0

Gateway

192.168.0.1

tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 5

4) Contact your Network Administrator to obtain a correct network

configuration (such as IP/Mask/Gateway). Enter the network settings

and click “OK”. Note: The tDS-700 will use the new settings 2

seconds later.



5 Configuring Virtual COM Ports

1) Wait 2 seconds and click “Search Servers” button again to ensure

the tDS-700 is working well with new configuration.

2) Click the name of tDS-700 to select it.



tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 6

3) Click the “Add Server[S]” button.

4) Assign a COM Port number and click “OK” to save your settings.





5) Click on tDS-700 name and check the virtual COM Port mappings on the

PC.



tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 7

6) Click the “Restart Driver” item in the “Tools” menu to display

the “VxComm Utility: Restarting Driver” dialog box.

7) Click the “Restart Driver” button.

6 Self-Test

1) Right click Port1 and then choose the “Open COM Port” item.

2) Check that the configuration of the COM Port is correct and then click the

“Open COM” button.





tDS-700 Tiny serial to Ethernet Device Server - QuickStart (Apr/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 8

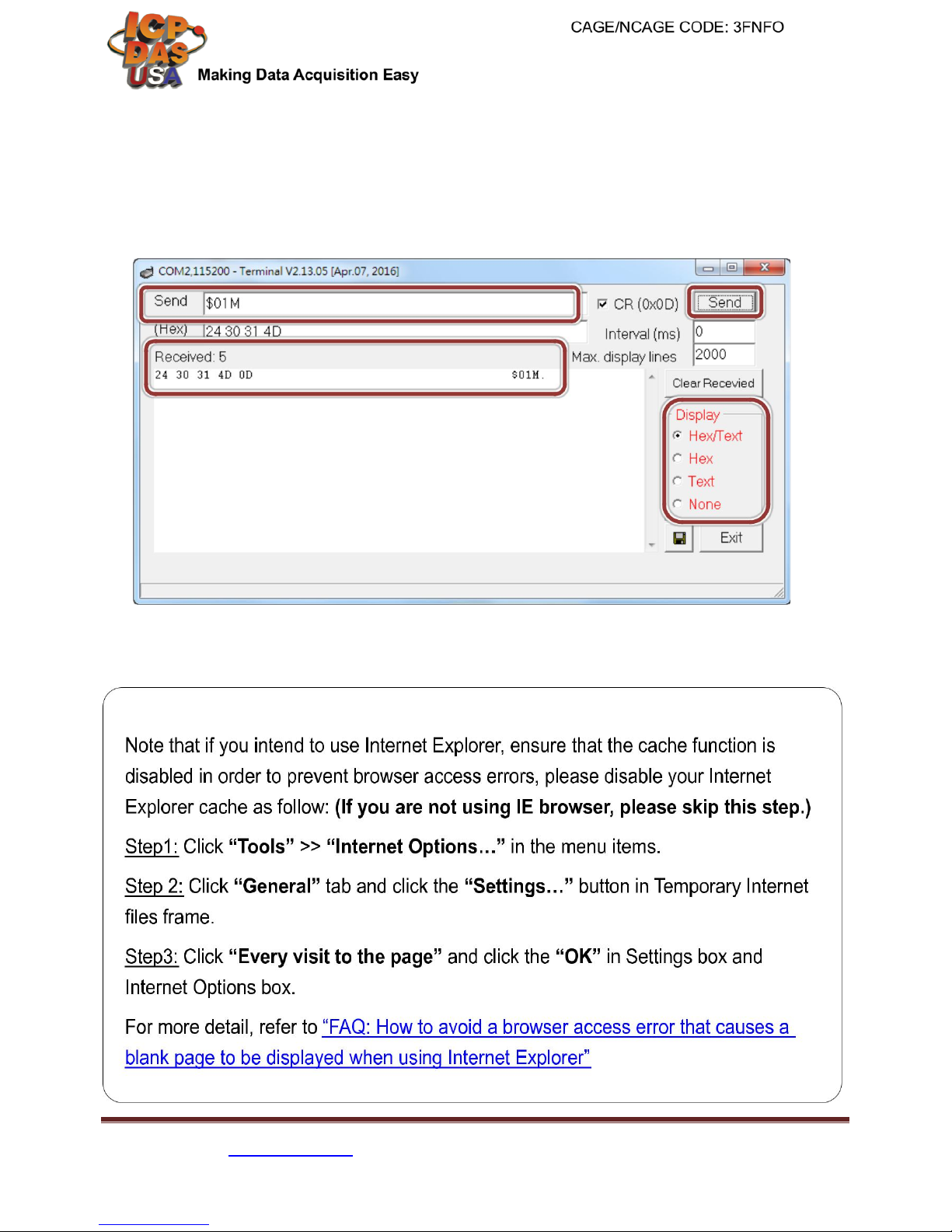

3)Type a string in the “Send” field.

Click the “Hex/Text” option in the “Display” section.

Click the “Send” button to send the message.

If a response is received, it will be displayed in the received field.






