PDS-734D Programmable Serial-to-Ethernet Device Servers - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PDS-734D

Programmable Serial-to-Ethernet Device Servers

Quick Start Guide

What’s in the box?

In addition to this guide, the package includes the following items:

PDS-700 PDSM-700 For PDS-700 Only

PDS(M)-700x 1

Quick Start x 1

Plastic Rack x1

(This Document)

PDS(M)-720 : 16 pcs

Other PDS(M)-700: 32

pcs

CA-0910 Cable x1

Screw Driver x1

Pin Terminal

Preparations for Devices

An External Power supply device, such as the MDR-20-24

(Optional).

An Ethernet Hub, such as the NS-205

(Optional). http://www.icpdas.com/products/Switch/industrial/industri

al_list.htm

Make sure your PC has workable network settings.

Disable or well configure your Windows firewall and Anti-Virus

firewall first, else the “Search Servers” on Chapter 3 may not

work. (Please contact with your system Administrator)

PDS-734D Programmable Serial-to-Ethernet Device Servers - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PDS-734D Programmable Serial-to-Ethernet Device Servers - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

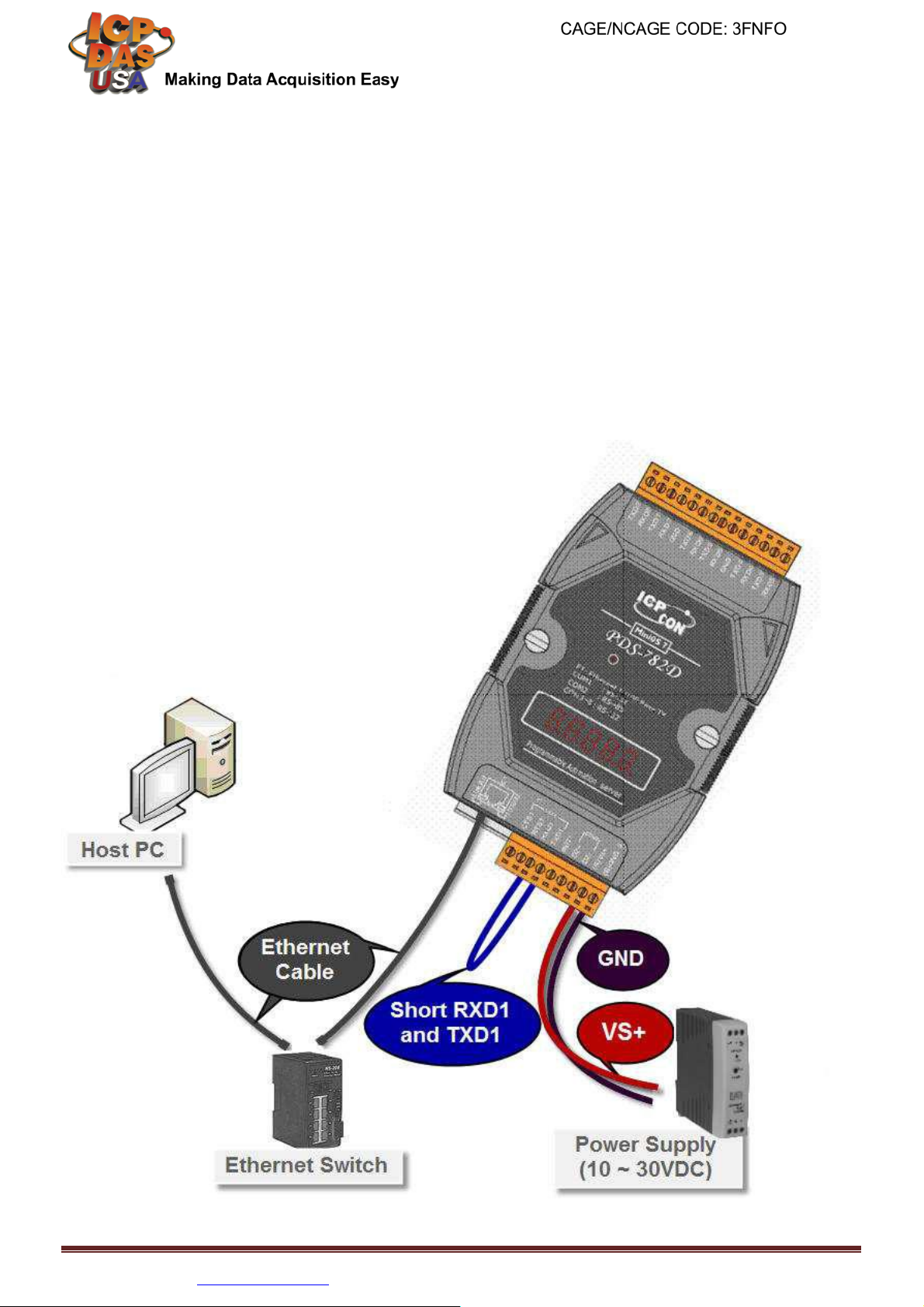

1 Connecting the Power and Host PC

1) Connect both the PDS-700 and your PC to the same sub network

or the same Ethernet switch.

2) Short the RxD and TxD pins of the PDS-700 for self-test.

3) Supply power (+10 VDC ~ +30 VDC) to the PDS-700.

PDS-734D Programmable Serial-to-Ethernet Device Servers - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

2 Install the VxComm Utility

The VxComm Utility can be obtained from the ICP

DAS FTP site or the ICP DAS web site. The location of

the download addresses are shown below:

http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/vxcomm_driver/windows/

ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/vxcomm_driver/windows/

3 Configuring Network Settings

1) Double click the VxComm Utility shortcut on the desktop.

2) Click the “Search Servers” to search your PDS-700.

3) Double click the name of PDS-700 to open the “Configure

Server (UDP)” dialog box.





Factory Default Settings of PDS-700:

IP Address

192.168.255.1

Subnet Mask

255.255.0.0

Gateway

192.168.0.1

PDS-734D Programmable Serial-to-Ethernet Device Servers - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

4) Contact your Network Administrator to obtain a correct network

configuration (such as IP/Mask/Gateway). Enter the network

settings and click “OK”. Note: The PDS-700 will use the new

settings 2 seconds later.



4 Configuring Virtual COM Ports

1)Wait 2 seconds and click “Search Servers” button again to ensure

the PDS-700 is working well with new configuration.

2) Click the name of PDS-700 to select it.





PDS-734D Programmable Serial-to-Ethernet Device Servers - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

3) Click the “Add Server[S]” button.

4) Assign a COM Port number and click “OK” to save your settings.





5) Click on PDS-700 name and check the virtual COM Port mappings

on the PC.



PDS-734D Programmable Serial-to-Ethernet Device Servers - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

6)Click the “Restart Driver” item in the “Tools” menu to display

the “VxComm Utility: Restarting Driver” dialog box.

7) Click the “Restart Driver” button.





5 Self-Test

1) Right click Port1 and choose the “Open COM Port” item.

2) Check that the configuration of the COM Port is correct and

then click the “Open COM” button.



Right Click



PDS-734D Programmable Serial-to-Ethernet Device Servers - QuickStart (Oct/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

3) Type a string (e.g., $01M) in the “Send” field.

4) Click the “Hex/Text” option in the “Display” section.

5) Click the “Send” button to send the message.

6) If a response is received, it will be displayed in the received field.

If the test is successful, then your COM port program should now be

able to work with this Virtual COM Port
