I-7532RM-FD Quick Start

v1.0, Oct 2023

Packing List

In addition to this guide, the package includes the following items:

I-7532RM-FD

Technical Support

service@icpdas.com

www.icpdas.com

Resources

How to search for drivers, manuals and

spec information on ICP DAS website.

For Mobile Web

For Desktop Web

Model Name

---------------------------------------------------------------------

Hardware Installation

Before using I-7532RM-FD device, some things must be

done.

Step 1: Prepare one I-7532RM-FD

Step 2: Determine if the terminal resistor is needed or not

Check the application structure, and determine if the terminal

resistor is needed or not. You can find it at the position as follows.

Pin No.

Description

1 ON: Active CAN1 terminal resistor (default)

OFF: Inactive CAN1 terminal resistor

2 ON: Active CAN2 terminal resistor (default)

OFF: Inactive CAN2 terminal resistor

Generally, if your application is as follows, we recommend you to

enable the terminal resistor.

If your application is like the structure as follows, the terminal

resistor is not needed.

Step 3: Connect the CAN port, USB and power line of

the I-7532RM-FD.

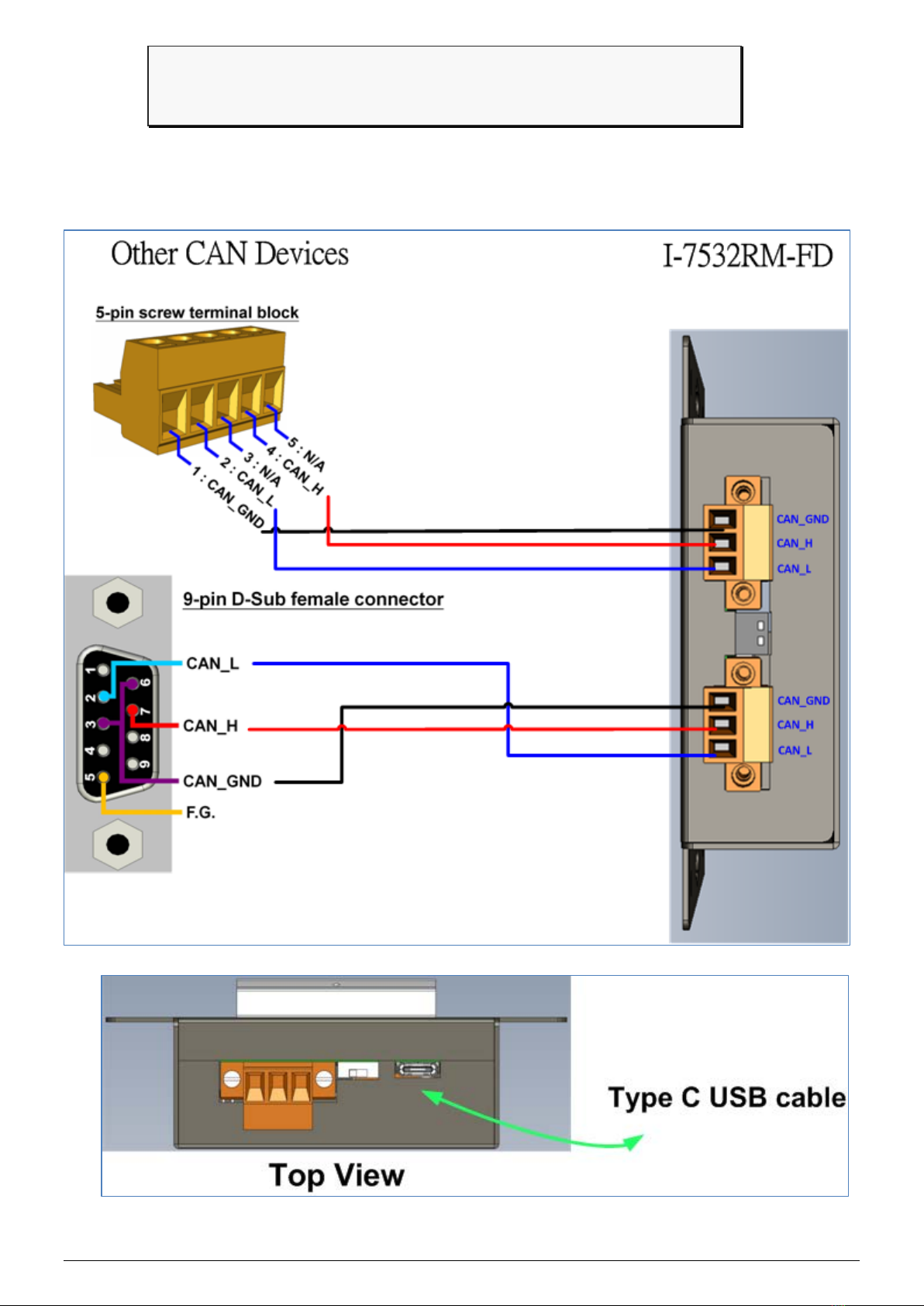

The pin assignment and wire connection are as follows. When

finished, run your application with the I-7532RM-FD.

When users want to use user-defined CAN/CAN FD baud rate,

CAN/CAN FD message filter and CAN mapping, merging, splitting

rules, I-7532-FD Utility tool may be needed.

Step 1: Install the I-7532-FD Utility

The software is located at:

https://www.icpdas.com/en/download/show.php?num=8887

Step 2: Setting up I-7532RM-FD module

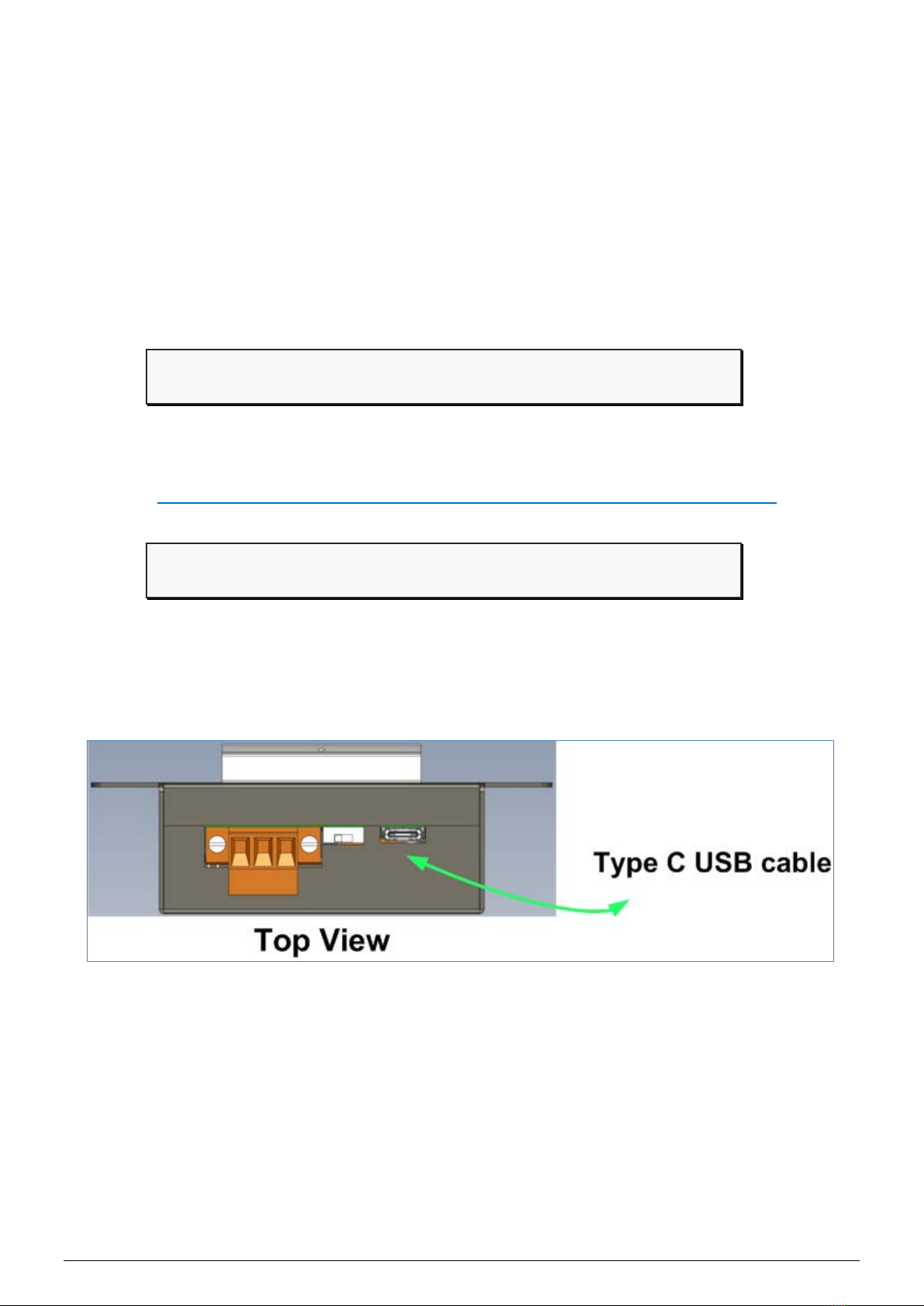

1. Connect the PC available USB port with the USB port of the

I-7532RM-FD. Uses a USB Type C cable to connect the module

to the PC.

2. Power On the module and execute the I-7532-FD Utility tool.

----------------------------------------------------------------

Utility tool

Step 3: Connect and get module’s configuration

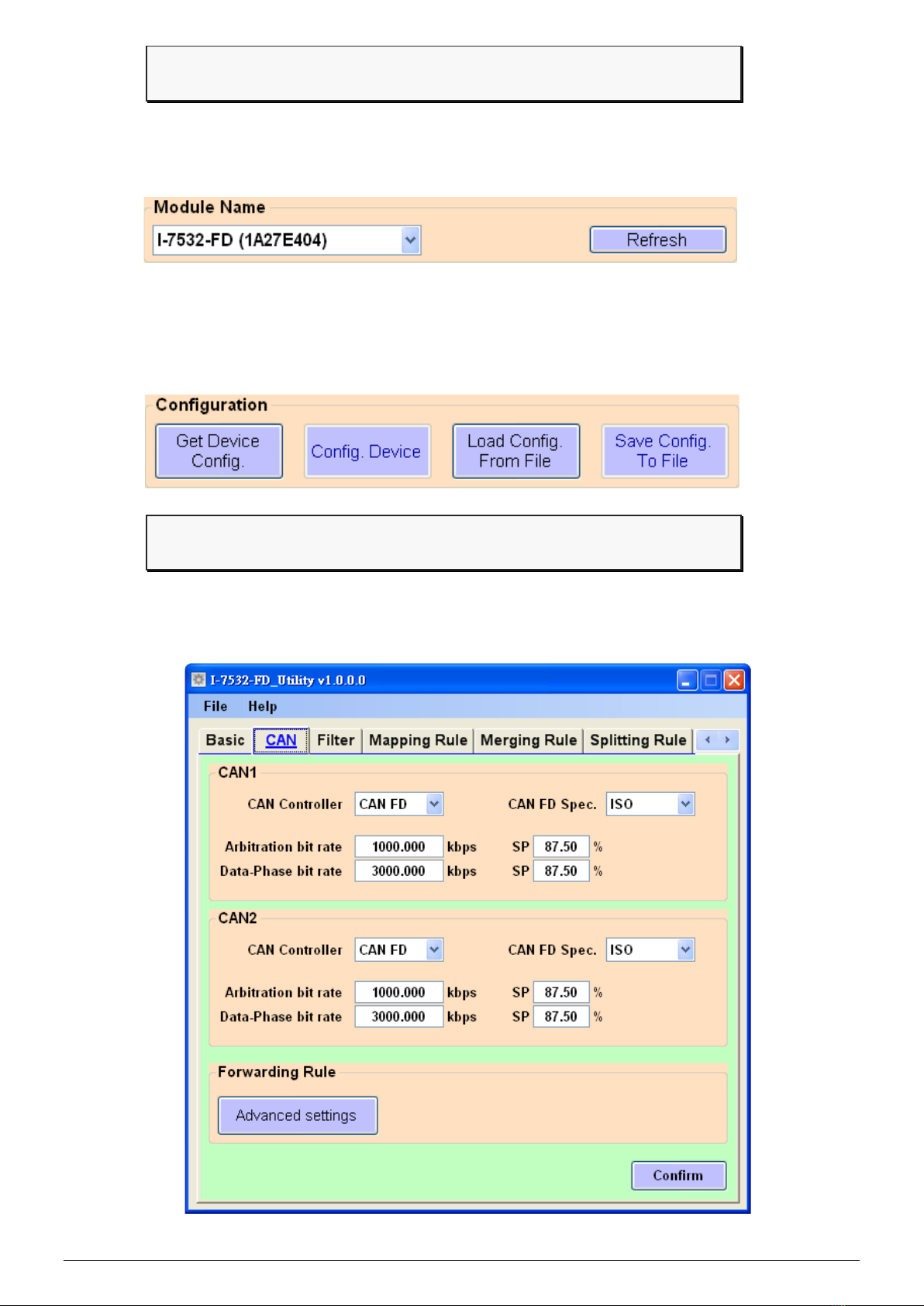

Press the “Refresh” button to scan and list all the necessary

I-7532RM-FD modules on “Module Name” location.

Then select the necessary I-7532RM-FD module and press “Get

Device Config.” button to start to connect and get device

configuration.

Step 4: Configure CAN Bus parameters

User can configure the CAN controller mode, CAN FD specification,

arbitration/data-phase bit rate and advanced forwarding rule.

[CAN Controller]

Set the CAN port into CAN or CAN FD mode. When setting the CAN

port into CAN FD mode, the CAN port can process CAN/CAN FD frames,

otherwise this port just can process CAN frame.

[CAN FD Spec.]

Set the CAN FD frame of the CAN port follows ISO or Non-ISO

specification. For “ISO” specification setting, the module uses the CAN

FD frame format as specified by the ISO11898-1. For “Non-ISO”

specification setting, the module uses the CAN FD frame format as

specified by Bosch CAN FD Specification V1.0.

[Arbitration bit rate]

CAN/CAN FD arbitration phase bit rate. Valid range: 10 kbps ~ 1000

kbps.

[Data phase bit rate]

CAN FD data phase bit rate. Valid range: 100 kbps ~ 10000 kbps

[SP]

CAN/CAN FD arbitration/data phase bit rate sample point.

Suggested range: 75.00 ~ 87.50 %

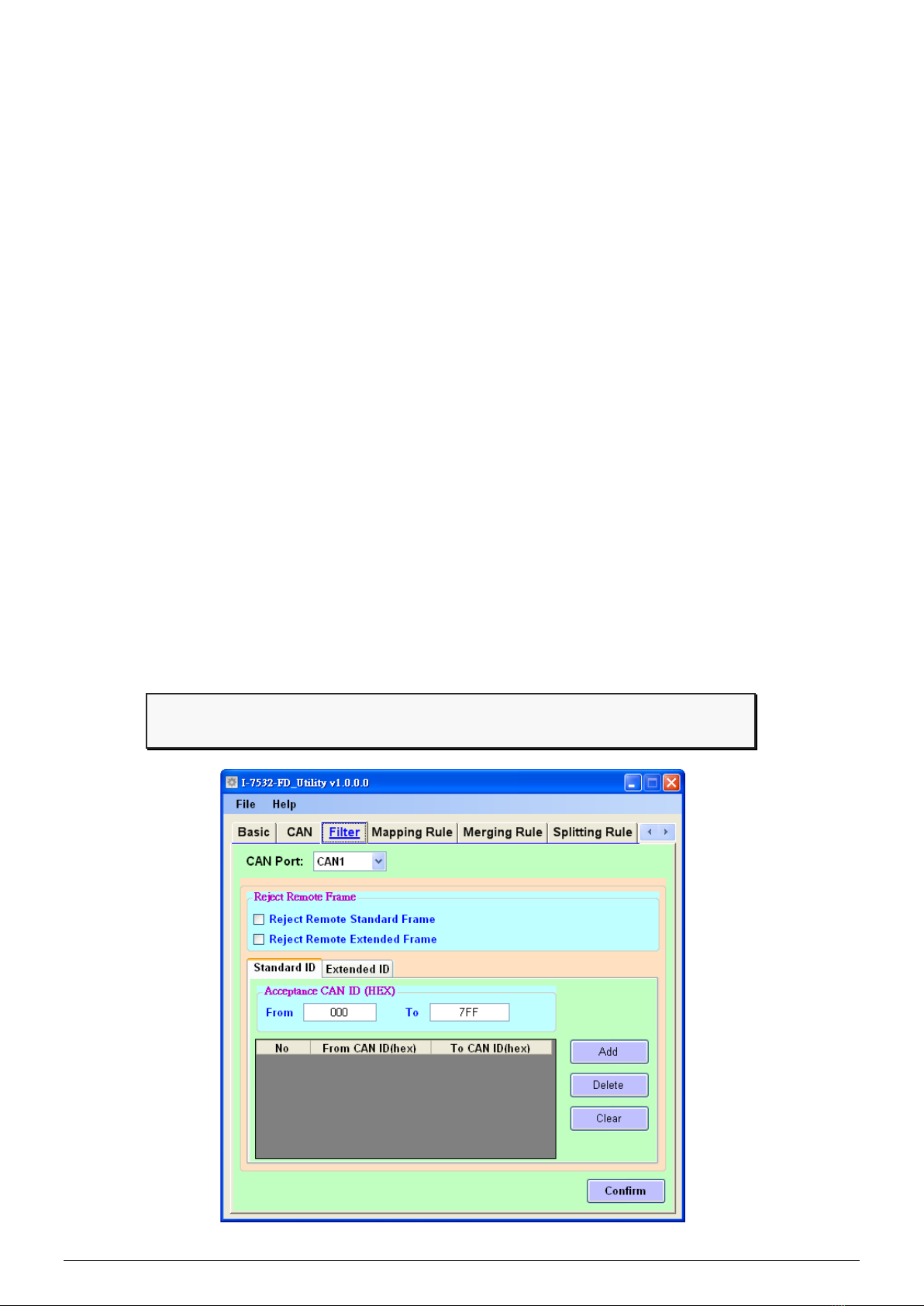

Step 5: Setting CAN filter ID

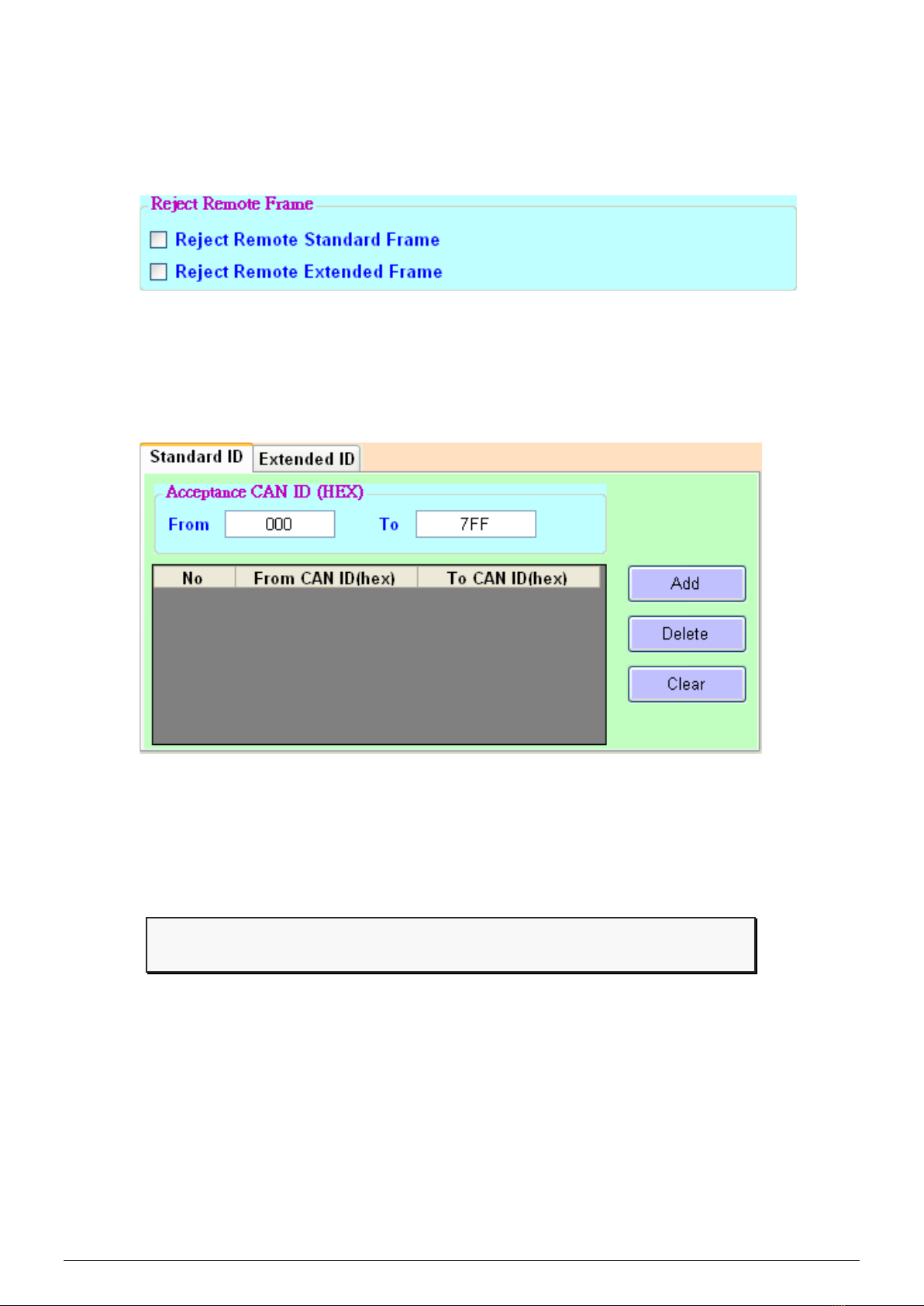

The “Reject Remote Frame” is used to reject remote standard /

extended frame. And the “Standard ID/Extended ID” field is used to

set accepted standard/extended CAN IDs (using white-list rule).

[Reject Remote Frame] block:

Click the “Reject Remote Standard/Extended Frame” item to select

whether to reject remote standard/extended CAN frame or not

[Standard ID/Extended ID] block:

Press the “Add”, “Delete” button to add/delete a range of

standard/extended CAN ID into filter frame.

Step 6: Setting CAN forwarding rules

Detail information about how to configure CAN mapping, merging,

splitting rules, please refer to section “3. Software Utility” of

I-7532RM-FD user’s manual.
