XP-8000-CE6 Quick Start Guide

Version 1.0.5, November 2012

Congratulations!

Congratulations on purchasing the XP-8000-CE6 - the most popular automation

solution for remote monitoring and control applications. This Quick Start Guide

provides information that enables you to get started using the XP-8000-CE6. Please

also consult the User Manual for more detailed information on regarding the set up and

use of the XP-8000-CE6.

What’s in the Box?

In addition to this guide, the package includes the following items:

XP-8000-CE6 Module

2 GB CF card

Software Utility CD Screw driver

XP-8041-CE6

XP-8341-CE6

XP-8741-CE6

(1C016)

2.4 mm

Technical Support

●XP-8000-CE6 User Manual

The user manual for the XP-8000-CE6 can be found on the enclosed CD at:

CD:\XP-8000-CE6\Document\User_Manual\

or on the ICP DAS web site at:

http://ftp.icpdas.com/pub/cd/xp-8000-ce6/document/user_manual/

●XP-8000-CE6 Website

Full details and specifications for the XP-8000-CE6 can be found at:

http://www.icpdas.com.tw/product/solutions/pac/xpac/xp_8x41_ce6.html

•XP-8000-CE6 Quick Start Guide

-2

XP-8000-CE6 Quick Start Guide

--------------------------------------------------------------------------------

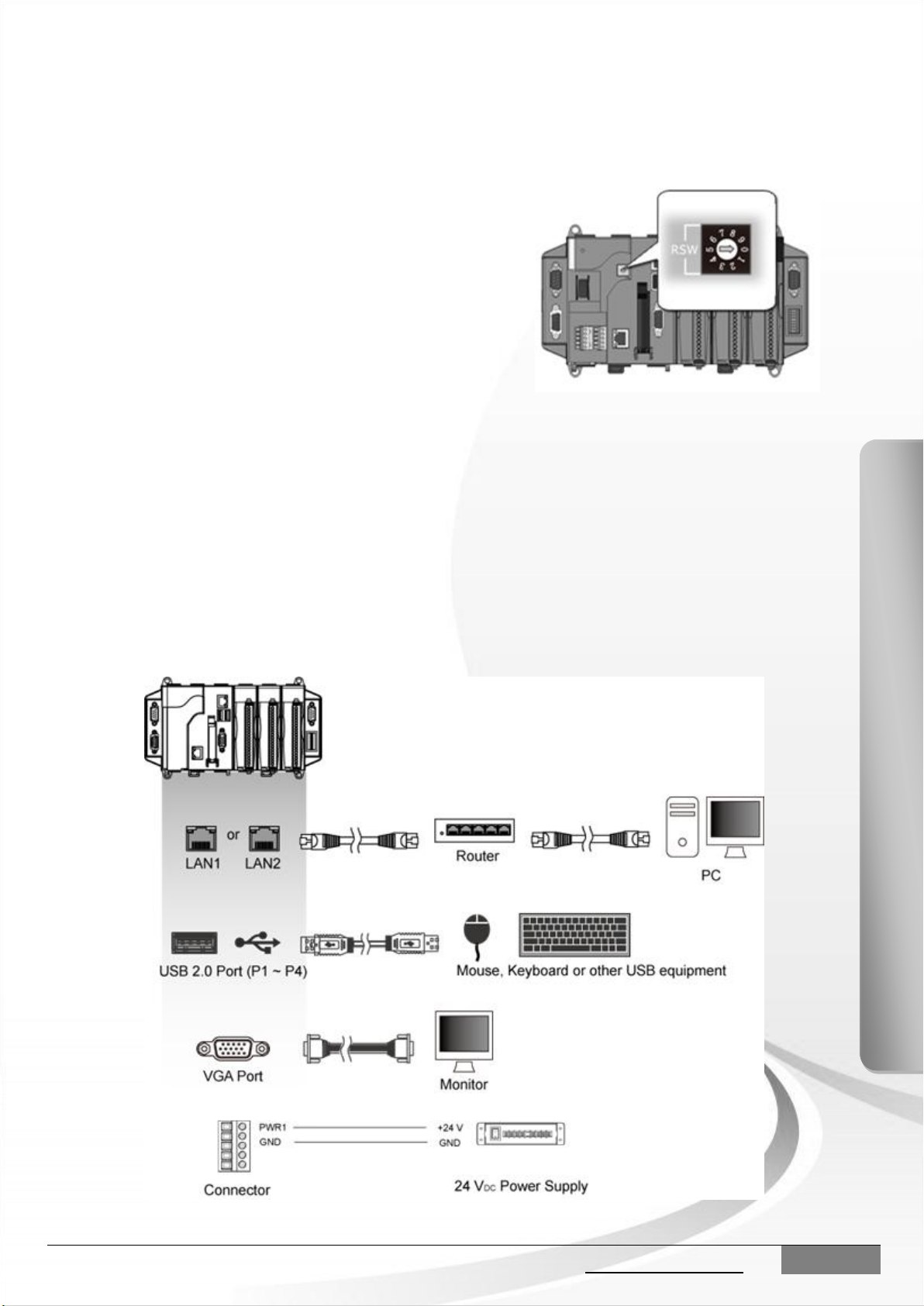

Configuring Boot Mode

Before beginning any installation, be sure

that the rotary switch is set to the “0”

position.

--------------------------------------------------------------------------------

Connecting Peripherals

i. Connect the LAN port to a router/hub.

ii. Connect the USB mouse and USB keyboard to the USB port.

iii. Connect the monitor to the VGA port.

iv. Connect the +24 VDC power supply to the PWR1 and GND terminals.

-3

XP-8000-CE6 Quick Start Guide

--------------------------------------------------------------------------------

Inserting the I/O Modules

Note that the only high profile I-8K and I-87K series modules can be

attached to XP-8000-CE6.

For more information regarding

expansion I/O modules,

please refer to

http://www.icpdas.com/products/PAC/xpac/IO

_Expansion.htm

--------------------------------------------------------------------------------

Changing the User Interface Language and Time Zone

The "Regional Settings" option is a Windows CE function that allows users

to easily change the language used for the XP-8000-CE6 user interface to

your native language.

Step 1 Click the “Start”button, then click the “Control Panel” option from

the “Settings” menu item, and then click “Regional Settings” icon

to open the “Regional and Language Settings” dialog box.

-4

XP-8000-CE6 Quick Start Guide

Step 2 Click the “User Interface Language”tab and select the desired

language from the drop-down menu, and then click “OK”

Step 3 Click the “OK” button, and then reboot the XP-8000-CE6 to

allow the changes to take effect.

Step 4 After rebooting. Click the “Start” button, then click the “Control

Panel”option from the “Settings” menu item, and then click the

“Date/Time” icon to open the “Date/Time properties” dialog box.

Step 5 Select the appropriate time zone from the “Time Zone”

drop-down menu. If necessary, check the “Automatically adjust

clock for daylight savings” check box, and then click the “Apply”

button to save the changes.

-5

XP-8000-CE6 Quick Start Guide

--------------------------------------------------------------------------------

Configuring the XP-8000-CE6

The XPAC Utility is a tool that is designed to allow users to quickly control

and configure the XP-8000-CE6.

Step 1 Double-click the “XPAC Utility”icon

located on the desktop

Step 2 Enter the relevant

information for the

respective parameters in

the fields provided for the

IP config tab, the FTP

server tab and the Auto

Execution tab, etc., then

click the “Apply” button

to save the changes.

--------------------------------------------------------------------------------

Configuring I-87K Modules

DCON Utility is a tool kit designed to quickly control and configure I-87K

series expansion I/O modules on XP-8000-CE6.

-6

XP-8000-CE6 Quick Start Guide

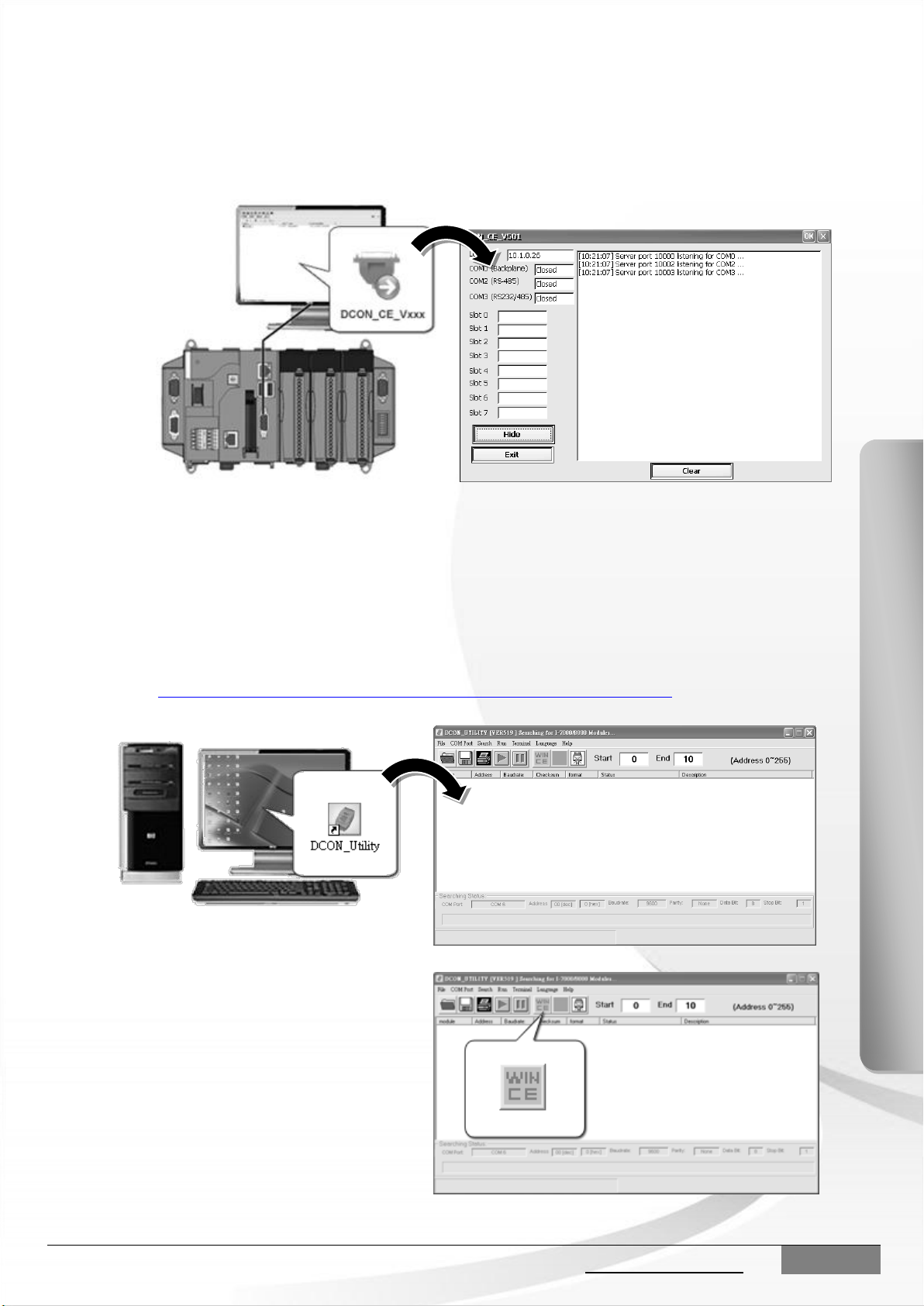

Step 1 On XP-8000-CE6, double-click the server program,

“DCON_CE_XP.exe”

The “DCON_CE_XP.exe”are pre-installed on the XP-8000-CE6, located

under \System_Disk\Tools\DCON_CE\

Step 2 On the Host PC, double-click the “DCON Utility” icon located on the

desktop.

The “DCON Utility”can be installed from the CD that was provided with the

package or by downloading the latest version from ICP DAS web site.

CD:\XP-8000-CE6\PC_Tools\DCON_Utility\

http://ftp.icpdas.com/pub/cd/xp-8000-ce6/pc_tools/dcon_utility/

Step 3 In the DCON Utility

window, click the

“WIN CE” button to

open the “WINCE

Device Connection”

dialog box.

-7

XP-8000-CE6 Quick Start Guide

Step 4 In the “WINCE Device Connection” dialog box, click the “XPAC_CE”

tab. Enter the IP address for the XP-8000-CE6 module, and then click

the “Connect to XPAC_CE” button.

Tips & Warnings

If you are unable to establish a connection to the XP-8000-CE6

using the DCON Utility, check whether the Ethernet connection

between the Host PC and the XP-8000-CE6 is being restricted by

the firewall. Contact your network administrator for details of how to

open the Ethernet port.

-8

XP-8000-CE6 Quick Start Guide

Step 5 In the DCON Utility window, click the name of the module from

the name list to open the configuration form and control dialog

box.

Tips & Warnings

If no operation is performed within 30 seconds, the connection will be

automatically closed to release the COM port.

Once configuration of the module(s) is complete, you may begin developing

your own applications. For more detailed instructions and additional application

examples, please refer to the XP-8000-CE6 User Manual.
