Icon Process Controls ProCon C400 Series Manual de usuario

C400 Series Controller

Conductivity |TDS |Resistivity |Salinity

Operating Manual

C400 Series Operating Manual

2◀◀

Contents

Preface .........................................................................................................................................................................................................................................3

Features...........................................................................................................................................................................................................................................3

Technical Specications ...................................................................................................................................................................................................... 4

Typical Application.................................................................................................................................................................................................................. 4

Instrument Connection........................................................................................................................................................................................................5

Dimension......................................................................................................................................................................................................................................5

Instrument Installation .........................................................................................................................................................................................................6

Display Descriptions ...............................................................................................................................................................................................................7

Keypad Descriptions...............................................................................................................................................................................................................7

Menu Structure ..........................................................................................................................................................................................................................8

Calibration....................................................................................................................................................................................................................................10

Field Calibration........................................................................................................................................................................................................................11

Measurement Settings (Quick Start).........................................................................................................................................................................12

Temperature Calibration....................................................................................................................................................................................................13

Point Calibration......................................................................................................................................................................................................................14

Relays ..............................................................................................................................................................................................................................................16

4-20mA Ouput..........................................................................................................................................................................................................................17

RS485 Modbus..........................................................................................................................................................................................................................18

System Setup.............................................................................................................................................................................................................................19

MODBUS RTU General Information..........................................................................................................................................................................20

MODBUS RTU Transmission Mode.............................................................................................................................................................................21

MODBUS RTU CRC Check ...............................................................................................................................................................................................22

Implementation of MODBUS RTU in Instrument .......................................................................................................................................... 22

Data Format...............................................................................................................................................................................................................................24

Read Instruction Mode ......................................................................................................................................................................................................26

Daily Maintenance ................................................................................................................................................................................................................26

Troubleshooting......................................................................................................................................................................................................................27

Warranty.......................................................................................................................................................................................................................................27

C400 Series Operating Manual

3◀◀

Preface

Please read this manual carefully before use.

When receiving the instrument, please open the package carefully, check whether the instrument and accessories are damaged by trans-

portation and whether the accessories are complete. If any abnormalities are found, please contact our after-sales service department or

regional customer service center, and keep the package for return processing.

This instrument is an analytical measurement and control instrument with highly precision.Only skilled,trained or authorized person should

carry out installation, setup and operation of the instrument.Ensure that the power cable is physically separated from the power supply

when connection or repair. Once the safety problem occurs, make sure that the power to the instrument is off and disconnected.

For example,

1. Apparent damage to the analyzer

2. The analyzer does not work properly or provides specied measurements

3. The analyzer has been stored for a long time in an environment where the temperature exceeds 70°C

The analyzer must be installed by licensed professionals in accordance with relevant local specications, and instructions are included in

the operation manual. Comply with the technical specications and input requirements of the controller.

Features

The instrument is equipped with different types of pH or ORP sensors. Widely used in power plants, petrochemical industry, metallurgical

electronics, mining, paper industry, biological fermentation engineering, medicine, food and beverage, environmental protection water

treatment, aquaculture, modern agricultural planting and other industries. The pH (acidity and alkalinity) value, ORP (redox potential) value

and temperature value of water solution were continuously monitored and controlled.

Large color LCD display

Intelligent menu operation

Multiple automatic calibration

Manual and automatic temperature compensation

Three (3) relay control switches

High & low alarm and hysteresis control

4-20mA (2-wire), 4-20mA (4-wire direct to controller), or 4-20mA + RS485

Multi parameter display simultaneously shows – pH, ORP, Conductivity, Temp

Password protection

C400 Series Operating Manual

4◀◀

Technical Specifications

Measuring Range 0 – 500µS/cm

Resolution 0.1µS/cm |0.01mS/cm

Intrinsic Error ±0.5% F.S

Resistivity 0 – 18.25MΩ/cm

Resolution 0.01KΩ/cm | 0.01MΩ/cm

TDS 0 – 250g/L

Resolution 0.01mg/L |0.01g/L

Salinity 0 – 700ppt

Resolution 0.01ppm |0.01ppt

Working Temperature 32 – 302°F | 0 – 150°C

Temperature Compensation Automatic or Manual

Output Two 4–20mA |20–4mA |0–20mA

Communication RS485 MODBUS RTU

Relay Control Contact 5A 240VAC |5A – 28VDC

Power Supply 9 – 36VDC (std) |85 – 265VAC | Power Consumption 3W

Environmental Temperature 14 – 140°F | -10 – 60°C

Relative Humidity ≤ 90%

Waterproof Rating IP65

Weight 0.5kg

Dimensions 98 × 98 × 130mm

Installation Opening Size 93 X 93mm

Installation methods Panel |Pipe |Wall

Typical Application

C400 Series Operating Manual

5◀◀

Instrument Connection

CELL 1 NO 1

CELL 2 COM 1

CELL 3 NC 1

CELL 4 NO 2

Temp COM 2

Temp NC 2

N/C COND

N/C

N/C Pow DC+

(9–36V)

Cur 1+ Pow DC-

Com - Pow PE

Cur 2+

RS-485 B

RS-485 A

Pow ACL

(9–36V)

Pow AC N

Pow PE

Tip: If the user needs to lengthen or

shorten the cable, please remove the black

conductive skin outside the transparent

wire to prevent short circuit between the

black conductive skin and the reference

end of the electrode. Multimeter can be

used to check.

Terminal Function Terminal Function

CELL 1 Conductivity Sensor Input 1 NO 1 High set relay working position

CELL 2 Conductivity Sensor Input 2 COM 1 Alarm relay common

CELL 3 Conductivity Sensor Input 3 NC 1 High set relay resting position

CELL 4 Conductivity Sensor Input 4 NO 2 Low set relay working position

Temp Temperature sensor Input COM 2 Alarm relay common

Temp Temperature sensor Input NC 2 Low set relay resting position

N/C No Connection

N/C No Connection Pow DC + DC power + (9 – 36V)

N/C No Connection Pow DC - DC power -

Cur 1 + Current output 1+ Pow PE Earth wire

Com - Current output common

Cur 2 + Current output 2+ Pow ACL (85 – 265V) Live wire

RS485 B Communication Terminal Pow AC N Neutral wire

RS485 A Communication Terminal Pow PE Earth wire

Dimension

C400 Series Operating Manual

6◀◀

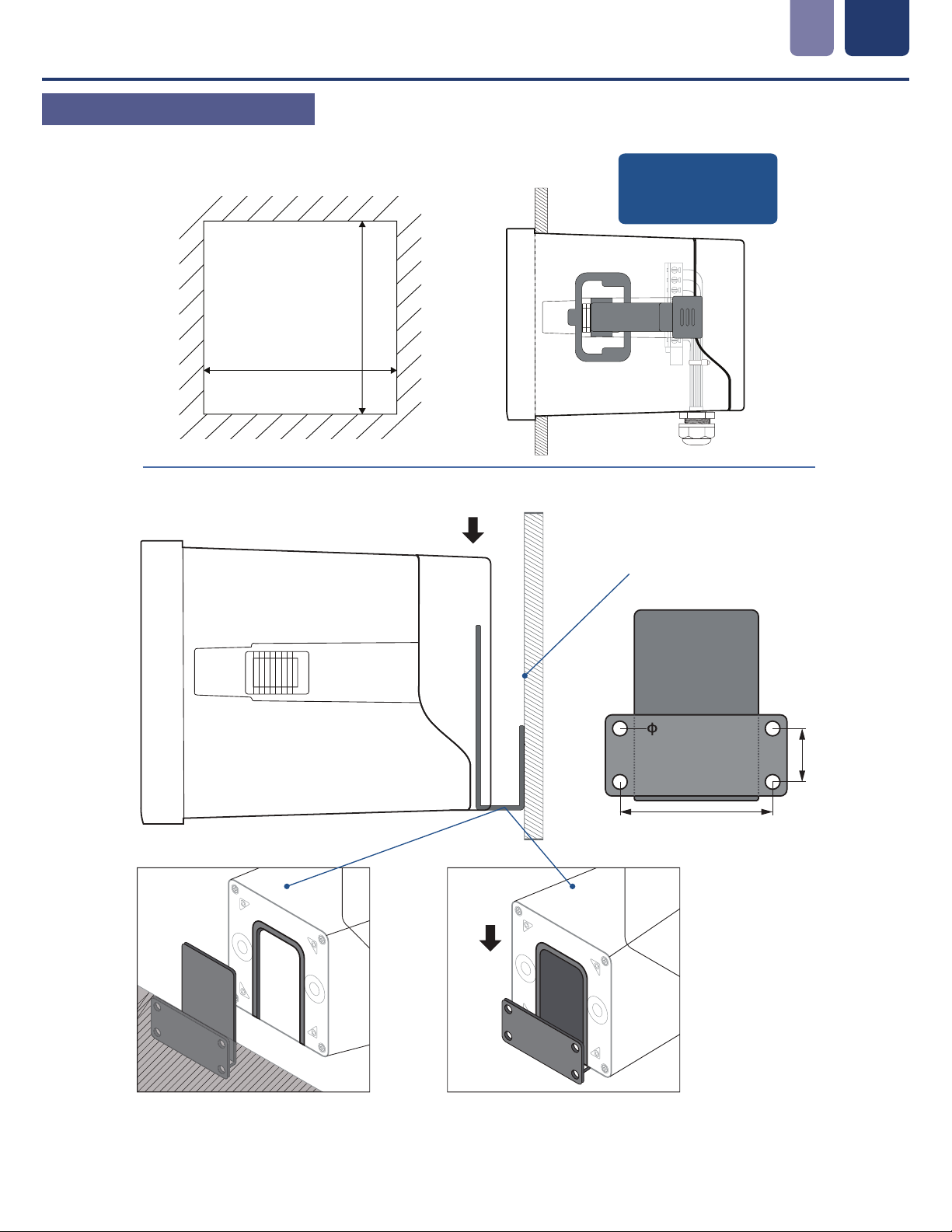

Instrument Installation

93 mm (± 0.5 mm)

Control Panel Installation

Wall Mounting

53 mm

18.4 mm

5mm

Fixture Dimension

Fixed bracket (M4 screw) is

installed on the wall first.

Insert the instrument into the

fixture along the chute

Insert into the fixture along the chuteInstall bracket on the wall first

Installation of back

cover with

waterproofing seal

C400 Series Operating Manual

7◀◀

Display Descriptions

Check all pipe connections and electrical connections

before use. The instrument will display as shown in the

gure below after the power is turned on.

Conductivity / TDS / Salinity / Resistivity

83.01µS/cm

25.01000Ω°C

C1 14.51 mA

SP1 SP2

Main measurment + Unit

Relay 1

[blue is off and red is on]

Instrument type

Temp. + Unit

Automatic temp. comp.

Relay 2 Current 1

Current 2

Sensor Communication

Warning

Conductivity / TDS / Salinity / Resistivity

83.01µS/cm

25.0 °C

C1 14.51 mA

SP1 SP2

Measurement Mode

Conductivity / TDS / Salinity / Resistivity

Calibration Mode

Voltage:

Point 1

0µS/cm Done

-5 mV

Conﬁgure

Calibration

Set Points

Output

System

Conductivity / TDS / Salinity / Resistivity

Programming Mode

Keypad Descriptions

ESC

Confirm Options

Press to move menu left

Enter menu programming menu

Return to previous menu

Long press to return the

measurements screen

Menu setting mode: press this key

to loop down the menu options

Value input mode: current mA / loop

In measurement mode, long press

to set parameters for browsing

C400 Series Operating Manual

8◀◀

Menu Structure

Press [MENU] key to enter programming mode:

If the monitor prompts you to enter the calibration security password, press the or key to set the calibration security password, and

then press the [ENT] key to conrm the calibration security password. No initial password here, please enter directly by pressing the

[ENT] key.

Item Display Selection Sub Menu

Congure

Sensor

Type

TDS

Salinity

Resistivity

Unit

µS/cm

mS/cm

ppm

ppt

Electrode Constant 1.0 (Default, can be modied)

Temperature Coefcient 2.0 (Default, can be modied)

Temperature

Temperature Sensor

NTC2.252 kΩ

NTC10 kΩ

Pt100

Pt1000 (Default)

Temperature Offset 0.0000 (Enter Value if Required)

Temperature Input

Automatic

Manual

Temperature Unit

°C

°F (Default)

Calibration

Standard

Solution

Calibration

Calibration Point 1 0.01 μS/cm/cm (Default, can be modied)

Calibration Point 2 1413mS/cm (Default, can be modied)

Calibration Point 3 12.88mS/cm (Default, can be modied)

Calibration Point 4 111mS/cm (Default, can be modied)

Calibration Point 5 800 mS/cm (Default, can be modied)

Calibration Adjustment

Voltage 1 (Default: 00.010)

Voltage 2 (Default: 1413)

Voltage 3 (Default: 012880)

Voltage 4 (Default: 149812)

Voltage 5 (Default: 800000)

Field Calibration

Field Calibration 00.010 (Default)

Offset Adjustment 00.000 (Default)

Slope Adjustment 01.000 (Default)

C400 Series Operating Manual

9◀◀

Item Display Selection Sub Menu

Alarm

Relay 1

Status ON

OFF

High/Low Setpoint

High Alarm

Low Alarm

Clean

Limit Value 00.00 (Default, can be modied)

Hysteresis 00.000 (Default, can be modied)

Relay 2

Status ON

OFF

High/Low Setpoint

High Alarm

Low Alarm

Clean

Limit Value 00.00 (Default, can be modied)

Hysteresis 00.000 (Default, can be modied)

Output

Current 1

Channel Main

Temperature

Output Option

4-20mA (Default)

0-20mA

20-4mA

Upper Limit 00.00

Lower Limit 00.00

Current 2

Channel Main

Temperature

Output Option

4-20mA (Default)

0-20mA

20-4mA

Upper Limit 00.00

Lower Limit 00.00

Output RS485

Baud Rate

4800BPS

9600BPS (Default)

19200BPS

Parity Check

None

Odd

Even

Stop Bit 1 Bit

2 BIT

Network Node 000001

System

Language English

Date/Time Year-Month-Day Current Date (Default)

Hour-Minute-Second EST (Default)

Display

Display Speed

Low

Standard (Default)

Medium

High

Backlight Power Saving [Enter Value]

Long Bright

Information

Soft Version 19-1.0

Password Settings 0000

Serial Number

Factory Default No Keep User Settings

Yes Reset back to Factory Default

C400 Series Operating Manual

10◀◀

Item Display Selection Sub Menu

System

Terminal Current

Tuning

Current 1: 4mA (The positive and negative ends of the

multi-meter are connected to the current

1 or current 2 output terminals of the

instrument key respectively, press key

to adjust the current 4mA or 20mA , press

[ENT] to conrm.)

Current 1: 20mA

Current 2: 4mA

Current 2: 20mA

Relay Test

Relay 1 — Testing

Press [ENT] to test

Relay 2 — Testing

Calibration

Press [MENU] to enter the calibration menu and select

Calibration

Standard Calibration

Calibration Point 1 Enter given standard liquid value: Defa

Calibration Point 2 Enter given standard liquid value(Example:84μS/cm)

Calibration Point 3 Enter given standard liquid value(Example:1413μS/cm)

Calibration Point 4 Enter given standard liquid value(Example:12.88mS/cm)

Calibration Point 5 Enter given standard liquid value(Example:111mS/cm)

Field Calibration

Field Calibration Enter Value

Offset Adjustment Enter Value

Slope Adjustment Enter Value

Calibration of Standard Solution

The sensor has been factory calibrated before delivery and users can use it directly.

Note: Calibration if required can be made using at least one of the ve calibration points. Not all points are required

for sensor calibration

If calibration is required, prepare a suitable standard reference liquid with known range value. Press the [MENU] button to enter the

Setting Mode — select the calibration point.

Enter the corresponding reference calibration value, then press [ENT] key to conrm and enter the calibration screen.

(If the instrument has been calibrated, the screen shows the calibration status. press the key to switch the calibration state of the

calibration point. If re-calibration is required in this mode, press the [ENT] key again to enter the re-calibration.)

In the standard solution calibration mode, press the key to switch the calibration points, press the [ENT] key to start calibrating. If

prompted to enter the calibration security password, press the key or key to set the calibration security password, and then press the

[ENT] key to conrm the calibration security password.

Voltage:

Point 1

0µS/cm Done

-5 mV

Conductivity / TDS / Salinity / Resistivity

Calibrating

Calibration Sensor Voltage

Successful Calibration

Tabla de contenidos

Otros manuales de Controladores de Icon Process Controls

Icon Process Controls

Icon Process Controls ProCon C300 Series Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
