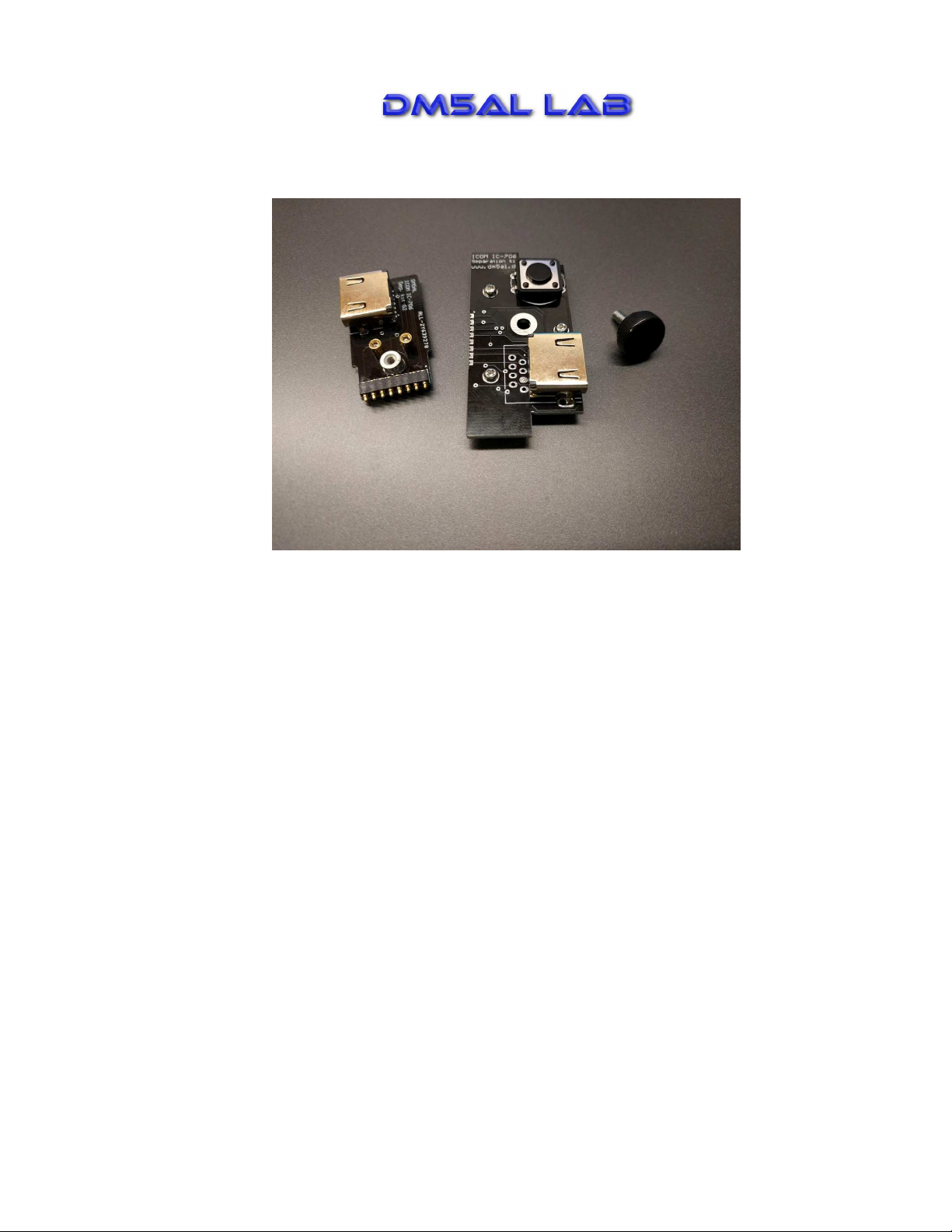

ICOM IC-706-HDMI Separation kit

Before you begin, please read this manual carefully!

1. OVERVIEW

This separation kits works with following transceivers:

- IC M IC-703

- IC M IC-703 Plus

- IC-706

- IC-706MkII

- IC-706MkIIG

Features:

- HDMI cable connectors;

- Additional Power button on a base unit adapter.

The separation kit uses a normal HDMI cable (not included) for connection between display and

base units. Quality of this cable affects overall transmit quality: with some cheap HDMI cables

weak digital noise may exist during transmission.

2. INSTA ATION

Attention: remove power before you install the separation kit!

Picture below show how to install the separation kit correctly:

1. Position base unit adapter as it shown on a picture below. Pogo pins must be positioned

strictly to half holes on the edge of the base unit adapter!

2. Push the base unit adapter and fix it with a thumb screw:

3.

4. Check that pogo pins points exactly to the edge connector of the base unit adapter:

5. Insert a head unit adapter until it is fixed with original locker:

6. Insert HDMI cable and power the device on.

3. HDMI CONNECTOR PINOUT

4. SUPPORT

Web: www.dm5al.de

email: su[email protected]

Whatsapp: +4915256982577
