Icom IC-7300 Manual de usuario

HF/50/70MHz Transceiver

Getting Started with the Icom

7300 Quick Guide

This is a brief set up document for the Icom 7300.

Serial No. 02023063

Purchase Date: 14 September 2019

Tri-City Amateur Radio Club

IC-7300 Kit Contents

Box – 1

IC-7300 Radio

Box – 2

MFJ -4230 MVP Power Supply and Power Cord

Daiwa CN-501H SWR Meter and 12 Volt power line

ICOM Hand Microphone

USB A/B cord

Ground jumper

PL-259 RF Jumper (Radio to SWR Meter)

IC-7300 NIFTY Manual

Front Continued

Rear

Connections on the IC-7300 Radio

Basic connections on the rear of the Radio (Rear Picture)

Earth Ground – Connect the ground wire to the Andersen power

pole connector and secure to a ground point

Connect the MFJ-4230 to a source of 115vac and verify that its

output is set to 13.8vdc. Turn off the Power supply and then connect

the IC-7300 power line to the connector on the radio and the

opposite end to the MFJ-4230.

Antenna Connection – Connect the 50 ohm feed line from the

antenna to the DAWI SWR Meter and connect the jumper cable from

the DAWI SWR meter to the Antenna connector on the rear of the

radio.

Once all connections are complete turn on the power supply and

press the “POWER” button on the IC-7300 for 1 second to turn on

the radio.

USB-B connector – to connect the radio to a PC use the USB A/B

cable and connect the B side to the radio and the A side to the PC.

A side

B side

Front Connections on the radio (Front Picture)

1. Connect the hand Mic to the “MIC” (6) connector.

Plug HF jumper into

Antenna connector on the

radio and the TR input on

the SWR meter

Plug Power Cord

into AC power

Plug power cable into Andersen

Power Pole connector on Power

Supply and into Radio power

connector after verifying you have

13.8 vdc on the power supply

Connect Antenna Feed

Line into the ANT

connector on the SWR

meter

Connect the SWR meter

power cord to the power

jack on the rear of the

SWR meter and to the

Andersen Power Pole

connector on the power

supply

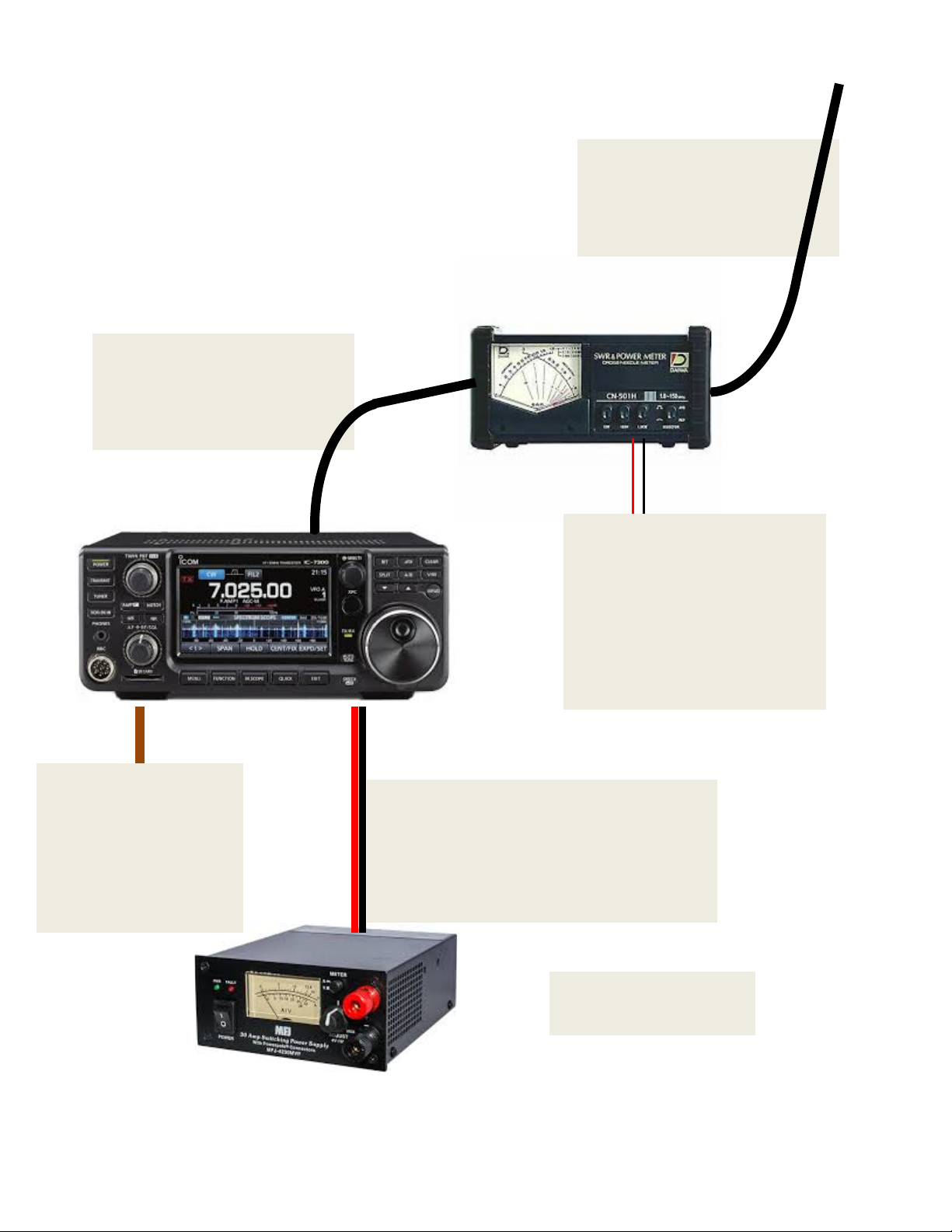

IC-7300 Radio Kit

Connection Diagram

Connect the ground

lead to the

Andersen Power

Pole Connector on

the rear of the radio

and to ground.

Start up procedure for IC 7300 Radio

1. Once all connections are complete , turn on the power supply and

press the “Power” button (1) to turn on the radio.

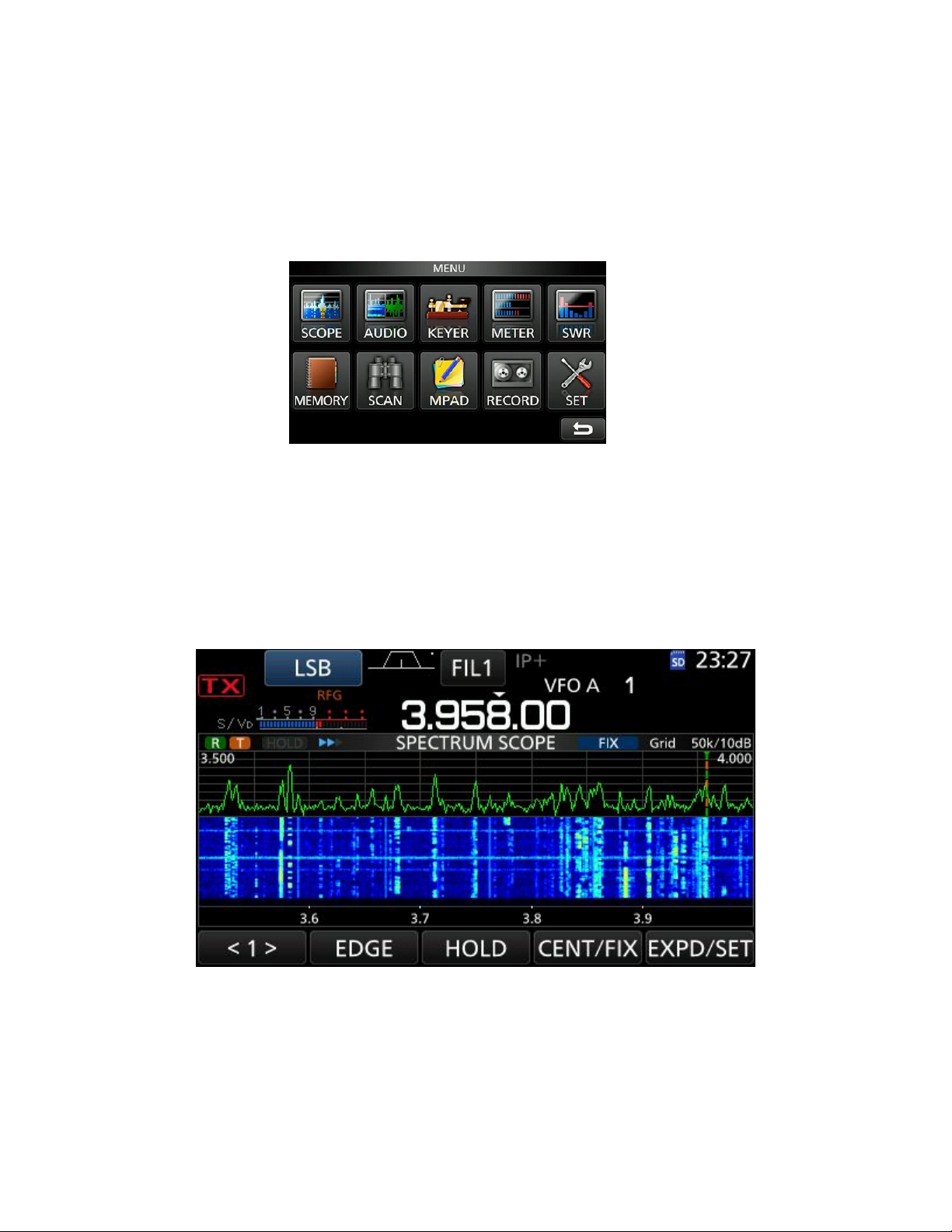

2. Press the “Menu” button (10) and the Menu screen will appear.

3. Press the “Scope” icon to bring up the Waterfall display. Press the

“Return Key” icon [bottom right] to go to the waterfall display.

4. To change the operational Mode of the radio, HF or

Digital, press the “Menu” button and select the “SET” icon.

Use the arrow slider on the right to go to page 3 and tap on

the SD Card icon. Select the Digital or HF file and tap on the

line. Select “ALL” and tap again. The file loads and a box

pops up asking to cycle power to load the program. Select

“Yes”.

The radio will restart in the selected mode.

5. To select Power output for the radio press on the

Multi-Function Control (27) and a window will pop up

displaying Power, MIC GAIN, COMP & Monitor. Tap the

power are; it will backlite blue, and then turn the control

knob to select the desired power output level.

NOTE: You can adjust several settings on this radio for your

preference and save them to a unique file on the SD card.

Do not overwrite the 2 original files.

BAND Select and Tuning the IC-7300

1. To select the desired Band touch the Frequency readout on

the screen. A pop up window will open and you can tap on

the desired Band.

2. To change Frequency simply rotate the Main Dial (18).

3. To tune the radio press “Tuner” (3) and the internal tuner

will tune the antenna to the radio.

Frequency readout
