V10MR User Programming Guide

Your new V10MR, in its default state, works correctly with other new (no programming changes) V10MR

radios. Please refer to your instruction manual for basic steps to operate the radio with no

programming changes.

Should you want to change channel assignments, tones, or special features, your V10MR radio has a

number of advanced radio features that can be enabled through its software (CS-V10MR).

To program the radios, you will need the following:

•CS-V10MR Cloning Software. Available for free download on the Icom America website

(Products >Landmobile >V10MR).

•OPC 478UC Cloning Cable (“B” version only). Available from an Icom America Landmobile Dealer

in your area.

•PC running Windows 10 operating system. Note: Apple and Android software is not available.

Default Channels/Frequencies andTone

Channel

Frequency

Bandwidth

CTCSS tone

151.820MHz

Narrow

67Hz

151.880MHz

Narrow

67Hz

151.940MHz

Narrow

67Hz

154.570MHz

Wide

67Hz

154.600MHz

Wide

67Hz

CS-V10MR Software Modes

The CS-V10MR software has two modes, Simple and Full.

Simple Programming Mode: Allows adding duplicates of the 5 MURS frequencies for the purpose of

using different CTCSS or DTCS tones.

Full Programming Mode: Allows adding duplicates of the 5 MURS frequencies and the addition of a

larger suite of features.

Note: Incorrect Settings in the Full Programming Mode can cause incorrect operation of the radio. Icom

suggests these features be programmed by an Icom dealer only.

Knowledge Base |

Selecting Simple or Full Mode

1. Open the CS-V10MR software.

2. Click Mode, then select Simple or Full.

Programming in Simple Mode

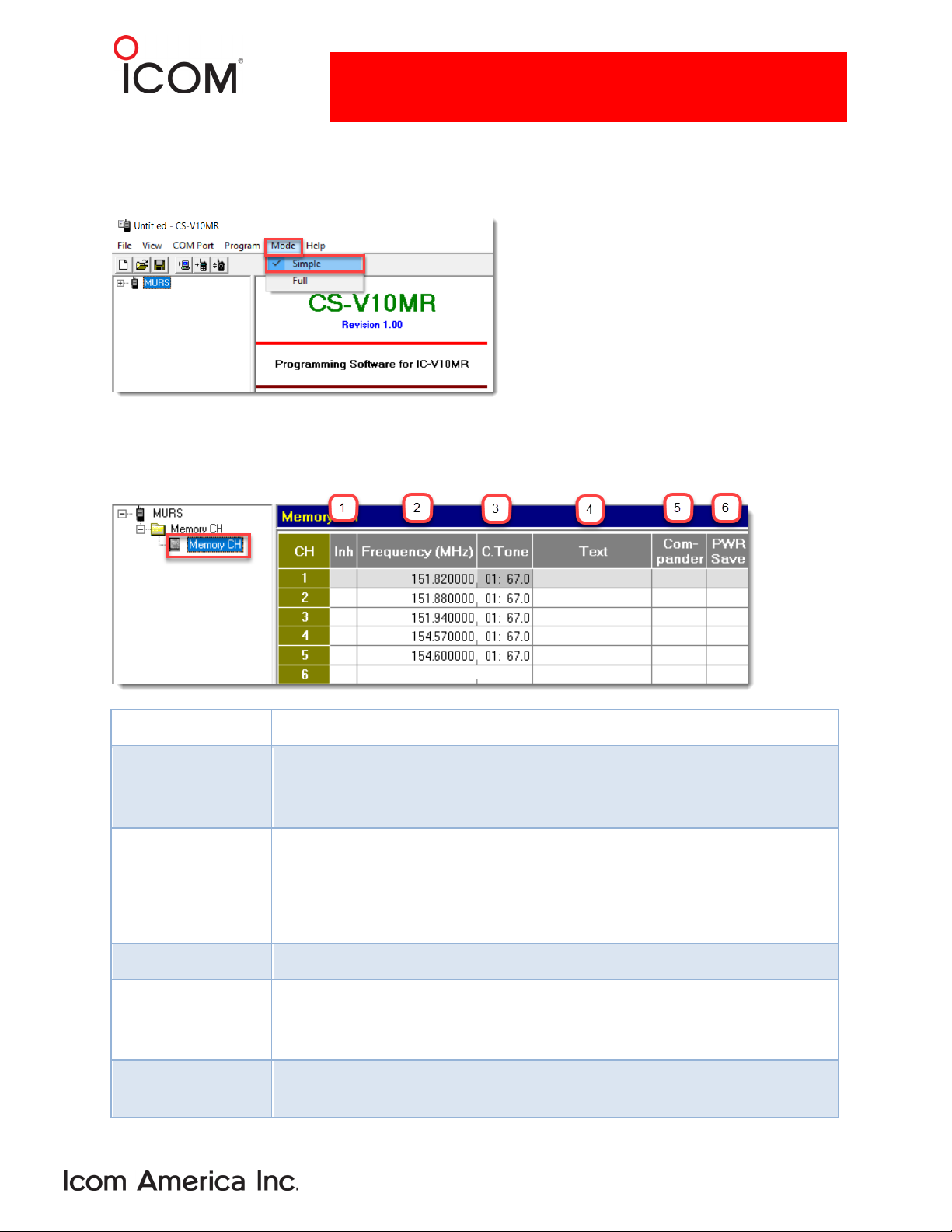

Memory Channel programming is shown below.

1 Inh

Do not use. For use in radios with Displays only.

2 Frequency (MHz)

Contains the 5 MURS frequencies. Only these frequencies can be entered in

the 16 channel slots. Extra Channel slots are provided if you need to duplicate

frequencies using different CTCSS or DTCS tones.

3 C. Tone

This shows the CTCSS or DTCS tone.

You can program tones for each channel in both simple and full modes. On any

given channel/frequency, radios must have matching tones if they are to

decode each other’s audio.

4 Text

Do not use-For use in other model radios with Displays only.

5 Compander

The Compander compresses the signal to reduce background noise. If this

setting is enabled, all radios must have it enabled for it to work properly on

that channel. This feature may not work effectively with non-Icom radios.

6 PWR Save

This feature saves power by allowing the radio to go into a partial sleep mode

during times when there is no RX or TX traffic.

Knowledge Base |

Channel Squelch

In Simple Mode, the Squelch setting can only be changed using the push buttons as described in the

Operating Guide.

Programming in Full Mode

The full suite of features is available in Full Mode.

Memory Channel Programming

See instructions for Simple Mode-Memory Channel Programming

Channel Squelch

The squelch setting allows you to adjust the sensitivity of your radio’s receiver.

In Full Mode, the squelch setting can be changed in 2 different ways:

•Using the buttons on the radio, by default. Please refer to your instruction guide for steps.

•Using the programming software in Full Mode, using the Common > Set Mode window.

1. Go to Common > Set Mode.

2. Click SQL Level and select the desired number. Note: A setting of 2is optimal.

Scan Programming

Assumptions:

•Software is in Full Mode

•SQL Level is set correctly

•Frequencies and sub-audible tones have been programmed in and tested for correct

communication.

Note: For complete descriptions of these settings, please refer to the Help files in the programming

software.

1. Scan Settings screen- Set Power-On Scan to one of the following choices:

•Off- User will have to press the Scan Start/Stop button to start a scan after power up.

Knowledge Base |

•Resume- Upon Power Up, the radio resumes scan if the radio was scanning when the

power was turned off.

•On- Radio begins scanning upon Power Up.

2. Scan List screen. Select Normal Scan. It scans, in sequence, all selected channels in a “round

robin” fashion, starting with the channel set on your rotary knob.

3. In TX CH, select the channel you would normally transmit on while in scan, or when scan is

paused. In this example it is set to Last Ch.

•TX Action setting either cancels scan or allows scan to resume automatically. Ifset to

Cancel Scan, restarting requires pushing the Scan Start/Stop button (see To Start a Scan

following) If set to Pause Scan, scan resumes after the resume timer (Scan Setting screen)

has expired.

4. In CancelChannel, set the channel that you will return to when scan is cancelled using the Scan

Start/Stop button, assigned in the Key and Display screen as described below.

Knowledge Base |

5. Go to the Common folder and select Key & Display.

6. Set a programmable key to Scan Start/Stop. The following example uses the lower side key.

To start a scan:

1. Switch on the radio power.

2. Press momentarily (do not hold) the Scan Start/Stop key once to start or stop scan. The

radio LED will blink green while actively scanning.

MDC Signaling

MDC contains signals that enable specific functions, such as PTT ID and Radio Check. It is not used unless

these radios are used in conjunction with a higher-tiered radio with a display and the applicable

functions already programmed.

Assumptions:

•Software is in Full Mode

•Squelch is set

•Any tones are set

•All participating radios are also programmed for MDC emergency functions.

PTT ID

PTT ID allows your V10MR radio to send its own ID to another radio that has a display. Note: Icom does

not make MURS radios with displays.

1. Go to Memory Ch.

2. Click MDC and select System 1.

Knowledge Base |

3. Go to MDC > System > General.

4. In SystemSettings, set MDC On to ON.

5. Set the Self ID to the ID of this radio.

6. Go to PTTID.

7. Set Tx and PTTID Down to Enable.

Once programmed, PTT ID will automatically be sent every time the PTT button is pressed.

Emergency

Emergency signals are only applicable when adding these radios to an existing system with an

Emergency Dispatch decoder. Please see your Emergency system administrator for details on how your

Emergency settings should be programmed. Icom makes no MURS-rated radios with this feature.

2-Tone Signaling

2-Tone Signaling and Muting is used only in specialized systems such as those in Fire Departments. If this

radio is approved to operate on such a system, please contact the administrator for the programming

parametersfor that system.
