Connecting a GPS to Your Icom M302 radio

On the back panel of your radio, there are two blank wires (yellow and green) that

will connect to your GPS.

M302 Connections

Radio GPS

NMEA in + (yellow) →NMEA / Data out

NMEA in – (green) →NMEA / Data ground

GPS Example Connections

You will need to solder the 2 wires to the NMEA wires from your GPS. For more

specific information, consult the individual instruction manual from the GPS

manufacturer.

Garmin GPS

©2011 Icom America Inc. Page 2

Icom America, Inc.

2380 116th Ave NE

Bellevue, WA 98004

425.454.7619

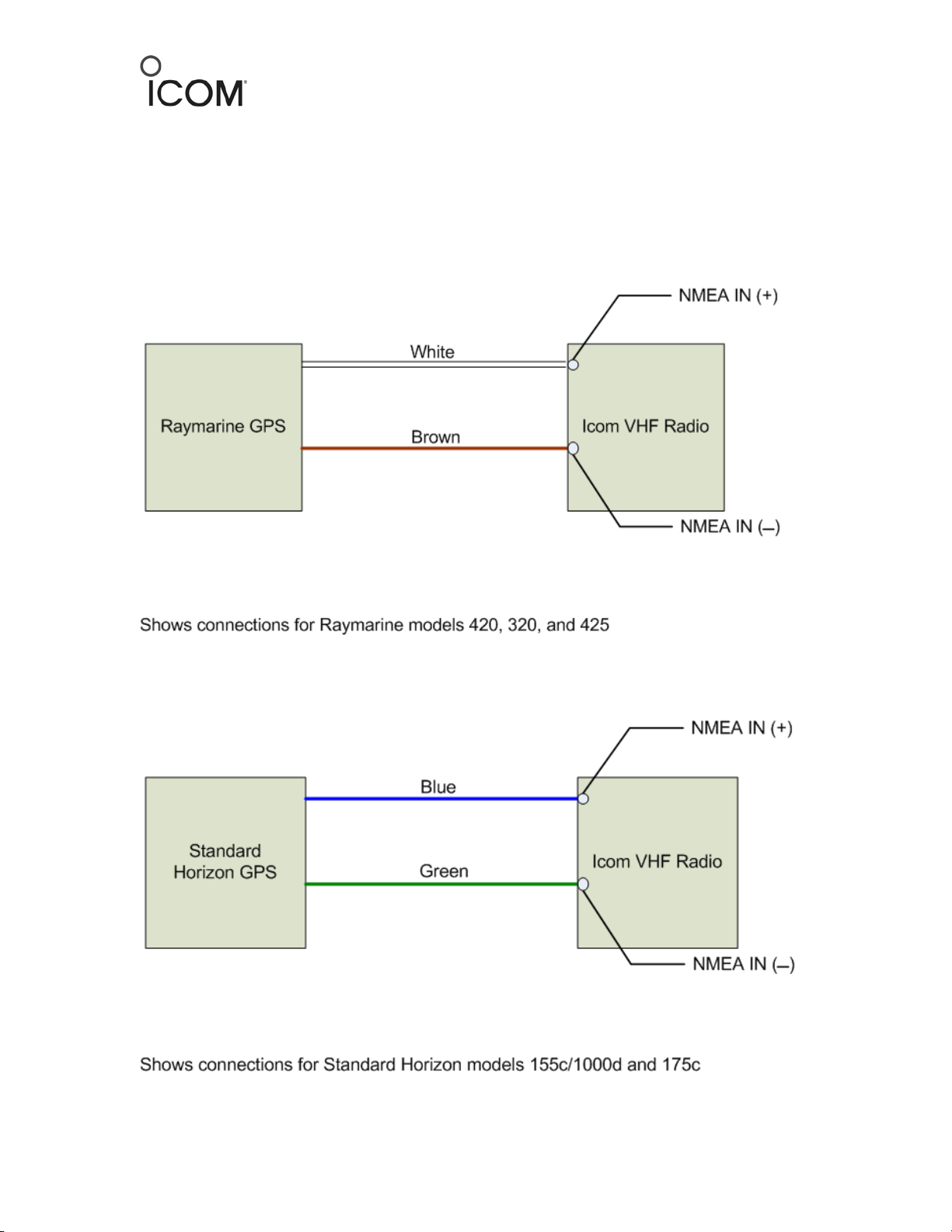

Raymarine GPS

Note: When using some Raymarine equipment you may need to connect your Icom

radio directly to the Raymarine GPS itself, not through a repeated port from other

equipment, such as a plotter. This ensures that the proper NMEA sentence passes to

the radio.

Standard Horizon GPS

©2011 Icom America Inc. Page 3

Icom America, Inc.

2380 116th Ave NE

Bellevue, WA 98004

425.454.7619

Troubleshooting Your GPS Connection

Your Plotter/GPS receiver must be capable of sending the proper sentences

(listed below) set for NMEA 0183 (Check your Plotter/GPS instructions for

information.)

Verify that the plotter/GPS device is sending GPRMC, GPGGA, GPVTG, GPGLL, or

GPGNS sentences. (Check Plotter/GPS Instructions.)

If you are still not receiving latitude and longitude, you can try setting the plotter

to send one sentence at a time (if possible). This can help it find the most

compatible sentence.

Have a technician check the plotter/GPS using test equipment to verify it is

sending the GPS sentence.

Check the solder points on the radio and plotter connectors. Some connectors are

very small, increasing the likelihood of solder bridging.
