PW1 Linear Amplifier
Setup / Configuration
Icom America Inc.
TSR
TSR
Setting up the Icom PW1
Using the PW1 with 1 or 2 Icom exciters
Physical connections (1 radio)
Physical connections (2 radios)
“Synchronization”
Setting the ALC levels
TSR
Physical Connections (1 Icom radio)
There are only 3 cables required between the PW1 and an Icom radio.
(All 3 cables are included)
TSR
Physical Connections (1 Icom radio)
1 “accessory” cable. (7 pin “DIN” cable)
TSR
Physical Connections (1 Icom radio)
1 “remote” cable. (3.5mm “phono” cable)
TSR
Physical Connections (1 Icom radio)

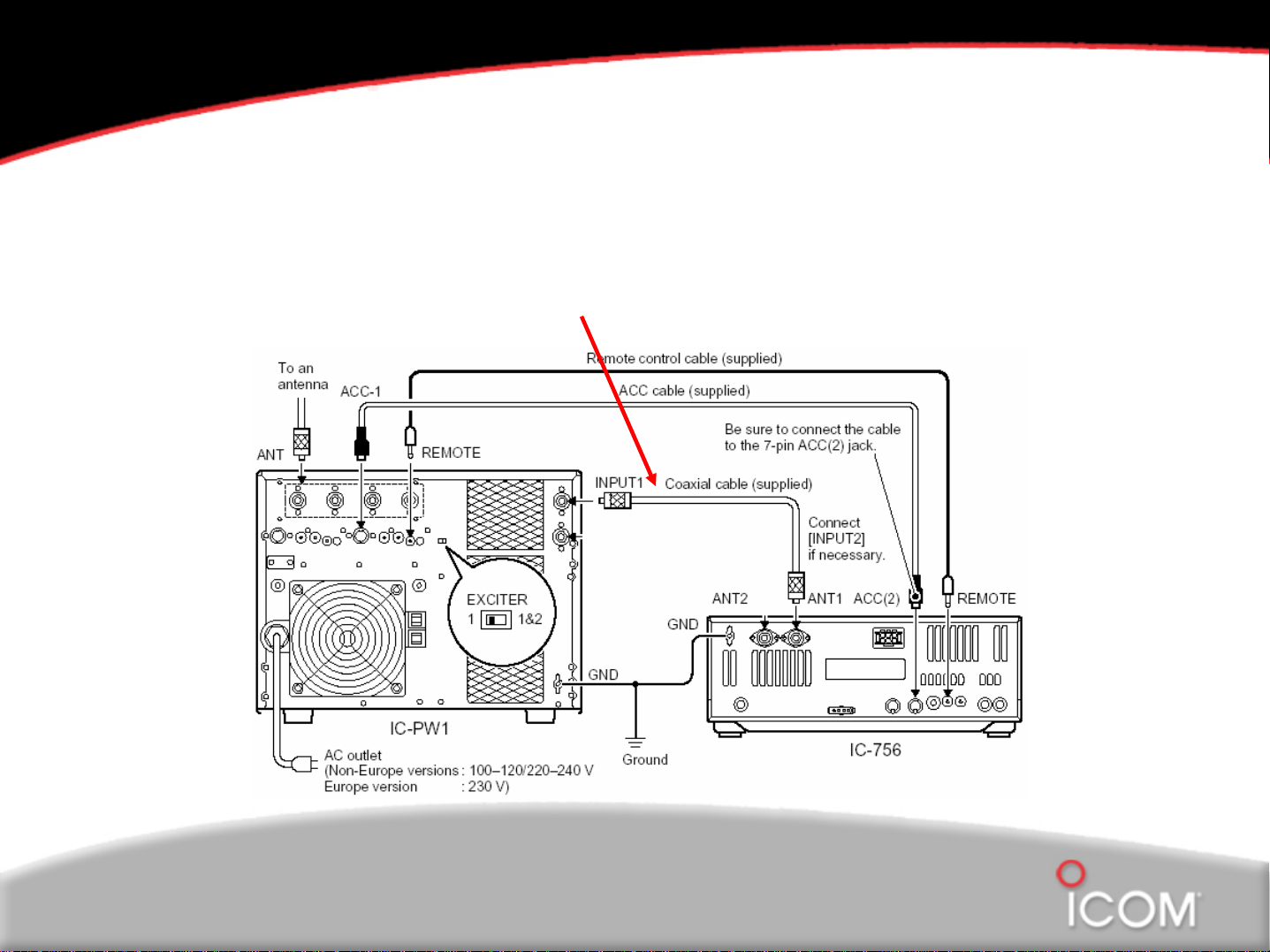

1 coaxial cable. (50 ohm coax, RG8, etc)
TSR
Physical Connections (1 Icom radio)
The IC-718, 706 series or IC-7000 will also require the optional OPC
599 adapter.
TSR
Physical Connections (1 Icom radio)
Connect the DIN cable to the radio’s “ACC 2” port (7 pin)
** Note that the ports on the PW1 and radio are not labeled the same**
TSR
Physical Connections (1 Icom radio)
Connect the remote cable to the radio’s “remote” port
TSR
Physical Connections (1 Icom radio)
Connect the coax cable to the radio’s “ANT 1” port
