Installation and User’s Manual

for

Cube Ice Machine with storage

models

HISU056, HISU076 and HISU096

July 2013

Page 1

User Manual for Models HISU056, HISU076 AND HISU096

Introduction

The design of this product is the result of years

of experience in developing commercial ice cube

machines. It has been designed for simple operation

in a wide range of locations. Please follow the

instructions for installation and maintenance to get the

most use from this ice machine.

Table of Contents

Important Details ...........................................................................................................................2

Pre-Installation...............................................................................................................................3

Cabinet Layout, HISU056 AND HISU076......................................................................................4

Cabinet Layout, HISU096..............................................................................................................5

Component Location .....................................................................................................................6

Connect the water supply..............................................................................................................7

Connect the power ........................................................................................................................8

Control Panel and Adjustments .....................................................................................................9

Initial Start Up................................................................................................................................10

Use and Operational Notes ...........................................................................................................11

Maintenance..................................................................................................................................12

Before calling for service ...............................................................................................................14

208-230/60/1 Wiring Diagram........................................................................................................15

User Manual for Models HISU056, HISU076 AND HISU096

July 2013

Page 2

Important Details

The machine is designed for use indoors in a

controlled environment. It must be kept dry, not

overheated or subjected to excessive cold. The water

and power supply must be maintained or the machine

will stop making ice.

There are limits to how hot or cold the room it’s in can

be.

• Minimum air temperature: 50oF or 10oC

• Maximum air temperature: 100oF or 38oC.

There are also limits to how hot or cold the water

supply can be:

• Minimum water temperature: 40oF or 4.5oC

• Maximum water temperature: 100oF or 38oC.

There are limits to the voltage supply to the unit,

voltages vary by model:

Voltage

208-230 (-32)

Minimum 198

Maximum 253

Water supply must be potable by the localities

denition.

There are limits to the water pressure supplied to the

unit:

• Maximum pressure. static: 60 psi or 4.1 bar or 413.6

kilopascals.

• Minimum pressure, dynamic: 15 psi or 1 bar or

103.4 kilopascals..

A drain will be needed for melted ice and rinse water.

Warranty:

The warranty statement for this product is provided

separately from this manual. Refer to it for applicable

coverage. In general warranty covers defects

in material or workmanship. It does not cover

maintenance, corrections to installations, or situations

when the machine is operated in circumstances that

exceed the limitations printed above.

The manufacturer has designed and produced this

machinewiththenestinmaterials.Themanufacturer

assumes no liability for units that have been altered in

any way. Alterations or part substitutions will void the

warranty.Specicationsanddesignsaresubjectto

change without notice.

July 2013

Page 3

User Manual for Models HISU056, HISU076 AND HISU096

Pre-Installation

This appliance is intended to be used in commercial

applications including:

• Restaurant kitchens

• Bars

• Hotels

Dimensions and Electrical:

Location:

Theunitcanbebuiltintoacabinetastheairowisin

and out the front. The front of the machine must not

be blocked. Certain maintenance or repair procedures

will require removal of the top, back and side panels,

so plan ahead for service and maintenance needs.

Spacing:

No additional spacing is required at the top or sides.

However, suggested minimum side clearance for

installation is 1/8 inch or 3 mm and suggested

minimum top clearance is 1/4 inch or 7 mm.

Allow 2 inches (50 mm) minimum space at the back

for the utility connections. Do not block louvers at the

front of the cabinet.

Unpacking and setup

Remove all shipping and packing materials that may

be in the ice storage bin.

The unit can be installed with or without legs. The

cabinet is equipped with small bumpers on the base

toallowplacementwithoutlegs.Anoptionaloor

mountingkitisalsoavailabletollthegapbetween

themachineandoorifnotusinglegs.Ifusinglegs,

carefully tip the machine and install the legs by

screwing them into the leg sockets in the bottom of

the machine. For reference, the thread size is 5/8 –

11. If the machine has been tipped onto its side or

back allow 1 hour before starting the unit for the oil in

the refrigeration system to return to the compressor.

Place the machine in its intended location and level it

front to back and left to right. If using legs, adjust their

feet in and out to level the cabinet.

If legs are not used the bottom edges of the cabinet

mustbesealedtotheoor.

If built into a cabinet, the adjacent cabinet walls will

provide the means for containment. There are no

means for attachment to the cabinet.

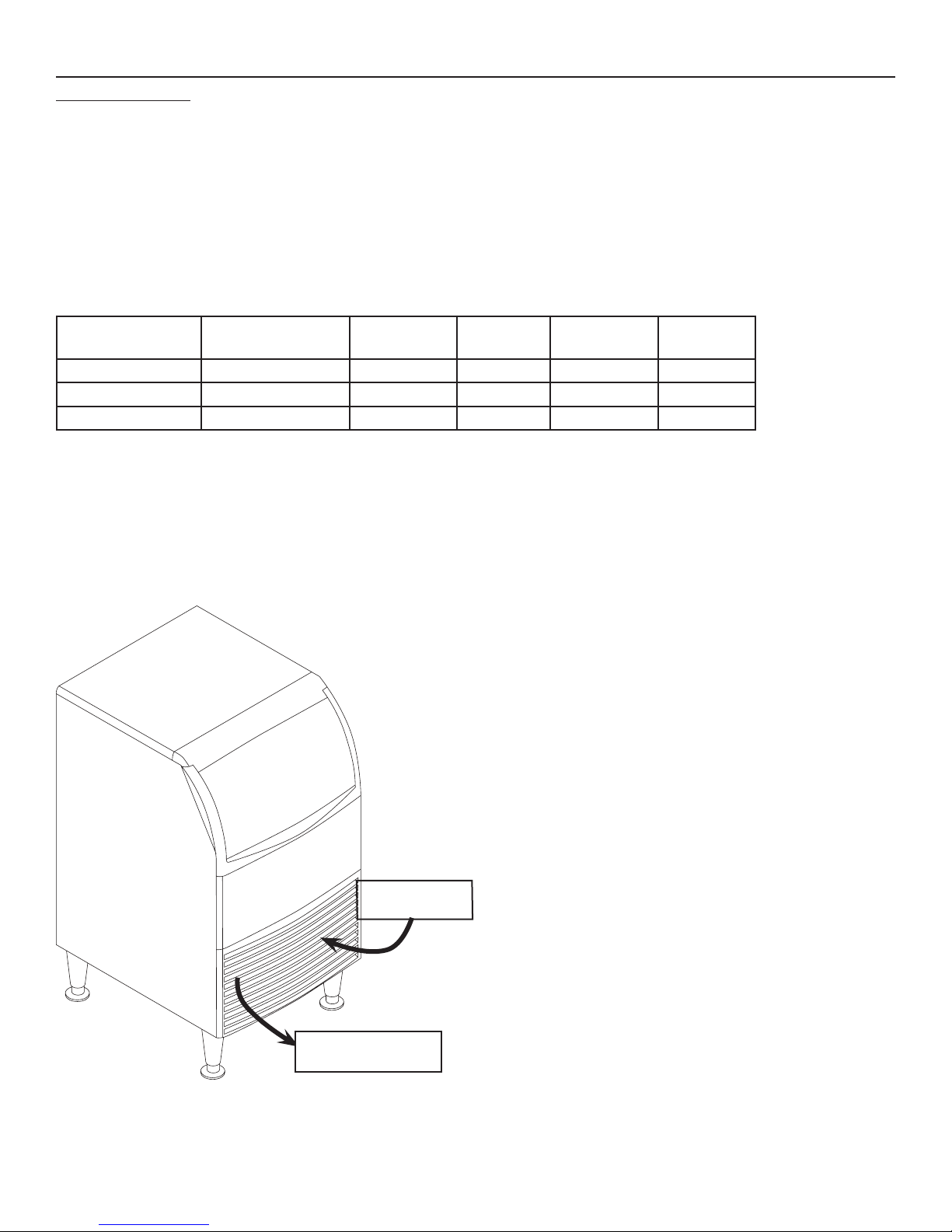

Model Electrical

(volts/Hz/Phase

Width

(in / cm)

Depth

(in/cm)

Height

(in/cm)

Total Load

Amps

HISU056FA 208-230/60/1 15 / 38 23.7 / 60.3 31.9 / 81.1 4

HISU076FA 208-230/60/1 15 / 38 23.7 / 60.3 31.9 / 81.1 4

HISU096FA 208-230/60/1 20 / 51 23.7 / 60.3 31.9 / 81.1 4

Air IN

Air OUT

User Manual for Models HISU056, HISU076 AND HISU096

July 2013

Page 4

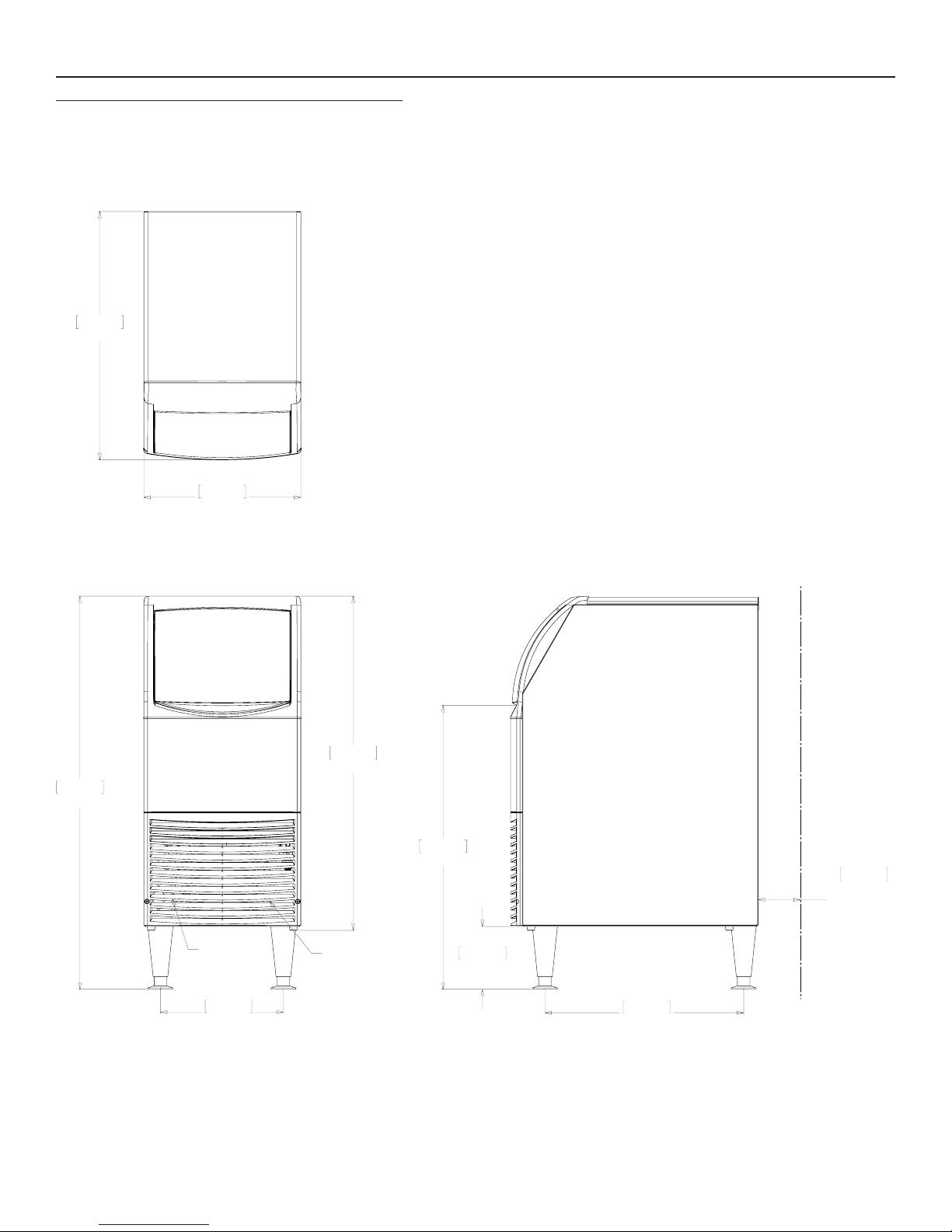

Cabinet Layout, HISU056 AND HISU076

95.4cm

37.6in

81.1cm

31.9in

29.8cm

11.8in

AIR

OUTLET

AIR

INLET

48.3cm

19.0in

68.9cm

27.1in

15.2cm

6.0in

10.2cm

4.0in

MINIMUM

UTILITY

CLEARENCE

60.3cm

23.7in

38.1cm

15.0in

July 2013

Page 5

User Manual for Models HISU056, HISU076 AND HISU096

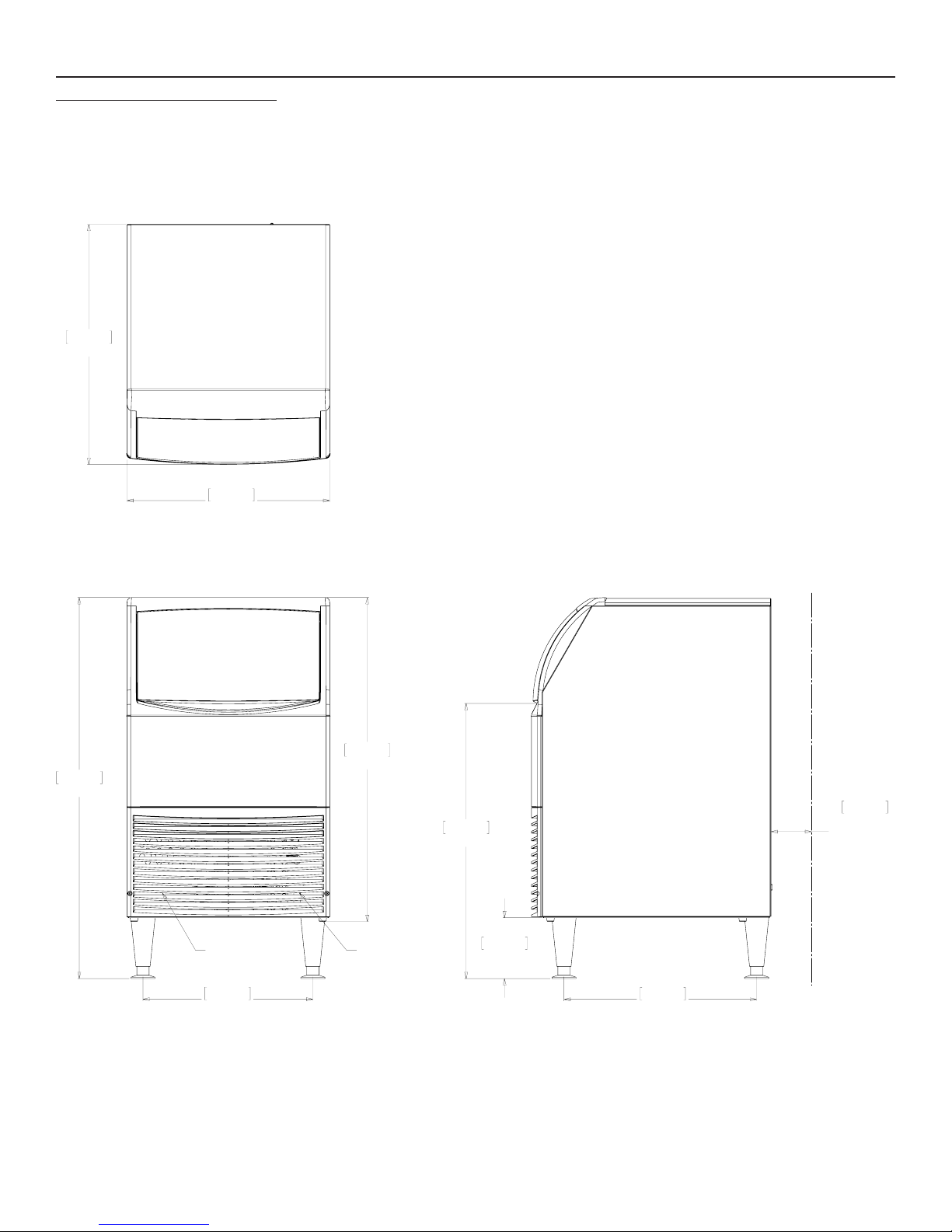

Cabinet Layout, HISU096

95.4cm

37.56in

42.5cm

16.75in

81.1cm

31.94in

AIR

INLET

AIR

OUTLET

48.3cm

19.00in

68.9cm

27.13in

15.2cm

6.00in

10.2cm

4.00in

MINIMUM

UTILITY

CLEARENCE

50.8cm

20.00in

60.1cm

23.67in

User Manual for Models HISU056, HISU076 AND HISU096

July 2013

Page 6

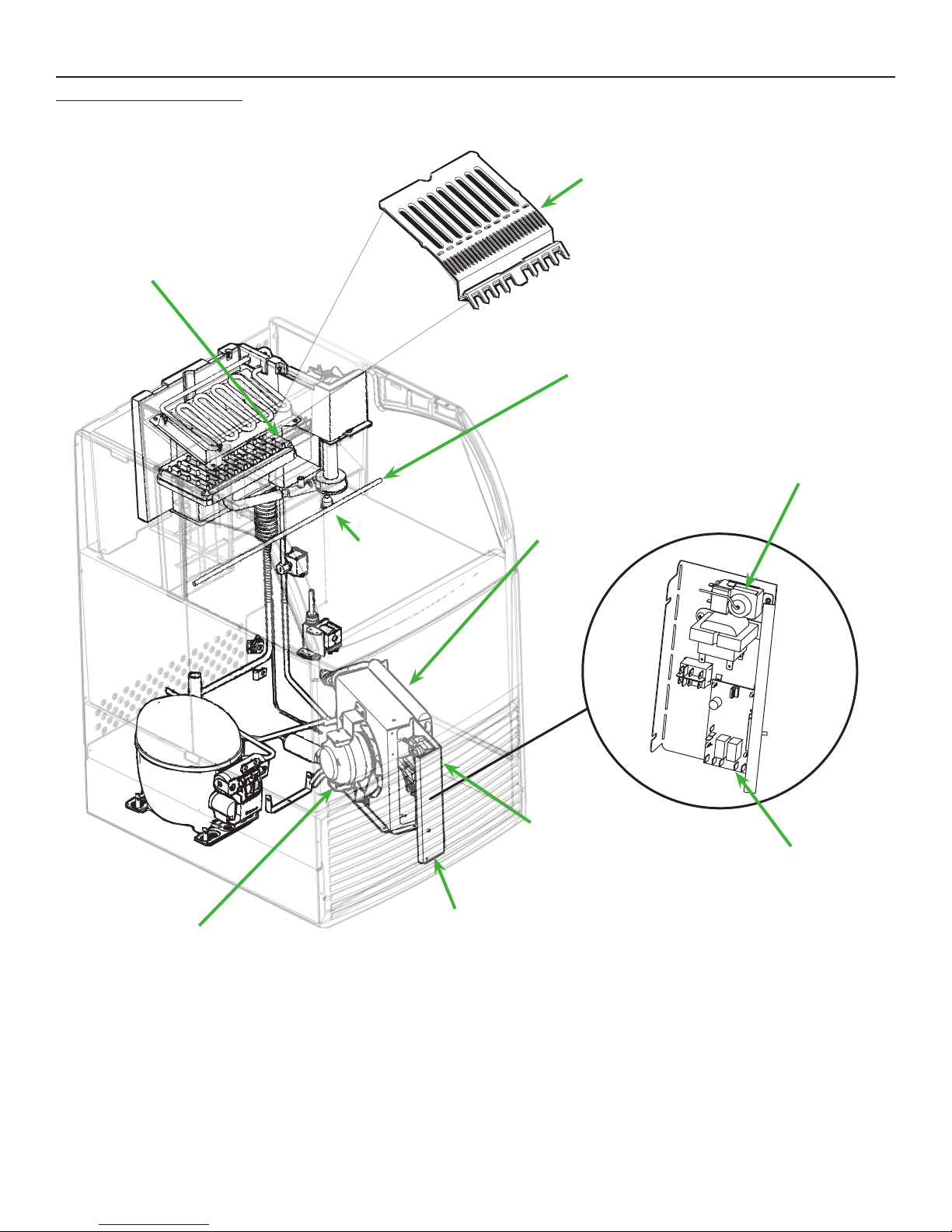

Component Location

Bin Thermostat Adjustment

Condenser Fins

Control Area

Drain Plug

Bin

Thermostat

Sensing

Point

Curtain

Condenser Fan

Thermostat

Controller

CubeDeector

July 2013

Page 7

User Manual for Models HISU056, HISU076 AND HISU096

Connect the water supply

Plumbing information:

There is a single 3/4 gas BNF inlet water connection

and a connecting hose is supplied.

Note: New connecting hose is supplied do not re-

use old hose set.

• A hand actuated valve within site of the machine is

required to isolate the unit when being serviced.

• Themachinehasabuilt-inbackowpreventer

(an air gap between the end of the water inlet hose

andthetopofthewater),noadditionalbackow

preventer is needed.

Units that are built into a cabinet:

Include a loop or coil of tubing between the water

supply and the connection on the ice machine. When

the machine is pushed back into the cabinet the

tubing will coil and not kink.

Connection Information:

WARNING: connect to potable water supply only.

Important: Open the hand water valve to ush

water through the tubing before connecting to the

ice machine.

230 volt models: Connect cold potable water to the

3/4gasttingontheunitusingthesuppliedhose.

Note: Do not use a piercing-type saddle valve to

connect to the building’s water supply. Valves of

that type restrict water ow and clog easily.

Connect the drain

Thedrainconnectionisatthebackpanel.Thetting

sizeis¾FPT.Connectrigidtubingtothisttingand

vent it at the machine, use an 8 inch or 200 mm

vertical tube for the vent.

Drain tubing must slope down from the ice machine

to the building drain and the slope must be at least ¼

inch per foot or 20 mm per meter. Insulating the drain

tubing will reduce condensation and is

recommended for environments that

have high humidity.

Due to the potential for leaks,

condensate pumps are not

recommended.

New Hose Set

User Manual for Models HISU056, HISU076 AND HISU096

July 2013

Page 8

Connect the power

This is a cord-connected unit, and must be connected

to its own dedicated power supply. Check the

dataplate on the back of the machine for the voltage

and maximum fuse size and per the dataplate use

fuses or HACR circuit breakers.

Power Cords:

230 volt, 60 Hz models are equipped with a 14136

power cord and plug.

Note: In case the power cord is damaged, it

must be replaced by a like cord. Replacement

cords are available from the manufacturer’s local

representative. Replacement should only be done

by a qualied technician to prevent possible risks.

The power cord plug will be the disconnect means for

the machine and must be accessible when the unit is

in its permanent location.

Follow All Local Codes - This Unit Must Be

Grounded. Do not use extension cords and do not

disable or by-pass ground prong on electrical plug.

Plug the power cord into the power supply.

Installation check list

• Has the machine been installed indoors in an

environment suitable for it?

• Have all of the shipping items and packaging been

removed?

• Is the ice chute in the correct position?

• Is the clear plastic curtain hanging down and free to

move?

• Has the water supply been connected and

conrmedtonotleak?

• Has a properly sized and sloped drain tube been

attached?

• Has the correct voltage power supply been

connected?

Front view of freezing compartment, right arrow points

to clear plastic curtain. It must hang freely. Left arrow

points to Spray Platform, it must be positioned as

shown.

Front view of freezing compartment, shown without

Ice Chute or Curtain. Right arrow points to Spray

Platform, located under Ice Chute. Spray Platform

inlet connects to pump hose and is snapped into clip

at back of reservoir. Left arrow points to clip.

July 2013

Page 9

User Manual for Models HISU056, HISU076 AND HISU096

Ice Bridge Thickness Adjustment Area

Master Switch. Move to ON (left side depressed) to make ice, OFF

(centered) to shut off and WASH (right side depressed) for use in

cleaning.

Harvest Time Adjustment Area

Indicator Light Area.

Freeze mode light is ON when unit is in a Freeze cycle.

Timer On light is ON when trigger point temperature is reached in

Freeze or Harvest.

Harvest Cycle Time Adjustment

After ice has formed in the inverted mold, it must be

released so it can be deposited in the storage bin

section. The harvest cycle is when that occurs, and

must be long enough for the ice to release. While the

harvest cycle length is self adjusting it can also be

manually adjusted if needed.

Proper harvest time is when the ice falls into the

bin and there is about 10 seconds extra harvest

time (pump and fan are off) before the freeze cycle

restarts.

If the harvest time is too short to release the ice,

the time may be increased by pushing the + sign on

the harvest time adjustment section of the control

panel. Operate the machine for another cycle to

conrmthattheadjustmentwascorrect.Notethattoo

much harvest time will slightly decrease making ice

capacity.

Control Panel and Adjustments

Adjustment Indicator Lights

Each push and release of the + or - button will change

the lights that glow or blink indicating a change in ice

size or harvest time. Example: pushing + one time

changes a blinking light to steady on type. If the lights

are on steady a single push of + will add one more

light to the right and it will blink. There are 10 settings.

All 5 lights on steady is the maximum setting and one

blinking light is the minimum.

Ice Too Thin

Ice Too Thick

Ice Just Right

Bridge

Ice Thickness Diagram Ice Bridge Thickness Adjustment

Refer to the Ice Thickness Diagram for proper ice

size.

Adjust by pushing the + sign or – sign on the ice

bridge adjustment section of the control panel.

Changing bridge thickness should be a one-time

adjustment as the machine will automatically maintain

that ice thickness.

Ice Bridge Thickness Adjustment

Ajuste da espessura da ponte de gelo

Harvest Time Adjustment

Ajuste do tempo de colheita

ON / OFF / WASH

Ligar / desligar / lavar

Freeze Mode

Modo de congelamento

Timer On

Temporizador ligado

17-3386-41

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de hielo de Ice-O-Matic

Ice-O-Matic

Ice-O-Matic KBT15022 Manual de usuario

Ice-O-Matic

Ice-O-Matic GEM1856 Manual de usuario

Ice-O-Matic

Ice-O-Matic EMF800AS Manual de usuario

Ice-O-Matic

Ice-O-Matic Counter Top Dispenser IOD22030 Manual de usuario

Ice-O-Matic

Ice-O-Matic Ice Undercounter Series Cubers ICEU070A Guía

Ice-O-Matic

Ice-O-Matic ICE2106 Series Manual de usuario

Ice-O-Matic

Ice-O-Matic ICE0605 Series Manual de usuario

Ice-O-Matic

Ice-O-Matic Ice Dispenser CD210 Guía

Ice-O-Matic

Ice-O-Matic Flaker Dispenser FD550 Guía de inicio rápido

Ice-O-Matic

Ice-O-Matic ICE0250 Series Manual de usuario

Ice-O-Matic

Ice-O-Matic ICEU 036 Manual de usuario

Ice-O-Matic

Ice-O-Matic ICE1005 Series Manual de usuario

Ice-O-Matic

Ice-O-Matic ICE250 through ICE2100 SERIES Manual

Ice-O-Matic

Ice-O-Matic ICE2106 Series Manual de usuario

Ice-O-Matic

Ice-O-Matic Hotel Dispenser CD 40030 Series Manual de usuario

Ice-O-Matic

Ice-O-Matic GEM0650Remoto Manual de usuario

Ice-O-Matic

Ice-O-Matic GEM-MFI Series Manual

Ice-O-Matic

Ice-O-Matic ICE0806A3-W3-R4 Guía

Ice-O-Matic

Ice-O-Matic ICE2107R Manual de instalación

Ice-O-Matic

Ice-O-Matic HISU055 Manual de usuario

Ice-O-Matic

Ice-O-Matic EMF1106AS Manual de usuario

Ice-O-Matic

Ice-O-Matic GEMU090 Series Manual de usuario

Ice-O-Matic

Ice-O-Matic MFI2406 Manual de usuario

Ice-O-Matic

Ice-O-Matic CD-200-VB Manual de usuario

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

U-Line

U-Line UMCR014-SC01A Manual de instalación

Andrew James

Andrew James AJ000522 Manual de usuario

Scotsman

Scotsman CME1356 Manual de usuario

Scotsman

Scotsman ACM 25 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

U-Line

U-Line SS1095 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario
