Ice-O-Matic EFD270 Guía

Mile High Equipment

11100 East 45th Ave

Denver, Colorado 80239

Part Number 9081321-01 Print Date 4/04

MODEL-EFD270

FLAKER DISPENSER

SERVICE PARTS MANUAL

This is the list of service parts for the EFD270

ice maker dispenser.

Always have the model and serial number

available when looking for a part number as

changes do occur and the change may reference

the model and/or serial number.

EFD270 Service Parts

April 2004

Page 1

Table of Contents

Cabinet ·············································· Page 2

Condensing System ········································ Page 3

Water and Dispensing ······································· Page 4

Water and Dispensing Part Numbers ······························· Page 5

Auger Drive and Evaporator ···································· Page 6

Auger Drive and Evaporator Part Numbers ···························· Page 7

Control System ·········································· Page 8

Wiring Diagram ·········································· Page 9

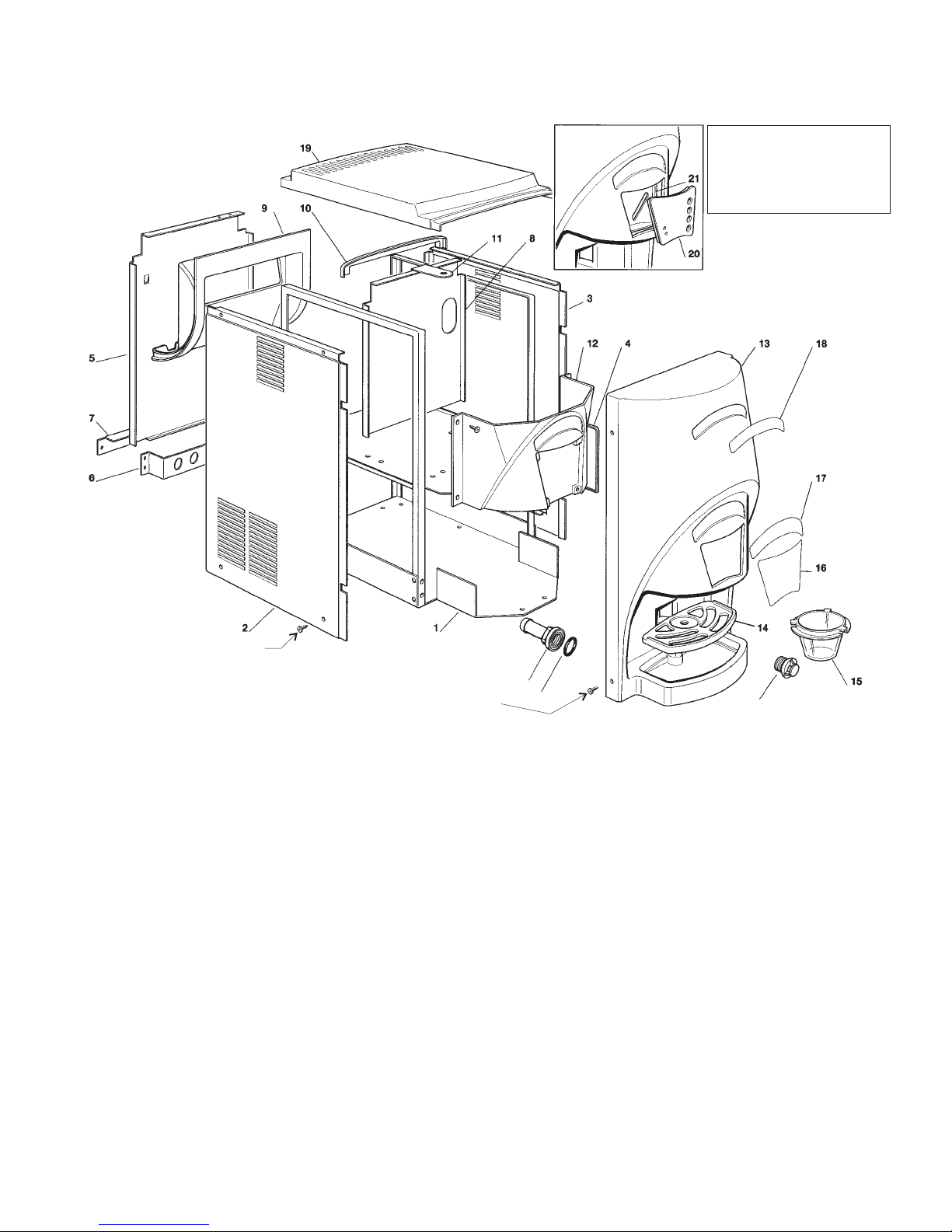

Cabinet

EFD270 Service Parts

April 2004

Page 2

Item Part

Number Number Description

1 **** Unit Frame

21011357-112 Left Side Panel

31011357-113 Right Side Panel

41011357-114 R Pcb Service Panel

51011357-108 Rear Panel

61011357-107 Metal Bracket For

Fitting

71011357-109 Cover For Fitting

Bracket

81011357-106 Metal Divider

91011357-93 Condenser Shroud

10 1011357-96 Plastic Bracket

111011357-110 Ice Spout Bracket

12 1011357-95 Dispensing Board

Frame

13 1011357-10 Front Panel, incl. items

16, 17, 18

14 1011357-77 Grill:Sink

15 1011357-97 Dispensing Spout

16 1011357-84 Label -Ice &Water

17 1011357-83 Label

18 1011357-82 ICE-O-Matic Logo

19 1011357-80 Top Panel

20 1011357-99 PCB housing

21 1011357-101 PCB cover

26 1011357-25 Screw

1011357-78 Cap for screw

1011357-79 Washer for screw

27 1011357-26 Side panel screw

28 1011357-27 Back panel screw

29 1011357-87 Drain fitting

30 1011357-62 O-ring

31 1011357-86 Drain top

30 31

Condensing System

EFD270 Service Parts

April 2004

Page 3

Item Part

Number Number Description

11011357-105 Compressor assy

51011357-34 Protector

91011357-33 Start Relay

10 1011357-35 Start Capacitor (315 mfd)

12 1011357-67 Valve Body

13 1011357-103 Valve Piston

14 1011357-65 Valve Cap

15 1011357-44 Air Cooled Condenser

19 1011357-42 Fan Motor

20 1011357-43 Fan Blade

25 1011357-49 Drier

26 1011357-121 RSuction Line/Accumulator

Water and Dispensing

EFD 270 Service Parts

April 2004

Page 4

Water and Dispensing Part Numbers

EFD 270 Service Parts

April 2004

Page 5

Item Part

Number Number Description

11011357-116 Water Inlet Fitting

21011357-63 Strainer

31011357-13 Fiber Washer

41011357-14 Nut

5 No Number Copper Water Inlet Tube

61011357-64 Water Inlet Valve

71011357-32 Plastic Tube

8 No Number Copper Water Inlet Tube

91011357-119 Nozzle

10 1011357-24 Clip Ring

111311357-61 ORing

12 1011357-124 Water Reservoir assy

13 1011357-91 Float Valve assy

14 1011357-115 Water Level Metal Pin

15 1011357-89 Water Reservoir Cover

16 1011357-30 Plastic Tube

17 1011357-88 Water Drain Fitting

18 1011357-90 Plastic Ring Nut

19 1011357-29 Plastic Tube

20 1011357-66 Valve Cap

1011357-68 Valve Body

21 1011357-31 Plastic Tube

22 1011357-94 Gear Motor Plastic

Cover

23-24 1011357-09 Insulation

25-26 1011357-73 Insulation

27 1011357-72 Spout Insulation

28 1011357-98 Ice Spout

29 1011357-132 Ice Spout Cover

30 1011357-131 Storage Bin

31 1011357-81 Insulation, Storage Bin

Cover

32 1011357-92 Cover,Storage Bin

33 1011357-130 Bracket, Dispensing

Motor

Item Part

Number Number Description

34 1011357-11 Dispensing Motor

35 1011357-111 Cover,Dispensing Motor

36 1011357-04 Screw

37 1011357-03 Shaft

38 1011357-129 Ice Agitator

39 1011357-02 Pin, Vane

40 1011357-128 Bin Bottom

41 1011357-57 Rubber washer

Auger Drive and Evaporator

EFD 270 Service Parts

April 2004

Page 6

Auger Drive and Evaporator Part Numbers

EFD 270 Service Parts

April 2004

Page 7

Item Part

Number Number Description

11011357-126 Gear Reducer assy

21011357-01 Gear Case assy

31011357-07 Grease (1 Kg)

41011357-05 Screw

51011357-59 ORing

61011357-58 Grease Seal

71011357-85 Bearing

81011357-23 Trust Washer

91011357-125 RRotor assy

10 1011357-37 Stator assy

111011357-117 Fan Blade

12 1011357-60 Rubber Insert

13 1011357-127 Drive Motor Cover

14 1011357-36 Capacitor

15 1011357-06 Screw

16 1011357-70 Plastic Housing

17 1011357-19 Screw

18-19-20 1011357-123 Magneto Holder assy

21 1011357-51 Grease Seal

22 1011357-120 Drip Tray

23 1011357-56 Gasket

24 1011357-08 Coupling

25 1011357-17 Screw

26 1011357-20 Washer

27 NO NUMBER Freezer assy

28 1011357-118 Aluminum Adapter

29 1011357-122 Evaporator

30 1011357-18 Screw

31 1011357-21 Washer

32 1011357-76 Auger

33 1011357-52 Water Seal

34 1011357-102 Lower Bearing

35 1011357-55 ORing

Item Part

Number Number Description

36 1011357-75 Ice Breaker

Does not include Bearing or O-Ring

37 1011357-54 ORing

38 1011357-15 Screw

39 1011357-22 Washer

40 1011357-53 ORing

41 1011357-104 Top Bearing

42 1011357-69 Clip Ring

43 1011357-74 Ice Sweep

44 1011357-16 Screw

45 1011357-12 Water Proof Grease

Control System

EFD 270 Service Parts

April 2004

Page 8

Item Part

Number Number Description

1-2-3 1011357-48 P.C. Board &Box assy

51011357-45 Dispensing P.C.B.

61011357-41 Water Level Sensor

71011357-39 Hall Effect Sensor

81011357-38 Condenser Temp. Sensor

91011357-40 Evaporator Temp. Sensor

10 1011357-71 Ice Level Control Assy

111011357-47 Dispensing Sensor Tx (Black)

12 1011357-46 Dispensing Sensor rx (Blue)

13 1011357-28 Harness for dispensing sensor

14 1011357-50 Contactor (not shown)
