Ice-O-Matic ICEU150**2 Guía
SERVICE PARTS MANUAL
The ICE Series Undercounter Cubers
MODEL-ICEU150**2, ICEU220**2, ICEU225**2, ICEU226**2
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081333-02 Print Date 1/09
*
ICE Undercounter Service Parts Table of Contents
This parts list contains the service parts available for the following ICE Undercounter icemakers:
ICEU150**2
ICEU220**2
ICEU225**2
ICEU226**2
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Bin and Exterior Components Page 2 - 3
Refrigeration System Page 4 - 5
Harvest Assist Assembly Page 6
Control Box Page 7
Evaporator Page 8
Water Pump Page 9
NOTE: ** denotes cube size and condenser
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
The ICE Series Service Manual is available seperately, Part Number 9081270-01
Page 1

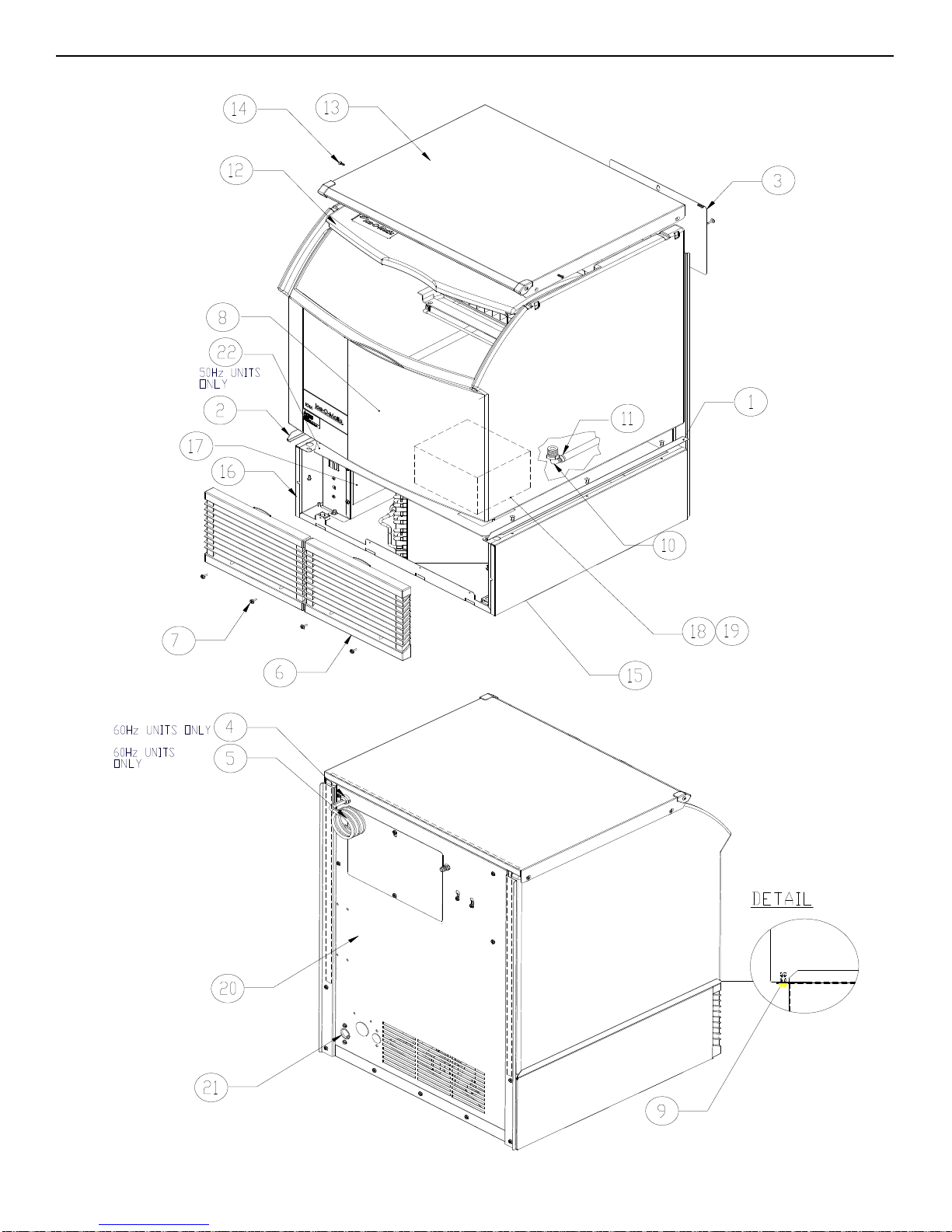

ICE Undercounter Service Parts Bin and Exterior Components
Page 2
ICE Undercounter Service Parts Bin and Exterior Components
Item ICEU150 ICEU220 ICEU225 ICEU226 Description
1 3021875-01 3021875-01 3021875-01 3021875-01 Trim Strip RH
2 3021875-02 3021875-02 3021875-02 3021875-02 Trim Strip LH
3 3012149-01 3012149-01 3012149-01 3012149-01 Panel, Rear Access
4 9121015-04 9121015-04 9121015-04 9121015-04 Strain Relief
5 9101242-01 9101242-01 9101242-01 9101242-01 Power Cord
6 9051530-01 9051530-01 9051530-01 9051530-01 Front Grill (2 required, sold each)
7 9031046-03 9031046-03 9031046-03 9031046-03 Front Grill Screw
8 2101419-01 2101419-01 2101419-01 2101419-01 Bin Assembly (Includes Item 10)
9 9031112-01 9031112-01 9031112-01 9031112-01 Screw Hex Head
10 9091122-02 9091122-02 9091122-02 9091122-02 Drain Elbow
11 9021010-04 9021010-04 9021010-04 9021010-04 Clamp
12 2101417-01 2101417-01 2101417-01 2101417-01 Bin Door Assembly
9051534-01 9051534-01 9051534-01 9051534-01 Bin Door
9031122-03 9031122-03 9031122-03 9031122-03 Thumb Screw
3013249-01 3013249-01 3013249-01 3013249-01 Door Stop
13 2101426-01 2101426-01 2101426-01 2101426-01 Bin Top Assembly
9051573-02 9051573-02 9051573-02 9051573-02 Plastic Corner Cap Left Side
9051573-01 9051573-01 9051573-01 9051573-01 Plastic Corner Cap Right Side
9031098-02 9031098-02 9031098-02 9031098-02 Truss Head Sheet Metal Screw-Plastic Corner
14 9031023-10 9031023-10 9031023-10 9031023-10 Top Panel Screw
15 3021874-01 3021874-01 3021874-01 3021874-01 Right Side Panel
16 3021874-01 3021874-01 3021874-01 3021874-01 Left Side Panel
17 3013161-01 3013161-01 3013161-01 3013161-01 Control Box Cover
18 9021001-03 9021001-03 9021001-03 9021001-03 Leg Set (4 each)
19 9051127-02 9051127-02 9051127-02 9051127-02 Ice Scoop
20 2021675-01 2021675-01 2021675-01 2021675-01 Rear Panel
21 9091140-01 9091140-01 9091140-01 9091140-01 Drain Fitting
22 N/A N/A 3013319-01 N/A Cover Base Panel
24 9031162-01 9031162-01 9031162-01 9031162-01 Thumb Nut Three Prong
Page 3

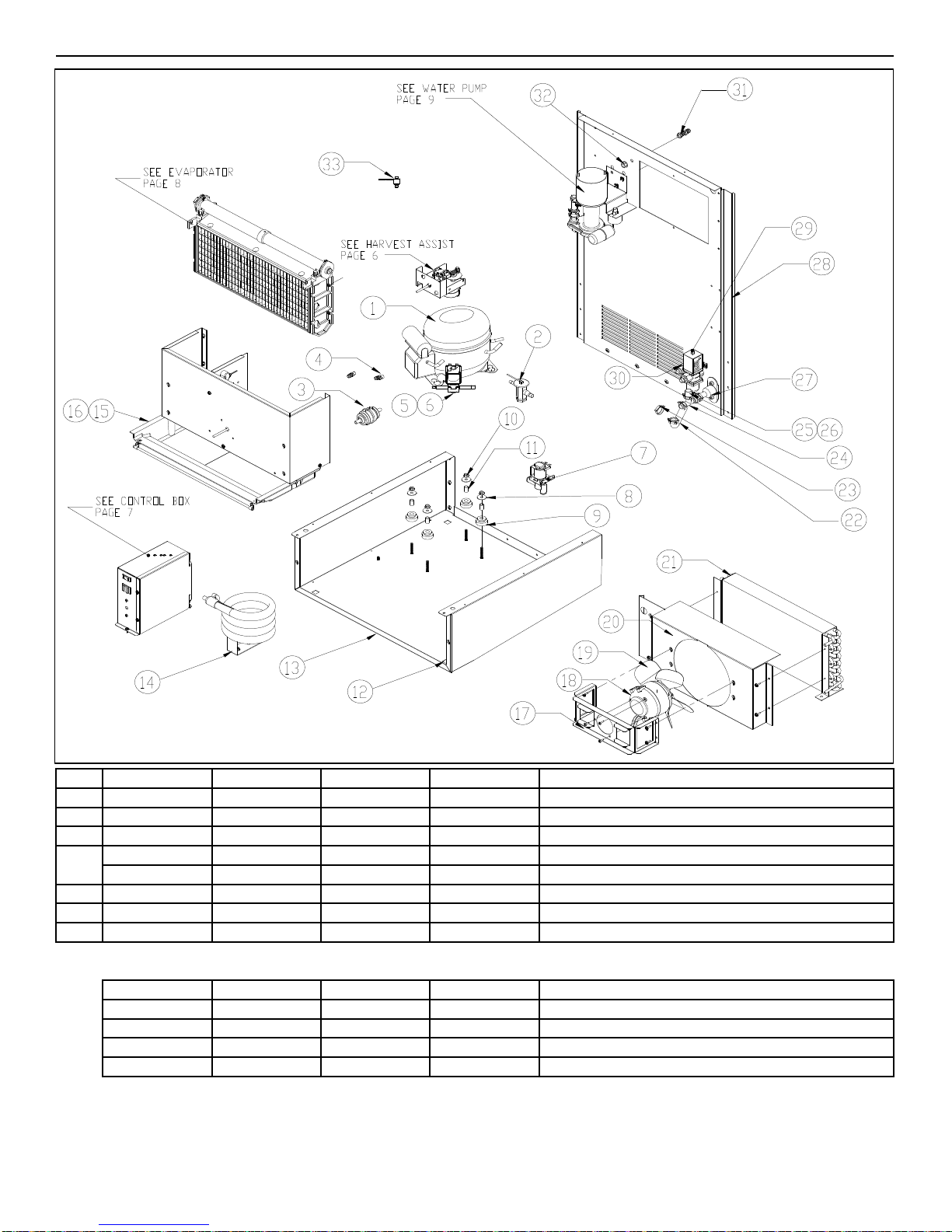

ICE Undercounter Service Parts Refrigeration
Item ICEU150 ICEU220 ICEU225 ICEU226 Description
1 9181115-11 9181115-12 9181115-13 9181115-14 Compressor
2 9151134-03 9151134-07 9151134-07 9151134-07 Expansion Valve-Alco
3 9151004-02 9151004-02 9151004-02 9151004-02 Drier
4 9091086-02 9091086-02 9091086-02 9091086-02 Service Valve Core
9091086-03 9091086-03 9091086-03 9091086-03 Service Valve Cap
5 9151123-06 9151123-06 9151123-06 9151123-06 Hot Gas Valve Body
6 9151123-03 9151123-03 9151123-04 9151123-04 Hot Gas Valve Coil
7 9041086-04 9041086-04 9041086-05 9041086-05 Purge Valve
Compressor Components
ICEU150 ICEU220 ICEU225 ICEU226 Description
9181115-11 9181115-12 9181115-13 9181115-14 Compressor
9181005-42 9181005-38 9181005-40 9181005-41 Overload
9181003-43 9181003-42 9181003-29 9181003-41 Start Capacitor
9181004-24 9181004-24 9181004-20 9181004-28 Compressor Relay
Page 4
ICE Undercounter Service Parts Refrigeration
Item ICEU150 ICEU220 ICEU225 ICEU226 Description
8 9031004-02 9031004-02 9031004-02 9031004-02 Flat Washer
9 9181002-10 9181002-10 9181002-10 9181002-10 Grommet
10 9031118-02 9031118-02 9031118-02 9031118-02 Lock Nut
11 9181002-11 9181002-11 9181002-11 9181002-11 Sleeve Compressor Mounting
12 9031012-02 9031012-02 9031012-02 9031012-02 Lock Nut (Leg)
13 2021673-01 2021673-01 2021673-01 2021673-01 Base Assembly
14 9141022-01 9141022-01 9141022-01 9141022-01 Water Condenser
15 2101151-01 2101151-01 2101151-01 2101151-01 Water Trough Assembly
16 9031122-02 9031122-02 9031122-02 9031122-02 Water Trough Screws
17 3013250-01 3013250-01 3013250-01 3013250-01 Fan Bracket
18 9161028-01 9161112-01 9161112-01 9161112-01 Fan Motor
19 9131446-01 9131446-01 9131446-01 9131446-01 Fan Blade
20 3013254-01 3013254-01 3013254-01 3013254-01 Fan Shroud
21 9141126-01 9141126-01 9141126-01 9141126-01 Air Condenser
22 9051280-08 9051280-08 9051280-08 9051280-08 Purge Drain Tube
23 9021010-05 9021010-05 9021010-05 9021010-05 Hose Clamp
24 9091024-01 9091024-01 9091024-01 9091024-01 Barbed Tee
25 3051222-20 3051222-20 3051222-20 3051222-20 Tubing 9/16 x 20 Inches Long
26 9021010-04 9021010-04 9021010-04 9021010-04 Hose Clamp
27 9091140-01 9091140-01 9091140-01 9091140-01 Drain Adapter
28 3013164-01 3013164-01 3013164-01 3013164-01 Rear Panel
29 9041059-01 9041059-01 9041059-01 9041059-01 Water Regulator
30 9091063-02 9091063-02 9091063-02 9091063-02 Drop Adapter Fitting
31 9091135-01 9091135-01 9091135-01 9091135-01 Water Iinlet Fitting
32 9031118-05 9031118-05 9031118-05 9031118-05 Flanged Lock Nut
33 9041087-03 9041087-03 9041087-03 9041087-03 High Temperature Safety Control
Page 5
ICE Undercounter Service Parts Harvest Assist Assembly
Item ICEU150 ICEU220 ICEU225 ICEU226 Description
1 3013170-01 3013170-01 3013170-01 3013170-01 Bracket, Probe Motor
2 9161030-01 9161030-01 9161031-01 9161031-01 Gear Motor
3 9131190-03 9131190-03 9131190-03 9131190-03 Clutch Assembly, 60 Degree
4 9051001-13 9051001-13 9051001-13 9051001-13 Snap Bushing
5 9051001-03 9051001-03 9051001-03 9051001-03 Snap Bushing
6 9031019-08 9031019-08 9031019-08 9031019-08 #6-32 x 1/2 Screw
7 9051057-01 9051057-01 9051057-01 9051057-01 Connecting Rod
8 9021102-01 9021102-01 9021102-01 9021102-01 Probe, Single Length
9 9031003-03 9031003-03 9031003-03 9031003-03 Flat Washer
10 9031119-01 9031119-01 9031119-01 9031119-01 Shoulder Screw
11 9051519-01 9051519-01 9051519-01 9051519-01 Spacer, Cam Switch
12 9101160-01 9101160-01 9101160-01 9101160-01 Cam Switch
13 3051145-02 3051145-02 3051145-02 3051145-02 Insulator
14 9031008-44 9031008-44 9031008-44 9031008-44 Pan head Screw
15 9031120-01 9031120-01 9031120-01 9031120-01 Speed Nut Plate
2061962-05 2061962-05 2061962-07 2061962-07 Harvest Assist Assembly
Page 6
ICE Undercounter Service Parts Control Box
Item ICEU150 ICEU220 ICEU225 ICEU226 Description
1 9101218-01 9101218-01 9101218-01 9101218-01 Water Pump Connector
2 9101037-01 9101037-01 9101037-01 9101037-01 Terminal Block
3 9101139-03 9101139-03 9101139-03 9101139-03 Switch-Purge
4 9101195-01 9101195-01 9101195-01 9101195-01 Ice/Off/Wash Switch
5 9041097-01 9041097-01 9041097-01 9041097-01 Thermostat-Bin Control
6 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Control (Timer Initiate)
7 9041095-01 9041095-01 9041095-01 9041095-01 High Pressure Control
8 9101148-01 9101148-01 9101148-01 9101148-01 Timing Module
9 9101084-01 9101084-01 9101084-02 9101084-02 Relay
10 9101083-01 9101083-01 9101083-01 9101083-01 Socket-Relay
11 9101083-02 9101083-02 9101083-02 9101083-02 Hold Down Spring - Relay
12 9041087-03 9041087-03 9041087-03 9041087-03 High Temperature Safety Control
Page 7
ICE Undercounter Service Parts Evaporator
Item ICEU150 ICEU220 ICEU225 ICEU226 Description
1 2051231-82 2051231-82 2051231-82 2051231-82 Evaporator-Half Cube (Shown)
1 2051231-81 2051231-81 2051231-81 2051231-81 Evaporator-Full Cube
2 2041338-01 2041338-01 2041338-01 2041338-01 Water Distribution Tube
3 9031122-01 9031122-01 9031122-01 9031122-01 Thumbscrew
4 9031004-19 9031004-19 9031004-19 9031004-19 Rubber Washer
5 9051135-05 9051135-05 9051135-05 9051135-05 Spillway
6 9051136-07 9051136-07 9051136-07 9051136-07 Left Side Evaporator Mounting Panel
7 9051136-08 9051136-08 9051136-08 9051136-08 Right Side Evaporator Mounting Panel
8 9051135-04 9051135-04 9051135-04 9051135-04 Water Return
Page 8
