IBM ThinkPad R30 Manual de usuario
Part Number: 46P6590
Setup Guide
ThinkPad R30 Series
Thank you for purchasing the IBM ThinkPad R30 Series computer. Match the items on this list with the items in the box.
If any item is missing or damaged, please contact your place of purchase.
hComputer hBattery pack Notes:
1. Some models may contain additional
items that are not listed.
2. Your computer features IBM
Disk-to-Disk recovery. Everything
needed to recover factory-installed files
and applications is on your hard disk.
Disk-to-disk recovery eliminates the
need for a Recovery CD. For more
information, see ″Recovering
preinstalled software″in the Service and
Troubleshooting Guide.
hPower cord hTelephone cable
hAC adapter hBooks:
vSetup Guide
vService and
Troubleshooting
Guide
vManual package
for Microsoft
®
Windows
®
© Copyright IBM Corp. 2001 1
Setting up your computer
1. Installing the battery.
Turn the computer over. Insert one end of the battery
(with the rubber feet) into the battery compartment 1,
then let down the other end of the battery securely into
the battery compartment 2. Slide the battery latch to the
lock position 3.
1
3
2

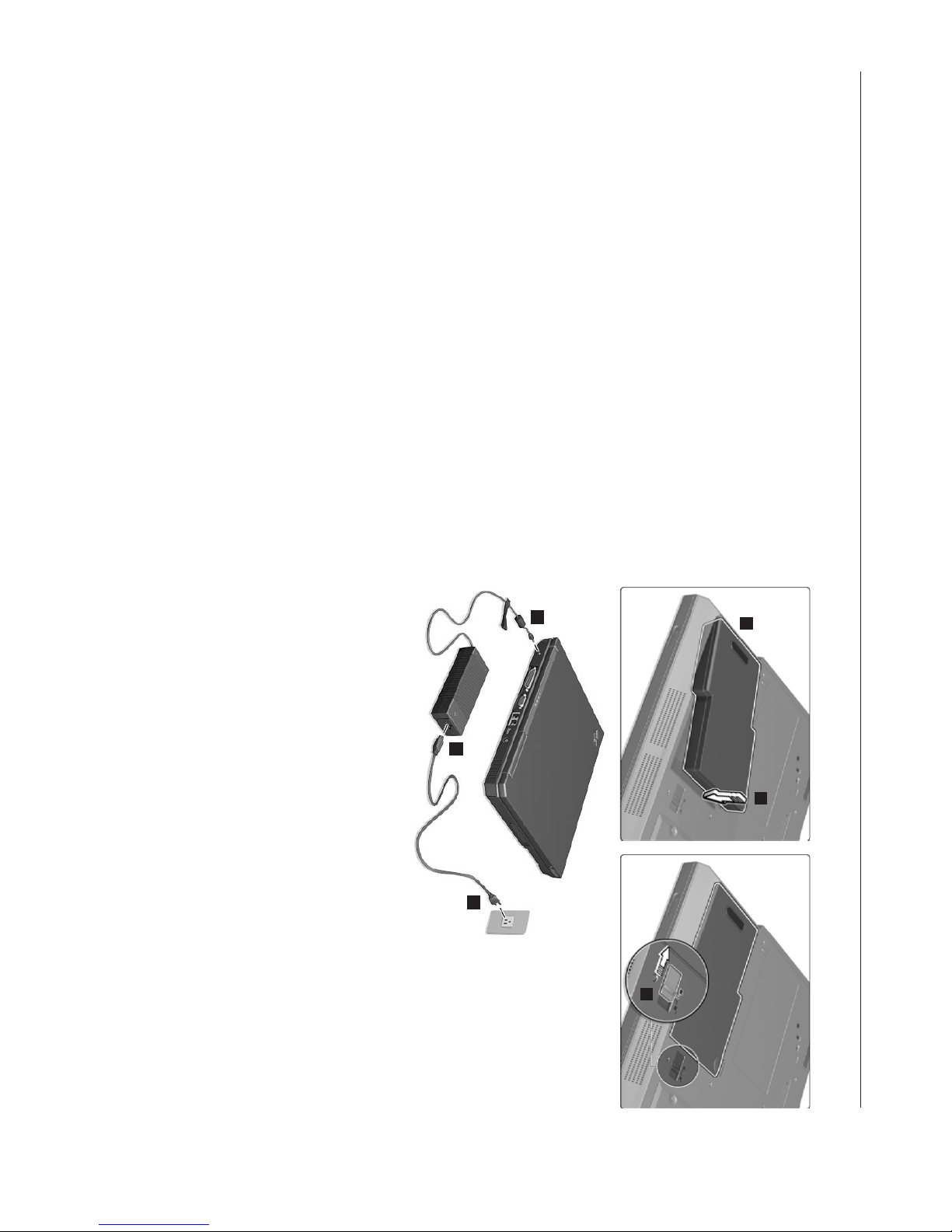

2. Connecting to a power source.
Connect the ac adapter to the power jack (at the rear of
the computer). Make the connections in the order shown. 1
2
3
2
3. Turning on the system.
a) Open the computer display. Press the latches 1 and open the display 2. Then
position the display so that it is convenient for viewing.
2
1
1
b) Press the power switch.
3
4. Using the TrackPoint
®
device.
The TrackPoint is a unique device for moving the cursor on
the screen. You can perform all mouse operations using the
TrackPoint. The left and right click buttons function like
mouse buttons.
To move the cursor, use the red-topped stick at the center of
the keyboard. Press gently with your index finger in the
direction you want to move the cursor. To select and drag
an object, press and hold one of the buttons with either
thumb, as required by your software.
For more information about the TrackPoint, press the
ThinkPad button to open Access ThinkPad, your on-board
help system.
Cursor
Stick
Right click button
Center button
Left click button
5. Using the volume control.
You can adjust the sound level produced by the built-in
speakers by using the following three buttons:
1 Volume down
2 Volume up
3 Mute
If you mute the sound, and then turn off your
computer, the sound remains muted when you turn
your computer on again. To turn on the sound,
press Volume up or Volume down.
When you press one of these buttons, the volume indicator
appears on the screen for a few seconds. For more
information on volume control, see the on-board help
system, Access ThinkPad.
123
4
6. Setting up Windows.
Your computer comes with the Microsoft Windows operating system. After
turning on your computer, follow the instructions on the screen to set up the
operating system. This procedure takes approximately 30 minutes, and your
computer restarts several times.
7. Using Access ThinkPad.
Whenever you have a question about your computer, or wish to view IBM
Web sites, simply press the ThinkPad button to open Access ThinkPad.
Access ThinkPad is the comprehensive, on-board help and information center
for your computer. It travels with you, eliminating the need to carry reference
manuals.
Find information about your ThinkPad computer and its features by using the
Quick Search or clicking one of the topics shown. Click one of the Internet
buttons for direct access to help and support, tips from other mobile users, and
information about accessories, software and upgrades.
ThinkPad button
5
Installing memory
Increasing memory capacity is an effective way to make programs run faster. You can increase the amount of memory in
your computer by installing a PC133 dual inline memory module (DIMM), available as an option, in the memory slot on
the bottom of the computer. DIMMs with different capacities are available.
Note: Use only a PC133 DIMM in your computer. If you install a DIMM that is not supported by your computer, the
computer beeps, and the system does not start. You can purchase the appropriate memory option from your IBM
reseller, IBM marketing representative, or from our website.
Attention: Before you start installing a module, touch a metal table or a grounded metal object. This action reduces any
static electricity from your body. The static electricity could damage the DIMM.
To install the DIMM, do the following:
1. Turn off the computer; then disconnect the ac adapter and
all cables from the computer.
2. Close the computer display, and turn it over.
3. Remove the battery.
4. Loosen the screw on the memory slot cover 1;then
remove the cover 2.
12
6
If the DIMM is already in the memory slot, remove it to
replace the new one by pressing out on the latches on
both edges of the socket at the same time. Be sure to save
it for future use.
5. Find the notch on the side of the DIMM.
Attention: To avoid damaging the DIMM, do not touch
its contact edge.
6. With the notched end of the DIMM toward the right side
of the socket, insert the DIMM into the socket at an angle
of about 20 degrees; then press it firmly 2.
1
2
12
7
7. Pivot the DIMM until it snaps into place.
Make sure that the card is firmly fixed in the slot and does not move easily.
8. Replace the memory slot cover over the memory slot, aligning the back side of the cover first; then tighten the screw.
Attention: When you have added or upgraded a memory card, do not use your computer until you have closed the
cover. Never use the computer with the cover open.
9. Put the battery back in place and turn the computer over again.
To make sure that the DIMM is installed correctly, do as follows:
1. Turn the computer on.
2. While the “Press F1 for IBM BIOS Setup Utility”message is displayed at the lower-left area of the screen, press the F1
key. The IBM BIOS Setup Utility screen appears. The “Installed memory”item shows the total amount of memory
installed in your computer. The system allocates a portion of video memory, approximately 8 MB, for video. For example,
if you install a 64-MB DIMM into a computer whose built-in memory is 64 MB, the quantity shown in “Installed
memory”should be 120 MB.
8
Your name:
_________________________
Company name:
_________________________
Model number:
_________________________
Serial number:
_________________________
Company or reseller service:
_________________________
IBM service Web site:
_________________________
IBM service number:
_________________________
Trademarks
The following terms are trademarks of the IBM Corporation in the
United States or other countries or both:
IBM
ThinkPad
TrackPoint
Microsoft and Windows are trademarks of Microsoft corporation
in the United States and/or other countries.
Notes:
9
