IBM ThinkPad 570E Manual de usuario

27L8797

ThinkPad 570

ThinkPad 570 Setup Guide

Setup Guide

This guide provides information for setting up your computer for the first time.

Front view (with external diskette drive)

Liquid crystal display

(LCD)

Built-in microphone

PC Card slots

PC Card eject buttons

Reset switch

Infrared port

Headphone jack

Line-in jack

Microphone jack

LCD latches

System indicators

Brightness control

Click buttons

TrackPoint

Battery indicator

Suspend indicator

External diskette

drive

Diskette eject

button

Rear view

Power jack

Serial connector

External-diskette-drive

connector

Security keyhole

External-monitor connector

Parallel connector

External-input-device connector

Modem connector

Hard-disk drive

Universal serial bus (USB)

connector

Power switch

 Copyright IBM Corporation 1999

Bottom view (with battery pack

installed)

Battery pack

Battery-pack lock Internal speaker

Setting up your computer

You are now ready to assemble and start your computer.

Turn the computer upside down and install the battery

pack as shown.

Slide the battery-pack lock to the locked position.

unlock

lock

Turn the computer over again.

Connect the external diskette drive.

Attach the cable to the external diskette drive, and then to

the external-diskette-drive connector on the computer.

Press the side of the connector .1/ as you connect it to

the devices .2/.External-diskette-drive connector

External-diskette-drive

Connect your printer.

If you have a printer, connect one end of the printer cable

to the parallel connector and the other end to your printer.

Then power on the printer.

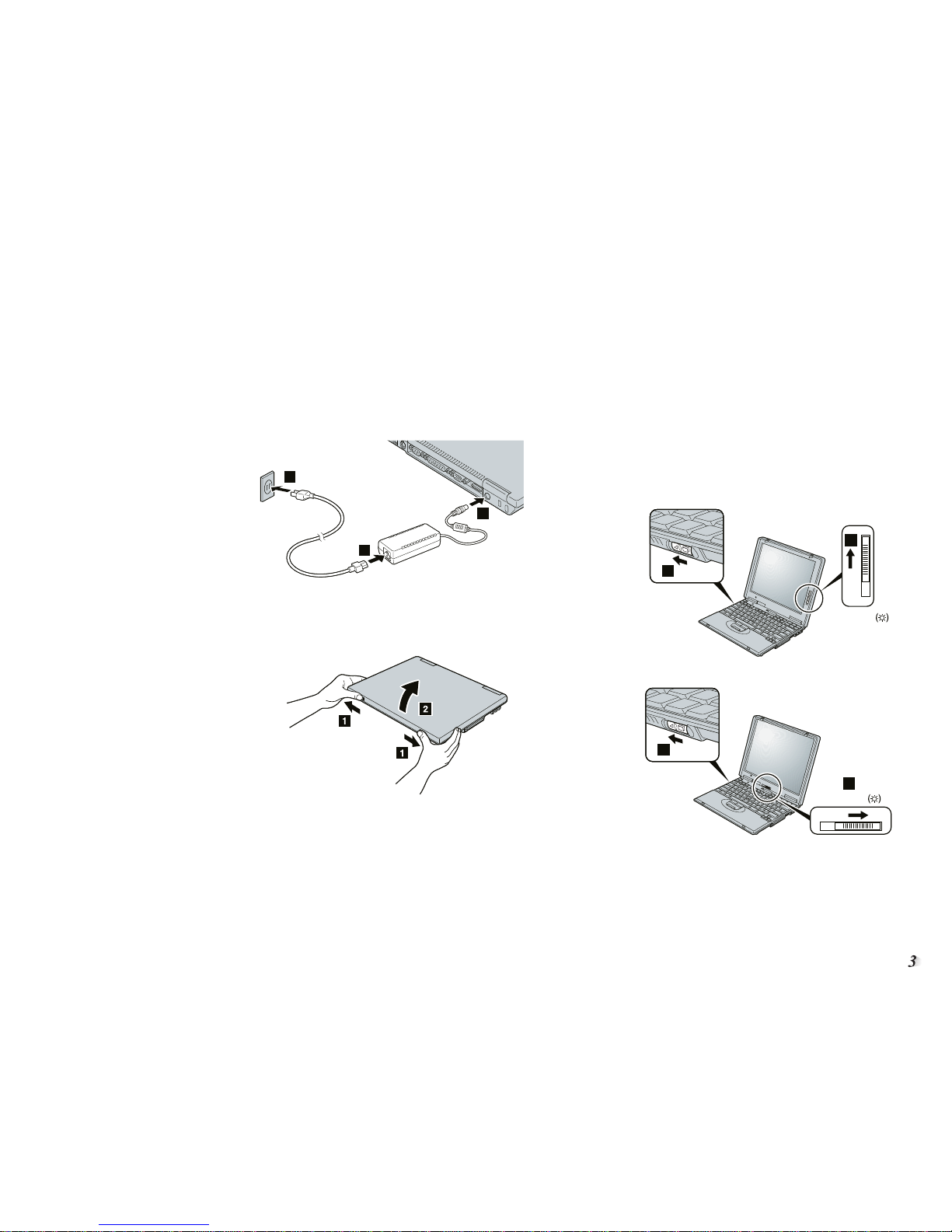

Connect the AC Adapter to the computer's power jack (at

the rear of the computer) in the order shown.

Open the liquid crystal display (LCD).

Press the LCD latches .1/ and open the LCD .2/. Then

position the LCD so that it is convenient for viewing.

Power on the computer.

a) Push and release the power switch .1/. The power

switch automatically snaps back to its original position.

b) Adjust the brightness of the display with the brightness

control .2/.

12.1-inch model

Brightness

13.3-inch model

Brightness

 Copyright IBM Corporation 1999

Registering your computer

After setting up your computer, take a few moments to complete

the ThinkPad registration. The information you provide will help

IBM to serve you better in the future. To register from the

Windows 98 or Windows NT desktop, do the following:

Double-click Register.

Follow the instructions on the screen to complete the

registration.

(If you want to register your computer later, follow the

same procedure.)

If your computer uses another operating system, go to the

following Web site to complete the registration:

http://www.pc.ibm.com/register

Getting more information

After you have completed setting up your computer, you can

start using it. If you want to learn more about your computer

and its options, see the following:

Check the following ThinkPad Web site for the latest information.

When updates become available, they will be posted on:

http://www.pc.ibm.com/thinkpad

ThinkPad 570 User's Reference Online User's Guide

Basic information on your

computer

Using your computer and

extending its features

Protecting your computer

Solving computer problems

Features and specifications

Using your computer outside

your home country

Using the features of your

computer.

Protecting your computer

Using your computer with a

battery pack

Using your computer with a PC

Card

Resolving system resource

conflicts

Frequently asked questions

Installing software

Using system management

Using PS2 commands

Using modem commands

Handling tips

Getting service

Note: To start the

Online User's Guide

, click Start and move the cursor to

Programs and ThinkPad 570; then click

ThinkPad 570 User's Guide
