IBM 22P6414 Manual de usuario
IBM
®
High Rate
Wireless
LAN Gateway
Quick Start Guide
OPTIONS
by IBM
Note: Before using this information and the product it supports, be sure to read the
IBM High Rate Wireless LAN Gateway Safety and Warranty Information Manual that comes
with your option. The IBM High Rate Wireless LAN Safety and Warranty Information
Manual contains the following information, which is necessary to review before
operating the device:
vSafety information
vInformation to the user, including regulatory information and additional installation
requirements.
vFederal Communications Commission (FCC) statement
vProduct warranty and notices
vHelp and service information
First Edition (August 2001)
© Copyright International Business Machines Corporation 2001. All rights reserved.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by
GSA ADP Schedule Contract with IBM Corp.
Safety: Read first
Before using this information and the product it supports, be sure to read the
Safety Information Manual.
About this book
This Quick Start Guide provides information on setting up your IBM®High Rate
Wireless LAN Gateway. For more detailed information, including advanced
configuration, troubleshooting, and operating instructions, see the online User’s
Guide which is available on the CD that comes with your option. To view the
online User’s Guide, do the following:
1. Insert the IBM High Rate Wireless LAN Gateway User’s Guide CD into the
CD-ROM drive or DVD-ROM drive of your computer.
2. If the CD starts automatically, follow the on-screen instructions. If the CD
does not start automatically, do the following:
a. Click Start →Run.
b. Type x:/launch.htm/, where xis the drive letter of the CD-ROM drive
or DVD-ROM drive of your computer.
c. Click OK.
d. Follow the on-screen instructions.
The User’s Guide contains the product description and usage instructions. For
information about the product warranty and help and service information, see
the Safety and Warranty Information that comes with your option.
Registering your option
Thank you for purchasing OPTIONS by IBM. Please take a few moments to
register your product and provide us with information that will help IBM to
better serve you in the future. Your feedback is valuable to us in developing
products and services that are important to you, as well as in developing better
ways to communicate with you. Register your option on the IBM Web site at
http://www.ibm.com/pc/register
© Copyright IBM Corp. 2001 iii
IBM will send you information and updates on your registered product unless
you indicate on the Web site questionnaire that you do not want to receive
further information.
iv IBM®High Rate Wireless LAN Gateway: Quick Start Guide
Contents
iii
Safety: Read first.....................iii
About this book .....................iii
Registering your option ..................iii
Step 1: Set up your IBM High Rate Wireless LAN Gateway hardware 1-1
Step 2: Connect your computer to the IBM High Rate Wireless LAN
Gateway ......................2-1
Step 3: Configure your computer’s TCP/IP properties to communicate
with the IBM High Rate Wireless LAN Gateway ........3-1
Step 4: Launch your web browser and disable the proxy settings 4-1
Step 5: Access the IBM High Rate Wireless LAN Gateway setup utility 5-1
Step 6: Type the default User Name .............6-1
Step 7: Select your language ...............7-1
Step 8: Configure your Internet-broadband settings .......8-1
Appendix. Notices and trademarks .............A-1
© Copyright IBM Corp. 2001 v
vi IBM®High Rate Wireless LAN Gateway: Quick Start Guide
Step 1: Set up your IBM High Rate Wireless LAN
Gateway hardware
Set up your IBM High Rate Wireless LAN hardware by doing the following:
1. Attach the included RJ-45 Ethernet cable to the port labeled Internet on the
back of the Gateway.
2. Attach the other end of the RJ-45 Ethernet cable to the output port of your
DSL/Cable modem.
3. Unclip the antenna.
4. Attach the power cord to the ac power supply.
5. Attach the ac power supply to the Gateway. The Gateway turns on
automatically.
Note: In the event that your Gateway comes with two power cords, be
sure to use the one labeled for your country. One is labeled for use
in the United States and Canada, and one is labeled for use in Japan.
6. Turn on your DSL/Cable modem.
7. Turn on your computers.
© Copyright IBM Corp. 2001 1-1
1-2 IBM®High Rate Wireless LAN Gateway: Quick Start Guide
Step 2: Connect your computer to the IBM High Rate
Wireless LAN Gateway
To connect your computer to the IBM High Rate Wireless LAN Gateway, do
the following:
vIf you are making a wireless connection, your computer’s wireless LAN
adapter must be configured to find and communicate with the IBM High
Rate Wireless LAN Gateway. See the manual or User’s Guide that comes with
your computer’s wireless LAN adapter. The default settings of the Gateway
are:
–Network Name (SSID or ESSID): ANY
Note: This field is case-sensitive. Use all upper-case letters when typing
the Network Name.
–Encryption must be off or disabled.
vIf you are making a wired connection, attach an RJ-45 Category 5 Ethernet
cable (not included) to one of the four Ethernet ports located on the back of
the Gateway, and then connect the other end of the RJ-45 Category 5
Ethernet cable to the Ethernet port of your computer.
© Copyright IBM Corp. 2001 2-1
2-2 IBM®High Rate Wireless LAN Gateway: Quick Start Guide
Tabla de contenidos
Otros manuales de Puerta de IBM
IBM
IBM TotalStorage NAS Gateway 500 Manual de usuario
IBM
IBM WebSphere XS40 Manual de instalación
IBM
IBM NFS/DFS Secure Gateway Manual de usuario
IBM
IBM System Storage N7000 Manual
IBM

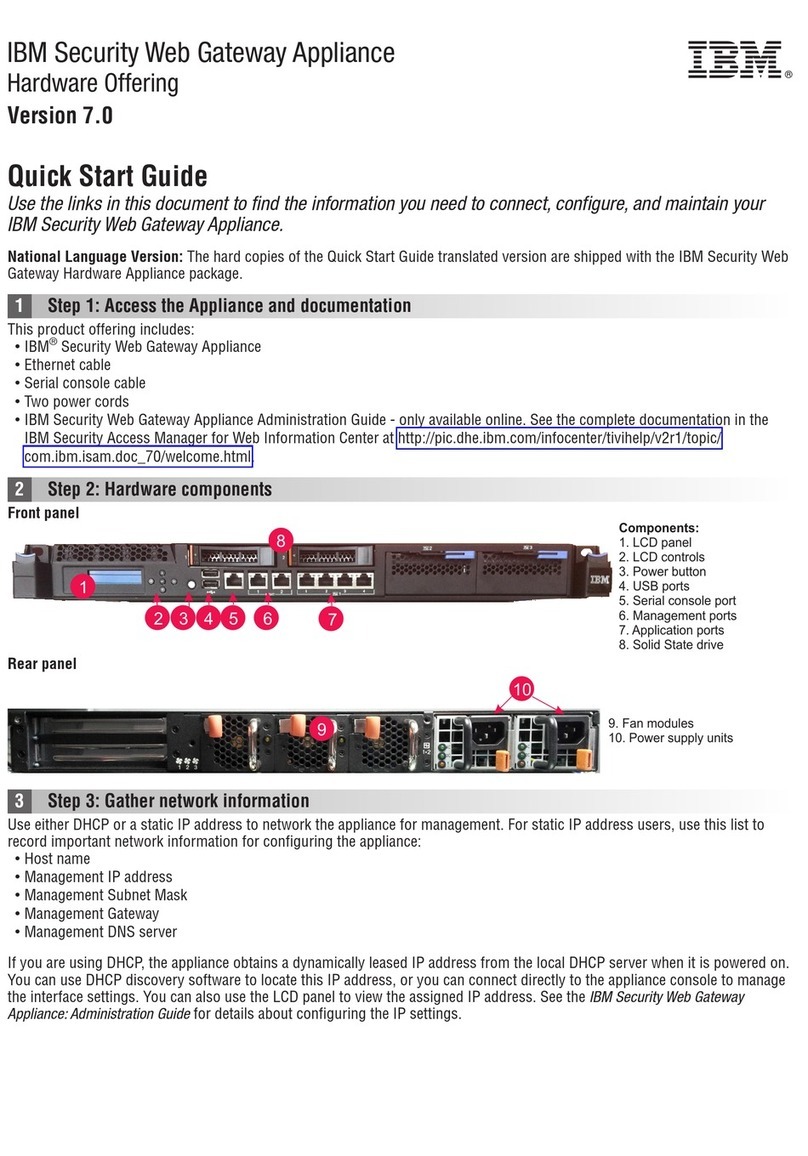

IBM Security Web Gateway Appliance Manual de usuario
