I-Tech UltraView iAP1900 Manual de usuario

UserManual

InnovativeLCDDisplaySolutions

19AV Series

ltraView

Jan 05

P.1

AP-19AV / DP-19AV /OP-19AVSeriesUserManual

1.TableofContent Page.1

2.Introduction

A)OverviewPage.2

B)FeaturesPage.2

C)Dimension DiagramsPage.3-5

D)TechnicalSpecificationsPage.6

3.Installation

A)Package ContentsPage.7

B)Cautiontothe userPage.7

C)Cleaning Page.7

D)PrecautionsPage.8-9

4.Using theSystem

A)Product ViewsPage.10-12

B)I/O OutletPage.13

C)Installation ProceduresPage.14

D)Setup Touchscreen(Optional)Page.15

i) ForWindows Page.15

ii) ForDOS Page.16-18

E)OSDSwitchPage.19

F)OSDControl(VGAVersion)Page.20-22

G)OSDControl(Video Version)Page.23-27

1. Tableof Content

Disclaimer

Thisinformation issubjecttochange withoutnotice.Theproducerofthismanual acceptsno

responsibilityfordamage orclaims,resulting frommisuseormisinterpretation.

Jan 05

P.2

Disclaimer

Thisinformation issubjecttochange withoutnotice.Theproducerofthismanual acceptsno

responsibilityfordamage orclaims,resulting frommisuseormisinterpretation

A.Overview

B.Features

2.Introduction

AP-19AV / DP-19AV /OP-19AVSeriesUserManual

ThisLCD monitorincorporates19 coloractivematrixthin-film-transistor(TFT)

liquidcrystaldisplaytoprovide superiordisplayperformance.Amaximum

resolutionof1280 x1024isidealfordisplayingcomplexgraphics and high

definition images.Otheroutstanding designsthatenhancethisLCD monitor’s

performancearePlug&PlaycompatibilityandOSD(OnScreenDisplay)

controls.

High contrastcolorTFT LCD displaysupportresolution up to1280x

1024.

Advanced OSDcontrolforpicturequalityadjustment.

Detachablestand forwall-mounting application.

OptionalCompositeandS-Video input

Slimand compact size

Wide Viewing Angle

Jan 05

P.3

AP-19AVseries

C.DimensionDiagrams

2.Introduction

AP-19AV / DP-19AV /OP-19AVSeriesUserManual

Jan 05

P.4

DP-19AVseries

C.DimensionDiagrams

2.Introduction

AP-19AV / DP-19AV /OP-19AVSeriesUserManual

Jan 05

P.5

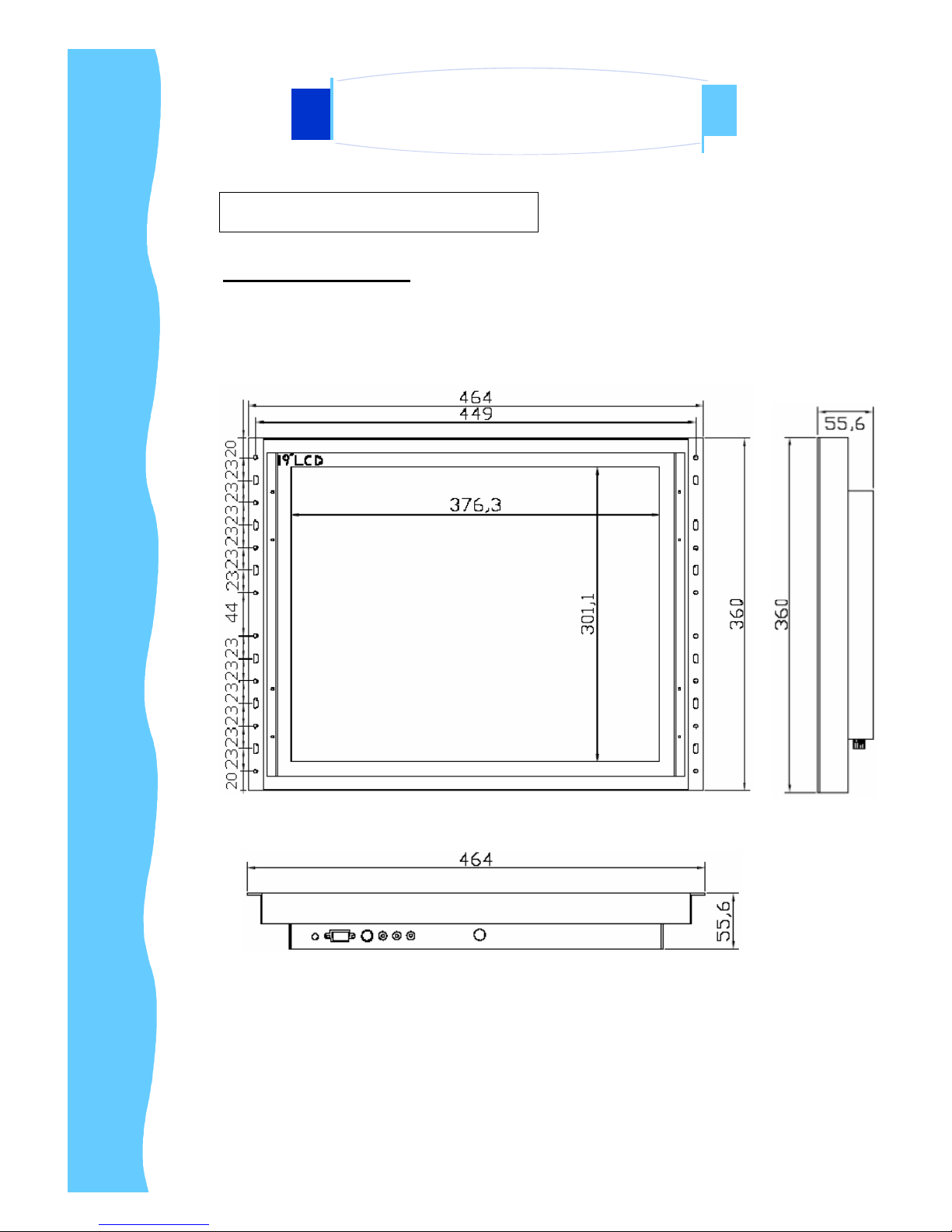

OP-19AVseries

C.DimensionDiagrams

2.Introduction

AP-19AV / DP-19AV /OP-19AVSeriesUserManual

Jan 05

P.6

Technical Specifications

Monitor

Panel19" LCD Panel

DisplayType TFT LCD activematrixcolour

Resolutions1280 x1024

ResponseTimeTr=15ms, Tf=10ms

Contrast Ratio700:1typical

Brightness 250 cd/m2typical

PixelPitch0.294(H)x0.294(V)

PanelColour16.7Mdisplaycolour

Viewing Angle89 / 89 / 89 / 89(L/R/ U/ D)

Storage Temp.-20°to65°C

OperatingTemp.0°to50°C

MTBF50,000 hours

PowerSupply

RemoteAdapter110V-220VACInput

AdapterSize108(L)x64 (W)x30(D)mm

CableLengthfrom

mainsplug toadapter 182cm

CableLengthfrom

adapterUnit 180cm

PowerSocket12V(+)female

Connectors VGAHDDB15-pin(female)x1

Video StandardsSupportsNTSC, PALorSECAM

Product

Dimension

AP Series: 456(W)x380(H)x62(D)mm

DPSeries: 435(W)x350(H)x65(D)mm

OPSeries:464(W)x360(H)x56(D)mm

Packing

DimensionAP / DP/ OPSeries: 630(L)x550(W)x110(H)mm

2.Introduction

AP-19AV / DP-19AV /OP-19AVSeriesUserManual

Afterunpacking the carton,check and see ifthefollowingitemsareincluded in

good condition.Contactyoursupplierassoonaspossibleforreplacingthe

missing / damaged items.

19 TFT LCD monitor

RCACable(ForAV VersionOnly)

S-Video Cable(ForAV Version Only)

VGACable(MaletoMale)

DC 12VAdapter

PowerCord

Mounting Bracket (AP Seriesonly)

UserManual

CD Disc

ToassurecontinuedFCC compliance,pleaseusegrounded powersupply

cordand the provided shielded video interfacecablewithbonded ferritecores.

If aBNC cableisgoingtobe used,useonlyashielded BNC (5)cable.Also,

TheFederalCommunicationsCommissionwarnstheuserthatany

unauthorized changesormodificationstothe unitifnot expresslyapprovedby

thepartyresponsibleforcompliancecouldvoidtheuser'sauthorityof

operatingthe equipment.

1.Gentlywipe screen withaclean camelhairlensbrush,orasoft,clean,

lint-free cloth.Thisremovesdustand otherparticlesthatcan scratchthe

screen.

2.Donotapplyexcessivepressuretothescreensurfacewhen wiping itclean

becausethismaydamage the LCD.

3.Donot pourorsprayanyliquiddirectlyontothescreen orcaseof the LCD

monitor.Chemicalcleanershavebeenreported todamage thescreen or

caseof theLCD monitor.

A.PackageContents

Jan 05

P.7

B.Caution toTheUser

C.Cleaning

3.Installation

AP-19AV / DP-19AV /OP-19AVSeriesUserManual

Jan 05

P.8

Read allof theseinstructionsandsavethemforlateruse. Followallwarnings

and instructionson the product.

Product

Donot coverorblock the vent holesinthe case.

Donotinsertsharpobjectsorspillliquidintothe LCD monitorthrough

cabinet slots.Theymaycauseaccidentfire,electricshock orfailure.

Disconnect thepowerplug fromthe ACoutletif you willnot useit foran

indefiniteperiod oftime.

Donotattempttoservicethisproductyourself,asopening orremoving

coversmayexposeyou todangerousvoltage pointsorotherrisks.

Donottouchthe screendirectlywithyourfingers.You maydamage the

screen, and oilfromyourskinindifficult tomove.

Donot applypressuretoscreen. TheLCD isverydelicate.

D.Precautions

Power

1.Usethe type of powerindicatedon the markinglabel.

Plugs

1.Donotremoveanyof the prongsofthemonitor’sthree-pronged power

plug.

2.DisconnectthepowerplugfromtheACoutletunderfollowing

conditions

If the product willnot be used foran indefiniteperiod time.

Whenthe powercordorplug isdamaged orfrayed.

Iftheproductdoesnotoperatenormallywhentheoperating

instructionsarefollowed.

Adjustonlythosecontrolsthatarecoveredbytheoperating

instructions.Improperadjustment of othercontrolsmayresult in

damageandwilloftenrequireextensiveworkbyaqualified

technician torestoretheproduct tonormaloperation.

If the producthasbeen dropped orthe cabinet hasbeen damaged.

If the productexhibitsadistinctchangeinperformance,indicatinga

need forservice.

3.Installation

AP-19AV / DP-19AV /OP-19AVSeriesUserManual

Jan 05

P.9

D.Precautions(Cont.)

Powerandextensioncords

1.Donot allowanything torest onthe powercord.

2.Donotlocatethisproduct wherepersonswillwalkon the cord.

3.Usethe properpowercordwithcorrectattachmentplug type.If the

powersourceis120VAC,useapowercordthathasULand C-UL

approvals.If the powersourceisa240VACsupply,usethe tandem

(Tblade)type attachmentplug withground conductorpowercordthat

meetsthe respectiveEuropeancountry’ssafetyregulations,suchas

VDEforGermany.

4.Donot overloadwall outletsorpowercords. Ensurethat the totalof all

unitspluggedintothe walloutlet doesnot exceed 10 amperes.

5.Ensurethatthetotalampereratingsonallunitspluggedintothe

extension cordisnotabovethe cord’srating.

6.Ifthepowersupplycord,whichcamewithyourmonitor,istobe

connected tothePCinstead ofthe walloutlet,thisequipmentistobe

usedwithUL/TÜVapprovedcomputerswithreceptaclerated

100~240VAC, 50/60Hz,1.0A(minimum).

Environment

1.Placethemonitoronaflatand leveledsurface.

2.Placethemonitorinawell-ventilated place.

3.Keep the monitorawayfrom Overlyhot, coldorhumidplaces,places

directlyundersunlight, dustysurroundings,equipmentthatgenerate

strong magneticfields.

3.Installation

AP-19AV / DP-19AV /OP-19AVSeriesUserManual
