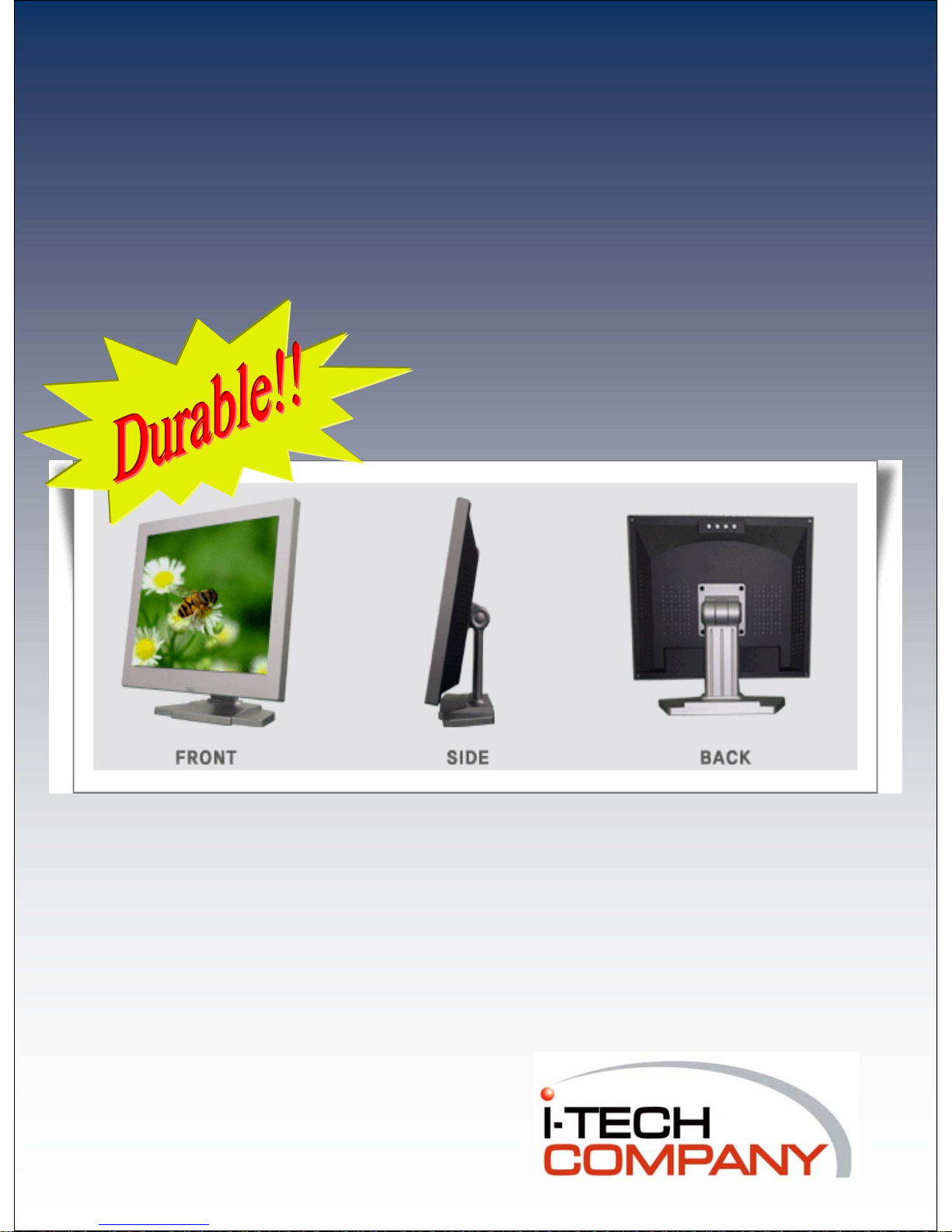

I-Tech PSL150-IB Manual de usuario

Point of Sales (POS)

LCD Monitor

with Infrared Touch Screen

PSL150-IB

＊

Front panel NEMA4 / IP65 meet.

＊

Durable Infrared Touch Screen for 24/7 use

＊

High resolution, high brightness and contrast.

＊

Long-life backlight.

＊

Anti-Reflective window.

＊

Slim design.

www.i-techcompany.com

Toll Free:1-888-483-2418

Brightness, Contrast, Position( H/Position), Clock( Clock, Phase, Use), Color ( Color

temperature, User Adjustment), Language, Information, OSD(OSD time, H/V position,

Use), Auto Adjust

Function

(Standard)

Aluminium

Front Bezel

15-PIN VGA cable, DC adapter, Power cord

STANDARD ACCESSORIES

4.2 / 5.9 KgWEIGHT(NET/GROSS)

382 x 302 x 56mmDIMENSION

10%RH to 90%RH Operating

10%RH to 90%RH Storage

OPERRATING Humidity

-20°C to 60°C Storage

STORAGE Temperature

0°C to 50°C Operating

OPERATING Temperature

12V DC

Output

AC 100V ~ 240V, 50~60Hz

InputPOWER SUPPLY

ADAPTER

Serial / USB

Touch Interface

4 or 5 wires Resistive, Capacitive, S.A.W, Infrared Beam

Touch Screen

OPTIONS

VESA DPMS

POWER SAVING

DDC1 / DDC2B

PLUG & PLAY

Korean, English, French, German, Italian, Spanish

Language

Color(Contrast, Brightness, Gamma, Color Temp., Color Adjust), Picture(H/V Position,

Phase, Clock, Sharpness),

Function(Auto Adjust, Auto Color), OSD Menu(Language, OSD H/V Position, OSD

Timer, Translucent),

MISC(Signal Source,Power Light, Reset), Sound(Sound, Volume)

Function

(Optional)

OSD CONTROL

< 3watt

Off

< 30watt(Max.)

On workingPOWER

CONSUMPTION

1024 x 768 @ 60Hz

Recommended

640 x 350@70Hz

720 x 400@70Hz

640 x 480@60~75Hz

832 x 624@75Hz(MAC)

800 x 600@ 56 ~ 75Hz

1024 x 768@ 60 ~ 75Hz

SupportedRESOLUTION

SUPPORT

Analogue Audio Input / output

DVI, Composite & S-video (PAL/ Secam/ NTSC )

Supported

Video Signal(Optional)

INPUT SIGNAL

304.1 x 228.1mmDisplay Area

80º/80º(L/R) & 80º/80º(U/D)ViewingAngle(typical)

400 : 1(Typical)

Contrast Ratio

250cd/㎡

Brightness

0.297 x 0.297mm

Pixel Pitch

16M colors

Display Colors

25ms

Response time

1024 x 768

Max. Resolution

XGA TFT

Display TypePANEL

15.0”SIZE

Specifications of Monitor www.i-techcompany.com

Specifications of Infrared Touch Screen

Touch Screen : 7years limited Controller : 7years limitedWarranty

7yearsLife Time

Can be sealed to meet NEMA4 / 12 and IP65 standardSealability

3,000mAltitude operating

Operating : 20 ~ 85% Storage : 0 ~ 95%Humidity

Operating : -20 to70 Storage : -40 to 70Temperature

ENVIRONMENTL

3.2mm with anti-vandalThickness of Glass

Over 60,000,000 single point touchTouch Intensity

< 16msResponse speed

> 92%, Up to 100%Transmission

PANEL

< 1W(Current) < 230mA at DC5V, < 300mA at DC 12VPower

DC 5V or DC 12VOperating Voltage

No minimum touch activation force is requiredTouch Activation

Force

Touchpoint density is based on controller resolution of 4096 x 4096Resolution

Typical centroid accuracy : >2.5mmPosition Accuracy

ELECTRICAL

Finger or gloved hand activationInput Method

MECHANICAL

35,000,000times (250gf, 2times/s)Surface Pitting

1 Million times (250gf, 60mm/s)Surface ScratchingDURABILITY

-40˚C 240HRLow Temperature

80˚C, 240HRHigh Temperature

60˚C , 90%RH 240 HRTemperature & Humidity

-40˚C/30min, 80˚C/30min(10cycles)Thermal shock

-30˚C ~ 70˚CStorage Temperature

-20˚C ~ 60˚COperating TemperatureRELIABILITY

3HHardness

Finger, Gloved Hand and StylusInput Method

Less than 80gActivationMECHANICAL

10msec @100kΩChattering Time

AMP(position :5, pitch :0.1˝)Connector

2.5MΩ@ DC25VInsulation

±1.5%LinearityELECTRICAL

Clear/Non-glare/Anti - newton’s Ring CoatingFilm Type

80%Transmittance(Typical)OPTICAL

Resistive Touch Screen

www.i-techcompany.com
