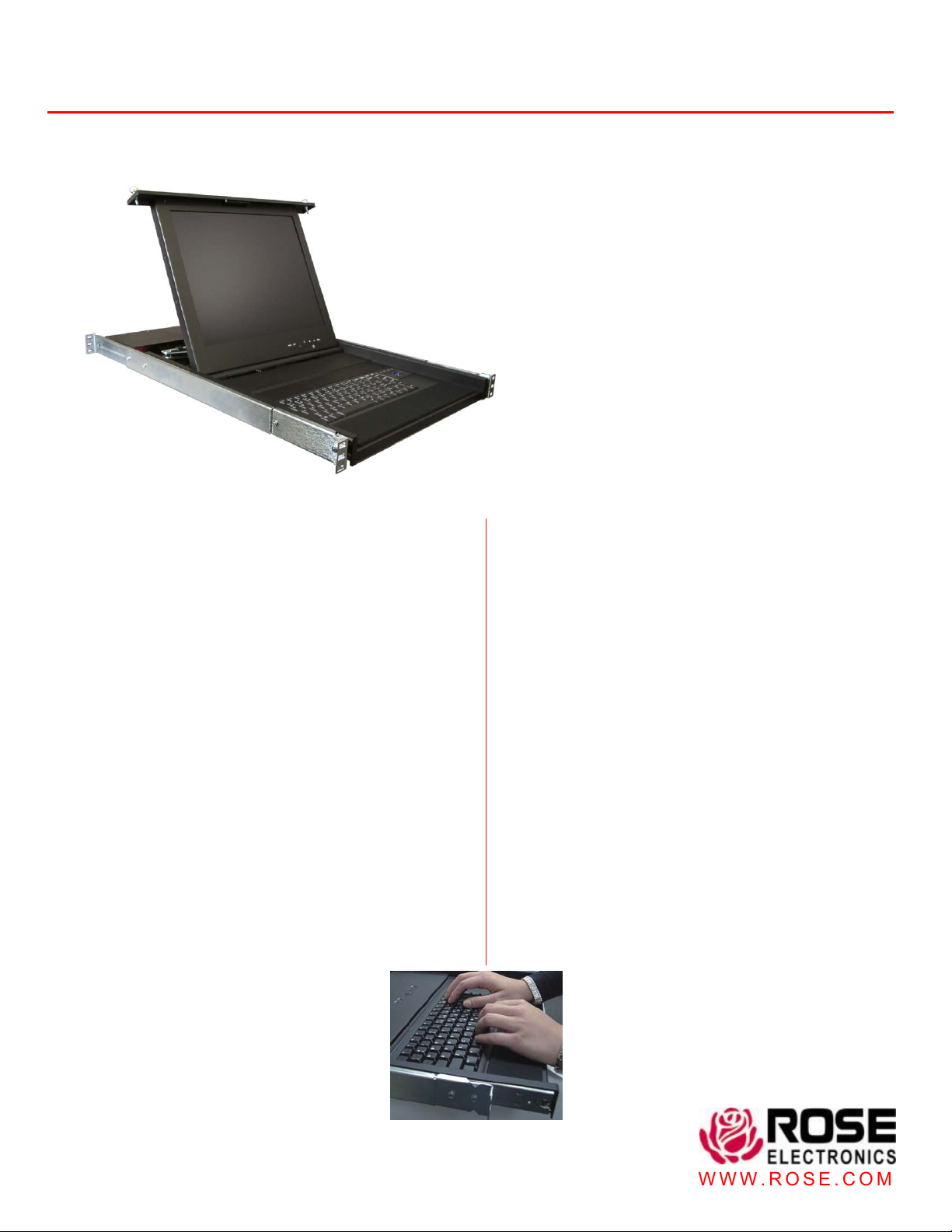

RackView Fold Forward

WWW.ROSE.COM

Rack mounted KVM Station with

KVM switch option

Optional single or multiple user KVM switch

1U or 2U models available

2U model with 15" LCD monitor is only 18" deep

High-resolution Trackball

PS/2 connectors

Compatible with PC's, UNIX, Sun, and Mac

Features and Benefits

JThe following model features are available:

J1U – 15" / 17" TFT/LCD high-resolution monitor

J2U – 15" TFT/LCD high-resolution monitor

JTactile keyboard with separate numeric keypad

JIntegrated trackball mouse

JPS/2 connections

JBuilt-in single or multiple user KVM switch options

provides access to as many as 1,000 computers

JQuick and easy rack mounting installation

JSupports AT/XT, PS/2, and UNIX computers

JFront panel conceals unit when it is not in use

JFull size keyboard for typing in comfort

JKeyboard available in international variations

JMonitor OSD allows for easy adjustments of

color, brightness, contrast, position, and shape

of the display

JFront panel controls for quick adjustments

JEasy-glide KVM drawer can be mounted at

any height in a standard 19 inch rack

The RackView™ Advantage . . .

The RackView offers the latest, most efficient way

to organize and streamline your server rooms and

multiple computers. The RackView is a rack

mountable KVM station neatly fitted in a 1U or 2U

compact pull-out drawer. This easy-glide KVM

station contains a high-resolution TFT/LCD monitor,

a tactile keyboard, and a high-resolution trackball or

touchpad mouse.

The RackView can be placed at any height within a

standard 19" rack. This offers the operator the

maximum in comfort and takes up a minimum

amount of rack space. The 2U model will install in

an 18" deep rack. The front panel conceals the unit

when it is not in use.

The optional KVM switch offers single or multiple

user access to as many as 1,000 servers or

computers. Rose Electronics KVM switch options

are fully expandable and when combined with the

RackView, your system becomes a versatile,

distributed matrix controlled system with multi-user

capability, controlled access to the servers, and

many other features.

PC's, UNIX, Sun, and Apple

computers can easily be accessed,

monitored, and controlled locally using

RackView.

Easy access right at the rack

Rose Electronics 10707 Stancliff Road, Houston, Texas 77099 USA

281-933-7673 800-333-9343 (USA) +44 (0) 1264 850574 (Europe) +65 6324 2322(Asia Pacific)

Typical Application

Introduction The RackView is the perfect addition to your server room.

It mounts easily at any height in a standard 19" rack. It takes up 85% less

space than a standard keyboard, monitor, and mouse and slides easily into

the rack and out of site when it's not in use. The optional built-in KVM

switch capability offers the added convenience of complete access to as

many as 1,000 servers or computers. Adding a multi-user KVM switch

allows server management to be performed locally from RackView or

remotely from multiple KVM workstations.

Installation RackView is very easy to install. Simply adjust the rack rail

length to the depth of your rack, slide the unit through the rack, and secure

the rack mount brackets to the rack rails.

Front Panel The monitor's front panel has easy access switches which

set the brightness, contrast, and invoke the On-Screen-Display. The OSD

provides for an easy way to adjust all the monitors' parameters.

Keyboard The RackView's tactile keyboard is a full size keyboard with a

separate numeric keypad. The keyboard is available with a PS/2, MiniDIN6

connector.

Mouse The RackView has a high-resolution Touchpad with a PS/2

connector or Touchpad, depending on the model..

Monitor The high resolution, static free, TFT/LCD color monitor provides

a crisp, clear image with resolutions up to 1280 x 1024 @ 75Hz.

Options The RackView can be ordered with an optional KVM switch. It

is recommended that the KVM switch be a 1U high, 1 x 4, 1 x 8, 2 x 4, or a

2 x 8 model.

Part Numbers

RV2-KVM15B 2U KVM Drawer, 15" LCD, PS/2

Keyboard + Trackball

RV2-CKVM15A-18 2U KVM Drawer, 15" LCD, PS/2

Keyboard + Trackball (18" deep)

RV2-CKVM15-20 2U KVM Drawer, 15" LCD, PS/2

Keyboard + Trackball (20" deep)

RV2-CKVM15-24 2U KVM Drawer, 15" LCD, PS/2

Keyboard + Trackball (24" deep)

RV1-CKVM15 1U KVM Drawer, 15" LCD, PS/2

Keyboard + Trackball

RV1-CKVM17 1U KVM Drawer, 17" LCD, PS/2

Keyboard + Trackball

RV1-CKVT15 1U KVM Drawer, 15" LCD, PS/2

Keyboard + Touchpad

RV1-CKVT17 1U KVM Drawer, 17" LCD, PS/2

Keyboard + Touchpad

RV1-CEKVM15A 1U KVM Drawer, 15" LCD, PS/2

Keyboard + Trackball

Specifications

Dimensions 18.0" – 24"

Weight 27.8 lbs

Resolution 1024 x 768

Colors: 16.7 million

Controls: Front panel

Adjustments: On-Screen-Display

Keyboard: Full size tactile keyboard with separate

numeric keypad

Mouse: Trackball or Trackball

Connectors:

Video HD15F

Keyboard: PS/2

Mouse PS/2

Environmental 32°F - 122°F (0°- 50° C),

20%-80% non-condensing RH

RackView with optional KVM switch
