i-See IGEPv2 BOARD Guía rápida de usuario
ISEE
MANUAL
ISEE (
Integration Software & Electronics Engineering
)
Address: C/ Vallespir nº19 Planta 1 odulo 1
PostCode: 08173
City: Sant Cugat
Country: SPAIN
Telf. : +34.93.576.39.31
http://www.iseebcn.com
ISEE IGEPv2 EXPANSION
Hardware Reference anual
(Revision 01 - 24-Sep-2010)
IGEPv2 EXPANSION BOARD HARDWARE USER ANUAL
ISEE 2007 SL. All rights reserved, IGEP® is a registered trademark from ISEE 2007 SL. The following is
provided for informational purposes only.
DOCU ENT FRO ISEE 2007 S.L. 24-Sep-2010
2
CONTENTS
1
COPYRIGHT NOTICE ................................................................................ 5
2
WARRANTY ............................................................................................. 5
3
ISEE IGEP LINKS ..................................................................................... 6
4
ISEE IGEPv2 EXPANSION FEATURES .......................................................... 7
4.1
INTRODUCTION ................................................................................ 7
4.2
GENERAL SPECIFICATIONS ............................................................... 10
5
IGEPv2 CONNECTION.............................................................................. 16
6
CONNECTORS DESCRIPTION ................................................................... 19
6.1
J201 - POWER JACK .......................................................................... 20
6.2
J301 - POWERTIP 4.3” DATA CONNECTOR ........................................... 21
6.3
J302, J303 and J304 - SEIKO 7” CONNECTORS .................................... 22
6.4
J405 - ODE GS /GPRS SI CARD CONNECTOR ................................ 23
6.5
J404 - ODE GS /GPRS EXTERNAL ANTENNA CONNECTOR ................ 24
6.6
J501, J502 - VIDEO CO POSITE INPUTS CONNECTOR .......................... 25
6.7
J601 and J602 - UART1 HEADER CONNECTOR...................................... 26
6.8
J603 - RS232 HEADER CONNECTOR ................................................... 27
6.9
J604 - RS232 DB9 CONNECTOR ......................................................... 28
6.10
J703 - CAN BUS CONNECTOR ......................................................... 29
6.11
J801 - VGA CONNECTOR ................................................................ 30
6.12
J5 - CA ERA CONNECTOR .............................................................. 31
6.13
J990 - IGEPv2 EXPANSION CONNECTOR .......................................... 32
6.14
J960 - IGEPv2 EXPANSION CONNECTOR .......................................... 33
6.15
JA41 - IGEPv2 EXPANSION CONNECTOR .......................................... 34
6.16
JA42 - IGEPv2 EXPANSION CONNECTOR .......................................... 35
6.17
JC30 - IGEPv2 EXPANSION CONNECTOR .......................................... 36
IGEPv2 EXPANSION BOARD HARDWARE USER ANUAL
ISEE 2007 SL. All rights reserved, IGEP® is a registered trademark from ISEE 2007 SL. The following is
provided for informational purposes only.
DOCU ENT FRO ISEE 2007 S.L. 24-Sep-2010
3
7
ECHANICAL SPECIFICATION .................................................................. 37
8
BOARD REFERENCE ................................................................................ 38
9
LIST OF FIGURES ................................................................................... 39
10
CHANGELOG .......................................................................................... 41
IGEPv2 EXPANSION BOARD HARDWARE USER ANUAL
ISEE 2007 SL. All rights reserved, IGEP® is a registered trademark from ISEE 2007 SL. The following is
provided for informational purposes only.
DOCU ENT FRO ISEE 2007 S.L. 24-Sep-2010
4
VERSION CONTROL
REVISION
DATE ORIGIN DESCRIPTION
00 15/07/2010
PR Initial version
01 1/09/2010 PR Document release
IGEPv2 EXPANSION BOARD HARDWARE USER ANUAL
ISEE 2007 SL. All rights reserved, IGEP® is a registered trademark from ISEE 2007 SL. The following is
provided for informational purposes only.
DOCU ENT FRO ISEE 2007 S.L. 24-Sep-2010
5
1COPYRIGHT NOTICE
This document is copyrighted, 2010, by ISEE 2007 SL. All rights are reserved. ISEE
reserves the right to make improvements to the products described in this manual
at any time without notice. No part of this manual may be reproduced, copied,
translated or transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer assumes
no responsibility for its use, nor for any infringements upon the rights of third
parties which may result from its use.
2WARRANTY
Should this board not meet the specifications indicated in the User’s Guide, the
board may be returned within 30 days from the date of delivery for a full refund.
THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY
SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
The user assumes all responsibility and liability for proper and safe handling of the
goods. Further, the user indemnifies ISEE 2007 SL from all claims arising from the
handling or use of the goods. Due to the open construction of the product, it is the
user’s responsibility to take any and all appropriate precautions with regard to
electrostatic discharge.
EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER
PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
ISEE 2007 SL currently deals with a variety of customers for products, and
therefore our arrangement with the user is not exclusive. ISEE assumes no liability
for applications assistance, customer product design, software performance, or
infringement of patents or services described herein.
Please read specifically, the Warnings and Restrictions notice in this manual prior to
handling the product. This notice contains important safety information about
temperatures and voltages. For additional information on IGEP environmental
and/or safety programs, please contact with ISEE (support@iseebcn.com).
IGEPv2 EXPANSION BOARD HARDWARE USER ANUAL
ISEE 2007 SL. All rights reserved, IGEP® is a registered trademark from ISEE 2007 SL. The following is
provided for informational purposes only.
DOCU ENT FRO ISEE 2007 S.L. 24-Sep-2010
6
No license is granted under any patent right or other intellectual property right of
ISEE covering or relating to any machine, process, or combination in which such
ISEE products or services might be or are used.
3ISEE IGEP LINKS
IGEP platform web site: http://www.igep.es
ISEE IGEP wiki: http://labs.igep.es
ISEE shop: https://shop.igep.es
ISEE Software Repositories: http://git.igep.es
IGEPv2 EXPANSION BOARD HARDWARE USER ANUAL
ISEE 2007 SL. All rights reserved, IGEP® is a registered trademark from ISEE 2007 SL. The following is
provided for informational purposes only.
DOCU ENT FRO ISEE 2007 S.L. 24-Sep-2010
7
4ISEE IGEPV2 EXPANSION FEATURES
4.1 INTRODUCTION

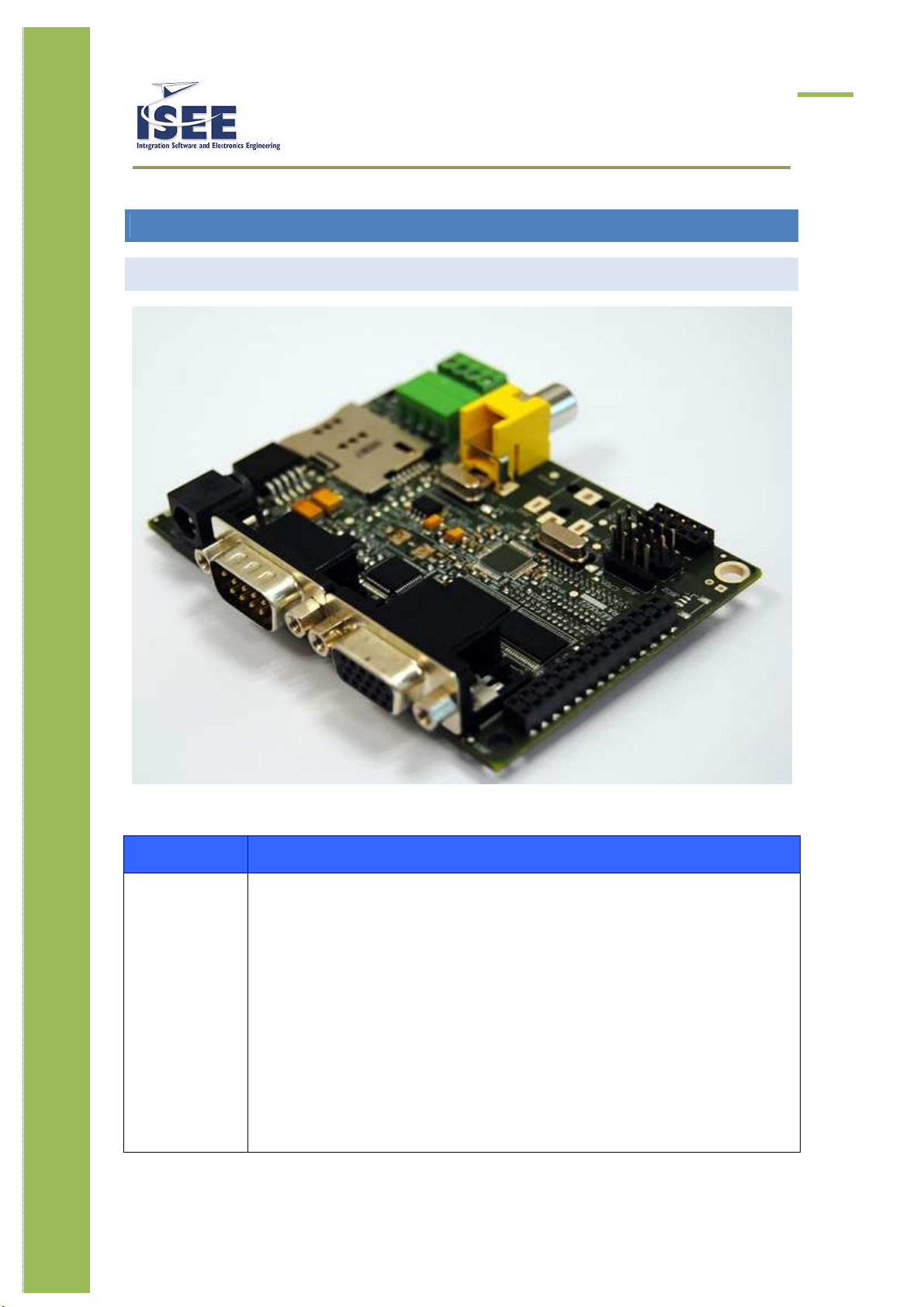

F gure 1 ISEE IGEPV2 EXPANSION
Description
Interfaces Modem GSM/GPRS based on TELIT GE865 module with SIMCARD
connector and external cable Antenna.
LCD and touch interface for 7.0 inch SEIKO LCD: 3 connectors (40pin FFC
for TFT interface + 4pin FFC for touch + 6pin FFC for LED backlight).
LCD and touch interface for 4.3 inch POWERTIP LCD: 40pin FFC for TFT
interface, touch and LED backlight).
VGA interface on D-SUB15 connector.
2 x video composite inputs on RCA connector. Video Decoder based on
TEXAS Video Decoder TVP5150.
IGEPv2 EXPANSION BOARD HARDWARE USER ANUAL
ISEE 2007 SL. All rights reserved, IGEP® is a registered trademark from ISEE 2007 SL. The following is
provided for informational purposes only.
DOCU ENT FRO ISEE 2007 S.L. 24-Sep-2010
8
Camera interface for e-con Systems e-CAM32_OMAP module.
CAN bus interface with 4 pin connector. CAN interface based on MICROCHIP
MCP2515 CAN controller.
LVDS video serializer (MAX9247) (Optional)
Serial port on DB9 connector
Electrical Supply Voltage from 5 VDC +-10% from IGEPv2 board or 5VDC through
Power Jack connector
Power consumption: from 260mA to 500mA
Note: The electrical design for the Power supply should be made ensuring it
will be capable of a peak current output of at least 2 A.
Connectors 1 x DB9 for serial RS232 interface
2 x RCA for video composite input
1 x DB15 for VGA interface
1 x SIMCARD connector for MODEM GSM/GPRS
1 x Terminal block 5mm 4 pin
4 x Header for IGEPv2 interface
Environmental
-40..+85 C temperature range / -25.. 80ºC / 0..70ºC
Indicators 1 x bicolor SMD led (green/red) for MODEM status
2 x bicolor SMD led (green/red) for CAN interface
WARNING: IGEPv2 EXPANSION CAN ONLY BE POWERED WITH
5VDC THROUGH J201 and J990 CONNECTORS
OR THE BOARD WILL BE DAMAGED!
IGEPv2 EXPANSION BOARD HARDWARE USER ANUAL
ISEE 2007 SL. All rights reserved, IGEP® is a registered trademark from ISEE 2007 SL. The following is
provided for informational purposes only.
DOCU ENT FRO ISEE 2007 S.L. 24-Sep-2010
9
F gure 2 IGEPv2 EXPANSION Top v ew
F gure 3 IGEPv2 EXPANSION Bottom v ew
The following sections provide more detail on each feature and components on the
ISEE IGEPV2 EXPANSION.
IGEPv2 EXPANSION BOARD HARDWARE USER ANUAL
ISEE 2007 SL. All rights reserved, IGEP® is a registered trademark from ISEE 2007 SL. The following is
provided for informational purposes only.
DOCU ENT FRO ISEE 2007 S.L. 24-Sep-2010
10
4.2 GENERAL SPECIFICATIONS
LCD Interface
IGEPv2 EXPANSION board can be directly connected to a SEIKO 7” LCD or to a
POWERTIP 4.3” LCD.
F gure 4 LCD v ew
IGEPv2 EXPANSION board integrates LCD backlight driver (Texas instruments
TPS61081) and touch screen controller (Texas instruments TSC2046), 4-wire touch
screen controller which supports a low-voltage I/O interface from 1.5V to 5.25V.
POWERTIP 4.3” LCD features:
