HPT Series
3-Phase Grid-tied Solar Inverters
USER MANUAL
CATALOGUE
1. SYMBOLS ON THE LABEL .................................................................................. 4
2. SAFETY AND WARNINGS .................................................................................. 4
3. UNPACKING ......................................................................................................... 5
3.1 Scope of Delivery .............................................................................................................. 5
3.2 Product Overview ............................................................................................................. 6
4. INSTALLING ......................................................................................................... 7
4.1 Installation Requirement .................................................................................................. 7
4.2 Mounting Location ........................................................................................................... 8
4.3 Mounting ........................................................................................................................... 9
4.4 Installing the PE cable ...................................................................................................... 9
5. COMMISSIONING ............................................................................................. 10
5.1 Safety Instructions .......................................................................................................... 10
5.2 AC Wire Assembly and Connection .............................................................................. 11
5.3 DC Wire Assembly and Connection .............................................................................. 12
5.4 Residual Current Protection ........................................................................................... 12
6. COMMUNICATION ........................................................................................... 13
6.1 System monitoring via Datalogger - RS485/Wi-Fi /GPRS (Optional) ........................ 13
6.2 Output Efficiency Control via Smart Meter ................................................................... 14
6.3 Demand Responsive Modes（DRMs） ........................................................................ 15
7. START UP AND OPERATION ........................................................................... 17
7.1 Safety Check Before Start Up ......................................................................................... 17
7.2 Inverter LED Indicators ................................................................................................... 18
7.3 Display and Control Logics ............................................................................................ 19
8. DISCONNECTING FROM VOLTAGE RESOURCES ......................................... 20
9. TECHNICAL PARAMETERS ............................................................................... 21
10. TROUBLE SHOOTING ................................................................................... 26
11. SYSTEM MAINTENANCE .............................................................................. 31
12. CERTIFICATES ................................................................................................ 32
HPT USER MANUAL 4

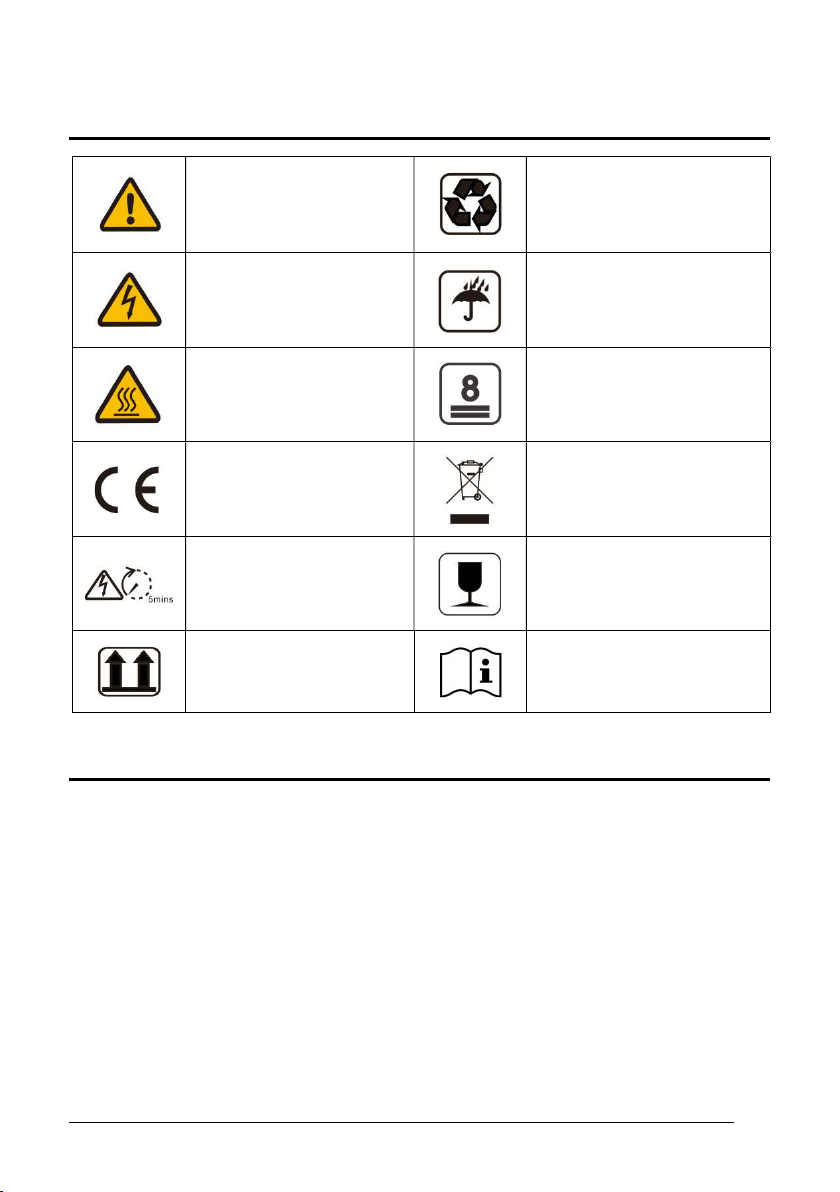

1. SYMBOLS ON THE LABEL
DANGER, WARNING AND
CAUTION
RECYCLABLE AND REUSABLE
HIGH VOLTAGE
AVOID CONTACT
AVOID DAMP AND MOISTURE
HIGH TEMPERATURE
AVOID CONTACT
SHIPMENT STACK LIMIT: 8
CE MARKS
DO NOT DISPOSE WITH
HOUSEHOLD WASTE
PROCEED OPERATIONS
AFTER 5 MINUTES
DISCHARGE
BREAKABLE ITEM
PLACE UPWARDS USER MANUAL IN PACK
2. SAFETY AND WARNINGS
1. All persons who are responsible for mounting, installation, commissioning,
maintenance, tests, and service of HYPONTECH inverter products must be suitably
trained and qualified for corresponding operations. They MUST be experienced and
have knowledge of operation safety and professional methods. All installation
personnel must have knowledge of all applicable safety information, standards,
directives, and regulations.
2. The product must ONLY be connected and operated with PV arrays of protection
class II, in accordance with IEC 61730, application class A. The PV modules must also
5 HPT USER MANUAL
be compatible with this product. Power resources other than compatible PV arrays
MUST not be connected and operate with the product.
3. When designing or constructing a PV system, all components MUST remain in their
permitted operating ranges, and their installation requirements MUST always be
fulfilled.
4. Under exposure to sunlight, the PV array may generate dangerous output in DC
voltage. Contacts with the DC wires, conductors and live components in the inverter
may result in lethal shocks.
5. High voltages in inverter could cause lethal electrical shocks. Before proceeding any
work, including maintenance and/or service, on the inverter, fully disconnect it from
all DC input, AC grid and other voltage sources. There MUST be a 5-minute waiting
time after the full disconnection.
6. The DC input voltage of the PV array MUST never exceed the maximum input
voltage of the inverter.
7. DO NOT touch parts of the inverter during operation as heat will be induced and
these parts will exceed 60℃.
3. UNPACKING
3.1 Scope of Delivery
Please inspect and check for completeness in the scope of delivery. Confirm with
purchase order.
INVERTER MOUNTING
BRACKET
MOUNTING
ACCESSORIES
DC PLUGS
(SEALED)
AC
CONNECTOR
COMMUNICATIO
N DATALOGGER
(OPTIONAL)
DOCUMENTS
1 1 1 2 1 1 1
HPT USER MANUAL 6
3.2 Product Overview
1 LED&LCD or LED
2 DC Switch
3 PV Terminal (s)
4 COM1: Wi-Fi/GPRS (Optional)
5 COM2: RS485/METER/DRED
6 Secondary PE Terminal
7 AC Terminal
7 HPT USER MANUAL
4. INSTALLING
4.1 Installation Requirement
1. Please install the inverter(s) in places that can avoid inadvertent contact.
2. Installation method, location and surface must be fitting for the inverter’s weight and
dimensions.
3. Please install the inverter in an accessible location for operation, future maintenance
and service.
4. The inverter performance peaks at ambient temperature lower than 45℃.
5. When installing in residential or domestic environment, it is recommended to install
and mount the inverter on a solid, concrete wall surface. Mounting the inverter on
composite or plaster boards or walls with similar materials would induce noise during
its operation and is therefore not recommended.
6. DO NOT cover the inverter NOR place any objects on top of the inverter.
7. To ensure sufficient room for heat dissipation and maintenance, the clearing space
between inverter(s) and other surroundings is indicated below for reference:
8. Avoid direct exposure to sunlight and rain and snow layup.
HPT USER MANUAL 8
4.2 Mounting Location
1. DO NOT mount the inverter near any inflammable materials.
2. DO NOT mount the inverter near any explosive materials.
3. DO NOT mount the inverter on tilting surface over 15° backwards. Please mount the
inverter on a vertical wall surface.
4. DO NOT mount the inverter on any surfaces tilting forward or to either sides.
5. DO NOT mount the inverter on a horizontal surface.
6. For easy installation and operation, please mount the inverter on a height that the
display could match eye level.
7. The bottom side where all commissioning terminals are equipped MUST always point
downwards.
9 HPT USER MANUAL

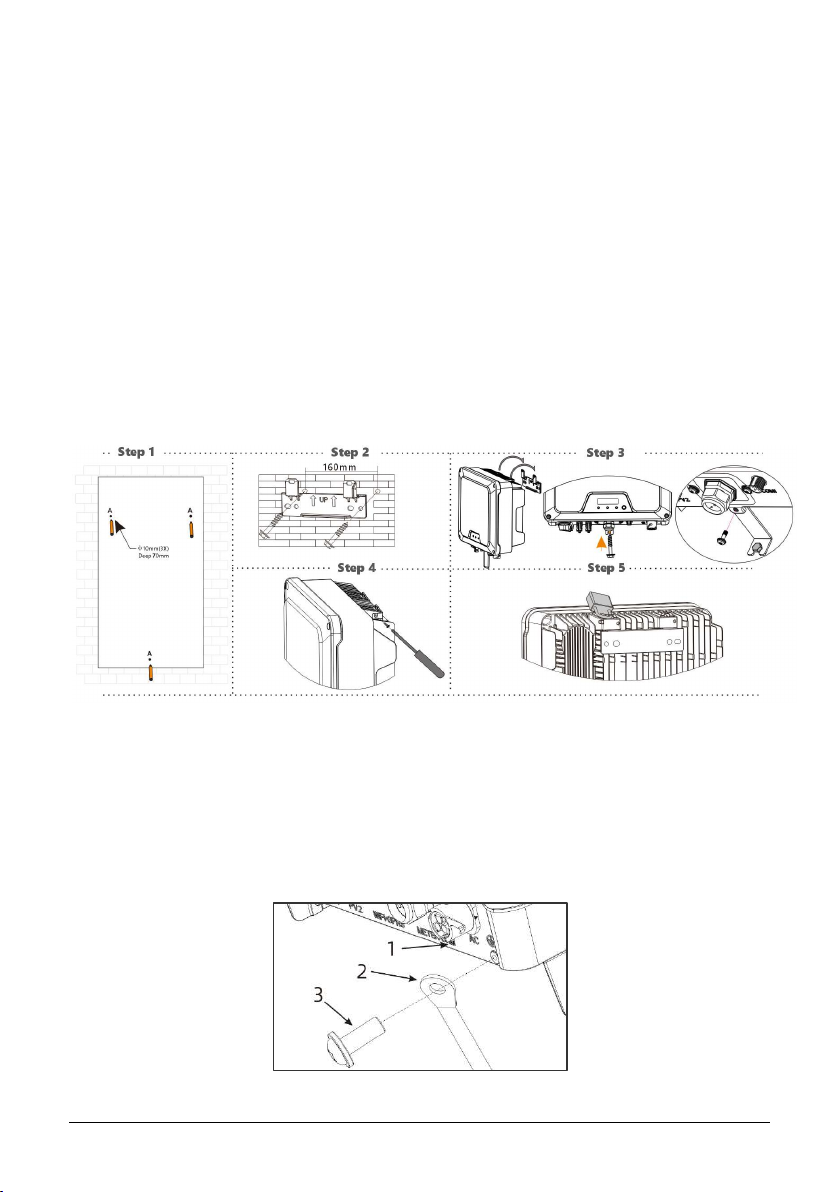

4.3 Mounting
1. Use the mounting paper guide as a template and drill holes of 10mm diameter and
70mm depth.
2. Fix the mounting bracket with the screws and expansion bolts packed in mounting
accessories.
3. Hold up the inverter and tilt it slightly forward. Hang up the inverter and attach it to
the mounting bracket. Check both sides of the heat sink to ensure its stably attached.
4. Use M5 screws (T25 screwdriver, torque 2.5 Nm) to attach the heat sink fins to the
mounting bracket.
5. It is recommended to attach the anti-theft lock to the inverter. Lock diameter φ4-
5.5mm recommended.
4.4 Installing the PE cable
1. Insert the grounding conductor into the suitable terminal lug and crimp the contact.
2. Align the terminal lug with the grounding conductor and the ground washer on the
screw. The teeth of the ground washer must be facing the housing.
3. Tighten it firmly into the housing (screwdriver type: T25, torque: 2.5Nm).
HPT USER MANUAL 10
Information on grounding components:
Object Description
1 Housing
2 M5 terminal lug with protective conductor
3 M5×12 pan head screw
5. COMMISSIONING
5.1 Safety Instructions
1. Measure the frequency and voltage of grid connection and make sure they follow the
inverter’s grid connection specifications.
2. An external circuit-breaker on the AC side (or a fuse) at 1.25*AC rated current is
strongly recommended.
3. Reliability of all earth connections must be tested and valid.
4. Before commissioning, disconnect the inverter and the circuit-breaker or fuse, and
prevent accidental reconnection.
