Hyco Scirocco SC2000Y Hoja de especificaciones

Product Instruction anual

Scirocco

SC2000Y, SC2000YM, SC2000YMT

Convector heater

This product is only suitable for well insulated spaces

or occasional use

V18.3,5

Thank you for purchasing the Scirocco convector heater. The SC2000Y

and SC2000Y standard convectors come complete with thermostat and

three heat settings; the SC2000YT model also includes a 24hr timer. The

Scirocco convector heater is ideal for portable heating applications in the

home and office environment. Please read and understand these

instructions before commencing assembly and use, and leave them with

the user when assembly is complete.

1. Im ortant safety oints

Only connect the unit to a single-phase supply with a mains voltage as specified

on the rating plate.

Do not carry the appliance by the supply cord.

The supply cord cannot be replaced by the user. If the cord is damaged the

appliance should be returned to the manufacturer or an authorised service agent

for replacement.

Always keep the outlet and inlet grilles clean.

Do not cover the inlet or outlet as it may cause overheating.

Children of less than 3 years should be kept away unless continuously

supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the

appliance provided it has been placed or installed in its intended normal

operating position and they have been given supervision or instruction

concerning use of the appliance in safe way and understand the hazards

involved. Children aged from 3 years and less than 8 years shall not plug in,

regulate and clean the appliance or perform user maintenance.

Do not use this heater in the immediate surroundings of a bath, a shower or

a swimming pool.

2. Installation

Do not use the heater on a carpet with a deep pile.

Do not locate beneath a shelf or similar protrusion.

Do not position near any combustible materials, curtains or other furnishings.

The supplied feet must be fitted prior to operation.

Assembly

•Holes are provided at the base of the heater.

Select the two holes (on opposite corners)

as shown in the diagram.

•Align the holes in the feet with those on the

base of the heater and attach using the small

self-tapping screws provided.

3. Electrical connection

This heater is intended solely as a portable appliance; only operate using the power

cord and 13 amp plug supplied.

If the plug needs changing, make the connections as:

•Brown / Red: L

•Blue / Black: N

•Green / Yellow: E

4. O eration

Ensure the supply cable is fully uncoiled when in use.

Ensure the supply cable is not in contact with the main body of the heater during

operation as it may become very hot.

•To turn on the appliance, select the desired power setting.

1 = 750W

2 = 1250W

1&2 = 2000W

•Turn the thermostat to max (fully clockwise). When

the room reaches the desired comfort level, adjust

the thermostat down (anti-clockwise) until a click is

heard and the lights on the power switches turn off.

The heater will now maintain the current

temperature. Due to the mechanical nature of the

thermostat, temperature levels may vary by a few

degrees on each heating cycle.

•It is advised the lowest adequate heat setting is

selected to maintain the desired level of comfort.

Timer feature – SC2000YMT model only

•To set the current time on the 24hr segment timer, twist the outer ring until the

pointer is aligned with the correct time.

•If the heater is unplugged the timer will stop keeping time and it must be set again.

•The slide switch on the timer offers three settings:

I = On permanently (non-timed).

Clock = Timer regulated operation.

O = Off permanently (non-timed).

•To set the times of operation, pull out each segment for ON or push back in for OFF.

Each segment represents 15 minute slots.

5. Maintenance

Always isolate the appliance from the power supply prior to the commencement

of any maintenance.

Do not use abrasive chemicals or materials.

•Clean the exterior with a damp cloth.

•Remove debris from the inlet and outlet at regular intervals using a soft brush

or vacuum cleaner.

Slide Switch

Segment

Pointer

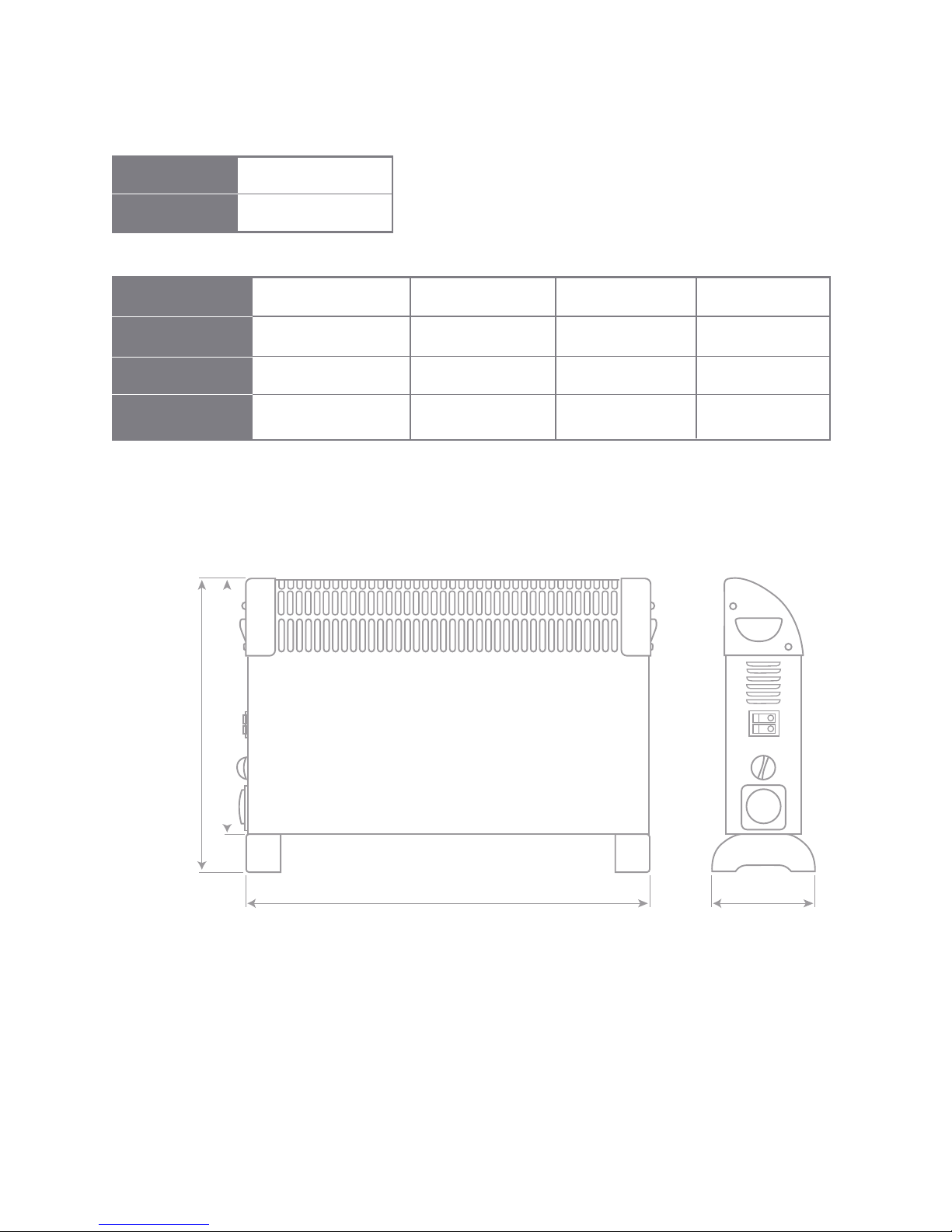

6. S ecifications

Voltage 230v~50Hz

Power 750-2000W

Model Height (mm) Width(mm) Depth(mm) Weight(kg)

SC2000Y 420 580 200 3.0

SC2000YM 385530 200 2.5

SC2000YMT 385530 200 2.5

7. Guarantee and service olicy

This product is guaranteed against faulty materials and manufacture for a period of one

year from the date of purchase. Hyco will in its sole discretion replace, repair or refund

any faulty unit. Incorrect installation and failure to follow correct operating instructions

are excluded. Consequential costs such as labour charges or damage to surroundings

are expressly excluded.

Model identifier(s): SC2000Y, SC2000YM, SC2000YMT

Item Symbol Value Unit Item Unit

Heat output Type of heat input, for electric storage local

space heaters (select one)

Nominal heat output Pnom 2.0 kW manual heat charge control with

integrated thermostat

Minimal heat output

(indicative) Pmin 0.75 kW

manual heat charge control with

room and/or outdoor

temperature feedback

Maximum continuous

heat output

Pmax,

c 2.0 kW

electronic heat charge control

with room and/or outdoor

temperature feedback

Auxiliary electricity consumption fan assisted heat output No

At nominal heat

output elmax 0 kW Type of heat output/room temperature

control (select one)

At minimum heat

output elmin 0 kW single stage heat output and no

room temperature control

In standby mode elSB 0 kW two or more manual stages, no

room temperature control

with mechanic thermostat room

temperature control

Yes

with electronic thermostat room

temperature control

electronic room temperature

control plus day timer

electronic room temperature

control plus week timer

Other control options (multiple selections

possible)

room temperature control, with

presence detection

room temperature control, with

open window detection

with distance control option No

with adaptive start control No

with working time limitation No

with black bulb sensor No

Contact details: Hyco Manufacturing Ltd, Castleford WF10 5NR www.hyco.co.uk

hyco.co.uk

Hyco anufacturing Ltd

Normandy Court

Express Way

Castleford, WF10 5NR

T 01924 225 200

F 01924 225 210

E [email protected]

INFOR ATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE

EUROPEAN DIRECTIVE 2012/19/EU.

At the end of its working life this equipment must not be disposed of as household

waste. It must be taken to a local authority waste collection centre or to a dealer

providing this service. Disposing of electrical and electronic equipment separately

enables its components to be recovered and recycled to obtain significant savings in

energy and resources. In order to underline the duty to dispose of this equipment

separately, the product is marked with a crossed out dustbin.
