HUUM CLIFF Manual de usuario

CLIFF

ELECTRIC SAUNA HEATER 3–12

SAUNA ELEKTRIKERIS 13–22

SÄHKÖKIUKAAN 23–32

ELEKTRISCHER SAUNAOFEN 33–42

43–52

ELEKTRISKT BASTUAGGREGAT 53–62

STUFA ELETTRICA PER SAUNA 63–72

PIEC ELEKTRYCZNY DO SAUNY 73–82

ELEKTRICKÁ SAUNOVÁ PEC 83–92

93–102

POÊLE ÉLECTRIQUE

info@huum.eu www.huum.eu

CLIFF

ELECTRIC SAUNA HEATER

Installation and operation manual

NB! The following instructions for electrical works must be carried out

The product must be installed as a complete set. The HUUM CLIFF

electric sauna heater delivery set contains:

• electric heater;

• installation and operation manual for the electric heater;

• 2 blocks for disassembling the slats of the sauna stove.

NB!

THINGS TO CHECK BEFORE INSTALLATION

• Does the output (kW) match the volume (m³) of the sauna room?

See Table 1.

• In case there are any uninsulated brick, tile or glass walls in the

sauna room, an additional volume of 1,5 m³ should be added to

the sauna room for each such square meter of the wall.

• The suitable output of the heater will be determined based on

Table 1.

• The producer’s warranty guarantee is invalid if the heater and

sauna room have been dimensioned incorrectly!

• Minimal safe distances between the sauna room’s ceiling and

walls in view of installing the electric heater are listed in Table 1.

•

the accompanying brackets. Install the bracket to the heater

6 X 40

55 mm

A A

4 *

Min. 1200

875 mm

835 mm

6 X 40

Table 1 Output

kW Room

Weight

kg A

mm B

mm H

Width/

Depth

Fuse

Power

cable

N × mm2

CLIFF 3,5 15 975 16 3 × 2,5

CLIFF 6 6 16 975 5 × 2,5

CLIFF 9 9 9–15 16 975 16 5 × 2,5

CLIFF 11 17 975 16 5 × 2,5

INSTALLATION

Positioning the heater

• The heater must be positioned in such a way that there is a safe

of the heater. See Figure.

• In installing the heater, it must be prevented that people could

have physical contact with the heater or that other dangerous

situations could emerge during the heating process.

•

the heater.

Connecting the heater to the power supply

•

power supply.

•

used as the connection cable.

• It is recommended to connect the unit to the mains without an

earth-leakage circuit breaker.

•

cable and circuit breaker are listed in Table 1.

NB! It is forbidden to use a non-heat-resistant cable with PVC isolation

•

circuit diagram.

• Close the cover.

•

• Upon stacking the stones, one should monitor that the heating

around the heater elements.

• The stones must be washed clean before laying.

• When the stones have been stacked too close to each other, the

heating elements may overheat (= shorter useful life) and slow the

heating of the sauna.

• Stones with a diameter of 3–6 cm are suitable for the heater.

• Pile up the stones as tightly as possible on the outer surface of

• Only stones specially designed for heaters are allowed to be

used in the heater.

ATTENTION!

L1 N L2L1 NL3

3/N ~ 400V

1/N ~ 230V

CLIFF

Mini 4

CLIFF 6

CLIFF 9

CLIFF 11

Removing the ribs of the heater

threaded rod by 5 mm.

2. Push the props between the ribs of the heater.

3. Release the rib from both ends.

and then the left.

NB! Pull the rib away from the heater without using force or turning the

rib – avoid bending the tenons!

A A

The rib under the removed rib is instantly removable in a similar

fashion.

First-time use of the sauna heater

to be lower than the standard. The reason for that is the moisture

seeped into the insulating layer during storage in the warehouse and

transportation.

The moisture evaporates in 1–2 hours of heating the electric heater.

Controlling the heater

The output of the heater must remain in the interval determined by

the control panel’s producer.

selection of products.

Guard rails

• It is recommended to construct a guard rail around the heater.

We recommend using materials with low heat capacity and bad

thermal conductivity for the guard rail.

•

NB!

SAUNA ROOM

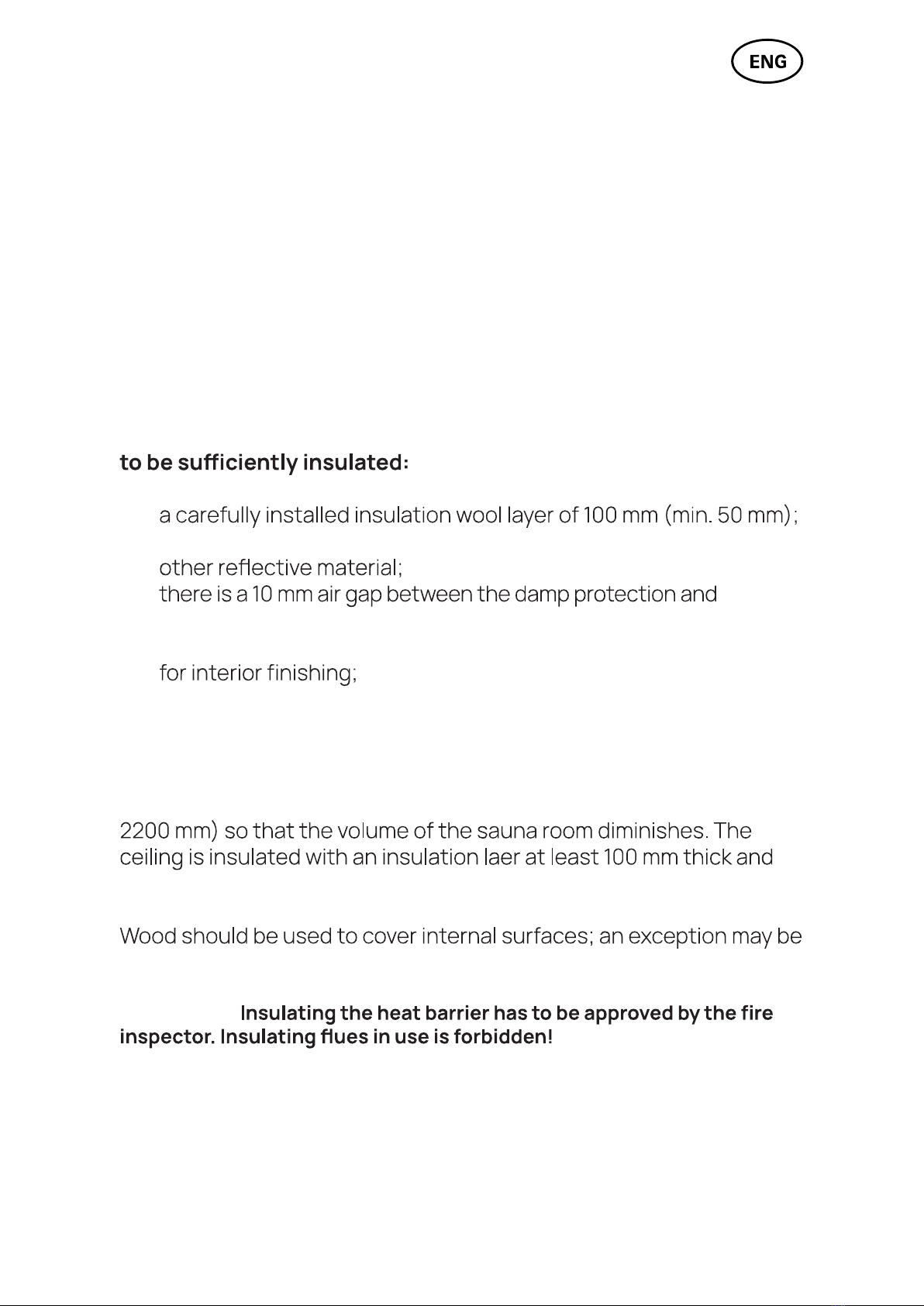

Wall materials and insulating the sauna room

In a sauna with electric heating, all massive heat accumulating wall

surfaces (brick, glass brick, rendering etc.) must be insulated to use

the electric heater with a regular output.

The following sauna wall and ceiling construction is considered

•

• the construction is damp proofed with taped aluminium paper or

•

boarding;

• a light wooden board that is about 12–16 mm thick has been used

• there is an air gap of at least 5 mm on the edge of the ceiling

panels at the upper part of the wall panelling.

In order to use the heater with a regular output, it would be practical

to bring the ceiling of the sauna lower (min. height of sauna room

boarded according to the method described above.

made for heat resistant walls in the vicinity of the heater.

ATTENTION!

NB!

walls or ceiling might cause the dangerous overheating of the wall or

Floor of the sauna room

The heater stones in use crumble due to temperature changes.

The pieces and pebbles breaking away from the heater stones are

Heater stone particles and sprays from the steam-making water (e.g.,

order to avoid aesthetic damage (caused by the reasons mentioned

around the heater.

Ventilation of the sauna

the fresh air into the sauna room from above the heater stones. As an

alternative, the fresh air may be directed in from under the heater.

valve must be installed in the opposite wall from the heater at least
