Hussmann IMPACT P1X Manual de usuario

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P/N 0457220

Note: Changed items have been underlined.

Merchandisers

Item Part # Description Wiring Item #

FAN ASSEMBLIES, AND THERMOSTATS

A. 4W Fan Assembly (1)

0392457 Fan Motor, Evaporator

0376413 Fan Blade

embossing toward motor

B. 0382028 Standard Non-adjustable (2)

Thermostat

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

None

P1X

Data Sheet Set

P/N 0457220

NSF®Certified

November, 2003

Electrical Refrigeration

4 1/8(105)

D5 1/2(140)

1 3/8(35)

4 1/2(114)

29 1/2

(749)

35 1/8

(891)

46 1/4

(1174)

(230)

30 5/8

(778)

27 1/2

(699)

40 5/8

(1032)

4 (102)

Water Seal

(See Note*)

Waste Outlet

4(102)

40 5/8

(1032)

30 1/2

(775)

Front

Dimensions shown as inches and (mm).

8 Ft 12 ft

General

(A) Length of Case (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

Maximum outside dimensions of case back to front (includes bumper) 46 1/4(1174) 46 1/4(1174)

Back of case to front of splashguard 35 1/8 (891) 35 1/8 (891)

Back of case to outside edge of front skidrail 29 1/2 (749) 29 1/2 (749)

Width of skidrail 4 1/2 (114) 4 1/2 (114)

Right end of case to outside edge of external support 5 1/2 (140) 5 1/2 (140)

Distance between inside edges of external support and center support 40 5/8 (1032) 40 5/8 (1032)

Distance between inside edges of center supports NA 44 (1118)

Stub-up area between front skidrail and splashguard 4 (102) 4 (102)

Electrical Service (Electrical Field Wiring connection point)

(B) Right end of case to center of farthest knockout 88 3/8 (2245) 136 1/2 (3467)

Back outside of case to center of knockout 30 1/2 (775) 30 1/2 (775)

Length of electrical raceway 34 1/2(878) 34 1/2(878)

Waste Outlet

(D) Right end of case to center of waste outlet 24 1/8 (613) 72 1/4 (1835)

Back outside of case to center of waste outlet 27 1/2 (699) 27 1/2 (699)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of drip pipe 1 1/2 (38) 1 1/2 (38)

*Note: Water seal outlet must clear front skid rail.

Refrigeration Outlet

Right end of case to center of refrigeration outlet 9 (230) 9 (230)

Back outside of case to center of refrigeration outlet 30 5/8 (778) 30 5/8 (778)

Engineering

Plan Views

Bulk Produce

06-2003

2 of 4 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P1X Data Sheet

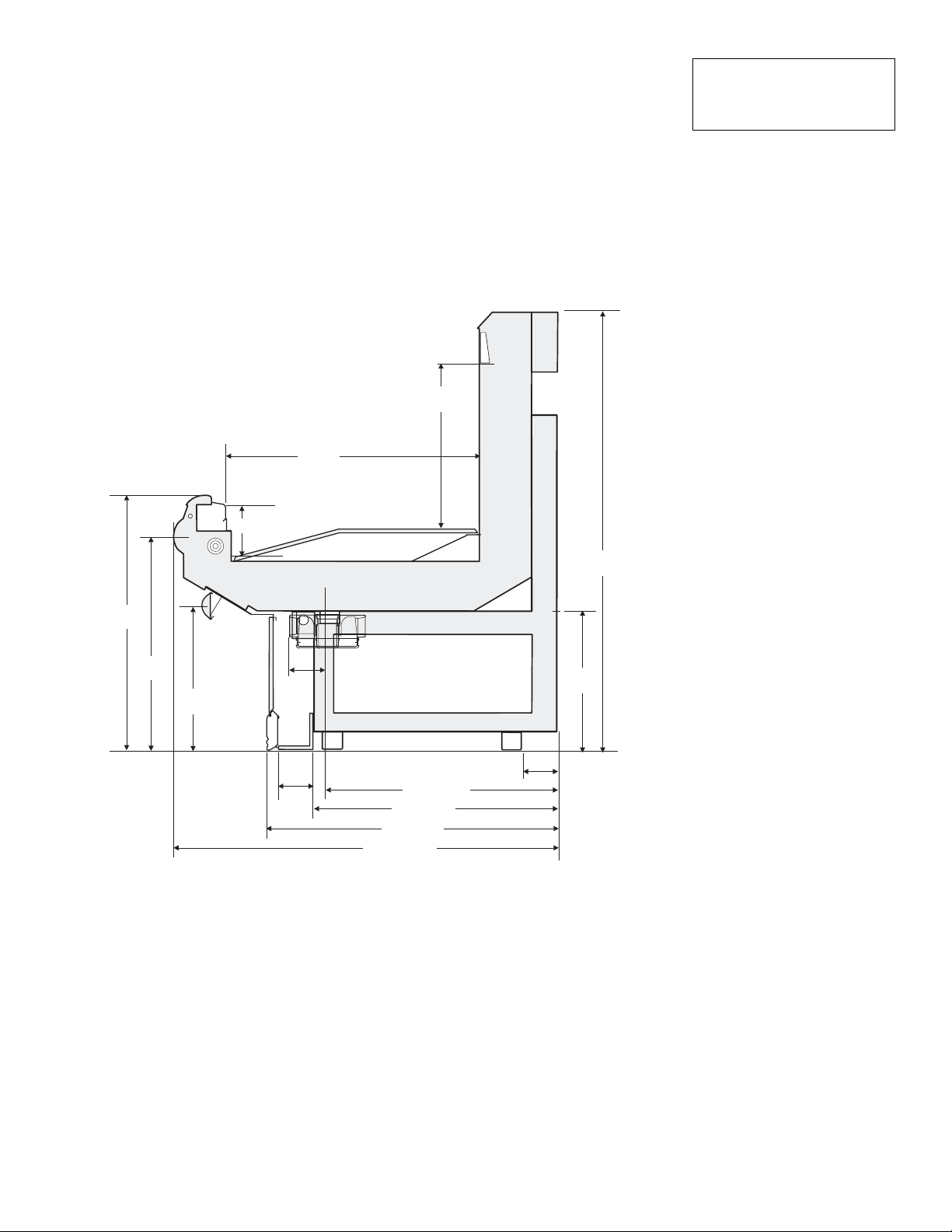

FAN

(102)

6 1/2(165)

P1X

4 1/2

(114)

30 1/8

(765)

27 1/2(699)

30 3/8

(770)

(102)

29 1/2(749)

35 1/8 (891)

46 1/4 (1174)

16 5/8

(421)

53 1/8

(1349)

25 1/2

(648)

17 3/8

(441)

(509)

REFRIGERATION DATA

Note: This data is based on store tempera-

ture and humidity that does not exceed

75°F and 55% R.H. P1X P1XE

Discharge Air °F 31 31

Evaporator °F 21 24

Unit Sizing °F 19 22

Btu/hr/ft** P1X P1XE

Parallel 603 575

Conventional 638 610

**For all refrigeration equipment other than

Hussmann, use conventional BTU values.

DEFROST DATA

P1X P1XE

Frequency (hr) 88

Defrost Water (lb/ft/day) 44

(±15% based on case configuration and

product loading.)

OFFTIME P1X P1XE

Temp Term °F 43°F 43°F

Failsafe Minutes 35 35

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 43°F — open 33°F

CONVENTIONALCONTROLS

Low Pressure Backup Control

P1X P1XE

CI/CO** 14/4°F 17/7°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 5/8

Estimated Charge (lbs)*** P1X P1XE

8 ft 1.5 1.7

12 ft 2.0 2.3

***This is an average for all refrigerant

types actual refrigerant charge may vary by

approximately half a pound.

Length (in.) Added to Lineup by Each

End or Insulated Partition 1 1/2

Impact P1X

Bulk Produce

Single Deck, High Back, 1 Display Level

Dimensions shown as inches and (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF ®) Standard #7 requirements.

3 of 4

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 00457220

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

4 of 4 P1X Data Sheet

Impact P1X

Bulk Produce

Electrical Data 8 ft 12 ft

Number of Fans — 4W 2 3

Amperes Watts

8 ft 12 ft 8 ft 12 ft

Merchandiser

Fans

Standard (120V 60Hz) 0.62 0.93 72 120

Export (230V 50Hz) 0.36 0.54 54 81

Energy Efficient (120V 60Hz) 0.28 0.42 20 30

Constant on Anti-sweat Heaters NA

Cycling Anti-sweat Heaters NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 0.82 1.13

Export (230V 50Hz) 0.56 0.74

With Energy Efficient Fans (120V 60Hz) 0.48 0.62

Maximum Over Current Protection 120V 20 20

Supplemental Gas Heaters NA

208V 1ΦΦElectric Defrost NA

Standard Lighting

None

Optional Lighting

None

Optional Shelf Lighting

None

Defrost

Termination

Thermostat 2

Condensing

Unit

}

Dark Blue

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS GRAYED COMPONENTS IN 12FOOT MODELS ONLY.

Fan Wiring

Offtime Defrost 2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER Fans 1

BROWN BAND

Light Blue

Refrigeration

Thermostat
