Hussmann BEXD-A Manual de usuario

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

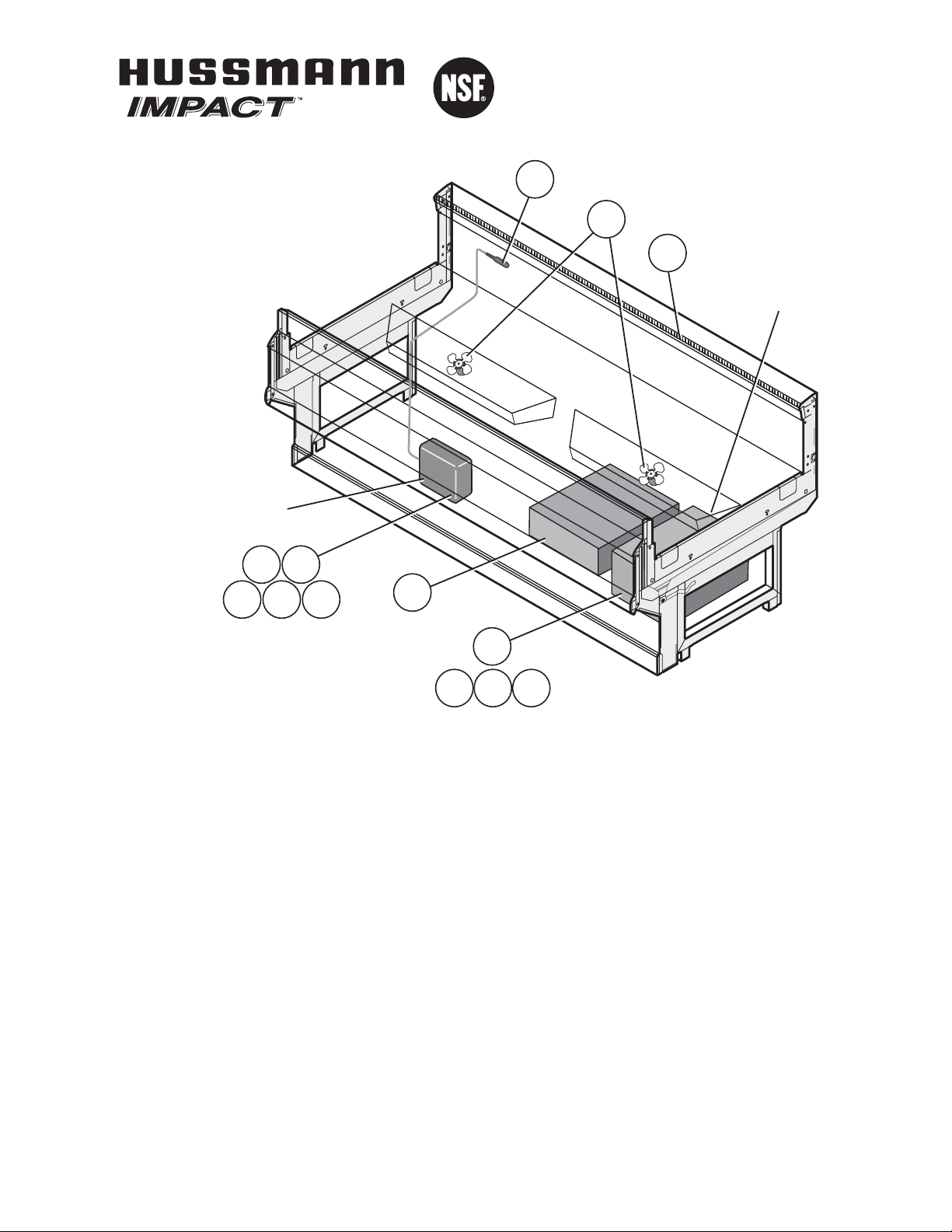

Merchandisers

Control

Panel

Access

Condensing

Unit

Access

KLM

GH I

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. Fan Motor, Evaporator (1)

0392457 Standard

NA Energy Efficient

0409511 Fan Blade

B. 0261933 Standard Adjustable (2)

Refrigeration Thermostat

HEATERS

C. 0401605 Nosing Anti-sweat Heater (3)

D. 0322013 Evaporator Pan Heater (4)

Item Part # Description Wiring Item #

CONTROL PANEL

E. 0106236 Defrost Timer (5)

F. 0019187 Disconnect Switch (6)

G. 0138400 Contactor (7)

H. 0394263 Pressure Control (8)

I 0126065 Fuse (9)

REFRIGERATION

J. 0433426 Condensing Unit Assembly

K. 0403865 TEV

L. 0331344 Sight Glass

M. 0111482 Drier

Note: Changed items have been underlined.

P/N 0441384A

BEXD-A

Data Sheet Set

P/N 0441384A

NSF®Certified

August, 2003

BEXD Data Sheet Set2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

19 5/8

(499)

44 3/8

(1127)

Control Panel

Access

Electrical

Plug Access

Evaporator

Pan

Airflow

Direction

Access

Condensing

Unit

Waste Outlet

Front

53 3/8

(1357)

10 3/8

(263)

39 7/8

(1012)

45 3/4

(1161)

50 1/8

(1274)

101 1/4 (2573)

99 1/4 (2522)

Engineering

Plan Views

BEXD-A

Bakery, Self-Contained

Dimensions shown as in. and (mm).

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (Note: Includes One Pair Ends) — — 99 1/4(2448) —

Optional End Bumpers (One Pair) — — 2 (51) —

Maximum O/S dimension of case back to front — — 53 3/8(1357) —

(Note: Includes bumper)

Back of case to front of splashguard — — 45 3/4(1161) —

Center of rear legs to center of front legs — — 25 5/8(651) —

Waste Outlet

(B) RH end of case to center of waste outlet — — 19 5/8(499) —

3 of 6P/N 0441384A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

43 3/4 (1114)

9 1/4

(234)

45 3/4 (1161)

44 3/8 (1127)

COIL

FAN

16 3/4

(424)

(456)

10 3/4

(277)

53 1/2 (1350)

43 1/4

(1040)

(890)

BEXD

Impact BEXD-A

Bakery, Self Contained

Dimensions shown as in. and (mm). REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H. Schedule defrost at night while

lights are off. BEXD

4 ft 5 ft 8 ft 12 ft

Discharge Air (°F) —— 15 —

Evaporator (°F) —— 11 —

Btu/hr/case ——

4528 —

DEFROST DATA BEXD

Frequency (hr) 12

Defrost Water (lb/ft/day) NA

(± 15% based on case configuration and

product loading).

OFFTIME

Failsafe (minutes) 70

ELECTRIC OR GAS Not Available

Standard Defrost Thermostat NA

CONVENTIONALCONTROLS

Low Pressure Backup Control

BEXD

CI/CO (Temp °F)** 30°/20°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°

**Use a Temperature Pressure Chart to

determine PSIG conversions.

BEXD PHYSICAL DATA

Drip Pipe (in.) 5/8

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)

4 ft —

6 ft —

8 ft 5.5

12 ft —

Length Added to Lineup by:

Each Plastic End w/ Bumper (in.) 3 1/2

Each End 1 1/2

NOTE: The bumper is 4 in. (102 mm) wide. Center of the

bumper is 18 in. (456 mm) from the floor.

Self-Contained, 1 Display Level

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

BEXD Data Sheet Set4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact BEXD-A

Bakery, Self-Contained

Electrical Data

Number of Fans 4 ft 6 ft 8 ft 12 ft

Refrigeration – 4W —— 2 —

120V/60hz System

Export – 9W ——NA—

(Export: 230V 50 hz shown)

Amperes Watts

Merchandiser 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Fans

Standard — — 0.58 — — — 48 —

Energy Efficient — — NA — — — NA —

Export: 230V 50 hz — — NA — — — NA —

Nosing Anti-sweat Heaters (120V) — — 0.67 — — — 80 —

Evaporator Pan Heaters (120V) — — 4.0 — — — 460 —

Minimum Circuit Ampacity

With Standard Fans — — 14.8 —

With Energy Efficient Fans — — NA —

With Export: 230V 50 hz Fans — — NA —

Maximum Over Circuit Protection 120V ——20 —

Condensing Unit

Minimum Circuit Ampacity — — 9.5 —

Compressor LRA — — 33.5 —

Compressor RLA — — 6.7 —

Lighting

Standard 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

None — — NA — — — NA —

Optional

None — — NA — — — NA —

5 of 6P/N 0441384A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS =PARTS LIST ITEM NUMBERS

Grayed components in 12 foot models only.

R = Red G = Green BL = Blue LB = Light Blue DB = Dark Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

208 / 230 / 1 / 60

4 Wire

Timer

Control Box

30A Contactor

Fuse Each Line

Disconnect Switch

Fuse

Block

Dual Pressure Control

Anti-Sweat Heater

Evaporator Fan

Thermostat

Heater

Evaporator Fan

BBW

Black

Ground

Black

15A

Te r m i n a l

Board

Control Panel

BEXD Data Sheet Set6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

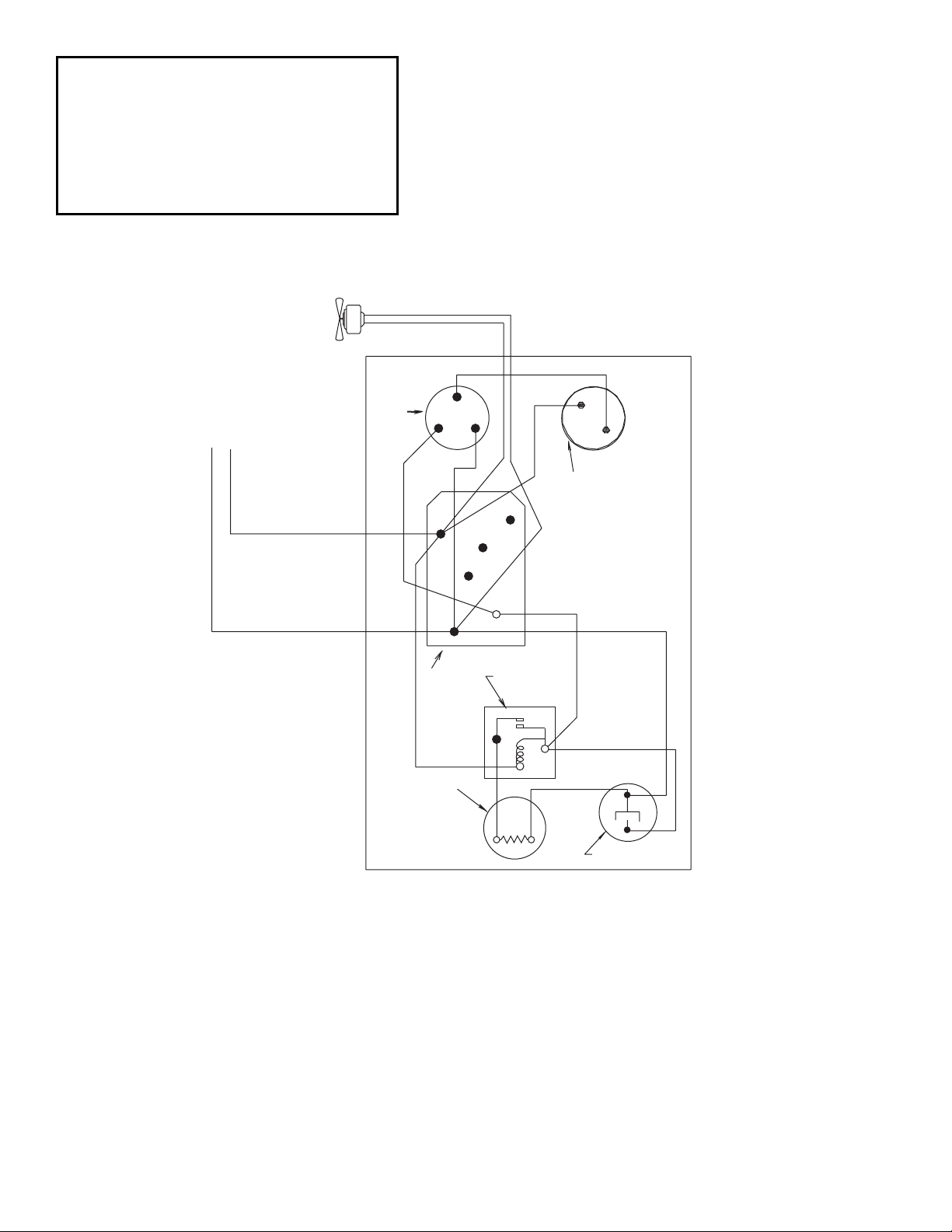

Compressor

Terminal

Block

UNIT 1HP

208 / 230 / 1 / 60

CBlack

Black

Terminal

Board

Protector

Condenser Fan

Red

Yellow

Black Black

CURRENT

RELAY

Yellow

Blue

START CAP

RUN CAP

Control

Panel

Condensing Unit

Terminal Board

(diagram for information only —

board not manufactured by Hussmann)

Typical Condensing Unit
