Husqvarna AUTOMOWER 265 ACX Guía

IPL, Automower 265 ACX,5HY 580 37 85-01, 2012-12

265 ACX

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

2012

AAUTOMOWER 265 ACX

COVER

Page A AUTOMOWER 265 ACX COVER

Position Article Quantity Notes Kit

1 510 14 38-01 1 LID

2 510 14 39-01 1 LATCH

3 535 13 57-01 1 TORSION SPRING

4 522 79 27-02 1 LABEL WARNING

5 575 54 33-10 2 SCREW, Silver 10mm

6 734 11 37-41 2 WASHER

7 535 12 68-01 2 LOCK CLAMP

8 535 13 02-01 2 TORSION SPRING

9 535 13 53-01 2 PIVOT

10 535 13 04-01 1 ANCHOR

11 900 23 87-08 1 TIE WRAP

12 535 08 98-01 1 CLIPS

13 578 78 58-01 1 PLATE

14 535 13 73-04 1 WIRING

15 535 13 59-01 2 CHARGING PLATE 14

16 521 93 61-01 4 COVER WASHER

17 535 13 01-01 2 SPRING

18 535 12 93-03 2 SCREW M6x25

19 575 54 33-06 2 SCREW, White 6mm

20 535 12 93-04 2 SCREW M6x60

21 521 93 60-01 1 SPACER

22 575 54 33-12 1 SCREW, Yellow 12mm

23 574 38 21-01 1 DECAL

24 535 12 78-01 2 SHAFT

25 575 54 33-10 4 SCREW, Silver 10mm

26 510 14 40-01 1 BUTTON

27 575 54 33-12 2 SCREW, Yellow 12mm

28 578 90 33-01 1 KIT, ULTRA SONIC SENSORS

29 510 14 34-01 1 COVER

30 578 89 37-01 1 SUPPORT, Ultra Sonic 28

31 900 23 87-08 1 TIE WRAP 28

32 523 05 59-02 2 WIRING ASSY 28

33 535 13 04-01 1 ANCHOR 28

578 89 35-01 1 BRACKET, right 28

578 89 35-02 1 BRACKET, left 28

35 575 54 33-14 4 SCREW, Grey 14mm

36 535 12 66-02 1 COVER

37 510 14 37-02 1 MAIN BODY

38 505 16 16-01 4 RIVET

39 575 49 18-01 1 BRACKET, right

575 49 71-01 1 BRACKET, left

40 505 13 25-02 2 BRUSH, Wheel

41 575 49 10-01 2 BRUSH HOLDER, Wheel

42 734 11 37-41 2 WASHER

43 575 54 33-14 2 SCREW, Grey 14mm

44 734 11 37-41 2 WASHER

45 535 13 03-40 2 SCREW

46 580 29 26-01 1 BODY, complete kit

BAUTOMOWER 265 ACX

CHASSIS UPPER

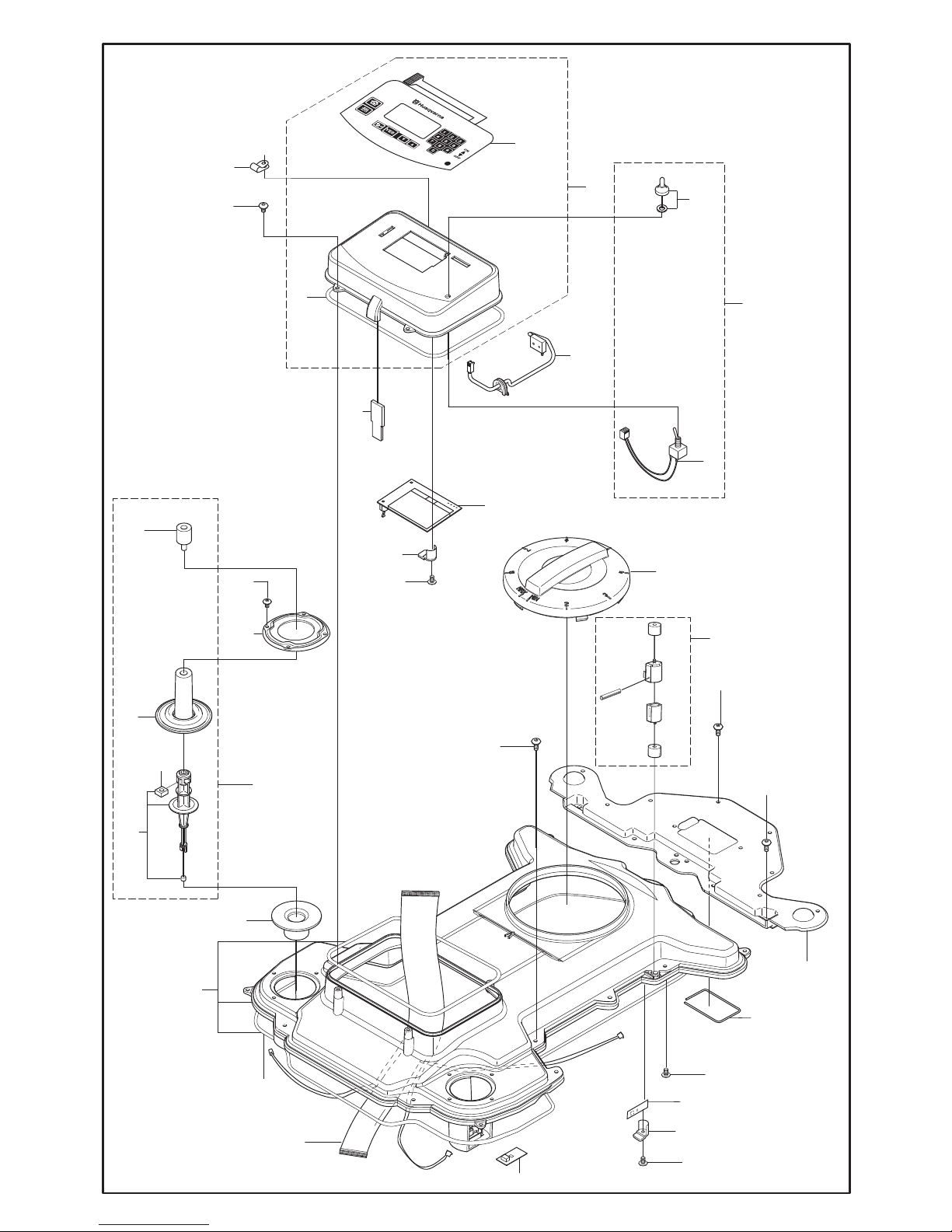

Page B AUTOMOWER 265 ACX CHASSIS UPPER

Position Quantity Notes Kit

1 522 98 59-01 1 KEYBOARD 6

2 577 52 72-01 1 CABLE CLAMP

3 535 10 17-01 1 CAP 10

4 574 45 01-01 4 SCREW

5 575 98 63-01 1 SEALING STRIP (10 pcs) 6, 27

574 87 47-02 1 SEALING STRIP

6 575 94 42-03 1 KIT, DISPLAY COVER

7 535 14 47-01 1 FILTER

8 535 12 39-01 1 MAIN SWITCH 10

9 577 59 23-01 1 SWITCH KIT

10 535 12 39-01 1 KIT, MAIN SWITCH

11 540 06 03-03 1 DISPLAY

12 535 12 79-01 1 BRACKET

13 575 54 33-14 1 SCREW, Grey 14mm

14 535 12 22-01 1 STEERING WHEEL

15 577 67 06-02 2 RUBBER DAMPER 20

16 575 54 33-14 8 SCREW, Grey 14mm

17 505 17 43-01 2 RING FASTENER

18 577 52 58-01 1 RUBBER GAITERS 20

19 503 22 66-01 2 SQUARE NUT 19

20 577 59 84-02 2 KIT, COLUMN

21 579 24 88-01 2 COLUMN 20

22 544 14 15-03 2 KIT, SENSOR

23 575 54 33-14 10 SCREW, Grey 14mm

24 574 45 01-01 12 SCREW

25 574 45 01-01 4 SCREW

26 535 14 32-01 2 DEFLECTION LIMITER

27 575 94 38-01 1 CHASSIS

28 575 98 62-01 1 SEALING STRIP (10 pcs) 27

574 87 47-01 1 SEALING STRIP

29 544 12 69-01 1 WIRING

30 578 78 90-01 2 PCB, Sensor board

31 510 08 66-01 1 BRACKET

32 522 03 93-02 1 SEALING RING

33 535 07 60-02 2 SCREW, M6x10

34 578 78 90-01 1 PCB, Sensor board

35 535 12 79-01 1 BRACKET

36 575 54 33-14 1 SCREW, Grey 14mm

Article

CAUTOMOWER 265 ACX

CHASSIS LOWER

Page C AUTOMOWER 265 ACX CHASSIS LOWER

Position Article Quantity Notes Kit

1 522 59 71-01 2 SCREW 6

2 522 59 72-01 2 WASHER 6

3 576 21 94-01 1 LOOM 6

4 535 12 21-02 1 NUT

5 501 00 37-04 1 MAIN WIRING

6 575 24 24-03 1 KIT, GPS MODULE

7 578 05 61-01 1 CLIP

578 05 61-02 1 CLIP, 50 pcs

8 575 54 33-12 2 SCREW, Yellow 12mm

9 575 54 33-10 4 SCREW, Silver 10mm

10 578 97 43-01 1 MAIN CIRCUIT BOARD (MCB)

11 523 05 60-02 1 WIRING ASSY

12 581 75 78-02 1 ULTRASONIC BOARD (PCB)

13 575 54 33-14 2 SCREW, Grey 14mm

14 578 89 84-01 1 LOOM

15 502 85 96-01 2 SCREW, 2.5x10

16 578 84 87-02 2 BATTERY, Li-Ion

17 579 73 42-01 2 BRACKET

18 501 00 42-01 1 BUZZER

19 579 52 12-01 1 NUT

20 535 13 96-01 1 CABLE HOLDER

21 535 13 03-14 2 SCREW

22 535 12 24-01 2 LOCKING SPRING

23 575 54 33-14 2 SCREW, Grey 14mm

24 734 11 37-41 2 WASHER

25 575 54 33-10 2 SCREW

26 578 78 88-01 2 PCB, Sensor board

27 574 44 98-01 2 WHEEL 47

28 576 01 93-01 2 LOCK WASHER 41

29 576 21 43-01 2 WASHER 41

30 510 14 46-01 2 BALL BEARING 41

31 574 42 74-02 1 PLUG

32 734 11 37-41 1 WASHER

33 575 54 33-14 1 SCREW, Grey 14mm

34 575 94 39-02 1 CHASSIS

35 522 03 93-01 1 SEALING RING

36 575 54 33-14 4 SCREW, Grey 14mm

37 510 08 67-02 1 BRACKET

38 510 14 46-01 2 BALL BEARING 41

39 535 08 78-03 2 WASHER 41

40 505 19 35-01 2 SPINDLE 41

41 574 30 03-02 2 KIT, Front wheel

42 535 13 92-03 2 GASKET 44

43 575 54 33-16 8 SCREW, Orange 16mm

44 544 90 70-03 2 KIT, DRIVE MOTOR

45 544 90 58-03 2 REAR WHEEL

46 574 30 06-01 2 KIT, Bearing 41

47 575 23 17-01 2 WHEEL ASSY 41

48 544 90 51-02 2 HUB CAP 41

49 535 13 94-01 2 SCREW, M8x14

50 504 20 08-01 2 COVER WASHER

51 535 08 78-03 2 WASHER 41, 46

52 510 14 46-01 2 BALL BEARING 41, 46

53 510 14 46-01 2 BALL BEARING 41, 46

54 535 08 78-03 2 WASHER 41, 46

55 521 93 31-02 2 COVER WASHER 41, 46

56 575 50 76-01 6 SCREW 47

DAUTOMOWER 265 ACX

BLADE MOTOR

& CUTTING EQUIPMENT

Page D AUTOMOWER 265 ACX BLADE MOTOR & CUTTING EQUIPMENT

Article Quantity Notes Kit

1 510 14 41-01 1 MOTOR BOWL

2 522 51 06-02 1 CUTTING MOTOR

3 510 14 42-01 1 DISC

4 575 54 33-14 6 SCREW, Grey 14mm

5 525 25 14-01 1 TIE WRAP

6 535 12 23-01 1 RUBBER GAITERS

7 510 06 62-01 1 COLLAR

8 735 21 46-01 1 LOCK WASHER

9 502 23 91-01 1 SCREW

10 575 52 16-01 1 HUB

11 728 83 60-01 1 SCREW, M6x6

12 510 05 86-02 1 CUTTING DISC

13 535 13 05-01 3 SCREW, M4x8

14 577 35 76-01 1 BEARING KIT

15 734 18 14-59 1 WASHER

16 535 07 60-01 1 SCREW, M6x8

17 575 54 72-01 1 O-RING

18 575 52 19-01 1 SKID PLATE

19 575 52 18-01 1 BEARING COVER

20 575 52 95-01 4 SCREW

EAUTOMOWER 265 ACX

CHARGING STATION
